We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this file console with 4 drawers. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

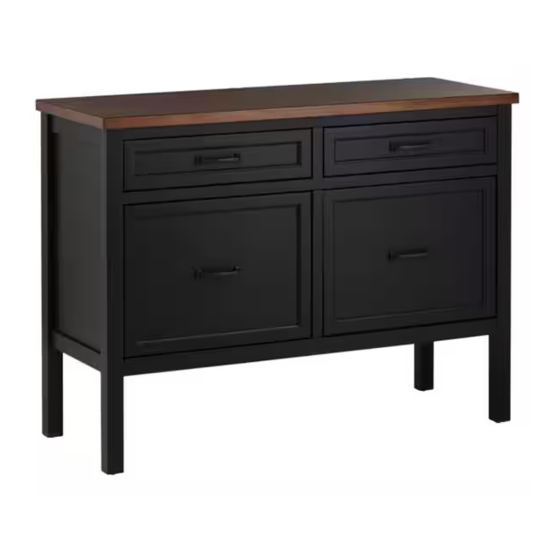

FILE CONSOLE WITH 4 DRAWERS
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1004506068
Model #SK19346E2r2-B-1
Item #100450606
Model #SK19346E2r2-B-2
1-800-998-7021
THANK YOU
Item #1004489668
Model #SK19346E2r2-W-1
Item #1004489669
7
Model #SK19346E2r2-W-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection Appleton SK19346E2r2-B-1
Summary of Contents for Home Decorators Collection Appleton SK19346E2r2-B-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this file console with 4 drawers. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Small drawer right side panel Left side panel Small drawer back panel Right side panel Large drawer front panel Crossbar Large drawer left side panel Top partition Large drawer right side panel Fixed panel Large drawer back panel Bottom partition... -
Page 5: Assembly
Assembly Attaching the bottom partition to the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (H). c) Join partition (G) to the panel (H) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □... - Page 6 Assembly (continued) Attaching the fixed panel □ □ a) Install dowel (AA) and bolt (BB) into panel (F). c) Join panel (F) to the partition (G) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 7 Assembly (continued) Attaching the top partition □ □ c) Join partition (E) to the panel (F) with dowel (AA). a) Install dowel (AA) and bolt (BB) into panel (F). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into partition (E).
- Page 8 Assembly (continued) Attaching the left side panel □ a) Install dowel (AA) and bolt (BB) into panel (B). □ c) Join panel (B) to the assembled body with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (F) and (H).
- Page 9 Assembly (continued) Attaching the right side panel and crossbar □ □ c) Join panel (C) and bar (D) to the assembled body a) Install dowel (AA) and bolt (BB) into panel (C). with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (F) and (H).
- Page 10 Assembly (continued) Attaching the top panel □ c) Join panel (A) to the assembled body with dowel (AA). □ a) Install bolt (BB) into panel (A). □ b) Insert lock (CC) into panels (B) and (C), □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. and partition (E).
- Page 11 Assembly (continued) Attaching the back panel □ Tighten panels (S) and (T) to the assembled body with screw (FF) and metal plates (DD) as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Assembling the small drawer □ a) Tighten panels (J) and (K) to panel (I) □ c) Tighten panel (L) to the assembled body with screw (EE). with screw (EE). □ □ b) Side panel (Q) into the grooves on d) Tighten handle (HH) to panel (I) with bolt (GG).
- Page 13 Assembly (continued) Assembling the large drawer □ □ a) Tighten panels (N) and (O) to panel (M) c) Tighten panel (P) to the assembled body with screw (EE). with screw (EE). □ □ b) Side panel (Q) into the grooves on d) Tighten handle (HH) to panel (M) with bolt (GG).
- Page 14 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 15 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
