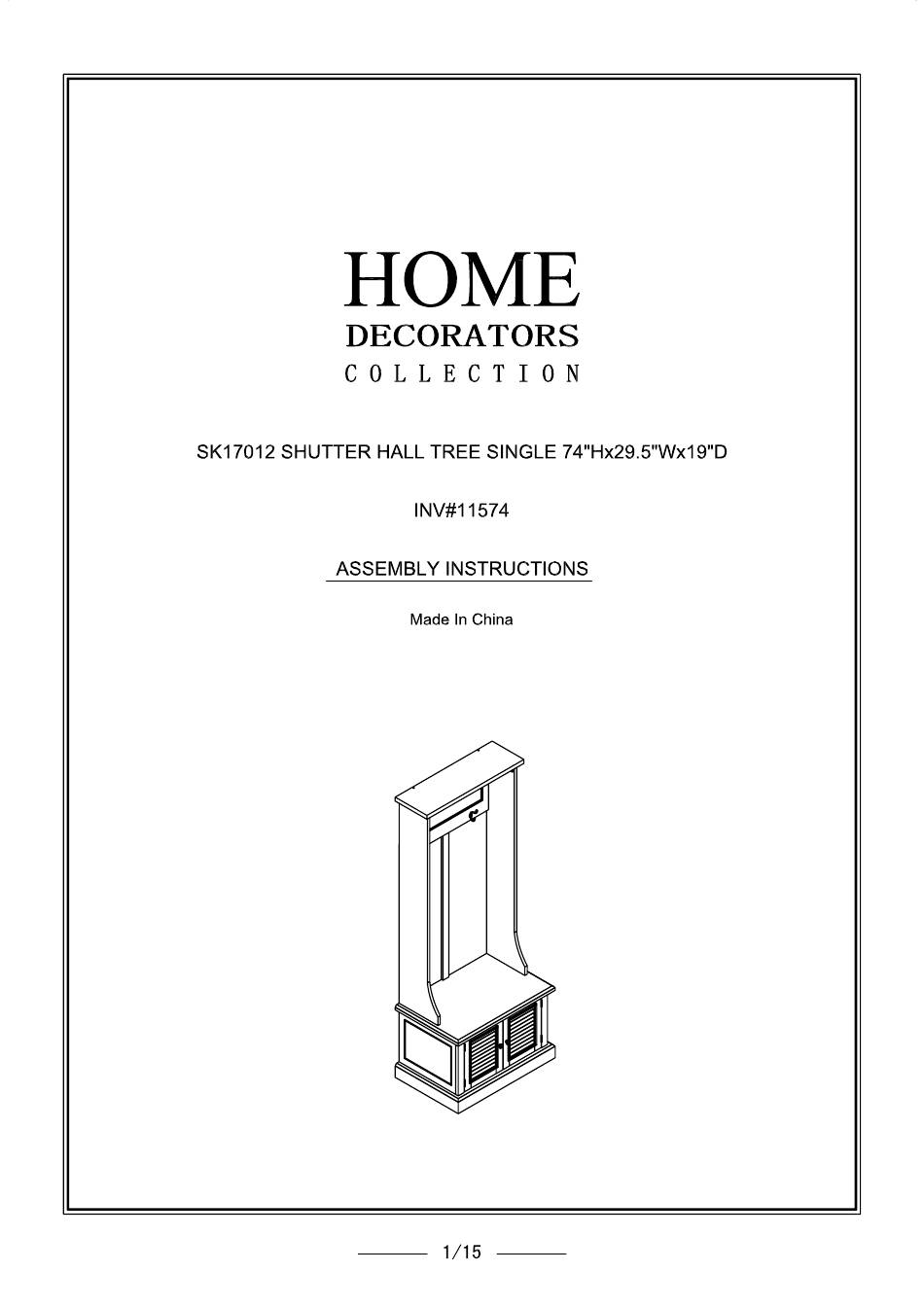

- Page 2 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have came loose inside the carton during shipment. Count all parts and material hardware, then compare with parts list to be sure all parts are present.
- Page 4 NOTE: UPON OPENING, THOROUGHLY CLEAN ALL WOOD SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO THE FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY. PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY ARE TIGHT, THE SHOULDER SHOULD BE SHOULDER AGAINST THE SURFACE OF THE PART.
- Page 5 FIG 1 ● ATTACH THE DOUBLE HOOK (l) TO THE TOP MIRROR FRAME (C) BY USING THE 1/2” L FLAT HEAD SCREW (j). 5/15...
- Page 7 FIG 3 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE TOP PANEL (E). ● JOIN THE TOP PANEL (E) TO THE ASSEMBLED PART BY USING THE WOOD DOWEL (a) FIRST. ● ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES. ●...
- Page 9 FIG 5 ● ATTACH THE MAGNET (i) INTO BOTTOM OF THE FIXED PANEL (F) BY USING THE 5/8” L ROUND HEAD SCREW (d). 9/15...
- Page 11 FIG 7 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE BOTTOM PANEL (H). ● JOIN THE LOWER SIDE PANEL (G) TO THE BOTTOM PANEL (H) BY USING THE WOOD DOWEL (a) FIRST. ● ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES. ●...
- Page 12 FIG 8 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO BOTTOM OF THE FIXED PANEL (F). ● JOIN TWO ASSEMBLED PARTS BY USING THE WOOD DOWEL (a) FIRST. ● ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES. ●...
- Page 15 FIG 11 ● PLACE THE SHELF PIN (n) IN DESIRED POSITION AND PLACE THE ADJUSTABLE SHELF (K) ABOVE THE SHELF PIN (n). 15/15...
