Item # 1004237666
Model # SK19304Dr1-V
Item # 1004237667
Model # SK19304Dr1-M
USE AND CARE GUIDE

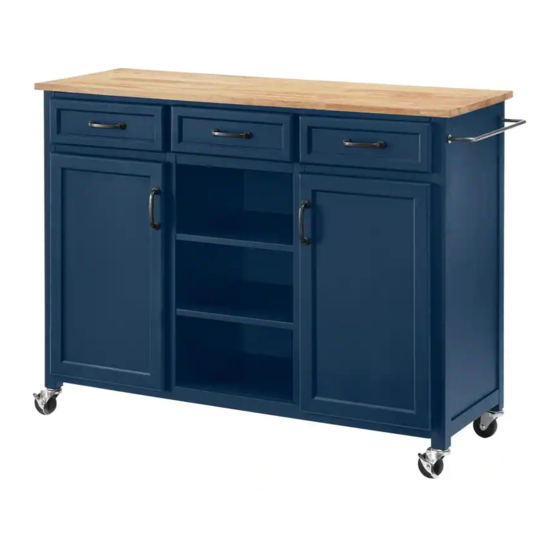

KITCHEN CART
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this kitchen cart. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SK19304Dr1-M
Summary of Contents for Home Decorators Collection SK19304Dr1-M
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this kitchen cart. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Middle back panel Left side panel Bottom panel Right side panel Left door Left partition Right door Right partition Universal wheel Front crossbar Universal wheel with brake Left crossbar Drawer front panel Middle crossbar Drawer left side panel... -
Page 5: Assembly
Assembly Attaching side back panel and fixed panel to right partition □ □ a) Install dowel (AA) and bolt (BB) into partition (E). c) Join panels (M) and (J), and bar (H) to the partition (E). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (M) and (J), and bar (H). - Page 6 Assembly (continued) Attaching the left partition □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join partition (D) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (M) and (J), and bar (H). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 7 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (N). c) Join panel (N) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 8 Assembly (continued) Attaching the side back panel and left crossbar □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join panel (L) and bar (G) to the assembled body with dowel (AA). □ b) Insert lock (CC) into panel (L) and bar (G). □...
- Page 9 Assembly (continued) Attaching the left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panel (B) to the assembled body with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (L) and (N), and bar (G).
- Page 10 Assembly (continued) Attaching the side back panel and right crossbar □ □ a) Install dowel (AA) and bolt (BB) into partition (E). c) Join panel (L) and bar (I) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panel (L) and bar (I). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 11 Assembly (continued) Attaching the metal towel bar to right side panel □ Attach metal (X) to panel (C) with large bolt (EE). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Attaching the right side panel and front crossbar □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join bar (F) and panel (C) to the assembled body with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (L) and (N), and bar (I).
- Page 13 Assembly (continued) Assembling the universal wheel □ Insert wheels (R) and (Q) into panels (B) and (C) as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 14 Assembly (continued) Attaching the top panel □ □ a) Install bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ b) Insert lock (CC) and dowel (AA) into panels (B) and (C), and partitions (D) and (E). □...
- Page 15 Assembly (continued) Assembling the adjustable shelf □ Insert shelf supports (KK) in desired positions and place shelf (K) on the supports. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 16 Assembly (continued) Attaching the door □ a) Attach hinge (GG) to left door (O) and right door (P) with screw (HH). □ b) Attach left door (O) and right door (P) to the assembled body with screw (HH) as shown. Attach handle (II) to left door (O) and right door (P) with the handle bolt (JJ).
- Page 17 Assembly (continued) Assembling the drawer □ □ c) Tighten panel (V) to the assembled body a) Tighten panels (T) and (U) to the panel (S) with screw (FF). with screw (FF). □ b) Slide panel (W) into the grooves on □...
- Page 18 Assembly (continued) Finalizing the assembly □ Insert the six drawers into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
