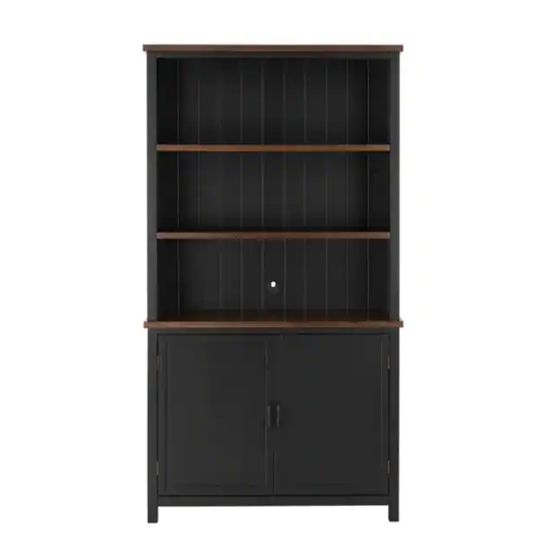

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this two tone file bookcase. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
TWO TONE FILE BOOKCASE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1004489697
Model #SK19346Br2-B-1
Item #1004489696
Model #SK19346Br2-B-2
1-800-998-7021
THANK YOU
Item #1004489667
Model #SK19346Br2-W-1
Item #1004489666
Model #SK19346Br2-W-2
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection Appleton SK19346Br2-B-1
Summary of Contents for Home Decorators Collection Appleton SK19346Br2-B-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this two tone file bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Left door Top panel Right door Top left side panel Top back panel Top right side panel Middle back panel Bottom left side panel Bottom back panel Bottom right side panel Drawer front panel Top crossbar Drawer left side panel... -
Page 5: Assembly
Assembly Attaching the partition to the bottom fixed panel □ □ a) Install dowel (AA) and bolt (BB) into panel (I). c) Join partitions (J) and (K) to the panel (I) with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into partitions (J) and (K). - Page 6 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (L). c) Join panel (L) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into partitions (J) and (K). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 7 Assembly (continued) Attaching the bottom left side panel □ □ c) Join panel (D) to the assembled body with dowel (AA). a) Install dowel (AA) and bolt (BB) into panel (D). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (I) and (L).
- Page 8 Assembly (continued) Attaching the bottom right side □ c) Attach magnet (NN) to bar (Y) with screw (FF). panel and bottom crossbar □ a) Install dowel (AA) and bolt (BB) into panel (E). □ d) Join panel (E) and bar (Y) to the assembled body with dowel (AA).
- Page 9 Assembly (continued) Attaching the top fixed panel □ □ c) Join panel (H) to the assembled body with dowel (AA). a) Install dowel (AA) and bolt (BB) into panel (H). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (D) and (E).
- Page 10 Assembly (continued) Assembling the hutch □ d) Join panel (A) to the assembled body with dowel (AA). □ a) Install dowel (AA) and bolt (BB) into panel (A). □ b) Insert lock (CC) into panels (B) and (C). □ e) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 11 Assembly (continued) □ c) Join panels (B) and (C) to the assembled base with Attaching the assembled hutch dowel (AA). □ a) Install dowel (AA) and bolt (BB) into panel (H). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 12 Assembly (continued) Attaching the back panel □ a) Install wire plug (JJ) into panels (O) and (P) as shown. □ b) Tighten panels (O),(P) and (Q) to the assembled body with screw (FF) and metal plates (MM) as shown.
- Page 13 Assembly (continued) Attaching the adjustable shelf □ Insert shelf supports (GG) in desired positions and place shelf (G) on the supports. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 14 Assembly (continued) Attaching the door □ a) Attach doors (M) and (N) to the assembled body with screw (LL) as shown. NOTE: Metal plate needs to be to the top. □ b) Tighten handle (HH) to doors (M) and (N) with bolt (II). NOTE: A helper who can hold the door in position makes the door installation easier.
- Page 15 Assembly (continued) □ d) Side panel (V) into the grooves on panels (S) and (T). Assembling the drawer Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □ a) Install dowel (AA) and bolt (BB) into panel (R). □ e) Tighten panel (U) to the assembled body with screw (EE) □...
- Page 16 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 17 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
