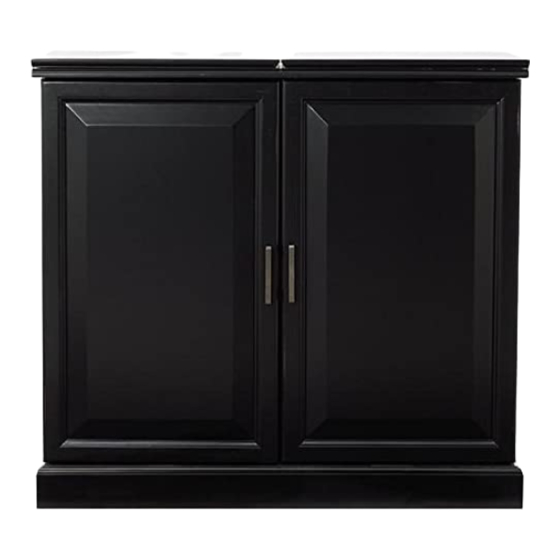

- Page 1 HOME INV# 74008 SK18215A JAMISON CONCEALED BAR 37"Hx40"Wx19"D ASSEMBLY INSTRUCTIONS Made In China...
- Page 3 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have came loose inside the carton during shipment. Count all parts and material hardware, then compare with parts list to be sure all parts are present.
- Page 5 HOW TO SEPARATE GLIDES SAFETY RELEASE TAB PRIOR TO ASSEMBLY, WE SUGGEST SEPARATING THE INNER GLIDES FROM THE OUTER-GLIDES, SIMPLY PULL THE LEFT/RIGHT INNER GLIDES FROM THE OUTER GLIDES EXPOSING A SMALL BLACK SAFETY RELEASE TAB, BY PUSHING THE SAFETY RELEASE TAB. YOU WILL BE ABLE TO SEPARATE THE GLIDES.
- Page 6 NOTE: UPON OPENING, THOROUGHLY CLEAN ALL WOOD SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO THE FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY. PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY ARE TIGHT, THE SHOULDER SHOULD BE SHOULDER AGAINST THE SURFACE OF THE PART.
- Page 7 FIG 1 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE LEFT SIDE PANEL (B). ● JOIN THE LEFT SIDE PANEL (B) TO THE LEFT SIDE FIXED PANEL (E) BY USING WOOD DOWEL (a) FIRST. ●...
- Page 9 FIG 3 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE MIDDLE PANEL (D). ● JOIN THE RIGHT SIDE FIXED PANEL (F) TO THE MIDDLE PANEL (D) BY USING WOOD DOWEL (a) FIRST. ● TIGHTEN THE CAM LOCK BOLT (b) WITH THE CAM LOCK (c) FROM PRE-DRILLED HOLES.
- Page 12 FIG 6 ● JOIN THE UNIVERSAL WHEEL ( j ) TO THE BOTTOM PANEL (G) BY USING 5/8" FLAT HEAD SCREW (i) FIRST.
- Page 13 FIG 7 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE BOTTOM PANEL (G). ● JOIN THE BOTTOM PANEL (G) TO THE ASSEMBLED PART BY USING WOOD DOWEL (a) FIRST. ● TIGHTEN THE CAM LOCK BOLT (b) WITH THE CAM LOCK (c) FROM PRE-DRILLED HOLES. ●...
- Page 14 FIG 8 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE TOP PANEL (A). ● JOIN THE TOP PANEL (A) TO THE ASSEMBLED PART BY USING WOOD DOWEL (a) FIRST. ● TIGHTEN THE CAM LOCK BOLT (b) WITH THE CAM LOCK (c) FROM PRE-DRILLED HOLES. ●...
- Page 16 FIG 10 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE DRAWER FRONT PANEL (N). ● JOIN THE DRAWER LEFT SIDE PANEL (O) AND THE DRAWER RIGHT SIDE PANEL (P) TO THE DRAWER FRONT PANEL (N). ●...
- Page 17 FIG 11 ● JOIN THE DRAWER BACK PANEL (Q) TO THE ASSEMBLED DRAWER PART AND TIGHTEN THE DRAWER BACK PANEL (Q) BY USING THE 1" FLAT HEAD SCREW (h) THROUGH PRE-DRILLED HOLES ON DRAWER SIDE PANELS. ● WINE RACK VERTICAL PANEL (J) INSERTED INTO THE WINE RACK LEVEL PANEL (K).
- Page 18 FIG 12 ● INSERT THE WINE RACK VERTICAL PANEL (J) AND THE WINE RACK LEVEL PANEL (K) IN THE ASSEMBLED PART. ● INSERT DRAWER INTO THE ASSEMBLED PART.
