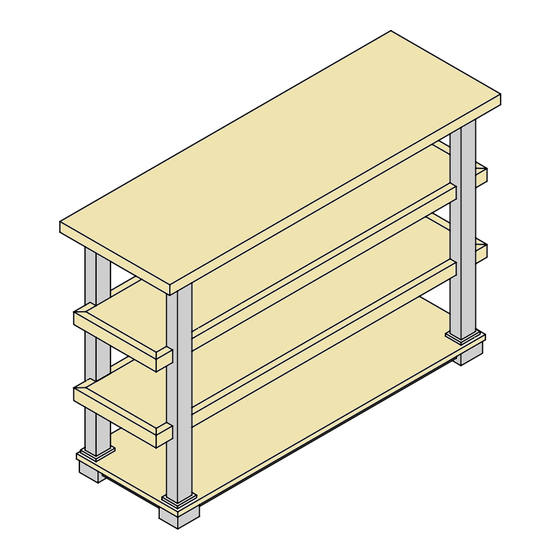

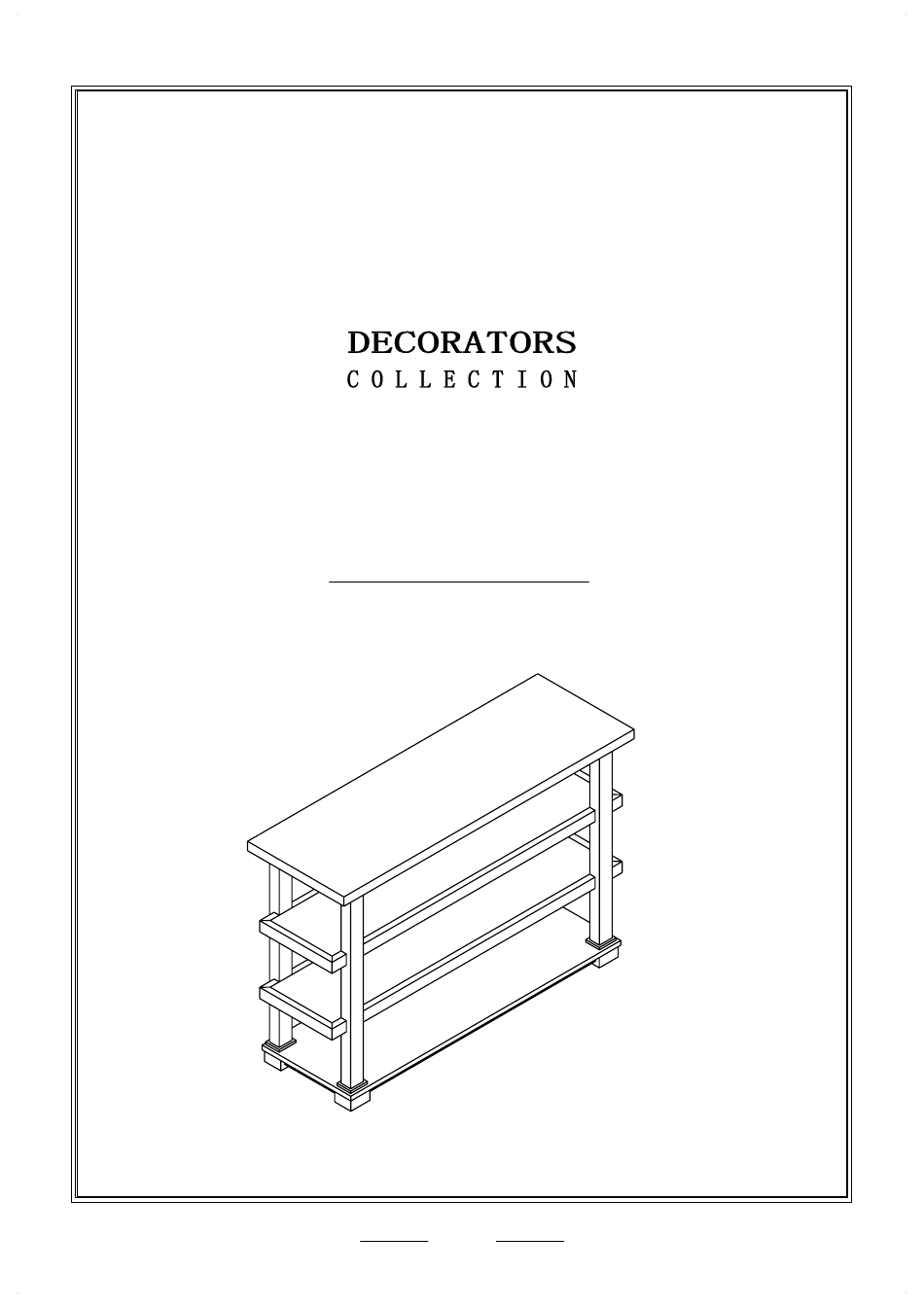

- Page 1 HOME SK17755A LOFTEN CONSOLE 30"Hx45"Wx15"D INV#16376 ASSEMBLY INSTRUCTIONS Made In China...
- Page 2 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have came loose inside the carton during shipment. Count all parts and material hardware, then compare with parts list to be sure all parts are present, If any parts are missing or damaged, phone, fax, or mail to our Customer service Department for efficient and speedy service.
- Page 3 FIG 1 ● ATTACH THE POSTS(D) & (E) TO THE TOP PANEL(A) USING THE 2"L BOLT(a),WASHER(d) AND SPRING WASHER(c) AS SHOWN.
- Page 4 FIG 2 ● ATTACH FIXED PANELS(C) TO THE POSTS(D) & (E) USING THE 1-1/4"L BOLT(b),WASHER(d) AND SPRING WASHER(c) AS SHOWN.
- Page 5 FIG 3 ● ATTACH THE POSTS(D) & (E) TO THE TOP PANEL(A) USING THE 2"L BOLT(a),WASHER(d) AND SPRING WASHER(c) AS SHOWN. ● ATTACH THE POSTS(D) & (E) TO FIXED PANELS(C) USING THE 1-1/4"L BOLT(b),WASHER(d) AND SPRING WASHER(c) AS SHOWN.
- Page 6 FIG 4 ● ATTACH BOTTOM PANEL(B) TO THE POSTS(D) & (E) USING THE 2"L BOLT(a) AS SHOWN.
