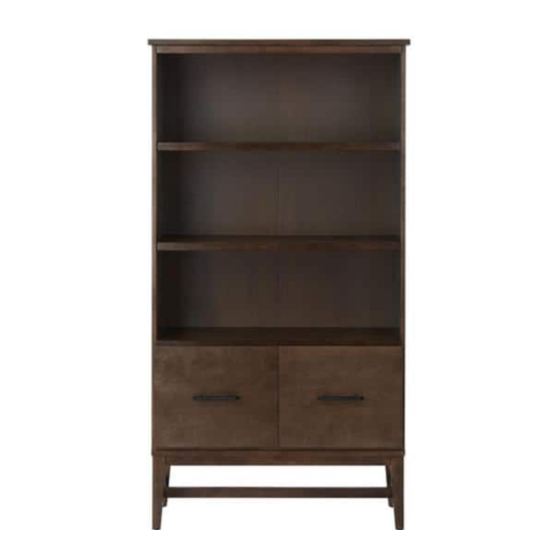

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this open bookcase with file drawers.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
OPEN BOOKCASE WITH FILE DRAWERS
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
Item
# 1004489675
Model # SK19345Cr2-S-1
Item
# 1004489676
Model # SK19345Cr2-S-2
1-800-998-7021
THANK YOU
Item # 1004489689
Model # SK19345Cr2- V -1
Item # 1004489690
Model # SK19345Cr2- V -2
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SK19345Cr2-S-1
Summary of Contents for Home Decorators Collection SK19345Cr2-S-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this open bookcase with file drawers. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Base side frame Top panel Left side panel Base center crossbar Right side panel Back panel Fixed panel Drawer front panel Adjustable shelf Drawer left side panel Front crossbar Drawer right side panel Partition Drawer back panel Bottom panel... -
Page 5: Assembly
Assembly Attaching the partition to the fixed panel □ □ a) Install dowel (AA) and bolt (BB) into panel (D). c) Join partition (G) to the panel (D) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □... - Page 6 Assembly (continued) Attaching the right panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (C) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 7 Assembly (continued) Attaching the left panel and the front crossbar □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panel (B) and bar (F) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 8 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) and bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. Tighten bar (F) with screw (EE).
- Page 9 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (H). c) Join panel (H) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. Tighten bar (F) with screw (EE).
- Page 10 Assembly (continued) Attaching the bar to frame □ a) Join bars (I) and (K) to the frame (J) with dowel (AA). □ b) Tighten bars (I) and (K) with screw (GG).
- Page 11 Assembly (continued) Attaching the bar and frame to the bottom panel □ a) Join bar (I) and frame (J) to the assembled body with dowel (AA). □ b) Tighten bar (I) and frame (J) with screw (GG). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Attaching the back panel □ Tighten panel (L) to the assembled body with screws (FF) as shown.
- Page 13 Assembly (continued) Assembling the adjustable shelf □ Insert shelf supports (HH) in desired positions and place shelf (E) on the supports. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 14 Assembly (continued) Assembling the drawer □ □ a) Tighten panels (N) and (O) to panel (M) c) Tighten panel (P) to the assembled body with screw (EE). with screw (EE). □ b) Slide panel (Q) into the grooves on □ d) Tighten handle (II) to panel (M) with bolt (JJ).
- Page 15 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 16 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown.
- Page 17 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
