USE AND CARE GUIDE

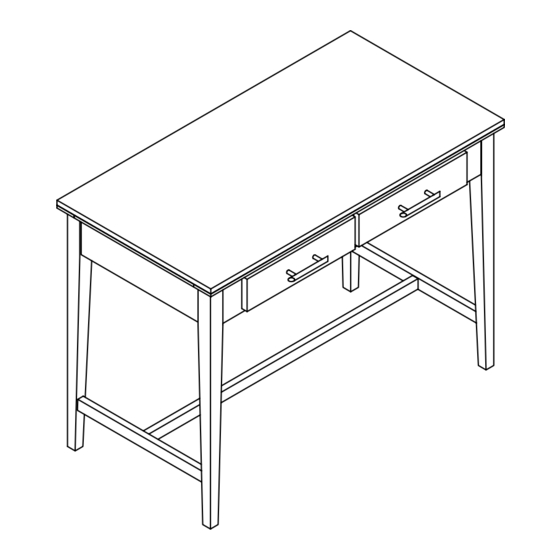

DESK WITH 2-DRAWER
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this desk with 2-drawer. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SK19345A r2-S
Summary of Contents for Home Decorators Collection SK19345A r2-S
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this desk with 2-drawer. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Crossbar Side frame Drawer front panel Left partition Drawer left side panel Middle partition Drawer right side panel Right partition Drawer back panel Front panel Drawer bottom panel Back panel... -
Page 5: Assembly
Assembly Attaching the partition to the front panel □ □ a) Install dowel (AA) and bolt (BB) into panel (F). c) Join partitions (C), (D) and (E) to the panel (F) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □... - Page 6 Assembly (continued) Attaching the back panel □ □ a) Install dowel (AA) and bolt (BB) into panel (G). c) Join panel (G) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 7 Assembly (continued) Attaching the side frame □ □ a) Install dowel (AA) and bolt (BB) into frame (B). c) Join frame (B) to the assembled body with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panels (F) and (G).
- Page 8 Assembly (continued) Attaching the side frame and crossbar □ □ a) Install dowel (AA) and bolt (BB) into frame (B). c) Join frame (B) and bar (H) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (F) and (G). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 9 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) and bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (G) and (F), and partitions d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 10 Assembly (continued) Assembling the drawer □ a) Tighten panels (J) and (K) to panel (I) □ c) Tighten panel (L) to the assembled body with screw (DD). with screw (DD). □ □ b) Slide panel (M) into the grooves on d) Tighten handle (FF) to panel (I) with bolt (GG).
- Page 11 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 12 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown.
- Page 13 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
