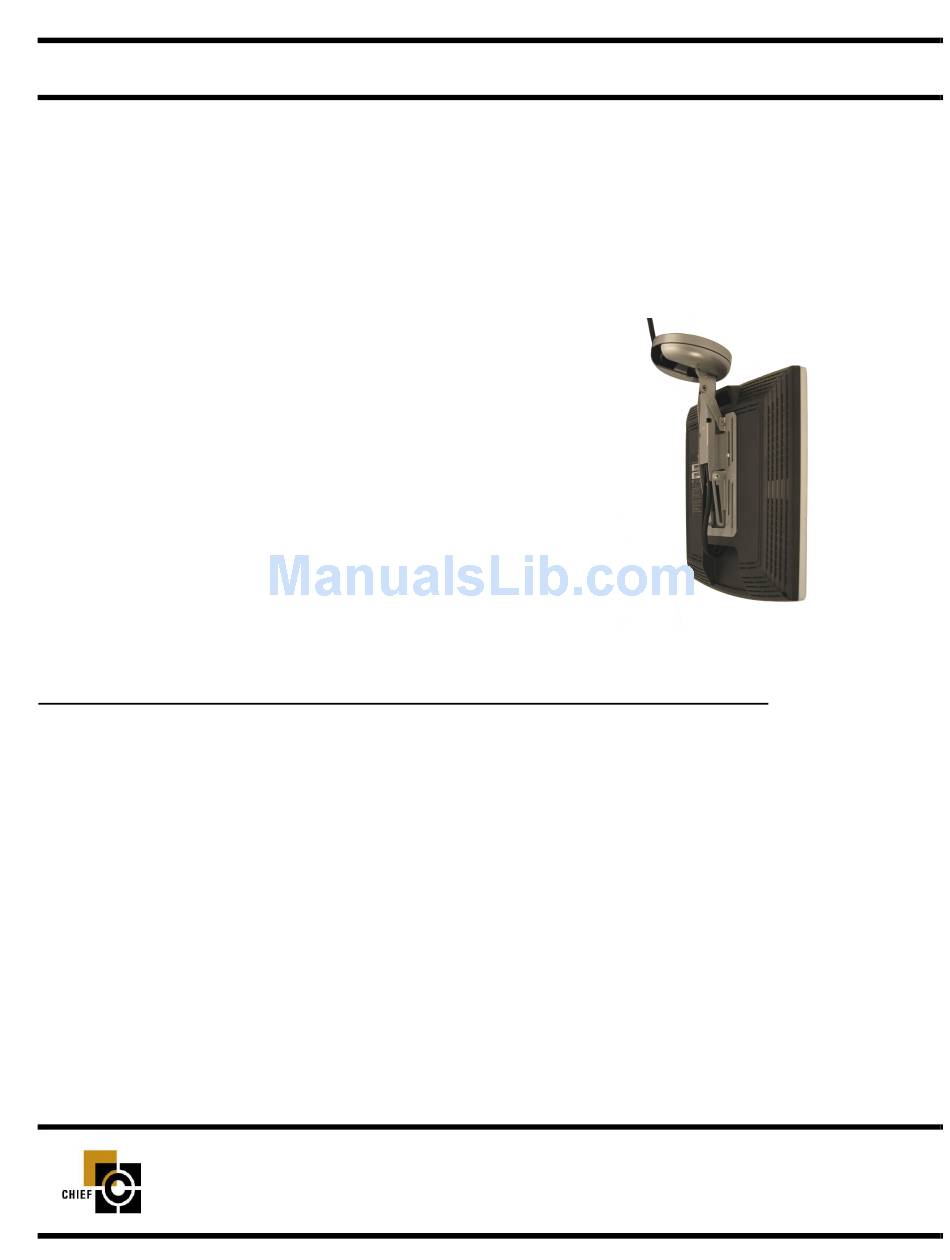

I N S T A L L A T I O N
FSD-4100
LCD Flat Screen
Swing-Down Mount
Perfect for home applications under kitchen cabinets or other
rooms with a soffit. The LCD Flat Screen Swing-Down mount is
a sturdy, versatile solution for LCD flat screen display or touch
screen control system mounting with 15" or smaller monitors.
The all steel mount provides smooth side-to-side pivot, 70º or
220º screen rotation and extends and retracts 2 3/4" to allow for
larger screen capacity. Hidden cable management permits aes-
thetic installation while preventing wires from being pinched.
BEFORE YOU BEGIN
• Caution: To prevent damage to the mount, which could affect the equipment that will be attached to it and
void the factory warranty, thoroughly study all instructions and illustrations before you begin the installa-
tion. Pay particular attention to the "Important Warnings and Precautions" on Page 1.
• The mount is designed to be installed on cabinetry or supporting framework. The cabinet to which the FSD-4100 is
anchored must be capable of supporting 75 pounds (34 Kg).
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
8832-000010 Rev C
©2007 Chief Manufacturing
www.chiefmfg.com
04-07
