CHIEF FSM SERIES Installation Instructions

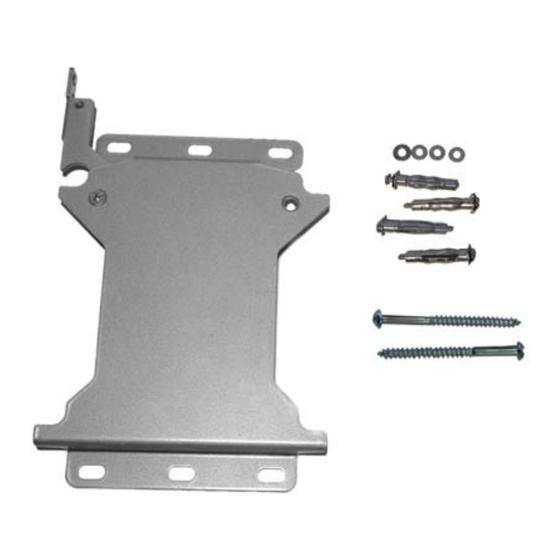

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(1) FSM Wall Bracket
(2) Wood Screw
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
Flat Panel Displays are Extremely Fragile.
If Monitor Uses a Screw Size Other Than M4 X 10mm (M4 X 20mm),
CAUTION!
DO NOT USE M4 Screws Provided. Monitor Damage Could Occur.

Interface Bracket Installation:

1. See installation procedures accompanying your mounting bracket.

Optional Latching Flag Placement:

1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2).
2. Reposition latching flag and secure using Phillips head screw, Nylock nut.
Remove screw
and nut
8804-000046 RevA
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
SMALL FLAT PANEL DISPLAY STATIC WALL MOUNT
Exclusive Q2™ Mounting System
Prior to assembly, unpack carton completely and verify contents.
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
When mounting Chief Manufacturing accessories, the structural system and mounting method
MUST be capable of supporting 5 times the combined weight of the total installation. The maximum
weight to be installed on the FSM is 45 pounds (20.4 Kg) in wood stud and 30 pounds (13.60 kg) in
Move latch
FSM SERIES
Figure 1
(4) Drywall Anchor
(4) Washer, Flat, .25 ID X .56 OD
drywall.
Figure 2
2/28/07
