I N S T A L L A T I O N I N S T R U C T I O N S
SMALL FLAT PANEL DISPLAY MOUNTING BRACKET
(1) FSB Interface Bracket
(4) 10-24 x .5 Button Head Cap Screw
(4) M4 x 20mm Phillips Head Cap Screw
(4) M4 x 40mm Phillips Head Cap Screw
(4) M4 x 16mm Phillips Head Cap Screw
(4) M4 Flat washers

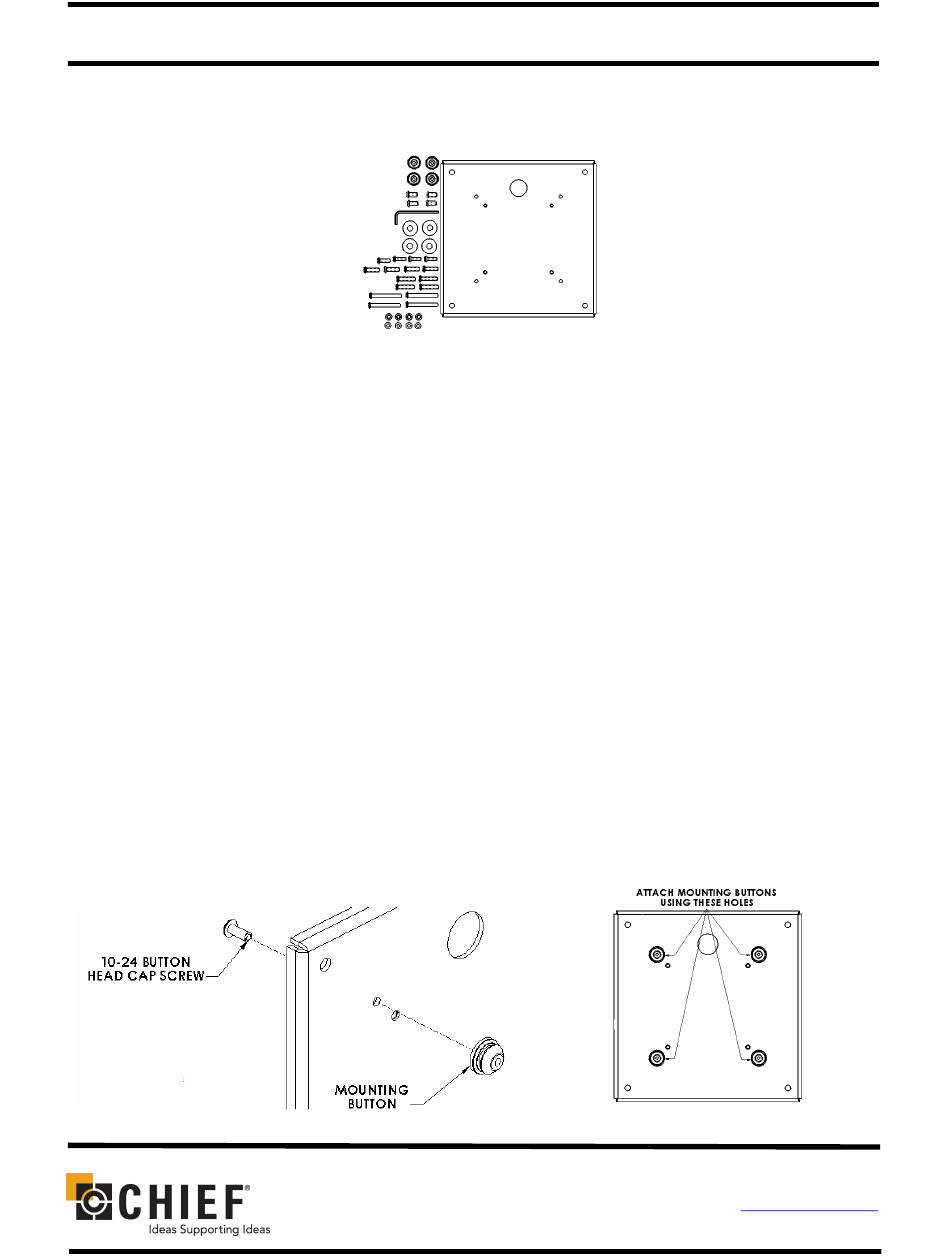

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
NOTE: If installing screen onto a VESA 100mm X 100mm mount, skip to step 2 on Page 2 (mounting button
installation is not required).
1. Using #10-24 screws secure mounting button to bracket, with chamfered hole of mounting
button (larger surface) facing bracket (4 places) (see Figure 2 and Figure 3).
FSB-4394
Displays are Extremely Fragile.
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918 2005 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
Figure 1
(4) Mounting Buttons
(4) .875 x .33 x .375 Nylon Washer
(4) M4 x 25mm Phillips Head Cap Screw
(1) 1/8 Allen Key
(4) M4 Shoulder washers
Figure 3
8804-000328
www.chiefmfg.com
09/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSB-4394 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF FSB-4394

  • Page 1 (larger surface) facing bracket (4 places) (see Figure 2 and Figure 3). Figure 2 Figure 3 CHIEF MANUFACTURING INC. 8804-000328 1-800-582-6480 952-894-6280 FAX 952-894-6918 2005 Chief Manufacturing 8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com SAVAGE, MINNESOTA 55378 USA 09/06...
  • Page 2 M4 screws (depending on screen), secure bracket to display. Do not over tighten screws. 4. For Chief Q2™ mounts with 5” X 5” Mounting System - With the aid of another person, lift the display up to the mount, align the mounting buttons on the plasma with the slots in the mount, and set the screen into place.
