I N S T A L L A T I O N I N S T R U C T I O N S
19" EQUIPMENT RACK ACCESSORY
Model: FSA-1015
Specifications:
•
Designed for equipment rack with 19" wide
vertical attach rails.
•
Accommodates the following installation
configurations:
- Direct installation of VESA compliant
display/interface (75x75mm, 100x100mm,
and 100x200mm)
- FWD Cynergy Wall Mount
- FSR and FTR Fusion Wall Mounts
•
Weight capacity of 30 lbs (13 kg).
BEFORE YOU BEGIN
WARNING: It is the installer's responsibility to make sure all components are properly assembled and installed using
the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in serious
personal injury, damage to equipment, or voiding of factory warranty.
•
If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing
at 1-800-582-6480 or 952-894-6280.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA

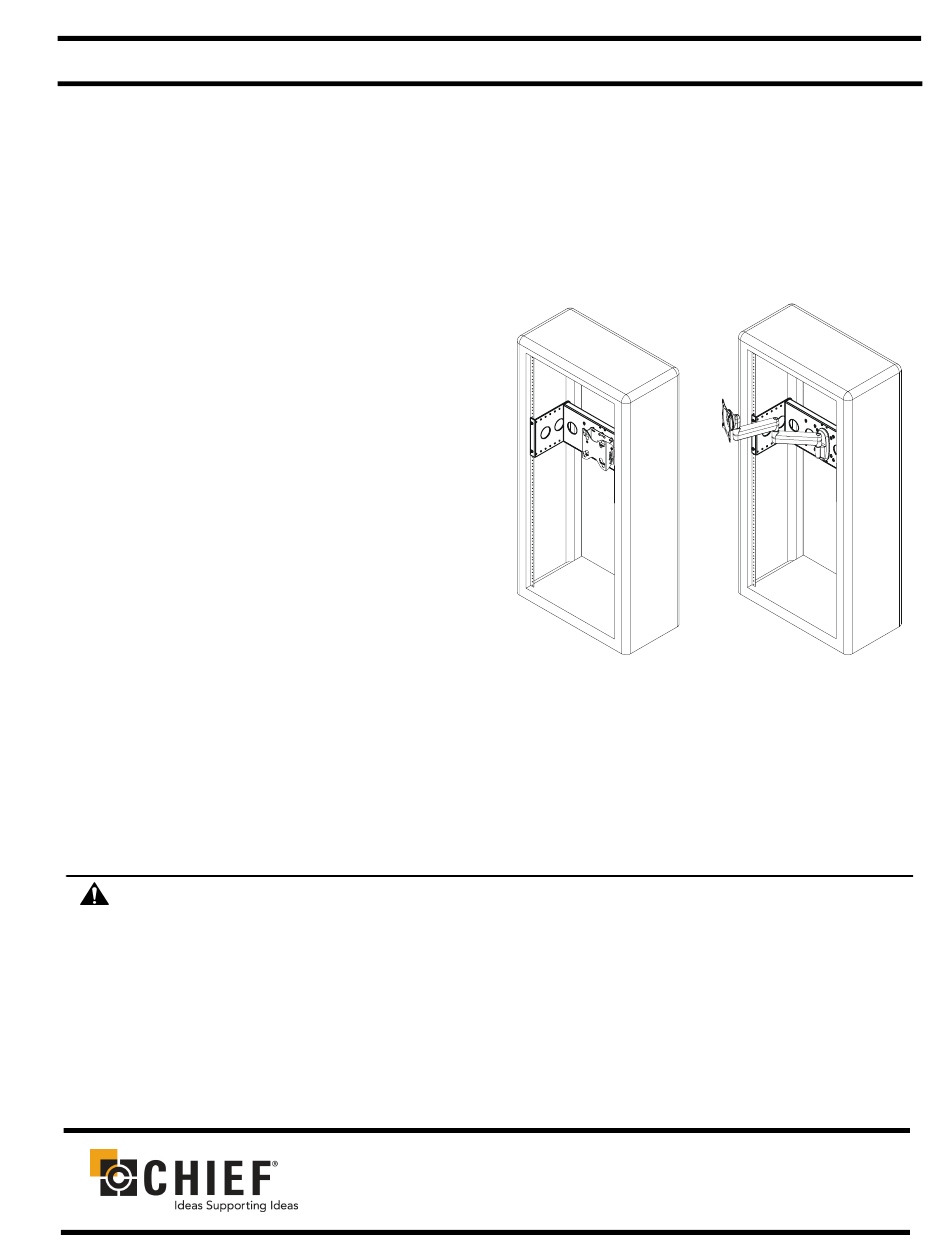

FSA-1015
(Shown with optional Equipment Rack,
FTR, and FWD mounts)
©2006 Chief Manufacturing
8804-000307
www.chiefmfg.com
03/06
Advertisement
Table of Contents
Related Manuals for CHIEF FSA-1015
Summary of Contents for CHIEF FSA-1015
- Page 1 Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty. • If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing at 1-800-582-6480 or 952-894-6280. CHIEF MANUFACTURING INC.
-
Page 2: Important Warnings And Cautions
WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached to the FSA-1015, including the mount (if required) and display, does not exceed 30 lbs (13 kg). -
Page 3: Tools Required For Installation
BAG "A" PARTS After unpacking carton, inspect and verify contents (See Figure 1). If any listed parts are missing or damaged, contact Chief Customer Service at 1-800-582-6480. BAG "B" Table 1: Parts Item Description BRACKET, Display Mounting BRACKET, Side SCREW, Phillips Pan Machine, #10-32 x 1/2"... - Page 4 ASSEMBLY (PART 1) INSTALLATION 1. Determine location of bracket (10) in equipment rack. Determine how display is to be installed to FSA-1015. Location is adjustable in 1" increments from Four installation options exist: approximately 6" depth (within rack) to 1" extension •...
- Page 5 (10) (See Figure 5). Lower 6. Pick up and orient the FSA-1015 assembly such that display firmly into place. the mounting holes in bracket (10) are aligned with the holes in the spacers (See Figure 6).
- Page 6 2. Using Phillips screwdriver and 7/16" wrench, install two screws (60) through #10 washers and wall four screws (50) through wall mount and bracket (10), bracket (supplied with FWD mount), FSA-1015 into nuts (70)(See Figure 8)(See Figure 9). Tighten assembly, and bracket (80), into nuts (70)(See Figure screws (50).
- Page 7 WARNING: Failure to use proper fasteners can result in serious personal injury or damage to equipment! Screws (30 and 40) supplied for convenience only. 1. Using Phillips screwdriver install FSA-1015 assembly to equipment rack using four screws (30, 40, or other fasteners as applicable)(See Figure 10). Tighten fasteners.
- Page 8 Model: FSA-1015 Installation Instructions...
