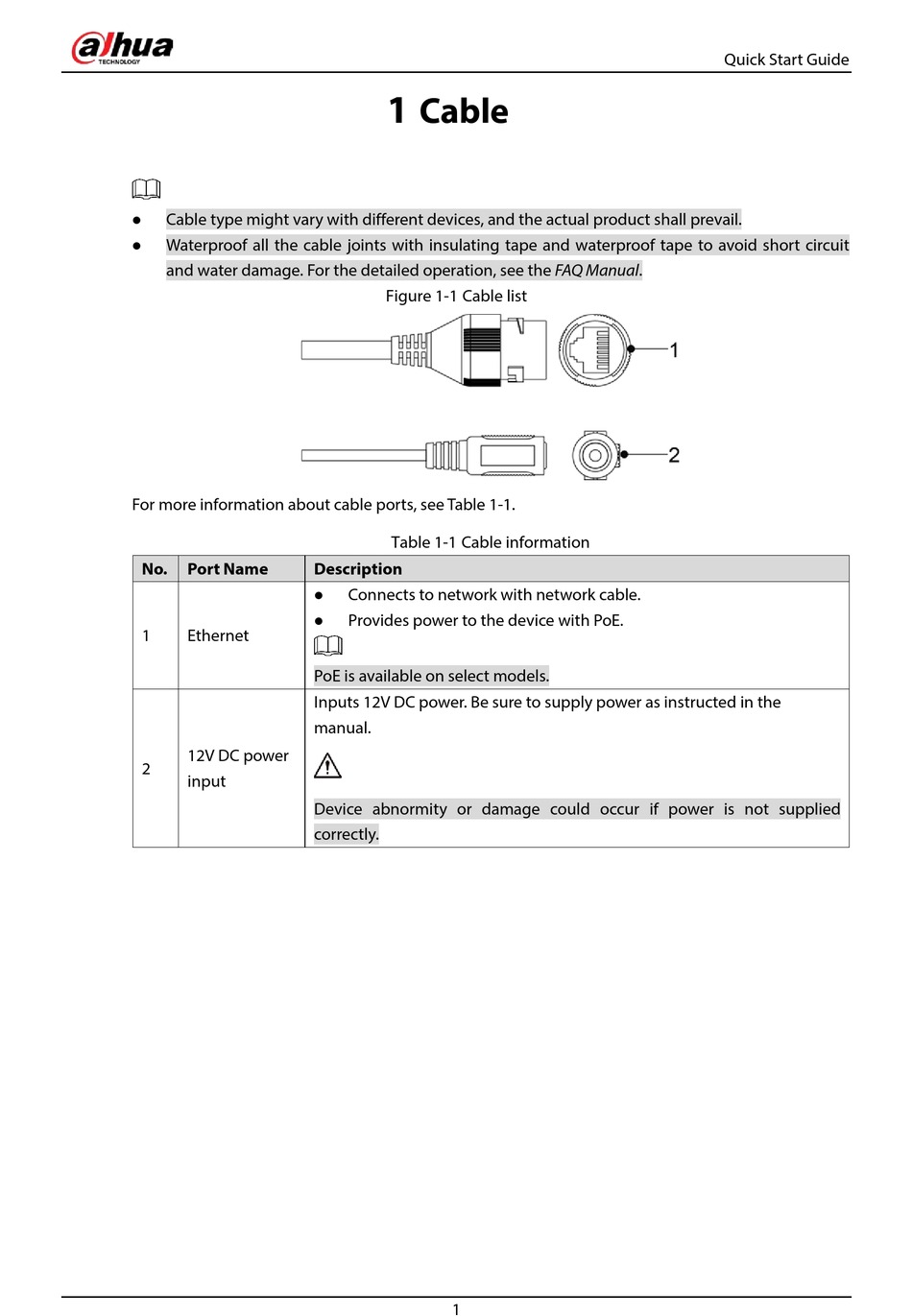

Cable - Dahua Technology IPC-HFW1230S1-0280B-S5 Quick Start Manual

Cable type might vary with different devices, and the actual product shall prevail.

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit

and water damage. For the detailed operation, see the FAQ Manual.
For more information about cable ports, see Table 1-1.
No. Port Name
1 Ethernet
12V DC power
2
input
1

Cable

Figure 1-1 Cable list
Table 1-1 Cable information
Description
Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select models.
Inputs 12V DC power. Be sure to supply power as instructed in the
manual.
Device abnormity or damage could occur if power is not supplied
correctly.
1
Quick Start Guide
