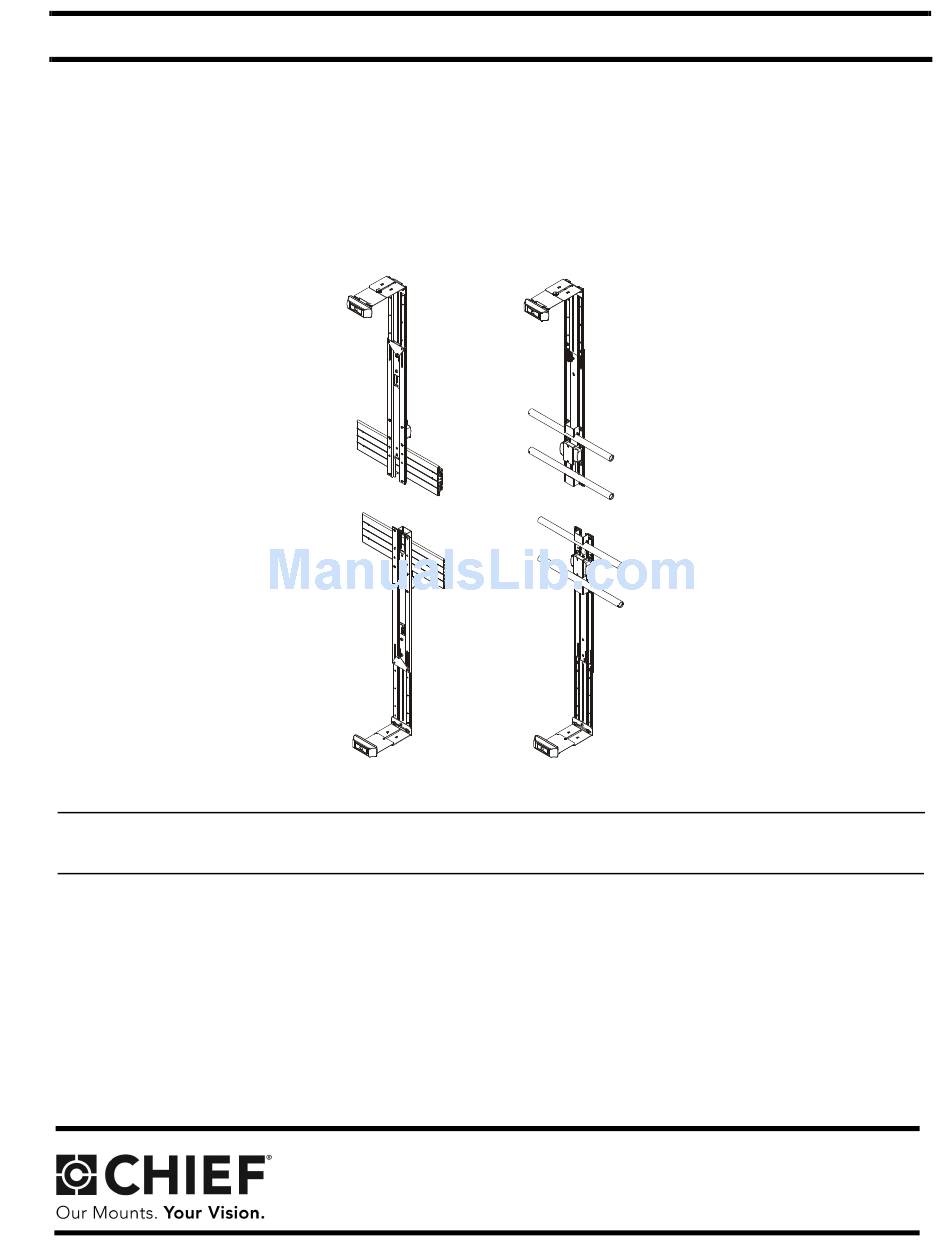

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Above Cart/Ceiling Above Wall Below Wall Below Cart/Ceiling Fusion™ Viewshare Camera Mounting Kits Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FCA810V/VE...
-
Page 2: Installation Instructions
• USB 2.0 port (USB 3.0 ready) NOTE: Refer to milestone.com for the latest software Chief® is a registered trademark of Milestone AV Technologies. compatibility requirements. All rights reserved. --SAVE THESE INSTRUCTIONS-- IMPORTANT SAFETY INSTRUCTIONS... - Page 3 Installation Instructions FCA810V/VE DIMENSIONS FUSION WALL BELOW MOUNT SETUP CENTER OF MOUNT 24.8 16.1-19.5 628.7 [409.3-496.7] OVERALL MIN MIN RANGE 19.5-27.7 [496.7-702.2] INTERMEDIATE 160.7 36.2 RANGE 919.7 27.7-29.1 OVERALL MAX 78.2 [704.2-739.7] MAX RANGE (*)NOTES: 121.3 • TYPICAL FUSION INTERFACES ARE 0.625" [15.9] DEEP 120.7...
- Page 4 FCA810V/VE Installation Instructions DIMENSIONS (CONTINUED) FUSION CEILING/CART BELOW MOUNT SETUP CENTER OF MOUNT 16.4-19.8 24.7 [415.4-502.8] 628.5 MIN RANGE OVERALL MIN 19.8-29.4 [502.8-745.7] INTERMEDIATE 36.2 RANGE 109.4 920.4 29.4-30.8 OVERALL MAX [745.7-781.2] MAX RANGE (*)NOTES: • TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS 0.5" [12.7] 121.1...
- Page 5 Installation Instructions FCA810V/VE DIMENSIONS (CONTINUED) OFFSET FEATURE SETUP 96.4 OFFSET MAX DETAIL A SCALE 2 : 5 LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio...
-
Page 6: Tools Required For Installation
J (4) #10-24 P (6/7) U (4) [Large washer] 3/5” (810V-6, 810VE-7) C (2) F (1) [Support bracket] [FCA810V/VE camera mount] K (3) [Small washer] Q (1) 1/4-20 x 1 1/2” (810VE only) V (1) [Adapter plate] G (1) A (1) -
Page 7: Assembly And Installation
FCA810V/VE ASSEMBLY AND INSTALLATION (Standard - to Wall) Below Installation NOTE: FCA810V/VE camera mounts may be installed above (L) x 2 or below displays. To install above display, proceed to “Above Installation” Section. Assembling Camera Mount to Upright Bracket Attach camera housing (Z) to camera mount (F) using two #8-32 x 3/8”... - Page 8 FCA810V/VE Installation Instructions Attaching Accessory to Wall Mount NOTE: Refer to Table 1 and dimension drawings on pages 3- 4 to determine the extension level based on extension NOTE: If attaching to cart or ceiling mount, proceed to Attach distance from mount center.
- Page 9 Installation Instructions FCA810V/VE (For minimum/intermediate extension) Use two #10-24 Slide second support bracket (C) underneath cart/ceiling lock nuts (J) to secure upright bracket (A) to main bracket mount head assembly, lining up holes on support bracket (B) and adapter plate (V). (See Figure 8) (C) to holes on main bracket (B).
- Page 10 FCA810V/VE Installation Instructions Slide second shelf bracket (C) underneath cart mount head assembly, lining up holes on support bracket (C) to holes on (Below cart/ceiling - maximum) main bracket (B). (See Figure 12) (rear view) Slide two 3/5” spacers (U) in between support bracket (C) and main bracket (B).
- Page 11 Installation Instructions FCA810V/VE NOTE: Above Installation For minimum extension on the FCA810VE model, the extender box holder (D) may be installed as part of the Assembling Camera Mount to Upright Bracket installation of the camera mount to the main bracket.
- Page 12 FCA810V/VE Installation Instructions (Standard to wall) Use two 1/4-20 x 1/2” button head cap Attaching Accessory to Wall Mount screws (L), two large washers (P) and one 1/4-20 x 1/4" Use two 1/4-20 x 1/4” button head cap screws (R) and two...
- Page 13 Installation Instructions FCA810V/VE NOTE: Attaching Accessory to Cart/Ceiling Mount Refer to Table 3 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : If installing to a 2x1 display cart using distance from mount center.
- Page 14 FCA810V/VE Installation Instructions Installing to FCA623 Accessory NOTE: Refer to Table 4 and dimension drawings on pages 3- 4 to determine the extension level based on extension NOTE: Steps 6-10 only apply if installing to FCA623 distance from mount center.
- Page 15 Installation Instructions FCA810V/VE NOTE: Extender Box Holder Attachment For minimum extension on the FCA810VE model, the extender box holder (D) may be installed as part of the NOTE: For cart/ceiling minimum height extension installations, installation of the camera mount to the main bracket.
- Page 16 FCA810V/VE Installation Instructions Viewshare Installation FCA810VE NOTE: Connect camera to USB extender box (EE) using USB Refer to milestone.com for the latest software cable supplied with camera. (See Figure 35) compatibility requirements. Connect USB extender box (EE) to second USB extender FCA810V box using CAT5 cable (not included).
-
Page 17: Height Adjustment
Installation Instructions FCA810V/VE Height Adjustment Extension and Swivel Adjustment Loosen hardware used to attach main bracket (B) to upright Loosen extension adjustment screw. (See Figure 37) bracket (A). (See Figure 36) Adjust to desired extension length. (See Figure 37) Adjust shelf height as desired. (See Figure 36) Tighten extension adjustment screw. - Page 18 FCA810V/VE Installation Instructions...
- Page 19 Installation Instructions FCA810V/VE...
