1
Introduction
The Medium Voltage Digital Motor Control (DMC) kit (see
experiment with digital control of medium-voltage, brushless motors to increase efficiency of operation.
This user guide describes the kit contents and hardware details and explains the functions and locations
of switches and connectors present on the board. This guide also explains steps required to run the
DRV8303EVM using BLDC-InstaSpinGUI and motor control software projects supplied through control-
SUITE. The kit has three-phase power stage, DRV8303 capable of driving three-phase brushless DC
motors, and permanent magnet synchronous motors with following specification:
60-V DC max input voltage
20-A peak current per phase
SLVU983A – September 2013 – Revised October 2013
Submit Documentation Feedback

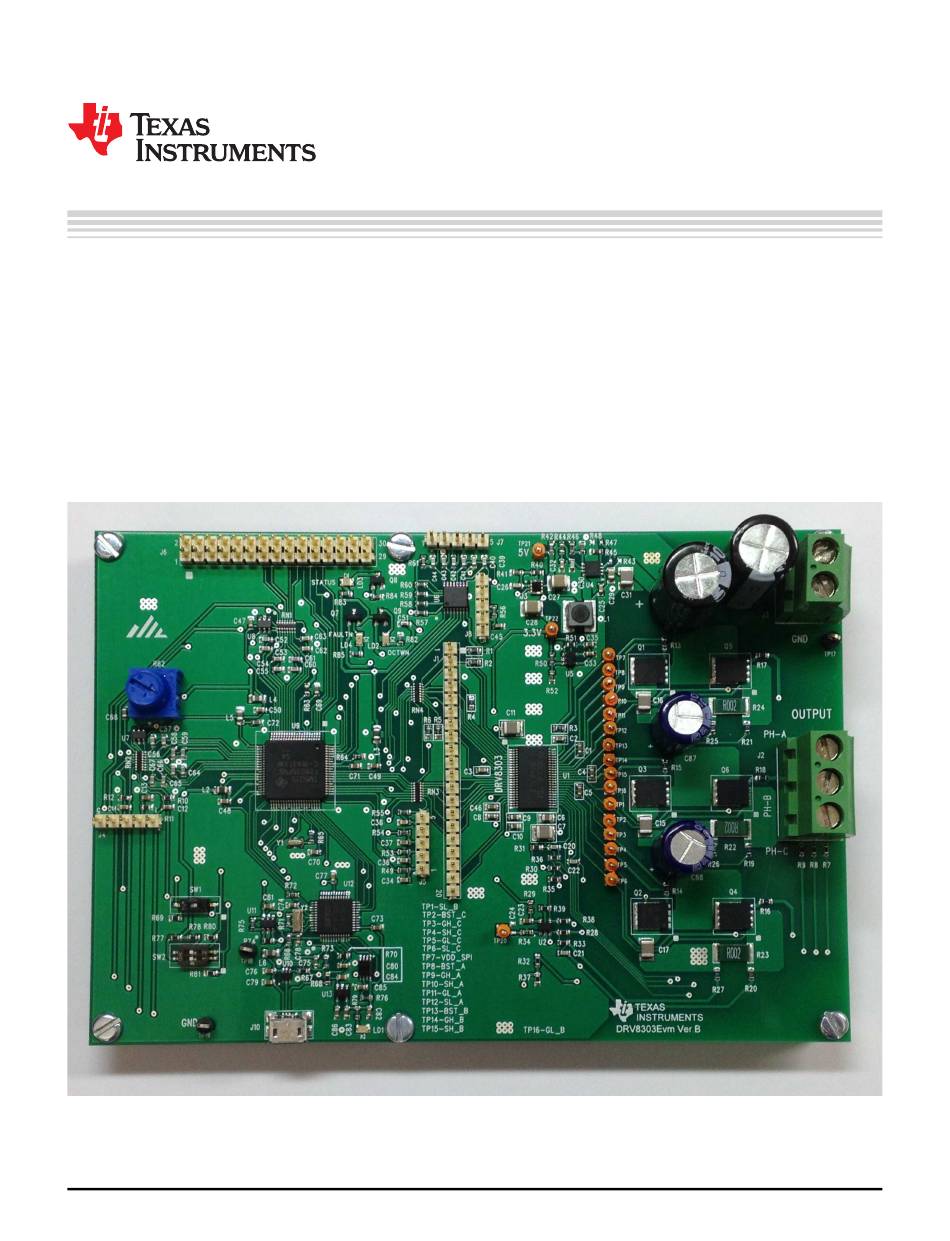

Figure 1. DRV8303EVM
Copyright © 2013, Texas Instruments Incorporated
SLVU983A – September 2013 – Revised October 2013
DRV8303EVM User Guide
Figure
1), provides a great way to learn and
DRV8303EVM User Guide
User's Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRV8303EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DRV8303EVM

  • Page 1 This guide also explains steps required to run the DRV8303EVM using BLDC-InstaSpinGUI and motor control software projects supplied through control- SUITE. The kit has three-phase power stage, DRV8303 capable of driving three-phase brushless DC motors, and permanent magnet synchronous motors with following specification: •...
  • Page 2 PMSM or BLDC motor. Figure 2. DRV8303EVM Kit Hardware Block Diagram Hardware Macro Blocks The motor control board is separated into functional groups (referred to as macro blocks) that enable a complete motor drive system.
  • Page 3 XDS100 JTAG Emulator Micro-USB Connector Figure 3. DRV8303EVM Kit Hardware Macro Blocks Quick Start GUI The InstaSPIN-BLDC GUI provides a convenient way to evaluate the functionality of the DRV8303 and the F28035 device, without needing to learn and configure the underlying project software, or install Code Composer Studio (CCS).
  • Page 4: Software Setup

    4. Select the motor to spin and connect to the PH A, PH B, and PH C terminals on the board. 5. Connect an 8 to 60-V DC power supply at connector J3 between VM and GND. 6. Once the power is connected, the board powers up and LED3 (STATUS) on the DRV8303EVM board becomes green.
  • Page 5: Running The Gui

    4.3.3 Connect to DRV8303EVM The GUI should auto-detect and connect to your DRV8303EVM. If auto-connect fails, set up the connection manually. Access the connection wizard through the connection menu. Click on "connect to engine" to view a list of available targets. Now, set up the connection wizard dialog to match Figure 5 selecting Piccolo 28035 from the target list and serial for connection method.
  • Page 6 Fault status: The on-screen LED turns red whenever there is a fault signaled by the DRV8303. To reset this fault, ensure enable motor check box is unchecked and push the reset fault button DRV8303EVM User Guide SLVU983A – September 2013 – Revised October 2013 Submit Documentation Feedback Copyright © 2013, Texas Instruments Incorporated...
  • Page 7 The flux threshold slider adjusts the commutation point of the motor. • The settings tab contains parameters affecting motor start-up and control loop tuning. SLVU983A – September 2013 – Revised October 2013 DRV8303EVM User Guide Submit Documentation Feedback Copyright © 2013, Texas Instruments Incorporated...
  • Page 8 Current and cascade are the only modes which make use of the current loop. DRV8303EVM User Guide SLVU983A – September 2013 – Revised October 2013 Submit Documentation Feedback Copyright © 2013, Texas Instruments Incorporated...
  • Page 9 Evaluation of Motor Control Software Projects through CCS The hardware resource mapping for TMS320F28035 controller inside DRV8303EVM kit is exactly similar to DRV8301-HC-C2-KIT. All the motor-control software projects supplied through controlSuite for DRV8301EVM can be directly ported to DRV8303EVM without any modifications.
  • Page 10 C2000 source code for the GUI project can be found at controlSUITE\development_kits \DRV830x-HC- EVMv*.*\GUI_project • Crosshairs embedded GUI .exe and project files can be found at controlSUITE\development_kits \DRV830x-HC-EVMv*.*\~GUI DRV8303EVM User Guide SLVU983A – September 2013 – Revised October 2013 Submit Documentation Feedback Copyright © 2013, Texas Instruments Incorporated...
  • Page 11 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
  • Page 12 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 13 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿6丁目24番1号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
  • Page 14 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
  • Page 15: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
