INSTALLATION
INSTRUCTIONS
877-533-7557 • jks@sporttruckusainc.com • www.jksmfg.com
Welcome
CONGRATULATIONS on purchasing the Flex Con-
nect Sway Bar System from JKS Manufacturing. We
are committed to providing you with the best products
available and your satisfaction is our first priority.
PLEASE READ these Installation Instructions careful-
ly, and save them for future reference, as they contain
important installation and maintenance information.
Tools Required
Metric/Standard Socket Wrench Set
Grease Gun with Zerk Fitting Coupler
Wheel Bearing Grease
Parts

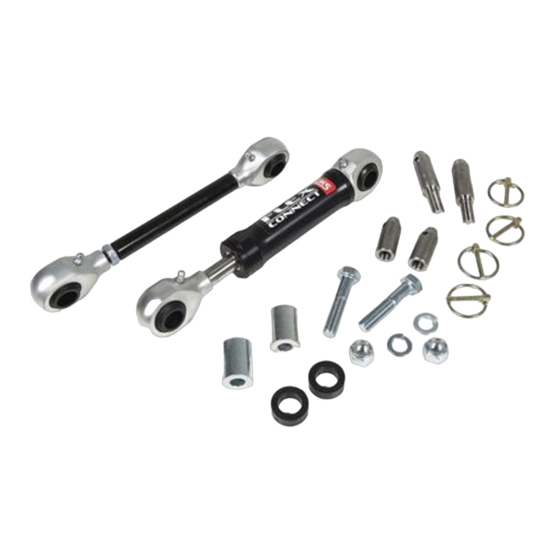

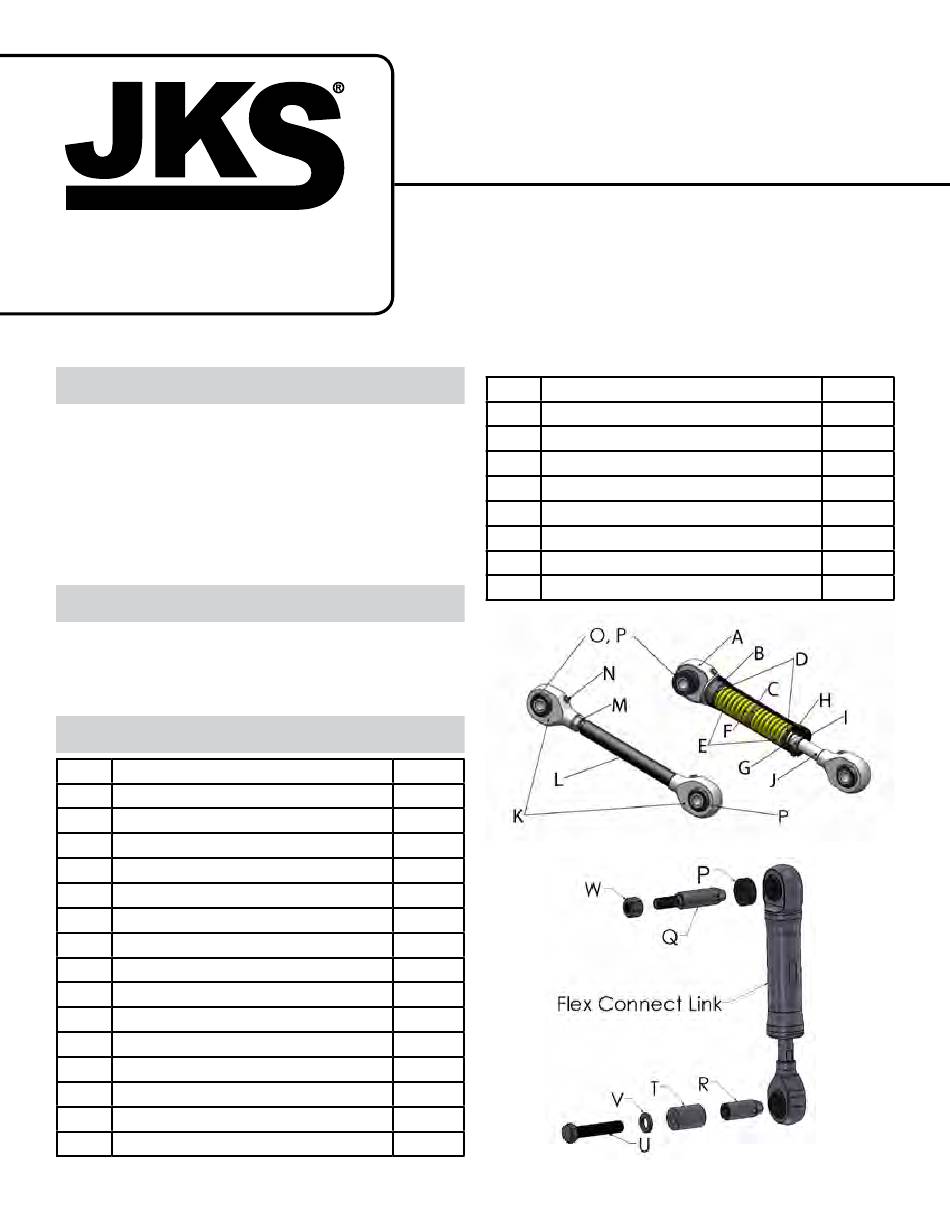

Box Kit - PAC2101
Flex Connect Eye
A
Flex Connect Housing
B
Bushing
C
Spring Washer
D
Spring
E
3/8-16" Nylock Nut
F
Shaft Bushing
G
Rubber O-Ring
H
PTFE O-Ring
I
Flex Connect Shaft
J
Flex Eye
K
Sway Bar Link
L
Jam Nut
M
Grease Fitting
N
Spherical Bushing
O
JKS Flex Connect Installation
Product: Flex Connect Sway Bar Link System
Part Number: PAC2112K
Applications: Grand Cherokee WJ, 1999-2004 with 2-4" lift
491 W. Garfield Avenue, Coldwater, MI 49036
QTY
1
1
1
2
2
1
1
1
1
1
3
1
1
4
2
2112K
Box Kit - PAC2151
Poly Spacer
P
Stainless Steel Post - Male Thread
Q
Stainless Steel Post - Female Thread
R
Quick Pin
S
1" X 1.40" Spacer
T
1/2"-20 X 2-1/2" Bolt
U
1/2" Split Lock Washer
V
1/2"-20 Nylock Nut
W
QTY
4
2
2
4
2
2
2
2
Page 1
