JKS HD X-Member Installation Instructions

Installation
Instructions

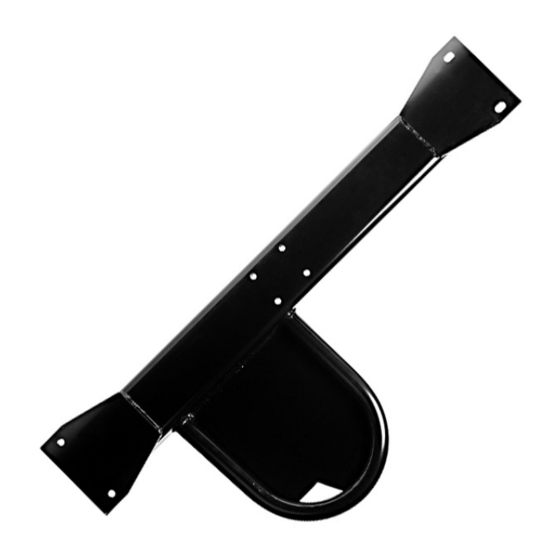

Product: HD X-Member
Part Number: PN OGS400 / OGS420
Application: Cherokee XJ, 1984-01
Welcome
CONGRATULATIONS on your purchase
of a new JKS HD X-Member! At JKS
Manufacturing, we are committed to providing
you with the best products available and your
satisfaction is our first priority.
PLEASE READ these instructions carefully, as
they contain important installation information.
JKS HD X-Member Installation

Important

VEHICLE MUST BE EQUIPPED with the
correct rubber support cushion and support
bracket assembly before HD X-Member can
be installed – see section 3 for details.

Tools Required

Hydraulic Floor Jack & Jack Stands
Metric/Standard Socket Wrench Set
Torque Wrench
Tape Measure
Factory Service Manual (recommended)
PN OGS400 / OGS420
Installation

1. REMOVE OE SKID PLATE

Determine if vehicle is equipped with a factory
transfer case skid plate. Continue with next step
if equipped, otherwise skip to section 2.
Support the skid plate and remove the bolts
that attach it to the OE crossmember and
chassis rail.
Remove the transfer case skid plate from
vehicle. Discard skid plate and hardware.

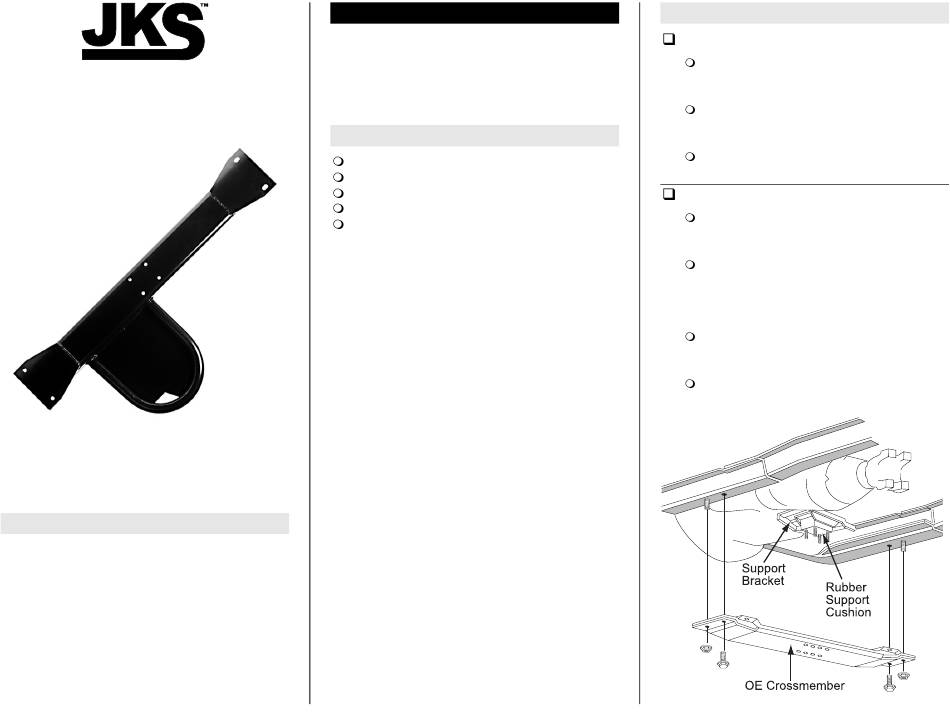

2. REMOVE OE CROSSMEMBER

Remove the four (4) nuts that attach the OE
crossmember to the rubber support cushion.
Retain the nuts for reinstallation.
Position a hydraulic jack in a safe location
beneath the transmission. Carefully raise the
jack until the crossmember is completely
relieved of the drivetrain load, and support the
transmission with a jack stand.
With the drivetrain safely secured, support the
crossmember and remove the nuts and bolts
that attach it to the chassis rails.
Remove the OE crossmember from vehicle and
discard, but retain the original hardware.
Page 1 of 2
