Please refer to Table 1-1 for detail information.
Port Name
VIDEO OUT
HDMI
AC 24V/ DC 12V
Indicator Light
G

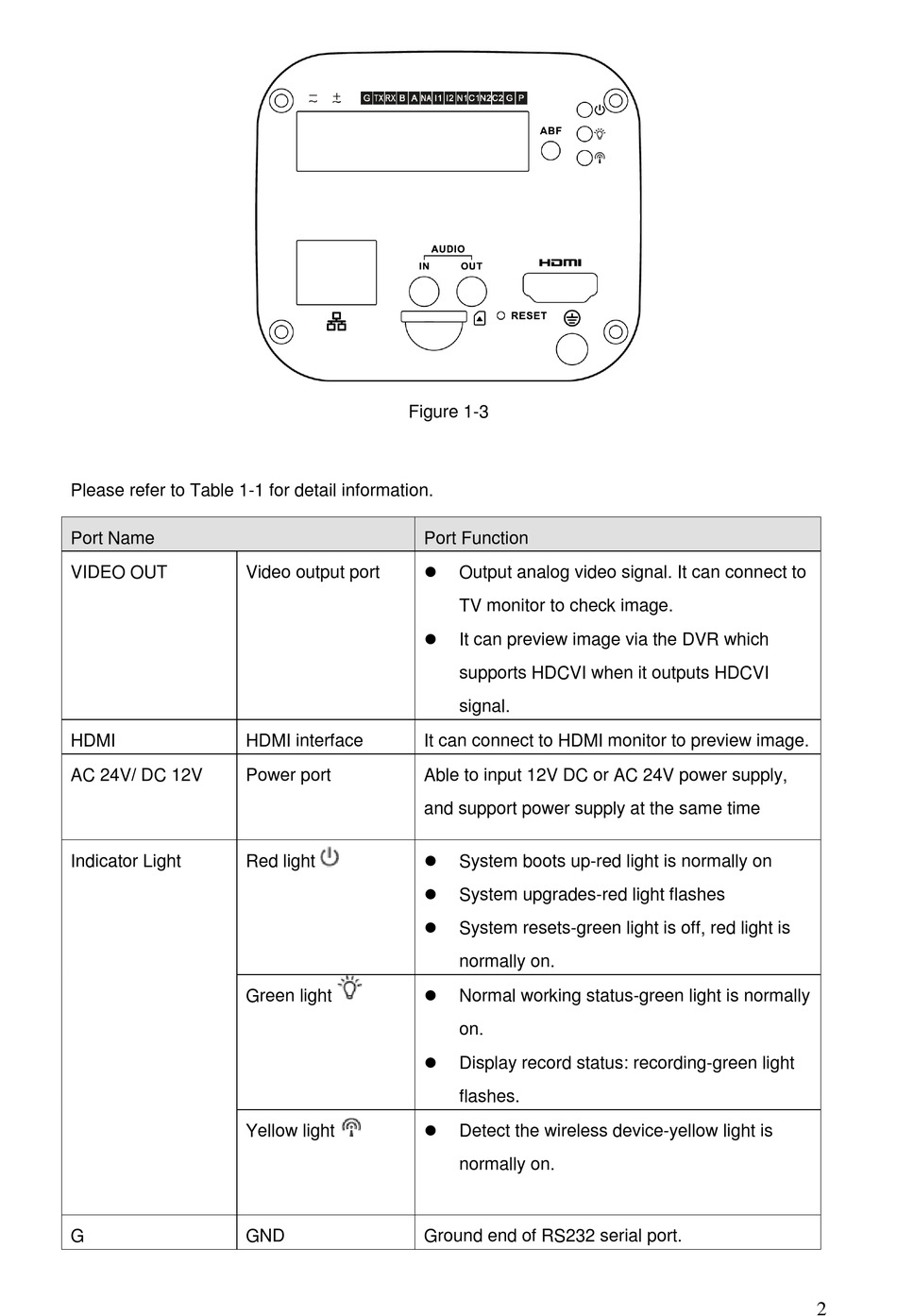

Figure 1-3
Video output port
HDMI interface
Power port
Red light
Green light
Yellow light
GND
Port Function

Output analog video signal. It can connect to
TV monitor to check image.

It can preview image via the DVR which
supports HDCVI when it outputs HDCVI
signal.
It can connect to HDMI monitor to preview image.
Able to input 12V DC or AC 24V power supply,
and support power supply at the same time

System boots up-red light is normally on

System upgrades-red light flashes

System resets-green light is off, red light is
normally on.

Normal working status-green light is normally
on.

Display record status: recording-green light
flashes.

Detect the wireless device-yellow light is
normally on.
Ground end of RS232 serial port.
