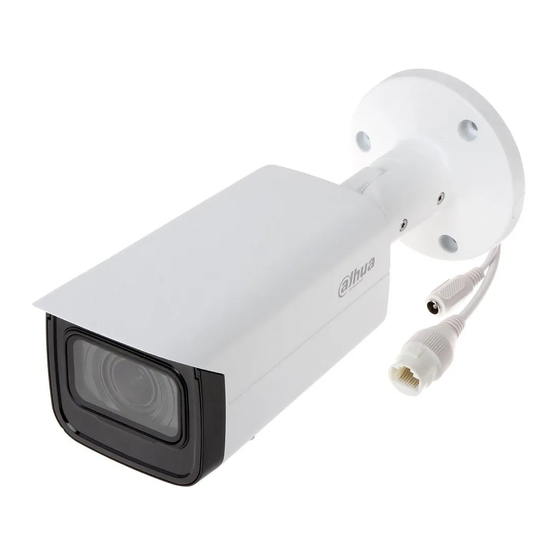

- Page 1 Bullet Network Camera Quick Start Guide V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Foreword
Foreword General This manual introduces the functions and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, WARNING could result in slight or moderate injury. - Page 3 All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. ...
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings Electrical Safety All installation and operation should conform to your local electrical safety codes. The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1. - Page 5 It is recommended to use the device together with lightning arrester to improve lightning protection effect. It is recommended to ground the device to enhance reliability. Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that moistened with alcohol.
-
Page 6: Table Of Contents
Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III 1 Cable ............................... 1 2 Network Configuration.......................... 2 Initializing Device .......................... 2 Modifying Device IP Address ......................3 Logging in to Web Interface ......................4 3 Installation .............................. 5 Packing List ........................... -
Page 7: Cable
Cable Cable type might vary with different devices, and the actual product shall prevail. Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ Manual. Figure 1-1 Cable list For more information about cable ports, see Table 1-1. -
Page 8: Network Configuration
Network Configuration Device initialization and IP address setting can be finished with the "ConfigTool" or on web interface. For more information, see the Web Operation Manual. Device initialization is available on select models, and it is required for the first use or after ... -
Page 9: Modifying Device Ip Address
The Device initialization interface is displayed. Step 6 Select the devices that need initialization, and then click Initialize. The password setting interface is displayed. See Figure 2-2. Figure 2-2 Password setting Step 7 Set and confirm the password of the devices, then enter a valid email address, and then click Next. -
Page 10: Logging In To Web Interface
Figure 2-3 Modify IP Address Step 3 Select Static mode, and then enter start IP, subnet mask, and gateway. IP addresses of multiple devices will be set to the same if you select the Same IP check box. If DHCP server is available in the network, devices will automatically obtain IP addresses from DHCP server when you select DHCP. -
Page 11: Installation
Installation Packing List The tool required for the installation such as electric drill is not provided in the package. The operation manual and related tool are contained in the disk or the QR code, and the actual package shall prevail. Dimensions The following figures are for reference only, and the actual product shall prevail. -
Page 12: Installing Device
Installing Device 3.3.1 Installation Method 3.3.2 Installing SD Card (Optional) Disconnect the power before installing or removing the SD card. Press and hold the reset button for 10 s to reset the camera. Installation 6... -
Page 13: Attaching Device
3.3.3 Attaching Device Make sure the mounting surface is strong enough to hold at least three times of the device weight. Cable going through the mounting surface Installation 7... - Page 14 Cable going through the side cable tray Installation 8...
-
Page 15: Installing Waterproof Connector (Optional)
3.3.4 Installing Waterproof Connector (Optional) This part is needed only when there is waterproof connector in the package and the device is used outdoors. Installation 9... -
Page 16: Adjusting Lens Angle
3.3.5 Adjusting Lens Angle Installation 10... - Page 17 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
