Fix Device
Step 1
Mark the mounting hole sites of the bracket on the mounting surface according to actual
requirements, and dig mounting holes, then insert the expansion bolts into the mounting holes
and lock them firmly.
Step 2
Lead in external cable from the cable exit hole of bracket, you can select bottom cabling or side
cabling.

Bottom cabling: It is to lead in cable directly from mounting surface, which can effectively
protect cable.

Side cabling: it is to lead in cable directly from cable exit groove of the bracket, which can
prevent cable from being damaged.
Step 3
Align the screw holes of bracket bottom with the mounting hole sites of mounting surface, use
self-tapping screws to fix the bracket on the mounting surface.
Step 4
Align the mounting hole sites of enclosure bottom with the mounting hole sites of bracket front,
and then insert locking screw into the screw hole and lock it firmly.

2.2 Connect Device Cable


Connect device corresponding power, audio cable and other cables well according to
requirement, and then use insulated tape to twine the connection respectively to make it
waterproof.
Connect alarm input and output terminal to external cable according to "Connect Alarm

Input/output Port", and use insulated tape to twine connection to make it waterproof.

2.3 Connect Alarm Input / Output Port

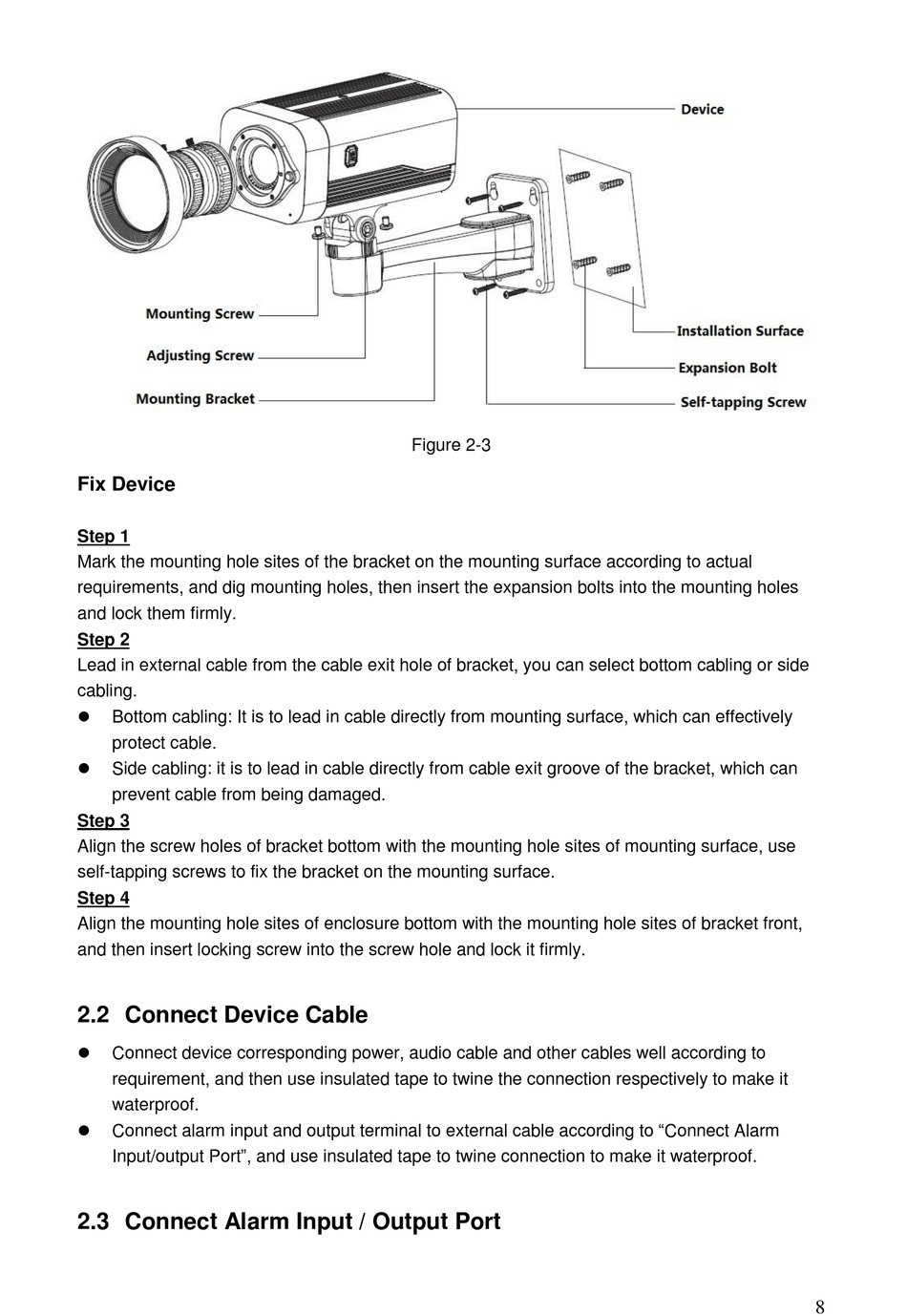

Figure 2-3
