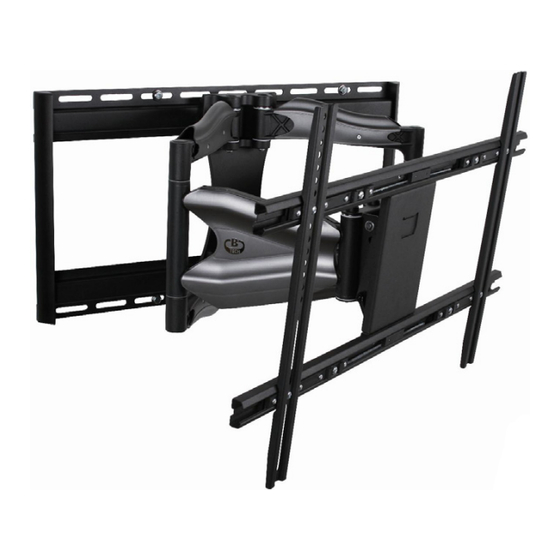

BT8224
DOUBLE CANTILEVER ARM FLAT SCREEN MOUNT
FOR EXTRA LARGE SCREENS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
INSTALLATION MAY
REQUIRE 2 PEOPLE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................18
B-Tech Contact Details.....................................................................................................................20
INSTALLATION TOOLS REQUIRED
17mm (17/26")
Crosshead
spanner or socket
screwdriver
B-TECH AUDIO VIDEO MOUNTS
FEATURES
●
Designed for flat screens up to 65" (165cm) / 90kg (198lbs)
●
Fits screens with VESA & Non-VESA mounting patterns
up to 790mm (31.1") x 500mm (20")
●
Easy tilt adjustment +15°
●
Features three swivel points:
180° at wall, 250° at central pivot and 180° at interface
●
Suitable for concrete / brick or stud walls up to 24"
●
Simple 'hook-on' installation with
all mounting hardware included
CONTENTS
12mm (15/32") masonry bit
Drill
or 8mm (5/16") wood bit
www.btechavmounts.com
Pencil
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech Mountlogic BT8224
Summary of Contents for B-Tech Mountlogic BT8224
-
Page 1: Table Of Contents
Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................18 B-Tech Contact Details........................20 INSTALLATION TOOLS REQUIRED 12mm (15/32") masonry bit 17mm (17/26") Pencil Stud finder Drill Crosshead or 8mm (5/16") wood bit spanner or socket (optional) screwdriver B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Spoleþnost B-Tech International Ltd. doporuþuje provést instalaci tohoto produktu prost ednictvím odborného instalátora AV þi jinak zp sobilé osoby. Spoleþnost B-Tech International Ltd, její distributo i a prodejci nenesou odpov dnost za škody nebo zran ní zp sobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné...
-
Page 4: Parts List
BT8224 PARTS LIST WALL PLATE & INTERFACE ASSEMBLY ARM ASSEMBLY Suitable for loads up to 90kg (198lbs) - Page 5 PART NAME WALL PLATE FIXING PLATE WALL ARM TILT PLATE HOOK PLATE CROSS RAIL INTERFACE ARM ARM COVER M10 x 25mm HEX SCREW M8 x 20mm HEX SCREW TILT ADJUSTMENT HAND LEVER M8 NUT M8 METAL WASHER M6 x 8mm HEX SCREW PLASTIC CAP M4 x 12mm WOOD SCREW ADJUSTMENT FIXING PLATE...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS OPTIONAL: To adjust position of the wall arm on the wall plate, remove parts 10 and 18. Then move fixing plate to desired position, then re-attach parts 10 and 18. - Page 7 Fix wall plate to the wall using one of the following methods. i. Brick / concrete walls. 12mm (15/32") masonry bit...
- Page 8 ii. Wood / wood stud walls. STUD FINDER (Optional) 8mm (5/16") wood bit...
- Page 9 OPTIONAL : For horizontal fixings between 380mm and 140mm, remove interface arms and attach in the vacant position closer to the centre of the interface. Attach interface to screen. i. Adjust interface arms to suit the flat screen's fixing pattern. FLAT SCREEN...
- Page 10 ii. Attach the interface arms to the flat screen. FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS SCREW INTERFACE WASHER SPACER FLAT SCREEN RECESS...
- Page 11 Hook the screen onto the tilt plate. FLAT SCREEN WALL...
- Page 12 ii. Level screen then fix in place using parts 13 & 14. SCREEN LEVELLING 13 14...
- Page 13 Attach plastic caps (parts 16) to the cross rails (parts 7). FLAT SCREEN Cable management. FLAT SCREEN CABLE CABLE...
- Page 14 ii. Unscrew arm covers, insert cable then re-attach arm covers. FLAT SCREEN CABLE WALL WARNING: Ensure arm is fully extended before connecting cables. CABLE CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.
- Page 15 Loosen the tilt adjustment hand lever to adjust tilt, then retighten to fix position. FLAT SCREEN -3° +15° +15° WALL...
- Page 16 To fix the cantilever arm position, tighten parts 11. FLAT SCREEN 180° 250° WALL 180° FLAT SCREEN WALL...
- Page 17 OPTIONAL: For minor lateral adjustment, loosen part 10, then slide fixing plate to suitable position. WARNING Only loosen screws. Do not remove FLAT SCREEN...
-
Page 18: Product Dimensions
BT8224 PRODUCT DIMENSIONS 705mm 145mm 27.8" 5.7" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 19 PRODUCT DIMENSIONS WALL PLATE 700mm 27.6" 660mm 26" 751mm 29.6" INTERFACE 790mm 31.1" 140mm 5.5" 820mm 32.3" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
-
Page 20: B-Tech Contact Details
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
