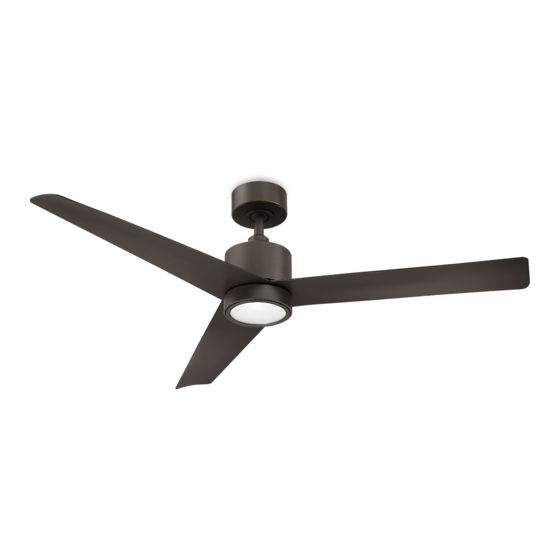

- Page 1 Lotus Installation Instructions works with the Google Assistant...
- Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F R - W 1 8 0 9 Lotus Instructions...
- Page 3 For fast service have the following information below when you call: Model Name and Number 2. Part Number and Part Description 3. Date Of Purchase and Purchase Location 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: fansupport@modernforms.com FR- W 1 80 9 Lotus Instructions 3...
- Page 4 All set screws must be checked and re-tightened where necessary before installation. F R - W 1 8 0 9 Lotus Instructions...
- Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
- Page 6 Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Accessories: Bluetooth Wall Control Dims light to 1% | ON/OFF personalize your experience 6 fan speeds | Sold separately F-WCBT-WT White F R - W 1 8 0 9 Lotus Instructions...
-
Page 7: Table Of Contents
6. Finishing the Installation 7. Installing the Adapter Plate 8. Installing the LED Luminaire Module 9. Controlling the Fan 10. Reset 11. Breeze Mode 12. Application 13. Accessories 14. Troubleshooting 30-32 Tools Required FR- W 1 80 9 Lotus Instructions 7... - Page 8 Screws with lock washers (7) Before discarding packaging materials be certain all parts have been removed. Place the parts from the hardware bag into a small container to keep them from being lost. F R - W 1 8 0 9 Lotus Instructions...
- Page 9 Hanging Weight: 15 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FR- W 1 80 9 Lotus Instructions 9...
-
Page 10: Mounting Options
45° (Fig. 1B). NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling (Fig. 1B). F R - W 1 8 0 9 Lotus Instructions... - Page 11 Support Brace 2. Outlet box 3. Joist Outlet box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet box Outlet box FR- W 1 80 9 Lotus Instructions 11...
-
Page 12: Hanging The Fan
9. Slip the coupling cover, canopy screw cover (painted side face down), and canopy (opened side up) onto the downrod (Fig. 2B). Coupling cover goes all the way to the bottom. F R - W 1 8 0 9 Lotus Instructions... - Page 13 4. Mounting Screws (supplied with outlet box) Cross Pin 2. Hanger Ball 3. Screw 4. Downrod 5. Safety Cable 6. Motor Wires Downrod 8. Screws 9. Collar 10. Cotter Pin 11. Clevis Pin FR- W 1 80 9 Lotus Instructions 13...
-
Page 14: Hanging The Fan Cont
Attach the blade to the blade support plate using the screws with lock washers as shown in (Fig. 3). 2. Fasten blade assembly to motor using the screws supplied (Fig. 3). F R - W 1 8 0 9 Lotus Instructions... - Page 15 Motor Wires 2. Safety Cable 3. Downrod 4. Canopy 5. Canopy Screw Cover 6. Coupling Cover Blade 2. Blade Support Plate 3. Screws with Lock Washers Wood Screw 2. Safety Cable FR- W 1 80 9 Lotus Instructions 15...
-
Page 16: Making The Electrical Connections
Connect the black (hot) wire from the ceiling to the black wire marked “AC in L” from the receiver. 8. Connect the white (neutral) wire from the ceiling to the white wire marked “AC in N” from the receiver. F R - W 1 8 0 9 Lotus Instructions... - Page 17 Receiver Bracket GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Bracket Ground) RED(to Motor) RED(to Motor) WHITE(Neutral) BLUE (for Light) YELLOW(to Motor) GREY(to Motor) Safety Cable Hanger Ball & Downrod FR- W 1 80 9 Lotus Instructions 17...
-
Page 18: Installing The Optional Wall Control
Fasten the wall plate to the wall mounting plate. to Fan House Wires Wall Switch Wires (Hot) (Hot In) (Neutral) (Neutral) (Copper/Ground) (Ground) Fan Switch leg (Hot out to Fan) From Breaker * Home Wiring may vary F R - W 1 8 0 9 Lotus Instructions... - Page 19 Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 25. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1 Wall Control 2 Line/Hot Green (Green or Bare) Neutral/White FR- W 1 80 9 Lotus Instructions 19...
-
Page 20: Finishing The Installation
(Fig. 7). 3. Tighten the two mounting ring screws previously loosened and the one previously removed to secure adapter plate. F R - W 1 8 0 9 Lotus Instructions... - Page 21 Outlet box 2. Hanger Bracket 3. Screws 4. Canopy 5. Canopy Screw Cover Mounting Ring 2. Adapter Plate 3. Screws FR- W 1 80 9 Lotus Instructions 21...
-
Page 22: Installing The Led Luminaire Module
Add Luminaire Cover cover if you do not need lighting function or prefer a different aesthetic. NOTE: Do not connect the LED connector wires if you are using the metal light cover. F R - W 1 8 0 9 Lotus Instructions... - Page 23 Adapter Plate 2. Screws 3. Glass Shade 4. Metal Cover 5. LED Luminaire Module 6. LED Connector Wires FR- W 1 80 9 Lotus Instructions 23...
-
Page 24: Controlling The Fan
Synchronizing Control Across Multiple Fans If you are controlling multiple fans with one controller, fans/lights may be synced by referring to Fig. 9B and instructions on the next page. F R - W 1 8 0 9 Lotus Instructions... - Page 25 All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the remote into sync. FR- W 1 80 9 Lotus Instructions 25...
-
Page 26: Reset
In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play. - Page 27 3 beeps indicating the reset receiver emits 3 beeps indicating the reset Scan and follow prompts for multilingual instruction options and Smart Fan FAQs: Spanish For detailed Instructions and Smart Home Device Integration French FR- W 1 80 9 Lotus Instructions 27...
-
Page 28: Accessories
Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White F R - W 1 8 0 9 Lotus Instructions... - Page 29 Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36” Downrod XF-48 - 48” Downrod | XF-60 - 60” Downrod XF-72 - 72” Downrod FR- W 1 80 9 Lotus Instructions 29...
-
Page 30: Troubleshooting
5. Make sure the gaps between the blades are evenly distributed or make sure you are using an approved cUL/UL listed outlet boxand it is installed correctly. F R - W 1 8 0 9 Lotus Instructions... - Page 31 Confirm your network is compatible by checking your router settings or contact your router manufacturer. 2. Make sure your network’s SSID is not hidden. 3. Your fan does not support 5 GHz network connectivity. connection. FR- W 1 80 9 Lotus Instructions 31...
- Page 32 What is Adaptive Learning? Adaptive learning is an exclusive feature that allows your fan to learn your daily/weekly habits and automatically recommend scheduled activity through the Modern Forms app. This feature can be toggled on or off. What is Breeze Mode? Breeze Mode mimics the natural ebb and flow of winds in nature by...
- Page 33 Please refer to the FAQ section of our app for further guidance. For all other questions, please contact our dedicated Fan Support specialists. Contact information can be found at the front of the instructions. FR- W 1 80 9 Lotus Instructions 33...
- Page 34 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
- Page 35 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
- Page 36 F R-W 1 809 modernforms.com...
