FAUCET SPECIFICATIONS
Vessel Bathroom Faucet
Model VG03024
MODEL VG03024
FEATURES
Solid brass construction
Single hole construction
Ceramic disk cartridge
Single lever faucet
Standard plumbing connections
Finish resist corrosion and tarnishing
PACKING LIST
Faucet Assembly
Brass ring
Rubber washer
Two Metal braided hoses
Nut
NOTE: All faucets are compliant to CEC 2016 regulations. If you
have inquiries about your water flow, please email
techmail@vigoindustries.com.
DIMENSIONS
MODEL #
FAUCET
HEIGHT
VG03024
10 1/2"
SPOUT
HOLE
REACH
DIAMETER
5 1/4"
1 3/8"
5 1/4"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO Niko VG03024CH
Summary of Contents for VIGO Niko VG03024CH

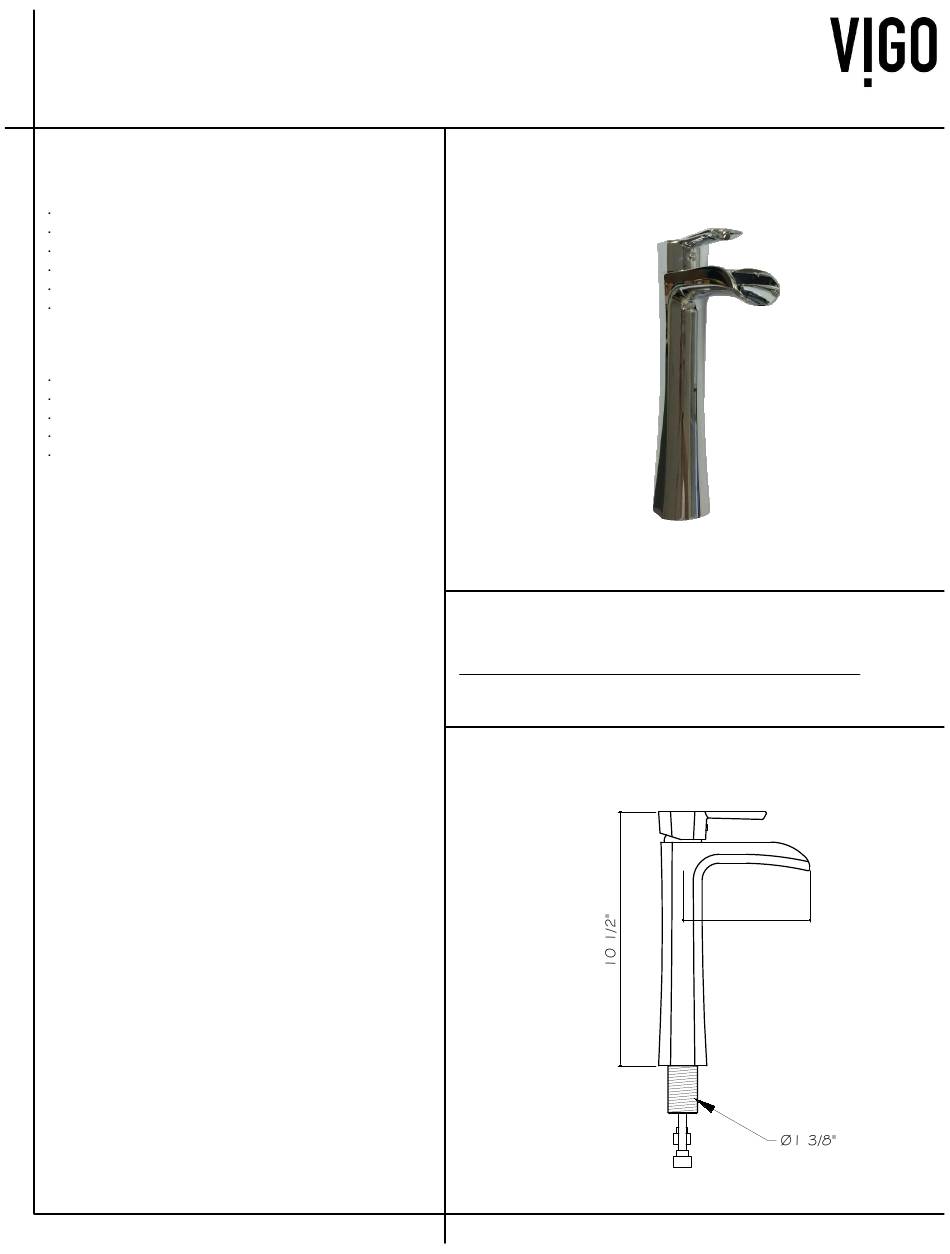

- Page 1 FAUCET SPECIFICATIONS Vessel Bathroom Faucet Model VG03024 MODEL VG03024 FEATURES Solid brass construction Single hole construction Ceramic disk cartridge Single lever faucet Standard plumbing connections Finish resist corrosion and tarnishing PACKING LIST Faucet Assembly Brass ring Rubber washer Two Metal braided hoses DIMENSIONS MODEL # FAUCET...
-
Page 2: Side View
3 1/2" 5 1/4" 1 5/8" 1 5/8" 2" 2" SIDE VIEW FRONT VIEW 6" TOP VIEW VG03024 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"... - Page 3 Doing so will remove the ability for the product to meet certain low flow standards. Please talk to your local or statewide plumbing enforcement agency prior to modifying. Vigo is not responsible for any alterations and the affects that may come with altering the product post sale and highly advises that the client only install the product that meets the needs of their local plumbing code.
-
Page 4: Maintenance
MINUTE EACH. WHILE WATER IS RUNNING, parts are included and visually inspect the unit for any defects. CHECK FOR LEAKS, ESPECIALLY AT HOOK-UPS If you have any questions please contact the Vigo Technical Support TO SUPPLY LINES. TIGHTENING NUTS SLIGHTLY Department before proceeding with installation. -
Page 5: Troubleshooting
PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART... - Page 6 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
-
Page 7: Liste Des Articles
Robinet de salle de bain pour vasque Raccords de plomberie standard LISTE DES ARTICLES Ensemble de robinet Anneau en laiton Rondelle en caoutchouc DIMENSIONS HAUTEUR DU ROBINET DU JET DE L'ORIFICE VG03024 10 1/2" 5 1/4" 1 3/8" 5 1/4" de la CEC de 2016. -
Page 8: Vue De Dessus
3 1/2" 5 1/4" 1 5/8" 1 5/8" 2" 2" VUE DE FACE 6" VUE DE DESSUS VG03024... - Page 9 responsable des modifications et de la touche qui peut venir avec la modification du poste de vente de produits et Restricteur Vous trouverez les 1,2 restricteurs gpm ici. Il suffit de retirer les 1,2 restricteurs gpm et installer le robinet comme d'habitude.
-
Page 10: Contenu De L'emballage
CONTENU DE L'EMBALLAGE ASSEMBLAGE RONDELLE EN CAOUTCHOUC RETIREZ L'ANCIEN ROBINET ET LES ANCIENS FLEXIBLES. NETTOYEZ LA SURFACE DU DEUX LAVABO EN VUE DE FLEXIBLES L'INSTALLATION DU ROBINET NOUVEAU ROBINET. RINCEZ AVEC DE L'EAU POUR VOUS ENTRETIEN CONDUIT. nettoyants abrasifs, la laine d'acier et les produits chimiques puissants peuvent 2. - Page 11 1.B - Cartridge defective 2 - Insufficient flow rate 1.B - Contact Vigo Technical Support for replacement. 2.A - Dirty aerator 3 - Leak at connection points 2.A - Remove aerator and soak / clean with a non abrasive 2.B - Clog in supply hose / line...
- Page 12 SAUF DISPOSITION CONTRAIRE CI-DESSUS, VIGO NE FAIT AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, Y COMPRIS DE VALEUR MARCHANDE, constructeur. Limitations commerciales...
-
Page 13: Contenidos Del Paquete
ESPECIFICACIONES DEL GRIFO Grifo para lavabo Modelo VG03024 MODELO VG03024 CONTENIDOS DEL PAQUETE Juego de grifo Anillo de bronce Arandela de caucho Dos mangueras de metal con refuerzo trenzado Tuerca DIMENSIONES MODEL GRIFO BOCA ORIFICIO NRO. ALTURA VG03024 10 1/2" 5 1/4"... -
Page 14: Vista Superior
3 1/2" 5 1/4" 1 5/8" 1 5/8" 2" 2" VISTA LATERAL VISTA FRONTAL 6" VISTA SUPERIOR VG03024... - Page 15 NORMAS DE CAUDAL La velocidad de flujo con restrictores - 1.2 gpm La velocidad de flujo sin restrictores - 1.5 gpm Restrictor quitar los restrictores de 1,2 gpm e instalar el grifo como de costumbre. Grifo Limitador 1.2gpm Limitador 1.2gpm...
-
Page 16: Mantenimiento
CONTENIDO DEL PAQUETE MONTAJE ARANDELA DE METAL ARANDELA DE CAUCHO 1. CIERRE EL SUMINISTRO DEL AGUA. QUITE EL GRIFO TUERCA VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LAVABO PARA PREPARARLO PARA EL NUEVO GRIFO. ENJUAGUE MANGUERAS FLEXIBLES GRIFO ASEGURARSE DE QUE NO QUEDEN TRABADOS MANTENIMIENTO... - Page 17 1.B - Cartridge defective 2 - Insufficient flow rate 1.B - Contact Vigo Technical Support for replacement. 2.A - Dirty aerator 3 - Leak at connection points 2.A - Remove aerator and soak / clean with a non abrasive 2.B - Clog in supply hose / line...
- Page 18 VIGO INDUSTRIES, LLC ("VIGO") comienza en la fecha de compra inicial por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO y durante toda la vida del propietario o usuario final originales. VIGO. Limitaciones aplicables sobre dichas instalaciones.
