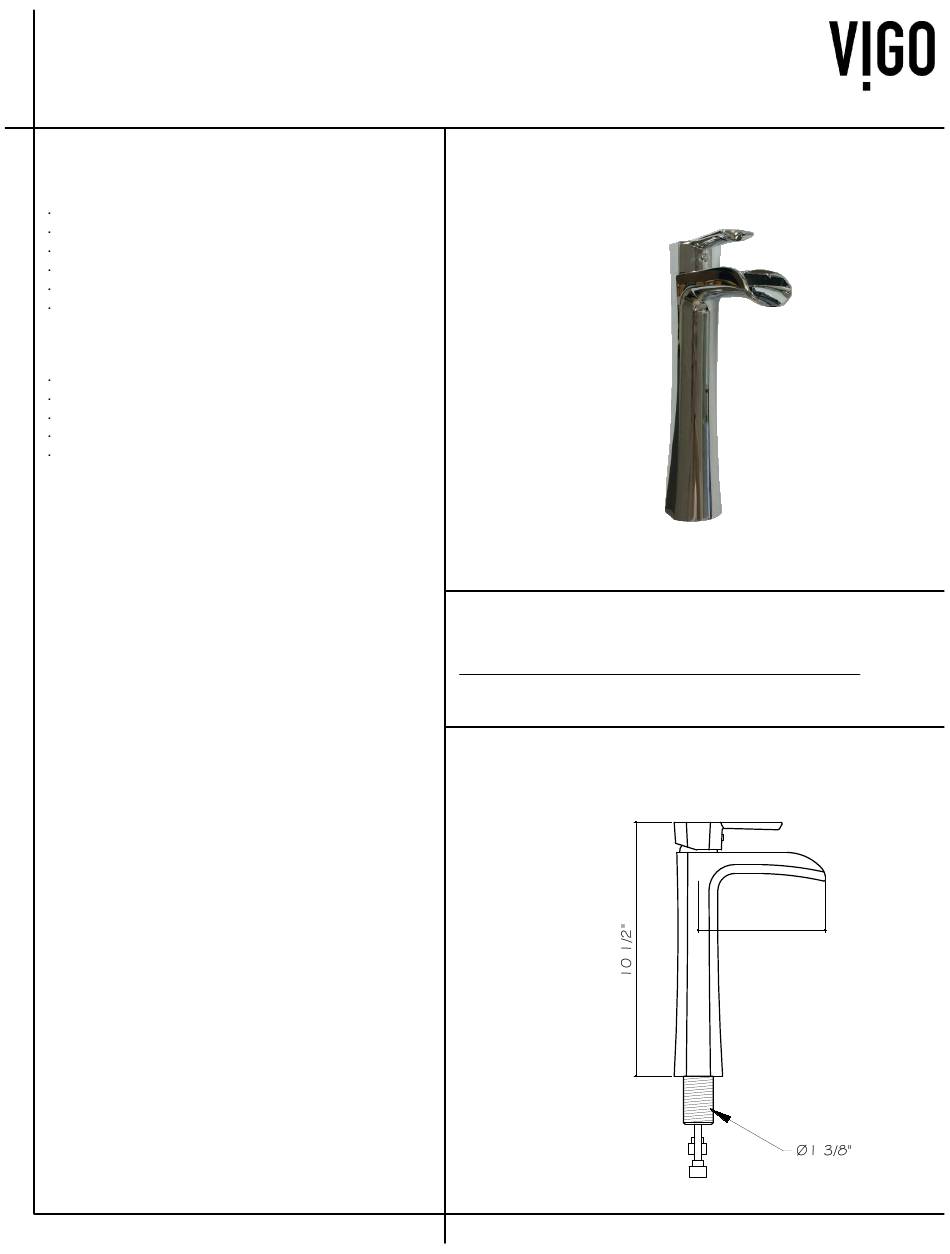

FAUCET SPECIFICATIONS

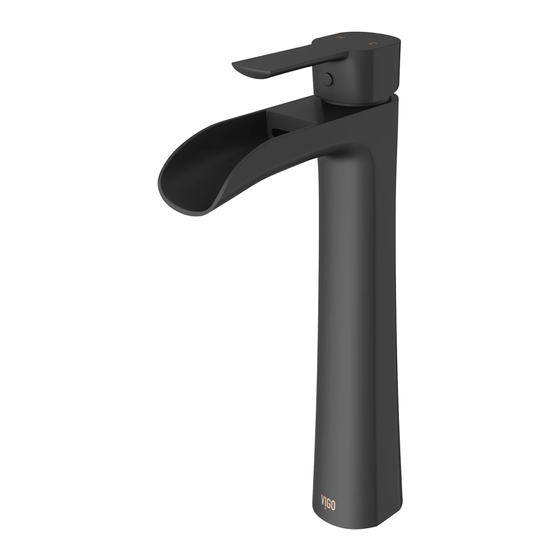

Vessel Bathroom Faucet
Model VG03024
MODEL VG03024
FEATURES
Solid brass construction
Single hole construction
Ceramic disk cartridge
Single lever faucet
Standard plumbing connections
Finish resist corrosion and tarnishing
PACKING LIST
Faucet Assembly
Brass ring
Rubber washer
Two Metal braided hoses
Nut
NOTE: All faucets are compliant to CEC 2016 regulations. If you
have inquiries about your water flow, please email
techmail@vigoindustries.com.
DIMENSIONS
MODEL #
FAUCET
HEIGHT
VG03024
10 1/2"
SPOUT
HOLE
REACH
DIAMETER
5 1/4"
1 3/8"
5 1/4"
