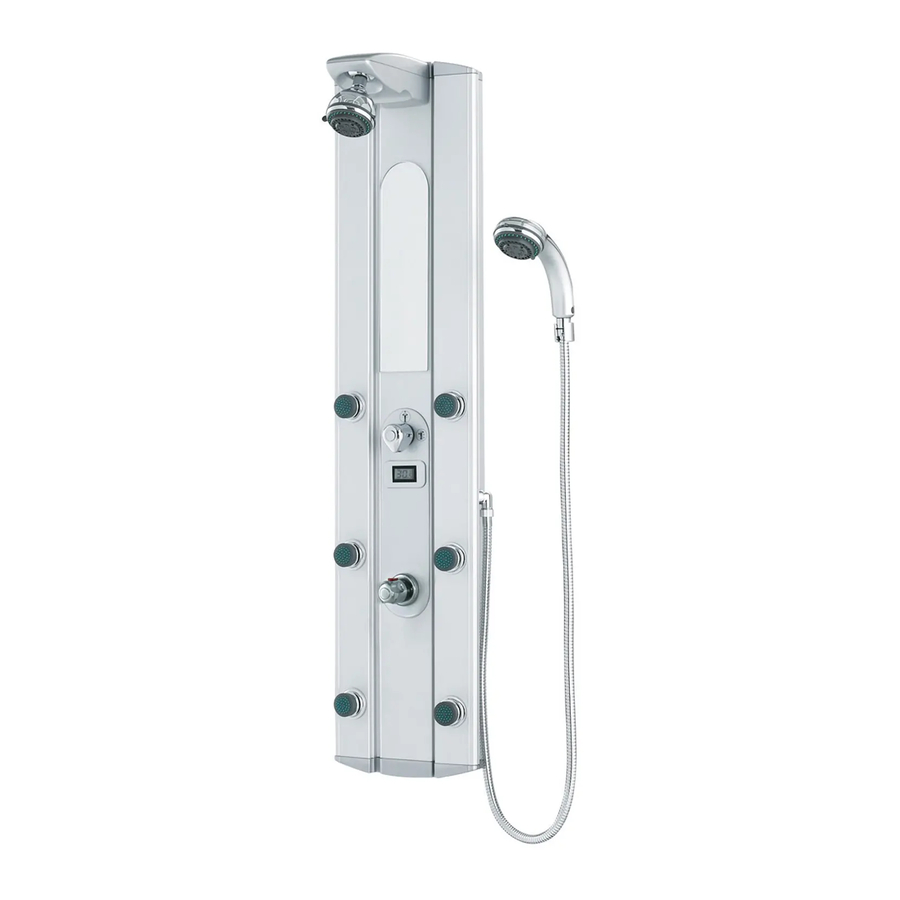

- Page 1 MODEL VG08006 CONTENT PACKING LIST / TOOLS NEEDED PANEL DIMENSIONS FITTINGS / TECHNICAL DATA WALL/CORNER INSTALLATION CARE AND TROUBLE SHOOTING WARRANTY...
-
Page 2: Packing List
88092 84044 (NOT INCLUDED) NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PLUMBER. FREE FROM ACETIC ACID PRESSURE GAUGE TO ASSURE PROPER PRESSURE ( MAX 60 PSI) SILICONE RECOMMENDED - SHUT OFF VALVES FOR HOT AND COLD MODEL VG08006... -
Page 3: Panel Dimensions
10 1/2" CORNER INSTALLATION (TOP VIEW) NOTE: Dimension may vary up to 1/4". It is highly recommended to pull all dimensions off actual model for installation and measuring purposes. MODEL VG08006 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"... -
Page 4: Front View
POINT TECHNICAL DATA MIN. FLOW PRESSURE 30 PSI MAX OPERATING PRESSURE 60 PSI OVERALL WATER PRESSURE IS 2.5 GALLONS HEAD SHOWER 2.0 GALLONS PER MINUTE AT 60 PSI MODEL VG08006 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"... -
Page 5: Wall Installation
Save time and frustration: if turning the volume/temperature control handle gives both hot and cold water, but the water does not mix, the hoses may have been connected to the incorrect supplies. Please disconnect the hoses, reattach them to the correct supplies and test the unit. MODEL VG08006... -
Page 6: Corner Installation
CORNER INSTALLATION 84001 84009 84000 84027 84004 88009 88093 84001 84044 MODEL VG08006... -
Page 7: Troubleshooting
*** Vigo is not responsible for pressure related issues stemming from the home's water supply. The customer should read, understand and/or ask a certified plumber prior to installation. If these steps are not taken the product may not work at optimum efficiency. - Page 8 VIGO warrants the mechanical components of the Product to be free from defects in workmanship and materials under normal use and service for a period of two (2) years from the initial date of purchase by the owner or end-user, contractor, or builder, from VIGO or an authorized VIGO dealer.
- Page 9 CONTENU DIMENSIONS DU PANNEAU INSTALLATION MURALE ET EN ANGLE GARANTIE...
-
Page 10: Liste Des Articles
LISTE DES ARTICLES DESCRIPTION - CORPS DU PANNEAU 88061 - POMME DE DOUCHE 84009 - DOUCHETTE 84004 - TUYAU DE DOUCHETTE 88004 - SUPPORT DE FIXATION DE DOUCHETTE 84027 - SUPPORT DE FIXATION EN ANGLE 88093 - VIS - 4 pcs. 88009 - CHEVILLES DE FIXATION - 4 pcs. - Page 11 DIMENSIONS DU PANNEAU 11 1/8" 10 1/2" 8" EMPLACEMENT DU SUPPORT 15" FLEXIBLES. BRANCHEZ SUR CHAUDE ET FROIDE SUPPORT 10 1/2" INSTALLATION EN ANGLE (VUE DE DESSUS)
-
Page 12: Vue De Face
POMME DE DOUCHE - 84009 PROFIL EN ALUMINIUM - 88061 MIROIR - 87000 POMME DE DOUCHE - 84004 - POMME DE DOUCHE - DOUCHETTE SUPPORT DE FIXATION - JETS - FONCTION OFF L'EAU - 84017, 84019 FROIDE DU TUYAU D'EAU DOUCHE CORPORELLE (JET D'EAU) - SUPPORT DE 84011... -
Page 13: Installation Murale
INSTALLATION MURALE 88093 INSTALLATION 84000 88009 88005 INSTALLATION SUR UN MUR PLAT LE SUPPORT SE INSTALLATION... -
Page 14: Installation En Angle
INSTALLATION EN ANGLE 84001 84009 84000 84027 84004 88009 88093 84001 84044... - Page 15 Conseils de nettoyage des produits Vigo Produits de nettoyage des mitigeurs et des douches Consignes de nettoyage des mitigeurs et des douches Important Rincez le conduit Rincez ou remplacez la douchette Remplacez la cartouche thermostatique (eau chaude ou eau froide seulement...
- Page 16 D'autres limitations s'appliquent en cas d'usage commercial. l'entrepreneur ou le constructeur. Limitations blessures, voire la mort. Limitations commerciales Service de garantie proposition par le client met fin aux obligations de VIGO au titre de la garantie.
- Page 17 MODELO VG08006 CONTENIDO CONTENIDOS DEL PAQUETE/HERRAMIENTAS NECESARIAS DIMENSIONES DEL PANEL...
-
Page 18: Contenidos Del Paquete
- LLAVE DE DERIVADOR 84015 84024 - ESPEJO 87000 - CHORROS PARA EL CUERPO 84011 84018 88009 84001 88093 HERRAMIENTAS 88092 84044 (NO INCLUIDO) DEBE LLEVARLA A CABO UN PLOMERO CALIFICADO Y CON LICENCIA. SILICONA SE RECOMIENDA CERRAR MODELO VG08006... - Page 19 DIMENSIONES DEL PANEL 11 1/8" 10 1/2" 8" 15" MANGUERAS FLEXIBLES. CALIENTE SE RECOMIENDA 30-40" DESDE EL SUELO ACABADO DE ESQUINA 10 1/2" (VISTA SUPERIOR) recomienda en especial sacar todas las dimensiones del modelo real. MODELO VG08006...
-
Page 20: Vista Frontal
Y AGUA CALIENTE - AGUA GIRAN 88005 VISTA TRASERA VISTA SUPERIOR VISTA FRONTAL DIRECCIONES DE CHORRO DE AGUA RESPECTO AL PUNTO CENTRAL VISTA LATERAL DE CHORRO DE AGUA CABEZA DE DUCHA 2,0 GALONES POR MINUTO A 60 PSI MODELO VG08006... - Page 21 88093 EN ESQUINA 84000 88009 88005 EN ESQUINA EL APOYO VIENE MONTADO EN LA PARTE TRASERA DE LA UNIDAD EN ESQUINA conectarlas de nuevo a las entradas correctas y probar la unidad. MODELO VG08006...
- Page 22 84001 84009 84000 84027 84004 88009 88093 84001 84044 MODELO VG08006...
- Page 23 Material de limpieza para mezcladores y duchas - Nunca mezcle materiales de limpieza. Instrucciones de limpieza para mezcladores y duchas Importante el nivel de agua es insuficiente enjuague la manguera manguera flexible la ducha de mano no tira suficiente agua enjuague la ducha de mano o no es posible regular la temperatura PSI o GMP inadecuados...
- Page 24 VIGO INDUSTRIES, LLC ("VIGO") distribuidor autorizado de VIGO y durante toda la vida del propietario o usuario final originales. VIGO o a un distribuidor autorizado de VIGO. hacerse valer ante VIGO o ante otras personas. Limitaciones responsabilidad del propietario/usuario final.
