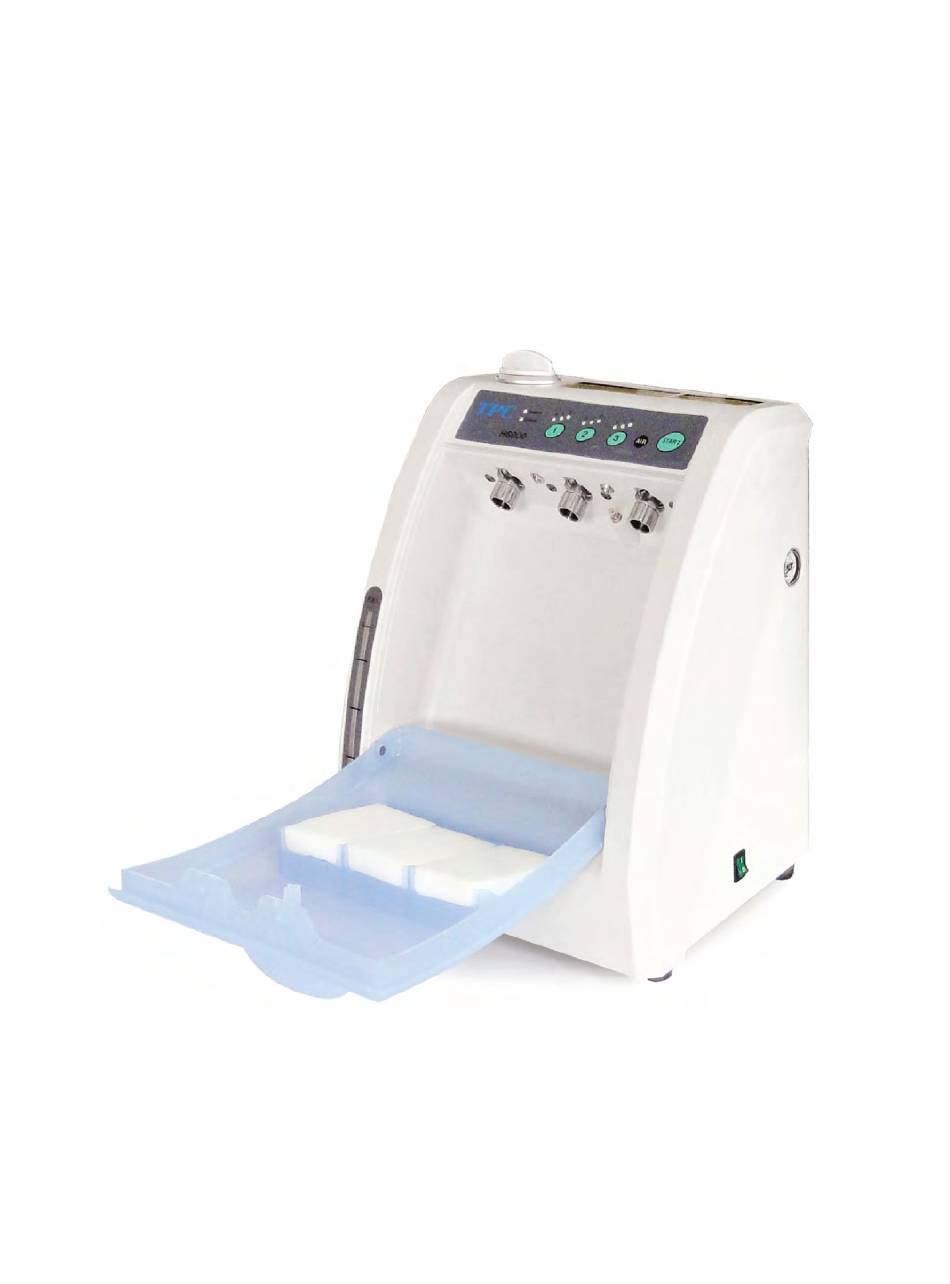

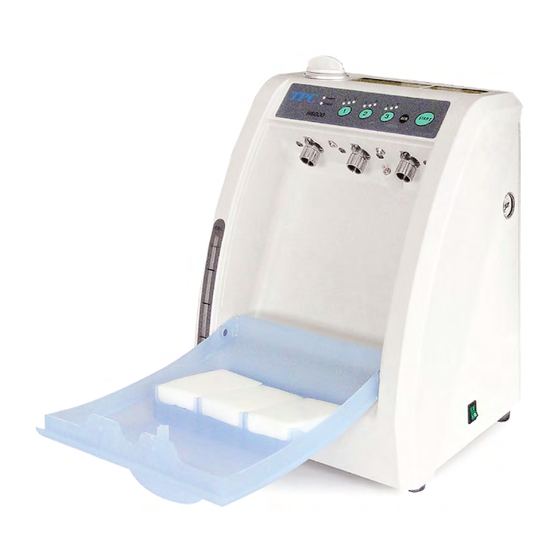

- Page 1 Surgical Handpiece Cleaning and Lubrication System User Manual TPC Advanced Technology 851 S. Lawson St. City Of Industry CA 91748 www.tpcdental.com...
-
Page 2: Installation Instruction
Installation instruction Place the H6000 in a location where you have an air line. Generally this location will be located near your sterilization area. You will also need an electrical outlet, Connect your air line and electrical. Fill lubrication reservoir with the supplied lubrication fluid. - Page 3 Operation Instructions Open the door and attach up to 2 handpieces to the unit When attaching straight • noise cone and contra angles, make sure that the latch attach is secure. Notice how all the latches are almost Notice the latch is not flush with flush with the connector.
- Page 4 After attaching handpieces, close the door. The unit will not operate if the door is not properly closed. Select the S (Short-35 second cycle), L (Long-45 second cycle) or E (Extra long-50 second cycle) for each individual handpiece. If no light for 1,2 or 3 is illuminated the position is turned off.
- Page 5 Press the air button if you wish to run a cycle of only air through your handpieces. This process removes any excess lubrication fluid from the turbine Remove your handpieces from the unit. Lubrication and cleaning is now complete. To remove the handpiece turn the HP nut counter clockwise to un-screw it.
-
Page 6: Overview Of Controls

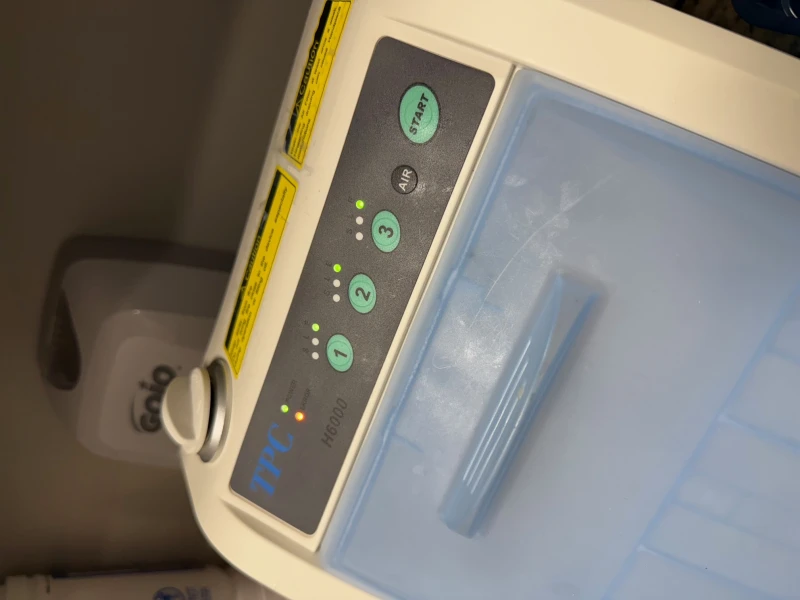

Overview of Controls Error light will Start button: Starts the illuminate when the cycle of the H6000 door is opened or there when pressed. is a malfunction in the system Lubrication reservoir fill cap. Air button, only runs air through the hand pieces.
Need help?
Do you have a question about the H6000 and is the answer not in the manual?
Questions and answers
orange error light
The orange error light on the TPC H6000 illuminates when the door is opened or when there is a malfunction in the system.
