Summary of Contents for Stirling SGGC77

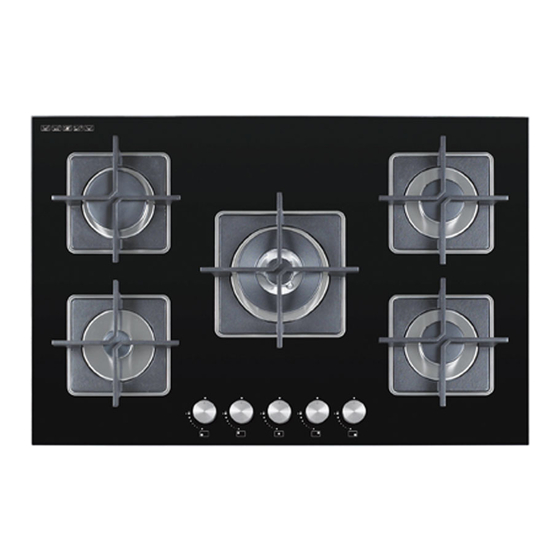

- Page 1 77cm Black Glass Gas Cooktop Model Number SGGC77 INSTRUCTION MANUAL IM Version No.: V1.1 Issue Date: 04/2018 MODEL: SGGC77 | PRODUCT CODE: 60149 9 | 04/2018...
-
Page 2: Welcome
Welcome Congratulations on choosing to buy a STIRLING® product. All products brought to you by STIRLING® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 3: Table Of Contents
Contents 02 Welcome 04 Warranty 05 General Safety Instructions 07 Product Overview 09 Installation Instructions 19 FAQ’s and Troubleshooting 20 Other Useful Information 24 Repair and Refurbished Goods or Parts Notice MOtDEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 4 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
-
Page 5: Warranty
No space heating: Do not use this cooktop for space heating purposes. Ventilation: Heat, steam and moisture will be created when the cooktop is in use. Take care to avoid injury and ensure the kitchen is adequately ventilated. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 6 Contact our after sales support line for advice. Liability: We assume no liability for any eventual damages to property or injury to persons caused by misuse of the product or noncompliance with these instructions. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 7 2 × Semi Rapid Burner 1.16Mj, (1750W) 1 × Rapid Burner 1.49Mj, (3000W) 5 × Trivets Cast iron 5 × Burner Control Knobs Aluminum alloy Cooktop Dimensions: Height: 40mm Width: 770mm Depth: 510mm Weight: 17kg MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
-
Page 8: Product Overview
15 1 × Regulator 16 5 × LPG Jets (For LPG installation) 17 1 × Gas Pipe Bend Gasket Also included (but not shown) — Instruction manual Quick start guide Warranty Card MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... -
Page 9: Installation
(depth, width), indicated in Fig. 1. The 150mm protected surface may be ceramic tiles or another approved non-combustible material. Fig. 1 * This appliance (SGGC77) has flame safeguard's fitted to all burners. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 10 • If you have (or plan to have) a rangehood tted above the cooktop, check in the rangehood instructions that you will have the required clearance before starting with the installation. Fig. 3 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 11 30mm below the underside of the cooktop. (Fig. 5). Fig. 5 40 mm 30 mm (MIN.) The panel below the hob must be easily removable to enable servicing if and when required. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 12 (Fig. 7, B) to the cooktop and tighten the screws (Fig. 7, C) securely shown in Fig. 7. This is very important. The other side of the clamp must be located on the underside of the bench top, as seen in Fig. 7. Fig. 7 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 13 For NG or LPG you need to install the regulator (Fig. 9) supplied with the appliance. The regulator has a test point to enable an authorised licenced plumber/gas tter to check for gas leaks after the cooktops installation. Fig. 9 Screw LPG setting Gas pressure test point Screw NG setting MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 14 Reassemble all the burners carefully (refer to Fig. 18 on page 20); in particular you should make sure that the burner base is correctly placed on the burner. Follow gas connection instructions but do not install the NG regulator (Fig. 9 on page 13) but install the brass MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 15 • When lit, each burner produces a well de ned blue ame without any yellow tipping. • Each burner ame remains lit when the respective control knob is rotated quickly from the Maximum to the Minimum aperture position. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
-
Page 16: Instructions
• After use, always turn the control knob to the Closed position Note: It is possible to light the burners using matches or another ame device MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 17 Cooking with your Gas Cooktop Use appropriately sized pans for each burner, see Table . PAN TABLE Burners Pan Diameter (Table 2) Rapid 14-24 SR Semi Rapid 12-22 Auxiliary 12-22 W Wok 14-24 Fig. 14 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 18 Correct ame height and will cause gas waste and possible handle damage Choice of cooking utensils For a large burner, For a small burner, use a large utensil use a large utensil MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 19 If your gas cooktop is still not working then call our aftersales support team or your local licenced gas tter or plumber to arrange a service call. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
-
Page 20: Other Useful Information
(Fig. 18). If it does not t, you are trying to t the burner body onto the wrong burner. • To check that all parts are reassembled correctly, light the burners and allow them to dry out. Fig. 17 Fig. 18 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 21 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 22 Do not use or store flammable materials in the appliance storage drawer or near this appliance. Do not spray aerosols in the vicinity of this appliance while it is in operation. Do not modify this appliance. 0000 000 000 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 23 This page is intentionally left blank MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
-
Page 24: Repair And Refurbished Goods Or Parts Notice
Please telephone us on 1300 11 43 57 or write to us at: Residentia Group 118 Campbell Street, Collingwood VIC 3066 Australia Email: support@residentiagroup.com.au Helpline hours of operation: Mon–Fri 9:00 AM - 5:00 PM 0000 000 000 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018... - Page 25 MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
- Page 26 This page is intentionally left blank MODEL: SGGC77 | PRODUCT CODE: 601499 | 04/2018...
