Gas Cooktop
Model Number STR-SGC60
INSTRUCTION MANUAL
AFTER SALES SUPPORT
info@tempo.org
E209
AUS
1300 886 649
MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the STR-SGC60 and is the answer not in the manual?

Questions and answers

Related Manuals for Stirling STR-SGC60

Summary of Contents for Stirling STR-SGC60

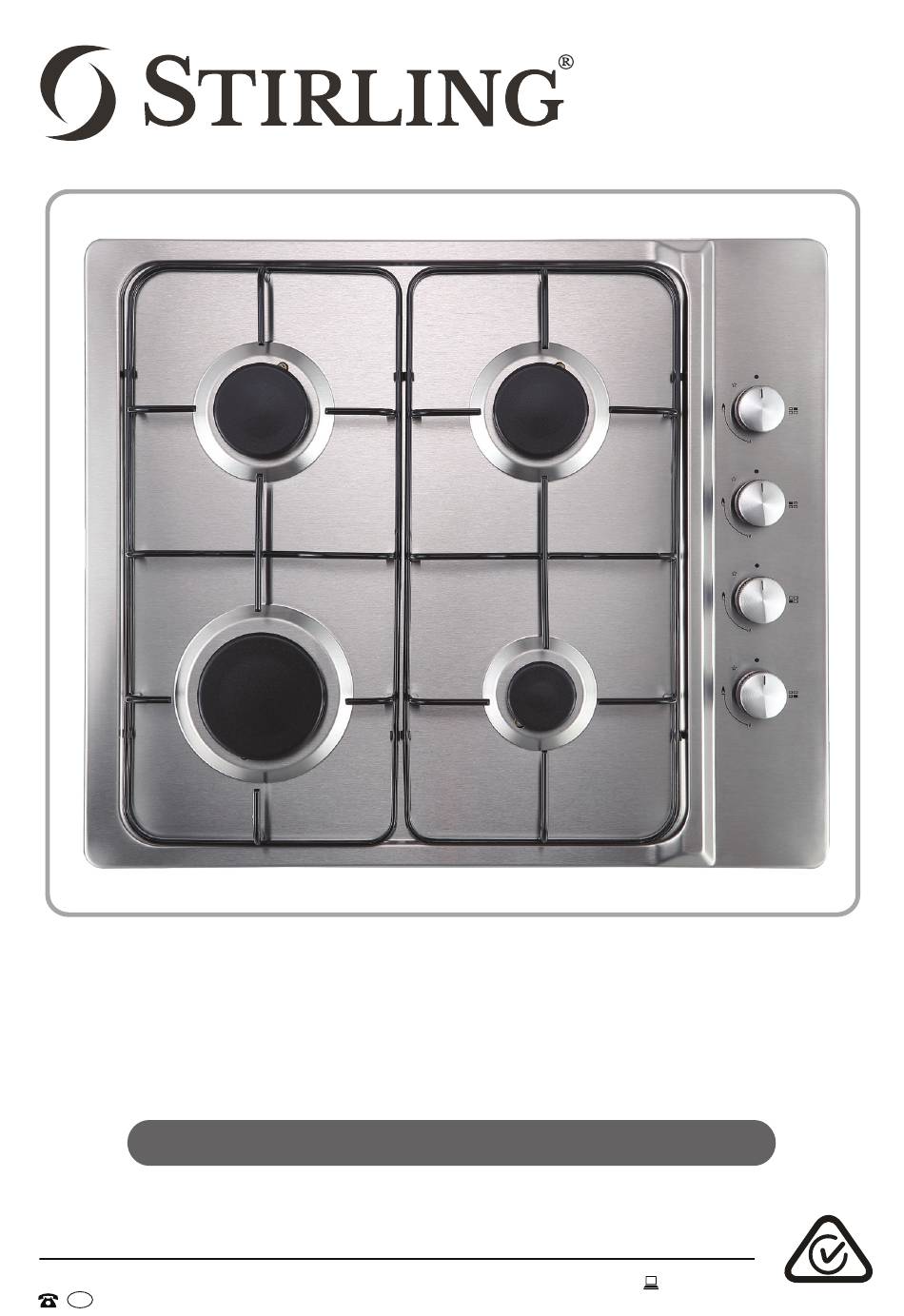

  • Page 1 Gas Cooktop Model Number STR-SGC60 INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org E209 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 2 Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty.

  • Page 3: Table Of Contents

    05 General Safety Instructions 09 Product Overview 11 Installation 24 Instructions 29 FAQs & Troubleshooting Guide 30 Other Useful Information 35 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 5: General Safety Instructions

    DO NOT MODIFY THIS APPLIANCE. • DO NOT USE THIS APPLIANCE AS A SPACE HEATER. Failure to adhere to the above warnings may result in death or serious injury. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 6 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 7 Do not immerse the appliance or power cord in water or any other liquid. Do not use AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 8 Contact our after sales support centre for advice. • Misuse: We accept no liability for any eventual damages or injury to persons caused by misuse of the product or noncompliance with these instructions. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 9: Product Overview

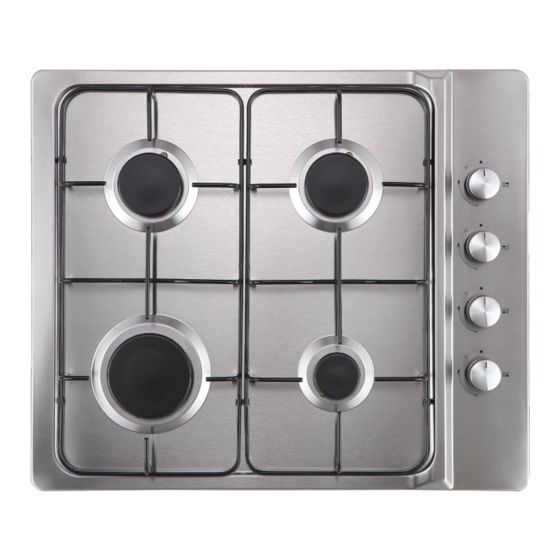

    Auxiliary gas burner (4.0MJ/h) Rear right burner control Enamelled trivets (pan support) Rear left burner control Control panel Front left burner control Stainless steel surface Front right burner control AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 10 Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 11: Installation

    • The safety and automatic adjustment devices of the appliance may only be modified by an authorised service agent. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 12 Prolonged intensive use of the appliance may require additional or more effective ventilation, for example, opening of a window or increasing the level of mechanical ventilation, where present.     AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 13 If installing above an oven, the oven must have forced ventilation. Check the necessary clearances and cut-out requirements in the oven installation manual. Clearances required when fitting the cooktop with a rangehood above 700mm 400mm 400mm Fig. 1 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 14 You must have a gap of at least 25mm and at most 74mm between the underside of the appliance and any surface underneath it (Fig. 3). Fig. 3 45mm 25mm (min.) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 15 Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the cooktop from the aperture in future if it needs to be serviced. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 16 Then fully tighten the screws (A) to secure the cooktop into Mounting position. Screw (A) bracket (B) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 17 Wiring diagram Fig. 7 SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 IGNITION AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 18 It is factory-set for use with Natural Gas (NG), but can be adjusted for use with Universal Liquefied Petroleum Gas (ULPG). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 19 If you find any abnormality of the regulator valve, stop using the appliance and contact our after sales support centre for advice. Do not attempt any maintenance yourself. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 20 800– 850mm above the floor (hotplates), and outside the width of the appliance to a distance of 250mm (Fig. 11). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 21 Injection MJ/h MJ/h ∅ (mm) ∅ (mm) Pressure Pressure Rapid 1.50 10.8 0.88 10.8 Semirapid 1.12 0.68 1.0 kPa 2.75 kPa Auxiliary 0.90 0.56 Total 27.4 27.4 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 22 • A full operational test and a test for possible leakages must be carried out after gas conversion; see page 23 for details. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 23 Bubbling of the solution will indicate that there is a leak present. Retighten or reseal any joints that are leaking. If the leak persists, contact our after sales support centre for assistance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 24: Instructions

    • You can use matches to light a burner in the event of a power failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 25 The trivets fit over the burners as pictured below (Fig. 16). • The auxiliary pan support may be placed on top of the trivet when using a small pot or pan (Fig. 17). Fig. 17 Fig. 16 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 26 • Use appropriately sized cookware for the burner and adjust the flame height so it heats the underside of the pot/pan. Having the flame too high will waste gas and possibly cause damage to the handle (Fig. 20). Fig. 20 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 27 (Fig. 22-B). • Do not use large pots or heavy weights which can bend the trivet or deflect the flame onto the cooktop surface (Fig. 22-C). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 28 • To avoid scalding, do not touch the cooktop surface or trivets while in use and for some time afterwards: the surfaces are hot. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 29: Faqs & Troubleshooting Guide

    DO NOT operate electrical switches or devices, including mobile phones. Still not Call your licensed gasfitter, or our after sales support working? centre, and arrange a service. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 30: Other Useful Information

    The control knobs may be removed for thorough cleaning, if necessary, • just pull them off the shaft. After cleaning, push them firmly back into position, taking care not to damage the seal. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 31 • To check that all parts are reassembled correctly, light the burners and allow them to dry out. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 32 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 33 The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices. E209 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 34 Proof of professional installation is also required for warranty claims. Please fill in the details below: Name of licensed installer: ............Licence number: ................Date of installation: ..............Signature / Date: ................AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...

  • Page 35: Repair And Refurbished Goods Or Parts Notice

    PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Sat 09:00am to 06:00pm AEST) Email: info@tempo.org YEAR WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
  • Page 36 Version No Issue Date Description V1.0 29 November 2019 Original (2020) release V1.1 18 December 2019 Revision to page 22 & 33 V1.2 03 January 2020 Update: page 18 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020...
