Stirling STR-X70GH Instruction Manual

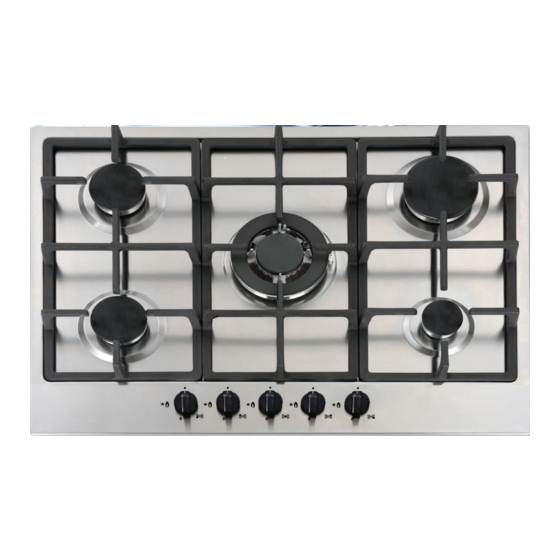

70cm gas cooktop
Hide thumbs
Table of Contents

Advertisement

Quick Links

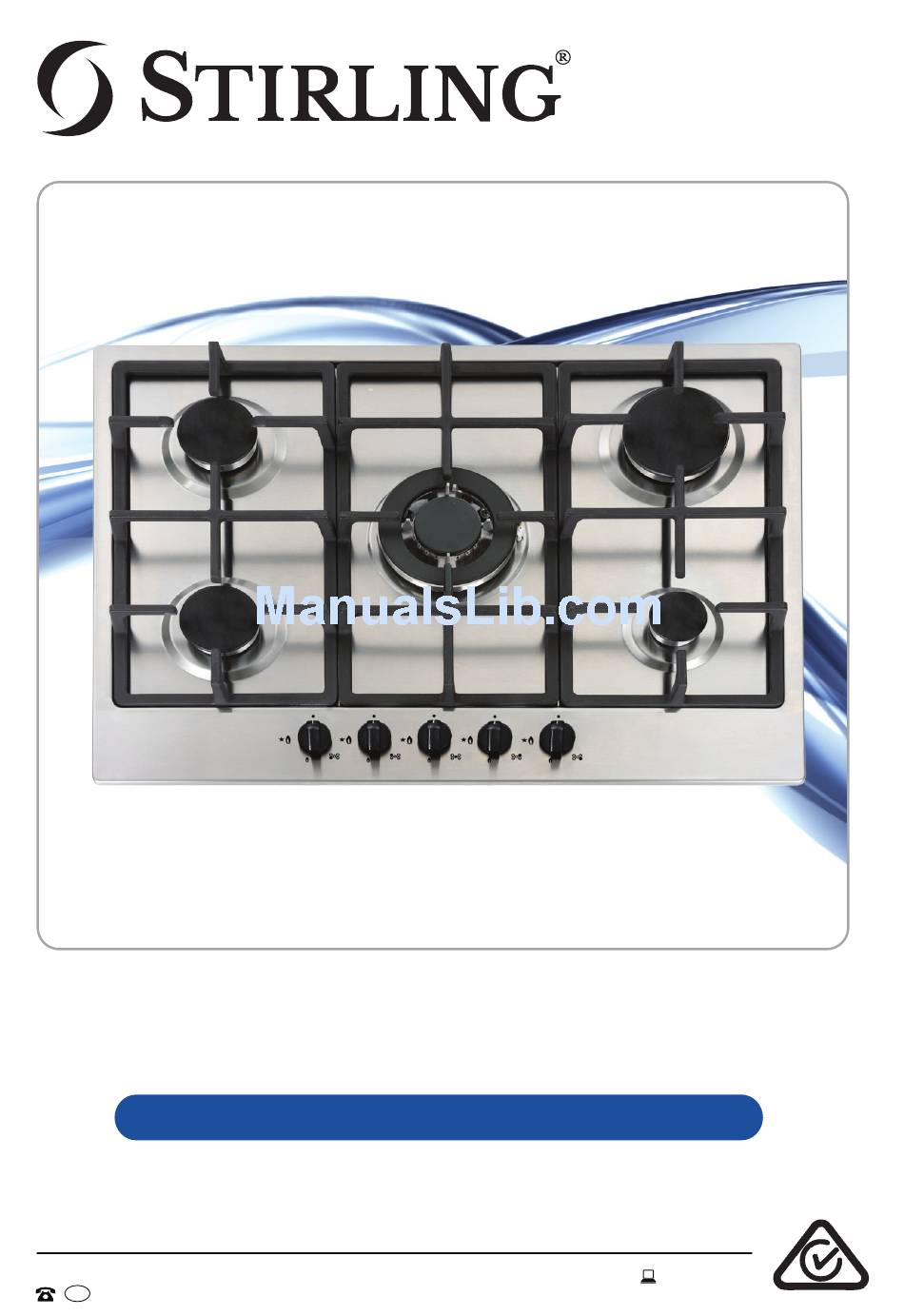

70cm Gas Cooktop
Model Number STR-X70GH
INSTRUCTION MANUAL
IM Version No: V1.2
Issue Date: 11 January 2016
AFTER SALES SUPPORT
info@tempo.org
AUS
1300 886 649
MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
N13275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STR-X70GH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stirling STR-X70GH

Summary of Contents for Stirling STR-X70GH

  • Page 1 70cm Gas Cooktop Model Number STR-X70GH INSTRUCTION MANUAL IM Version No: V1.2 Issue Date: 11 January 2016 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016 N13275...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year in Home Warranty.

  • Page 3: Table Of Contents

    05 General Safety Instructions 08 Product Overview 10 Installation 22 Instructions 24 FAQs & Troubleshooting Guide 25 Other Useful Information 29 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 5: General Safety Instructions

    Do not spray aerosols near the cooktop when it is in use. Do not modify the appliance. Failure to follow this advice may result in death or serious injury. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 6 Do not allow children to operate or play with any part of the appliance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 7 • Liability: We assume no liability for any eventual damages to property or injury to persons caused by misuse of the product or noncompliance with these instructions. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 8: Product Overview

    Scope of delivery Gas cooktop Semirapid gas burner 1750W Wok (triple flame) gas burner 3800W Rapid gas burner 3000W Auxiliary gas burner (1000W) Control panel (see opposite for details) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 9: Control Knobs

    Installation hardware Cooktop fixing brackets (x4) Long screws (x4) Sealing gasket Gas regulator Injectors (x5) for conversion to LPG Documentation Instruction manual Quick start guide Warranty certificate AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 10: Installation

    • The safety and automatic adjustment devices of the appliance may only be modified by an authorised service agent. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 11 If fitting a 600mm bridging unit above the 700mm cooktop unit, the sides •   of adjacent cabinets may be lower than 650mm down to 400mm, provided   that they are resistant to heat and steam. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 12 The cut-out illustration (Fig. 1) shows the minimum distances to any vertical structures around the cooktop. Fig. 1 140mm 61mm 557mm • The required height clearances are illustrated below (Fig. 2). Fig. 2 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 13 To install the cooktop in your benchtop, make an opening with the dimensions given below (Fig. 3). Fig. 3 A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) 150 min. 90 min. 650min. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 14 Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the cooktop from the aperture in future, particularly if it needs to be serviced. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 15 Secure the cooktop in position using the mounting brackets supplied. • There are four mounting slots on the base of the cooktop where you can affix the brackets (Fig. 5). Fig. 5 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 16 • The other end of the bracket should be located underneath the benchtop to secure the cooktop in position (Fig. 7). Fig. 7 Cooktop Mounting bracket Benchtop AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 17: Electrical Connection

    Electrical work: Should any electrical work be required associated with the electrical outlet that is to be used for the cooktop, all such work must be carried out by an appropriately qualified, licensed electrician. Circuit diagram AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 18: Gas Connection

    (ULPG), the burners have to be converted. Before starting the conversion, make sure all gas is switched off (and preferably disconnected from the appliance) and the electrical power has been disconnected. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 19 0.51mm burner Semirapid 6.3 MJ/h 1.13mm 6.0 MJ/h 0.67mm burner (x2) Rapid burner 10.8 MJ/h 1.45mm 10.2 MJ/h 0.87mm Wok burner 13.7 MJ/h 1.65mm 12.7 MJ/h 0.95mm AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 20 For the connection of the electric cord and plug, the general purpose outlet and switch must not be installed within the appliance recess and must be readily accessible without having to remove the appliance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 21 Bubbling of the solution will indicate that there is a leak present. Retighten or reseal any joints that are leaking. If the leak persists, contact our after sales support centre for assistance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 22: Instructions

    (ignitors) and flame failure probes (thermocouples), which need to be kept clean for proper operation (cleaning instructions follow on page 26). NOTE You can use matches to light the burners in the event of a power failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 23 • When the contents start boiling, turn the knob down to the LOW position. • Always switch off the burner before removing the pot/pan. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 24: Faqs & Troubleshooting Guide

    • DO NOT operate electrical switches or devices, including mobile phones. Still not Call your licensed gasfitter, or our after sales support working? centre, and arrange a service. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 25: Other Useful Information

    • Do not wash any parts of the cooktop in the dishwasher. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 26 To check that all parts are reassembled correctly, light the burners and allow them to dry out. Fig. 17 Fig. 18 Flame failure probe (thermocouple) Ignition plug AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 27: Service And Repair

    Spare parts Our after sales support centre stocks the following spare parts for the STR-X70GH STIRLING 5 Burner Gas Cooktop. To purchase a part, call the centre on 1300 886 649 or email us at info@tempo.org • 680mm Burner bracket •...

  • Page 28: Technical Specifications

    Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 29: Repair And Refurbished Goods Or Parts Notice

    PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30am to 06:00pm EST) Email: info@tempo.org AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 30 This page has been left blank intentionally. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
  • Page 31 This page has been left blank intentionally. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...

  • Page 32: The Product

    Instruction Manual Revision Index Version No Issue Date Description V1.0 15 December 2015 Original release V1.1 24 December 2015 Minor updates V1.2 11 January 2016 Updates AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016...
