  • Page 1 75cm Glass Gas Cooktop Model Number STR-PGGC75 INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019 E209...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty.

  • Page 3: Table Of Contents

    05 General Safety Instructions 08 Product Overview 10 Installation 24 Instructions 28 FAQs & Troubleshooting Guide 29 Other Useful Information 35 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 5: General Safety Instructions

    • DO NOT MODIFY THIS APPLIANCE. • DO NOT USE THIS APPLIANCE AS A SPACE HEATER. Failure to adhere to the above warnings may result in death or serious injury. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 6 Pot and pan handles may become hot during use; position handles away from the edge of the cooktop and out of reach of children. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 7 Call for service. • Misuse: We assume no liability for any eventual damages or injury to persons caused by misuse of the product or noncompliance with these instructions. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 8: Product Overview

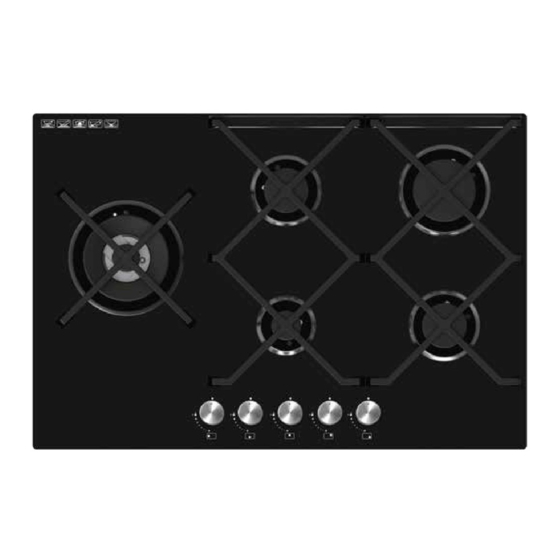

    Glass surface Control panel (burner control knobs) From left to right: Left-hand side (wok) Front centre (auxiliary) Rear centre (semirapid) Rear right-hand side (rapid) Front right-hand side (semirapid) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 9 Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 10: Installation

    • The safety and automatic adjustment devices of the appliance may only be modified by an authorised service agent. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 11 Prolonged intensive use of the appliance may require additional or more effective ventilation, for example, opening of a window or increasing the level of mechanical ventilation, where present.     AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 12 800–850mm above the floor and to a distance of at least 250mm outside the width of the cooktop. The connector should be accessible with the cooktop installed. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 13 Installation (Cont.) Fig. 1 Fig. 2 NOTE: The cooktop illustrated in Fig. 2 varies from the STR-PGGC75 purchased. It is only intended for illustrative purposes of the required clearances. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 14 Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the cooktop from the aperture in future, if it needs to be serviced. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 15 • Secure the cooktop in position using the mounting brackets supplied. • There are four mounting points (1, 2, 3, 4) on the cooktop base to affix the brackets (Fig. 6). Gas inlet connection Fig. 6 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 16 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019 备 注:...
  • Page 17 It is factory-set for use with Natural Gas (NG), but can be adjusted for use with Liquefied Petroleum Gas (LPG). Fig. 10 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 18 If you find any abnormality of the regulator valve, stop using the appliance and contact our after sales support centre for advice. Do not attempt any maintenance yourself. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 19 Unscrew the injector (Fig. 12-B) and replace it with the stipulated injector for the new gas supply (see Table 2 on the next page). Fig. 12-A Fig. 12-B AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 20 • The correct adjustment is obtained when the flame has a length of about 3–4 mm. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 21 For the connection of the electric cord and plug, the general purpose outlet and switch must not be installed within the appliance recess and must be readily accessible without having to remove the appliance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 22 Bubbling of the solution will indicate that there is a leak present. Retighten or reseal any joints that are leaking. If the leak persists, contact our after sales support centre for assistance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 23 When fitting a new tap, ensure that a new gasket is used. • Reconnect the gas tap, perform a gas soundness test, and then reassemble the hob. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 24: Instructions

    • After use, always turn the control knob to the Off position. NOTE: You can use matches to light the burners in the event of a power failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 25 When the contents start boiling, turn the knob down to the lowest flame setting. • Always switch off the burner before removing the pot/pan. Fig. 16 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 26 • Use appropriately sized cookware for the burner and adjust the flame height so it heats the underside of the pot/pan. Having the flame too high will waste gas and possibly cause damage to the handle (Fig. 19). Fig. 19 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 27 Locate the pan centrally over the burner so that it is stable and does not overhang the appliance. Use only a wok support supplied or recommended by the manufacturer of the appliance. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 28: Faqs & Troubleshooting Guide

    • DO NOT search with a naked flame, smoke, strike any matches or press an ignitor. Still not Call your licensed gasfitter, or our after sales support working? centre, and arrange a service. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 29: Other Useful Information

    Take care and check suitability of your cleaning agents before use. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 30 • To check that all parts are reassembled correctly, light the burners and allow them to dry out. Fig. 22 Fig. 23 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 31 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 32 The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices. E209 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 33 Proof of professional installation is also required for warranty claims. Please fill in the details below: Name of licensed installer: ............Licence number: ................Date of installation: ..............Signature / Date: ................AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 34 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...

  • Page 35: Repair And Refurbished Goods Or Parts Notice

    PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Sat 09:00am to 06:00pm AEST) Email: info@tempo.org AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
  • Page 36 25 March 2019 Minor update, pages 8, 18, 29 V1.3 08 April 2019 Minor updates, pages 6, 7, 11 V1.4 28 June 2019 Pages 17–23 added, remaining pages updated AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-PGGC75 PRODUCT CODE: 10288 09/2019...
