- Page 1 75cm Gas Cooktop Model Number SGCW75S INSTRUCTION MANUAL IM Version No.: V1. Issue Date: 04/2017 MODEL: SGCW75S | PRODUCT CODE: 56582 | 04/2017...
-
Page 2: Welcome
Welcome Congratulations on choosing to buy a STIRLING® product. All products brought to you by STIRLING® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. We hope you... -
Page 3: Table Of Contents
Contents 02 Welcome 04 Warranty 05 General Safety Instructions 07 Product Overview 09 Installation Instructions 19 FAQ’s and Troubleshooting 20 Other Useful Information 22 Repair and Refurbished Goods or Parts Notice SGCW75S CT C 56582 04 2017... - Page 4 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. MODE : SGCW75S | PRODUCT CODE: 56582 | 04/2017...
-
Page 5: Warranty
No space heating: Do not use this cooktop for space heating purposes. Ventilation: Heat, steam and moisture will be created when the cooktop is in use. Take care to avoid injury and ensure the kitchen is adequately ventilated. SGCW75S CT C 56582 04 2017... - Page 6 Contact our after sales support line for advice. Liability: We assume no liability for any eventual damages to property or injury to persons caused by misuse of the product or noncompliance with these instructions. MODE : SGCW75S | PRODUCT CODE: 56582 | 04/2017...

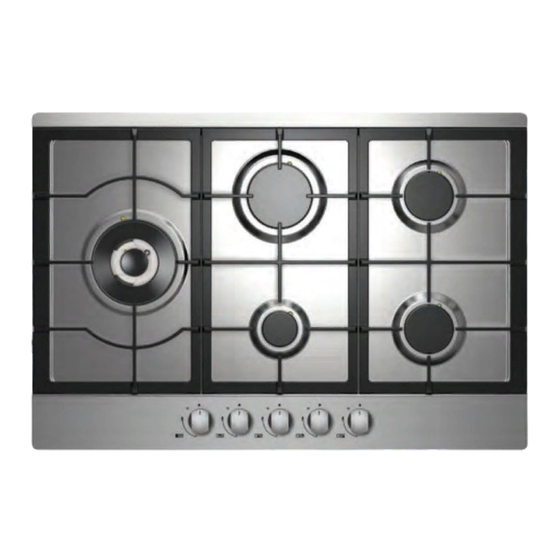

- Page 7 Gas Cooktop Layout u iliar Key: Rapid 3 Wok 4 Semi Rapid 5 Burner Controls ri et 1 × Auxiliary Burner 3.6Mj, (1000W) 2 × Semi Rapid Burner 6.3Mj, (1750W) 1 × Rapid Burner 10.8Mj, (3000W) 3 × Trivets × Burner Control Knobs Stainless Look Cooktop Dimensions:...
-
Page 8: Product Overview
Product Overview Cont. Burner Control Knobs 1 Left Hand Side 2 Rear Centre 3 Front Centre 4 Rear Right Hand Side 5 Front Right Hand Side Other Burner Caps × 6 Burner Base × 5 Spark Electrode (Ignition) Flame Failure Thermocouples 10 Hob Surface 11 Wok Support Trivet 12 Cast Iron Trivets ×... -
Page 9: Installation
150mm above the cooktop surface across the entire length (depth, width), indicated in Fig. 1. The 150mm protected surface may be ceramic tiles or another approved non-combustible material. Fig. 1 SGCW75S CT C 56582 04 2017... - Page 10 Installation Cont Clearances (Fig. 2) Minimum distance from left edge of cut-out to the nearest combustible surface: 200mm Minimum distance from right edge of cut-out to the nearest combustible surface: 200mm Minimum distance from rear edge of cut-out to the nearest: –...
- Page 11 25mm below the underside of the cooktop. (Fig. 5). Fig. 5 The panel below the hob must be easily removable to enable servicing if and when required. MODEL: SGCW75S | PRODUCT CODE: 56582 | 04/2017...
- Page 12 (Fig. 7, B) to the cooktop and tighten the screws (Fig. 7, C) securely shown in Fig. 7. This is very important. The other side of the clamp must be located on the underside of the bench top, as seen in Fig. 7. Fig. 7 SGCW75S CT C 56582 04 2017...
- Page 13 LPG. Gas conversions can be carried out by an authorised and licenced gas tter/plumber. WARNING: Always isolate the cooktop from the electricity supply before changing the injectors and/or adjusting the minimum ow of the burners. SGCW75S CT C 56582 04 2017...
- Page 14 Installation Cont. Remove (A) all the trivets, burner cap and burner base from the cooktop. Remove the injectors (B) and replace with the LPG injectors supplied with your cooktop. Refer to the rating plate (Table 1.) for the correct injector sizes for each burner. Table 1 Reassemble all the burners carefully (refer to Fig.
- Page 15 • When lit, each burner produces a well de ned blue ame without any yellow tipping. • Each burner ame remains lit when the respective control knob is rotated quickly from the Maximum to the Minimum aperture position. SGCW75S CT C 56582 04 2017...
-
Page 16: Instructions
• In the event of a burner flame being accidentally extinguished, turn off the burner control and wait for at least one minute before reigniting it. • After use, always turn the control knob to the Closed position Note: It is possible to light the burners using matches or another ame device SGCW75S CT C 56582 04 2017... - Page 17 Cooking with your Gas Cooktop Use appropriately sized pans for each burner, see Table . PAN TABLE Burners Pan Diameter (Table 2) Rapid SR Semi Rapid Auxiliary 12-1 cm W Wok 22-26cm Fig. 14 SGCW75S CT C 56582 04 2017...
- Page 18 Instructions Cont. with your gas cooktop. • • Position your pot/pan properly centrally on the trivets above the burner/s. • Do not use saucepans that overlap the boundaries of the hob. • position. • Always switch off the burner before removing the pot or pan. Choice of ame height: Fig.
- Page 19 If your gas cooktop is still not working then call our aftersales support team or your local licenced gas tter or plumber to arrange a service call. SGCW75S CT C 56582 04 2017...
-
Page 20: Other Useful Information
(Fig. 18). If it does not t, you are trying to t the burner body onto the wrong burner. • To check that all parts are reassembled correctly, light the burners and allow them to dry out. Fig. 17 Fig. 18 SGCW75S CT C 56582 04 2017... - Page 21 Other Useful Information Cont. Spare Parts Our after sales support centre stocks the following spare parts for the Gas Cooktop. To purchase a part, call the centre on 1300 11 4357 or email us at support@residentiagroup.com.au • Burner Cap (large, medium, small) •...
-
Page 22: Repair And Refurbished Goods Or Parts Notice
Please telephone us on 1300 11 43 57 or write to us at: Residentia Group 1/32 Wangaratta St Richmond VIC 3121 Australia Email: support@residentiagroup.com.au Helpline hours of operation: Mon–Fri 9:00 AM - 5:00 PM 0000 000 000 www.xxxxxxx.com SGCW75S CT C 56582 04 2017... - Page 23 SGCW75S CT C 56582 04 2017...
- Page 24 This page is intentionally left blank SGCW75S CT C 56582 04 2017...
