CSL24V™& CSL24VH™
VEHICULAR SLIDE GATE OPERATOR
I N S T A L L A T I O N M A N U A L
Your model may look different than the model illustrated in this manual.
THIS PRODUCT IS TO BE
INSTALLED AND SERVICED BY
A TRAINED GATE SYSTEMS
TECHNICIAN ONLY.
Visit www.liftmaster.com to
locate a professional installing
dealer in your area.
UL325
compliant
This model is for use on vehicular
passage gates ONLY and not
intended for use on pedestrian
passage gates.
This model is intended for use in
Class I, II, III and IV vehicular slide
gate applications.
UL991
compliant
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Chamberlain ELITE CSL24V
Summary of Contents for Chamberlain ELITE CSL24V

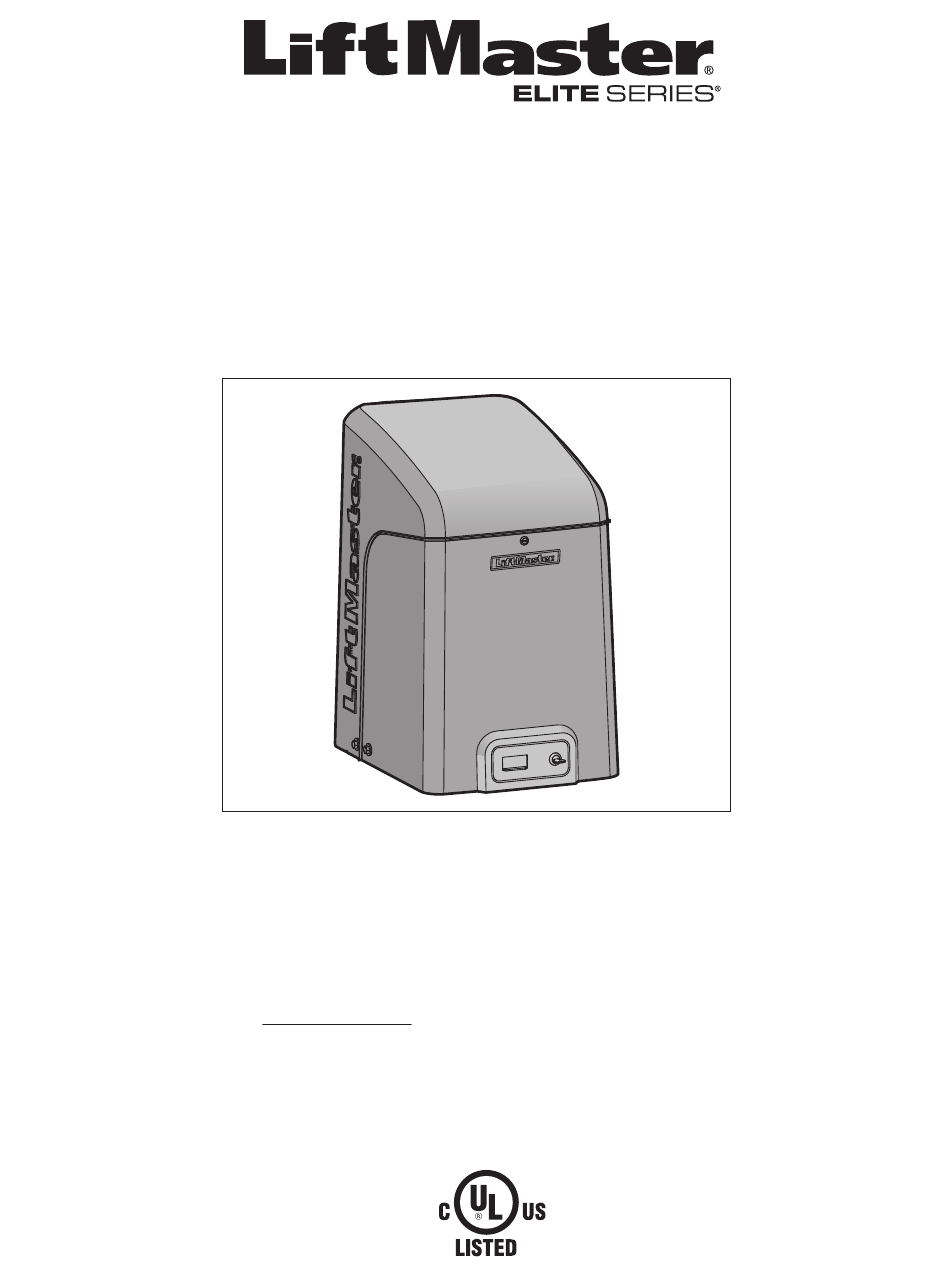

- Page 1 CSL24V™& CSL24VH™ VEHICULAR SLIDE GATE OPERATOR I N S T A L L A T I O N M A N U A L Your model may look different than the model illustrated in this manual. THIS PRODUCT IS TO BE This model is for use on vehicular passage gates ONLY and not INSTALLED AND SERVICED BY...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY FINISH INSTALLATION UL325 MODEL CLASSIFICATIONS ......... . . 2 INSTALL THE COVER . -
Page 4: Ul325 Model Classifications
SAFETY UL325 MODEL CLASSIFICATIONS UL325 MODEL CLASSIFICATIONS CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR A vehicular gate operator (or system) intended for use in a home of one-to four single family dwellings, or a garage or parking area associated therewith. CLASS II –... -
Page 5: Safety Installation Information
SAFETY SAFETY INSTALLATION INFORMATION SAFETY INSTALLATION INFORMATION 1. Vehicular gate systems provide convenience and security. Gate systems are 8. Controls intended for user activation must be located at least 6 feet (1.8 m) comprised of many component parts. The gate operator is only one away from any moving part of the gate and where the user is prevented component. -
Page 6: Gate Construction Information
SAFETY GATE CONSTRUCTION INFORMATION GATE CONSTRUCTION INFORMATION Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy, contact ASTM directly at 610-832-9585 or www.astm.org. GENERAL REQUIREMENTS 3.1.3 A gap, measured in the horizontal plane parallel to the roadway, between a fixed stationary object nearest the roadway, (such as a gate support post) Gates shall be constructed in accordance with the provisions given for the and the gate frame when the gate is in either the fully open position or the... -
Page 7: Required Entrapment Protection Devices
SAFETY REQUIRED ENTRAPMENT PROTECTION DEVICES REQUIRED ENTRAPMENT PROTECTION DEVICES To prevent SERIOUS INJURY or DEATH from a moving gate: • Entrapment protection devices MUST be installed to protect anyone who may • Locate entrapment protection devices to protect between moving gate and come near a moving gate. -
Page 8: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION INSTALLATION To prevent SERIOUS INJURY or DEATH from a moving gate: • Pinch points must be guarded at all times. Install enclosed-style gate tracks and • Entrapment protection devices MUST be installed to protect anyone who may roller guards. -
Page 9: Important Safety Information Continued
SAFETY IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION CONTINUED... ADDITIONAL FEATURES To prevent SERIOUS INJURY or DEATH from a moving gate: • Entrapment protection devices MUST be installed to protect anyone who may • Locate entrapment protection devices to protect between moving gate and RIGID come near a moving gate. -
Page 10: Introduction
INTRODUCTION OPERATOR SPECIFICATIONS + CARTON INVENTORY & OPERATOR DIMENSIONS OPERATOR SPECIFICATIONS This model is intended for use in vehicular slide gate applications: CLASS I, II, III, & IV Gate Classifications: 325 watts (120 Vac ONLY) Heater Draw (Optional): 120 Vac or 240 Vac Main AC Supply: 1500 lbs. -
Page 11: Features
INTRODUCTION FEATURES FEATURES OPERATOR FEATURES • Advanced "Centerpiece" Control Board • Manual - Secure power failure selection • AC Surge Protection and EMI Filter Board • SAMS compatible - Main AC voltage input selection: 120 Vac (factory setting) or • Slow-start and slow-stop gate motion 240 Vac (field change) •... -
Page 12: Preparation
PREPARATION SITE PREPARATION Check the national and local building codes BEFORE installation. GATE Gate must be constructed and installed according to ASTM F2200 standards (refer to page 4). Gate must fit specifications of operator (refer to specifications). SAFETY CATCH ROLLERS DO NOT use a gate catch post. - Page 13 SITE PREPARATION CONDUIT & CONCRETE PAD EARTH GROUND ROD Conduit must be UL approved for low and high voltage. Consider the operator Proper grounding gives an electrical placement BEFORE installing the pad or post. charge, such as from an electrical static discharge or a near lightning strike, a path from which to dissipate its energy safely into the earth.
-
Page 14: Installation
INSTALLATION DETERMINE LOCATION FOR CONCRETE PAD AND OPERATOR + CONCRETE PAD & OPERATOR ATTACHMENT DETERMINE LOCATION FOR CONCRETE PAD AND OPERATOR STANDARD INSTALLATION The gate operator should be installed near the front roller of the gate or near the back of the gate (in the OPEN position). The space between the gate and the output sprocket must be a minimum of 4 inches. -
Page 15: Standard Installation Only
INSTALLATION STANDARD INSTALLATION ONLY + REAR INSTALLATION ONLY STANDARD INSTALLATION ONLY DO NOT run the operator until instructed. Manually open the gate and line up the front bracket so the chain will be level with the idler pulley and parallel to the ground. Weld the front bracket in this position. -
Page 16: Wiring
WIRING WIRE THE ENTRAPMENT PROTECTION DEVICES + EARTH GROUND ROD WIRE THE ENTRAPMENT PROTECTION DEVICES Entrapment protection devices are required. Refer to page 5 for more information regarding application. To prevent SERIOUS INJURY or DEATH from a moving gate: • Entrapment protection devices MUST be installed to protect anyone who may •... -
Page 17: Power Wiring
WIRING POWER WIRING POWER WIRING This operator can be wired for either 120 Vac or 240 Vac or a solar AMERICAN WIRE MAXIMUM WIRE MAXIMUM WIRE panel (not provided). Follow the directions according to your application. GAUGE (AWG) LENGTH (120 VAC) LENGTH (240 VAC) For dual gate applications, power will have to be connected to each 130 feet... -
Page 18: Power Wiring Continued
WIRING POWER WIRING POWER WIRING CONTINUED... NUMBER OF CYCLES PER DAY (SOLAR) Slide Gate Installation ACCESSORY ZONE 1 ZONE 2 ZONE 3 (6 Hrs (4 Hrs (2 Hrs SOLAR PANEL(S) (16 ft. 1000 lb. gate) POWER sunlight/day) sunlight/day) sunlight/day) DRAW (mA) NOT PROVIDED. -
Page 19: Ac Power Switch
WIRING AC POWER SWITCH + CONNECT BATTERIES AC POWER SWITCH The AC Power switch on the operator will turn the incoming 120/240 Vac power ON or OFF. The operator's AC Power switch ONLY turns off AC power to the control board and DOES NOT turn off battery power. -
Page 20: Connect Batteries Continued
WIRING CONNECT BATTERIES CONNECT BATTERIES CONTINUED... 33AH BATTERIES The batteries are charged in the circuit by the integrated transformer. The batteries (without heater) are for battery backup or solar installation. The 33AH application requires the 33AH wire harness (Model K94-36596). NOTE: If 33AH batteries (2) are used, the battery tray underneath the heater will need to be removed to allow more space in the enclosure (if applicable). -
Page 21: Dual Gates Only
WIRING DUAL GATES ONLY DUAL GATES ONLY There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and wireless communication simultaneously. Wired dual gate applications will have a longer battery standby time than wireless applications. WIRELESS DUAL GATES TO ACTIVATE THE WIRELESS FEATURE: Choose an operator to be the network primary operator. -
Page 22: Dual Gates Only Continued
WIRING DUAL GATES ONLY DUAL GATES ONLY CONTINUED... WIRED DUAL GATES Before digging, contact local underground utility locating companies. Use PVC conduit to prevent damage to cables. Disconnect ALL power to the operator and unplug the J15 plug from DUAL GATE WIRE TYPE (SHIELDED TWISTED PAIR CABLE) the control board. -
Page 23: Adjustment
ADJUSTMENT LIMIT AND FORCE ADJUSTMENT LIMIT AND FORCE ADJUSTMENT To reduce the risk of SEVERE INJURY or DEATH: • Without a properly installed safety reversal system, persons (particularly small • NEVER use force adjustments to compensate for a binding or sticking gate. children) could be SERIOUSLY INJURED or KILLED by a moving gate. -
Page 24: Obstruction Test
ADJUSTMENT LIMIT AND FORCE ADJUSTMENT + OBSTRUCTION TEST FINE TUNE THE FORCE The FORCE DIAL on the control board is used for fine tuning the force in cases where wind or environmental changes may affect the gate travel. Based on the length and weight of the gate it may be necessary to make additional force adjustments. -
Page 25: Programming
PROGRAMMING REMOTE CONTROLS + ERASE ALL CODES REMOTE CONTROLS (NOT PROVIDED) A total of 50 Security✚ 2.0™ remote controls and 2 keyless entries (1 PIN for each keyless entry) can be programmed to the operator. When programming a third keyless entry to the operator, the first keyless entry will be erased to allow the third keyless entry to be programmed. -
Page 26: Finish Installation
FINISH INSTALLATION INSTALL THE COVER INSTALL THE COVER The operator cover consists of two pieces: a rear cover and a front cover. The front cover can easily be removed to access the electrical box. To access the reset switch slide the access door up. -
Page 27: Operation
OPERATION RESET SWITCH + MANUAL DISCONNECT + OPERATOR ALARM + REMOTE CONTROL + HEATER (IF APPLICABLE) RESET SWITCH The reset switch is located on the front of the operator and serves several functions. NORMAL OPERATION Toggling the reset switch will stop a moving gate during a normal open/close cycle, like a stop button. -
Page 28: Additional Features
ADDITIONAL FEATURES CONTROL BOARD OVERVIEW CONTROL BOARD OVERVIEW The SET OPEN button sets the OPEN limit. See Adjust Limits section. SET OPEN Button: The SET CLOSE button sets the CLOSE limit. See Adjust Limits section. SET CLOSE Button: The MOVE GATE buttons will either open or close the gate when the operator is in Limit setting mode. See Adjust Limits section. MOVE GATE Buttons: The LOCK/BIPART DELAY switch is used only for dual gates. -
Page 29: Wiring Accessories To The Control Board
ADDITIONAL FEATURES WIRING ACCESSORIES TO THE CONTROL BOARD WIRING ACCESSORIES TO THE CONTROL BOARD Refer to the chart below and the corresponding image for a description of the control (right side of control board) board inputs. Open Open Input (& Open command - opens a closed gate. -
Page 30: Expansion Board Overview
ADDITIONAL FEATURES EXPANSION BOARD OVERVIEW EXPANSION BOARD OVERVIEW QUICK CLOSE Switch: OFF: No change to the gate's normal operation. To AVOID damaging the circuit board, relays or accessories, DO NOT connect ON: When CLOSE EYES/Interrupt loop is deactivated it causes an opening or a stopped more than 42 Vdc (32 Vac) to the AUX relay contact terminal blocks. -
Page 31: Wiring Accessories To The Expansion Board
ADDITIONAL FEATURES ACCESSORY FEATURES ON EXPANSION BOARD WIRING ACCESSORIES TO THE EXPANSION BOARD Refer to the chart below and the corresponding image for a description of the expansion board inputs. Open Input (& common) Open command - opens a closed gate. (3-Button Control Station, 4 terminals total) Soft close (maintained switch does not override external safeties and does not reset alarm condition) If maintained, pauses Timer-to-Close at OPEN limit. -
Page 32: Sams Wiring With Relays Not Energized
ADDITIONAL FEATURES SAMS WIRING WITH RELAYS NOT ENERGIZED + DUAL GATE SETTINGS SAMS WIRING WITH RELAYS NOT ENERGIZED Main Board Barrier Arm Operator Exit Input Auxiliary Command Access Device Shadow Input Expansion Board Dipswitch settings for AUX Relay 1: 1-OFF, 2-OFF, 3-ON AUX Relay 1 DUAL GATE SETTINGS NOTE: We recommend that all accessories and board configurations are set on the primary operator. -
Page 33: Gate Operator Setup Examples
ADDITIONAL FEATURES GATE OPERATOR SETUP EXAMPLES GATE OPERATOR SETUP EXAMPLES The following are example setups for the gate operator. Your specific site requirements may be different. Always setup the operator system to the site requirements, including all necessary secondary entrapment protection systems. NOTE: We recommend that all accessories and board configurations are set on the primary operator. RESIDENTIAL SMALL One to four residential homes sharing a gated entrance/exit, allowing vehicle access trumps security concerns A residential community (more than four homes) having one or more gated entrances/exits, allowing vehicle access trumps security concerns... -
Page 34: Limit Setup With A Remote Control
ADDITIONAL FEATURES LIMIT SETUP WITH A REMOTE CONTROL LIMIT SETUP WITH A REMOTE CONTROL To set the limits using a remote control, first you will need a 3-button remote control that has been programmed for OPEN, CLOSE, and STOP. Refer to the Programming section. -
Page 35: Liftmaster Internet Gateway
ADDITIONAL FEATURES LIFTMASTER INTERNET GATEWAY LIFTMASTER INTERNET GATEWAY To program the operator to the LiftMaster Internet Gateway: USING THE LEARN BUTTON ON THE OPERATOR’S CONTROL BOARD Connect the ethernet cable to the LiftMaster Internet Gateway and the router. Connect power to the LiftMaster Internet Gateway. Create an online account by visiting www.myliftmaster.com. -
Page 36: Troubleshooting
TROUBLESHOOTING CONTROL BOARD LEDS CONTROL BOARD LEDS The control board is equipped with many LEDs that have a variety of functions. The control board LEDs indicate the status of the operator, assist with programming, and diagnose potential problems with the operator. NOTE: When cycling or disconnecting power (ac/dc) to the control board, it is recommended that you unplug the J15 plug. -
Page 37: Control Board Leds Continued
TROUBLESHOOTING CONTROL BOARD LEDS CONTROL BOARD LEDS CONTINUED... DIAGNOSTIC CODES LEDS YELLOW DIAGNOSTIC LED RED DIAGNOSTIC LED # BLINKS MEANING CORRECTION # BLINKS MEANING CORRECTION 2 BLINKS ID resistor failure Check ID resistor wiring, clear limit 2 BLINKS Current Sense Motor control circuit fault, replace settings and reset limits control board... -
Page 38: Troubleshooting Chart
TROUBLESHOOTING TROUBLESHOOTING CHART TROUBLESHOOTING CHART FAULT POSSIBLE CAUSES CORRECTIONS Operator does a) No power to control board a) Check AC and battery power not run and b) Open fuse b) Check fuses diagnostic LED c) If on battery power only, low or dead batteries c) Charge batteries by AC or solar power or replace batteries not on. - Page 39 TROUBLESHOOTING TROUBLESHOOTING CHART FAULT POSSIBLE CAUSES CORRECTIONS Gate opens, but will a) Check DIAGNOSTIC LEDs a) Use Diagnostic code to identify issue not close. b) Open control active b) Check all Open inputs for an active input c) Close Entrapment Protection Device active c) Check all Entrapment Protection Device inputs for an active sensor d) Loss of AC power with AC FAIL set to OPEN d) Check AC power and AC Fail option setting...
- Page 40 TROUBLESHOOTING TROUBLESHOOTING CHART FAULT POSSIBLE CAUSES CORRECTIONS Alarm sounds for 5 a) Double entrapment occurred a) Check for cause of entrapment (obstruction) detection and correct. Toggle the reset switch to shut off alarm and reset the operator. minutes or alarm sounds with a command.
-
Page 41: Wiring Diagram
WIRING DIAGRAM To protect against fire and electrocution: For continued protection against fire: • DISCONNECT power and battery BEFORE installing or servicing operator. • Replace ONLY with fuse of same type and rating. Field Wiring Field Wiring Edge Interrrupt Black White White Yellow... -
Page 42: Repair Parts
REPAIR PARTS INDIVIDUAL PARTS ITEM PART NUMBER DESCRIPTION NOT SHOWN K73-34718-2 Chassis K94-36250 Battery Harness (for 7AH batteries) K77-36480 Operator Cover with labels, keys, and lock K94-36531 Wiring Harness with ID Resistor assembly 30 Amp Fuses K76-34697 APS Encoder, 24V 1941240D #41 Chain (10 feet) K16-GT2-7... - Page 43 REPAIR PARTS...
-
Page 44: Accessories
REMOTE CONTROLS Chamberlain offers a variety of LiftMaster remote controls to satisfy your application needs. Single-button to 4-button, visor or key chain. The following remote controls are compatible with operators manufactured by Chamberlain after 1993. Contact your authorized LiftMaster dealer for additional details and options. - Page 45 ACCESSORIES MISCELLANEOUS PLUG-IN LOOP DETECTOR Conveniently plugs into existing control board. Model LOOPDETLM LOOP DETECTOR Low power loop detectors mounted and wired separately inside control box. LiftMaster low power accessory. Model LD7LP VEHICLE SENSING PROBE The vehicle sensing probe is buried in the ground and can detect a car as it approaches and will then open the gate. Model CP3 SOLAR PANEL KIT - 10 WATT This kit is to replace or add a solar panel to the operator application.
-
Page 46: Maintenance
MAINTENANCE MAINTENANCE CHART + BATTERIES + DRIVE CHAIN MAINTENANCE CHART Disconnect all power (AC, solar, battery) to the operator before servicing. The operator's AC Power switch ONLY turns off AC power to the control board and DOES NOT turn off battery power. ALWAYS disconnect the batteries to service the operator. DESCRIPTION TASK CHECK AT LEAST ONCE EVERY... -
Page 47: Warranty
7 YEAR RESIDENTIAL / 5 YEAR COMMERCIAL CSL24V™ AND CSL24VH™ LIMITED WARRANTY The Chamberlain Group, Inc. (“Seller”) warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 7 year residential/ 5 year commercial from the date of purchase [and that the CSL24V™... - Page 48 845 Larch Avenue Elmhurst, Illinois 60126-1196 01-35593G © 2012, The Chamberlain Group, Inc. – All Rights Reserved...
