Griven Parade L1 User Manual

Hide thumbs

Advertisement

Table of Contents

Parade
L-1 / L-2 / L-3 / L-4
Code / Référence
Power consumption /
Consommation électri-
que
Nominal current / Cou-
rant nominal
Power supply / Alimenta-
tion électrique
Power factor / Facteur de
puissance
Electrical class / Classe
électrique
Weight / Poids
Operating temperature
/ Température de fon-
ctionnement
Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual / Manuel d'utilisation
551108 Rev.5.0
Date: 21/02/2025
Parade L1
AM5060 - AM5061 (PE)
AM5062 (MC)
AM5060/61: 20W
AM5062: 20 W
0.15A @120VAC
0.08A @277VAC
MC:
0.15A @120VAC
0.08A @277VAC
cos.φ= 0.97 @120VAC
cos.φ= 0.91 @277VAC
2.1 Kg

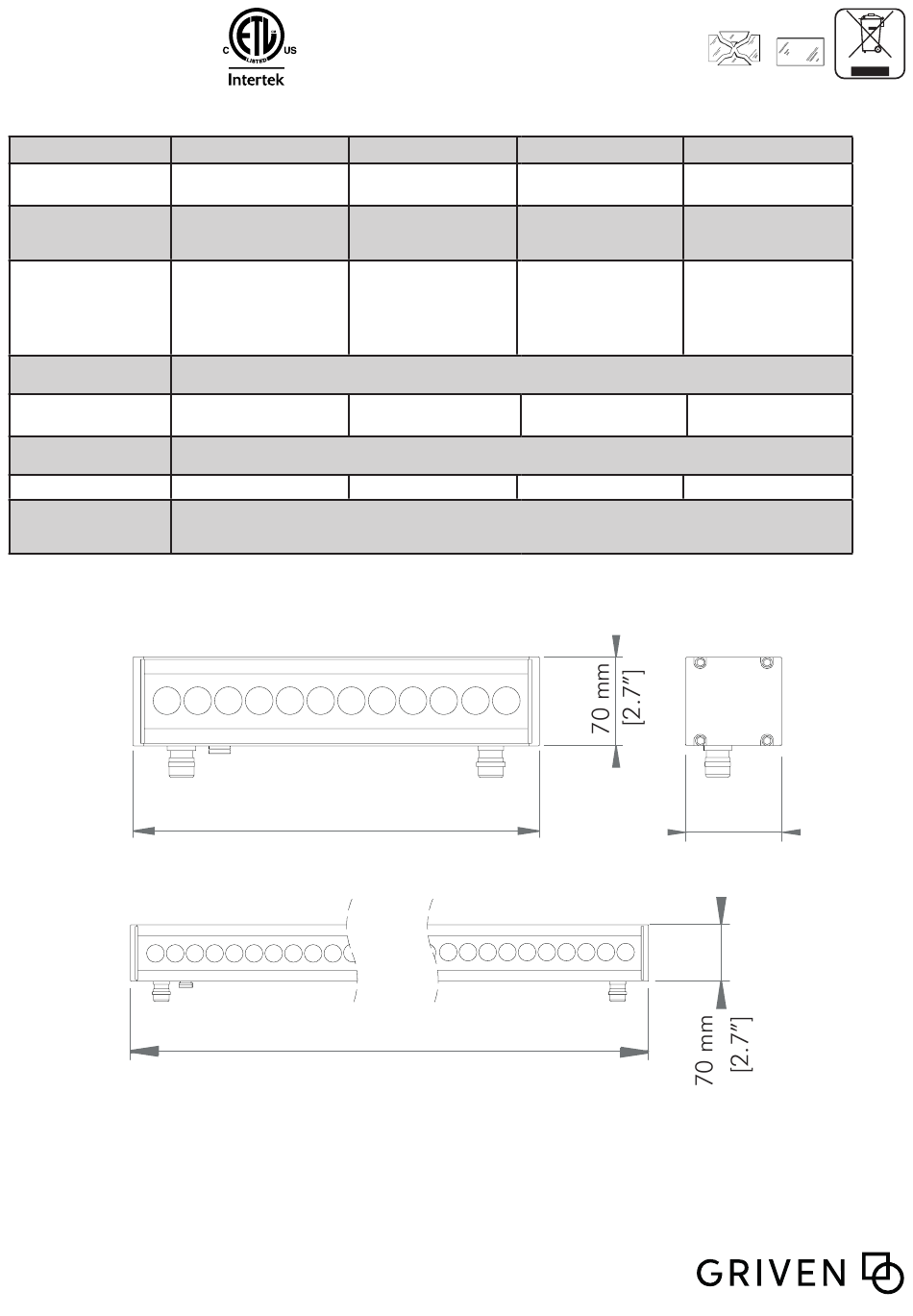

Parade L-1 318 mm [12.5"]
Parade L-2 610 mm [24"]
Parade L-3 914 mm [36"]
Parade L-4 1219 mm [48"]
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
Parade L2
AM5065 - AM5066 (PE)
AM5070 - AM5071 (PE)
AM5067 (MC)
AM5065/66: 38W
AM5067: 37W
0.32A @120VAC
0.15A @277VAC
MC:
0.32A @120VAC
0.15A @277VAC
120-277VAC 50/60Hz
cos.φ= 0.97 @120VAC
cos.φ= 0.93 @277VAC
I
3.1 Kg
-40°C to +50°C ( -40°F to 122°F )
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
Parade L3
AM5075 - AM5076 (PE)
AM5072 (MC)
AM5070/71: 58W
AM5072: 55W
0.50A @120VAC
0.22A @277VAC
MC:
0.46A @120VAC
0.21A @277VAC
cos.φ= 0.98 @120VAC
cos.φ= 0.98 @120VAC
cos.φ= 0.95 @277VAC
cos.φ= 0.97 @277VAC
4.4 Kg
76 mm
Parade L4
AM5077 (MC)
AM5075/76: 79W
AM5077: 74W
0.67A @120VAC
0.29A @277VAC
MC:
0.63A @120VAC
0.27A @277VAC
5.6 Kg
[3"]
