Parade D-W recessed MK2
Weight / Peso
Housing / Corpo proiettore
IK class / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Power factor / Rifasamento
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
D-W-11 MK2
Color range / Colori
Optics/ Ottiche
Dimensions
D-W-5 MK2
548mm
D-W-11 MK2
D-W-5 MK2
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
AL4429 Parade D-W 5 rec MK2
983mm
5 High output white LEDs
38,70in
973mm
38,31in
558mm
21,97in
21,57in
983mm
38,70in
973mm
38,31in
558mm
21,97in
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
User Manual
Rev. 1.00
Date: 26/11/2018
5 Kg (11 Lbs)
Stainless steel/Alluminum, scratch resistant paint
-40°C to 50°C ( -40°F to122°F)
100-277 VAC 50/60Hz
50A @230VAC cold start
15 W
0,07A@230VAC
cos.φ=0,95
Electronic
ON / OFF
spot, medium, wide, extra wide, elliptical, elliptical wide, wall wash
.
551072
AL4430 Parade D-W 11 rec MK2
8,6 Kg ( 18.9 Lbs)
IK09
IP66
29 W
0,15A@230VAC
I
1,7 m.
115mm
11 High output white LEDs
105mm
4,13in
115mm
105mm
4,13in
115mm
105mm
4,13in
115mm
4,53in
4,53in
4,53in
4,53in
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Parade D-W 5 rec MK2
Summary of Contents for Griven Parade D-W 5 rec MK2

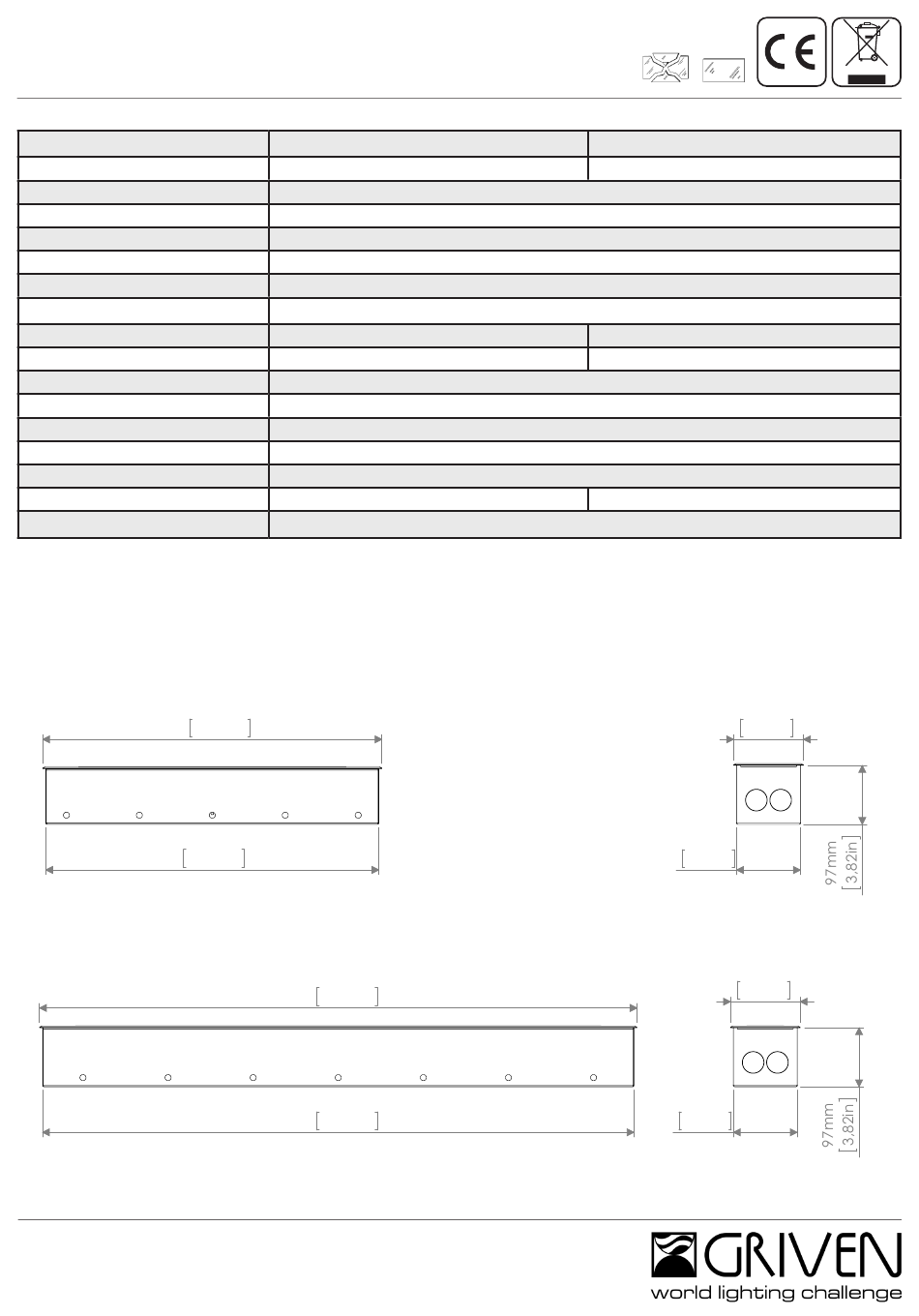

- Page 1 21,97in 4,53in Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
