Operating Instruction
HVAC Meter

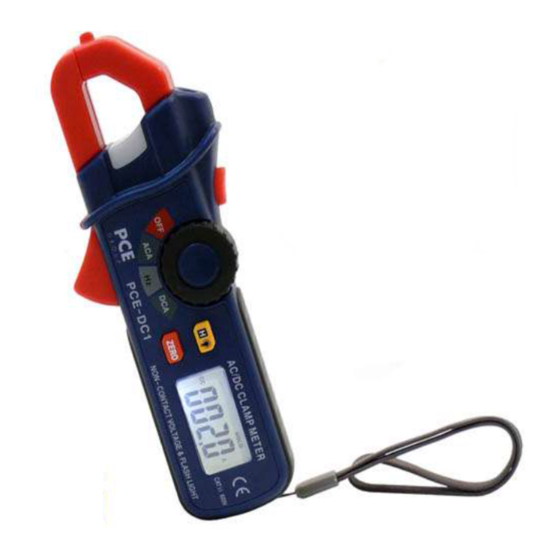

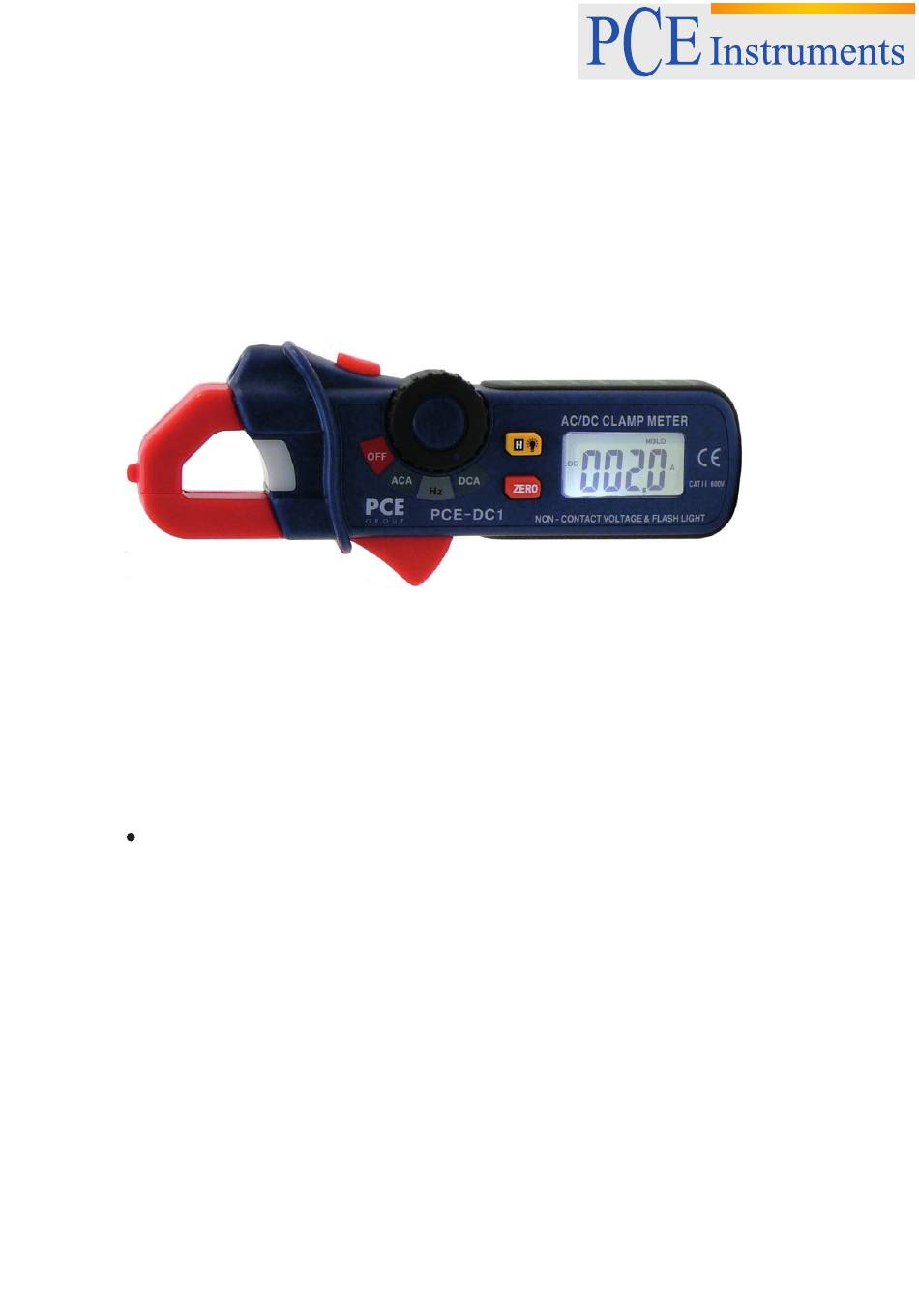

200A AC/DC Mini Clamp-on Meter
Features
• 3-2/3 digit (2400 count) LCD display
• White LED backlight
• Built-in non-contact AC voltage detector plus flashlight
• Frequency measurement 40Hz to 1kHz
• Autoranging with auto power off
• 0.7" (18mm) Jaw opening
Specifications
General Specifications
Display
3-2/3 (2400 count) Digit LCD with white LED backlight
Polarity
Minus sign ( - ) indicates negative polarity
Current sensor
Hall effect sensor type
Overload indication
"OL" displayed on the LCD
DCA zero adjust
One touch zero key
Display rate
2 readings/second, nominal
Battery
Two 1.5V AAA batteries
Low Battery indication
"BATT" displayed on the LCD
Auto OFF
approx. 7 minutes
Operating conditions
32
to 122
Storage conditions
- 14
Altitude
Operate at less than 3000 meters
PCE-DC 1
º
º
º
º
F to 86
F (0
C to 30
C) 90%RH; 86
º
º
º
F (40
C to 50
C) 45%RH
º
º
º
º
F to 140
F (-30
C to 60
C); < 90% Relative Humidity
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
º
º
º
º
F to 104
F (30
C to 40
C) 75%RH; 104
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
º
F
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-DC1
Summary of Contents for PCE Instruments PCE-DC1
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton Operating Instruction United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162...
- Page 2 Weight 6.2 oz. (175g) including battery Dimensions 164 x 65 x 32mm (6.5 x 2.6 x 1.3”) (HXWXD) Jaw opening 18mm (0.7”) Standards IEC61010 Category II 600V, Range Specifications Function Range Resolution Accuracy (of reading) DC Current 200A 100mA ± (2.8% + 8 digits) AC Current (50/60Hz) 200A 100mA...
- Page 3 Function Maximum Input AC Current 200A DC Current ±200A Frequency 1kHz Operation AC Current Measurements 1) Set the Function switch to the ACA range. 2) Press the jaw trigger and clamp around, fully enclosing a single conductor. Do not allow a gap between the two halves of the jaw. Refer to the diagram at right for the correct way to enclose a single conductor.
- Page 4 Data Hold To freeze the current reading on the LCD, press the “Hold Backlight” key. The word HOLD will appear on the LCD while the meter is in the Data Hold mode. To release the Data Hold function and return the meter to normal operation, press the “Hold Backlight”...
