Page 3: Table Of Contents
Reading Station Overview ....................2 Image Acquisition ..........................3 Pulsed Illumination ..........................4 Applications ............................5 Model Description ..........................6 AV7000 and AI7000 Versions ......................7 External Function Buttons (HMI – Human Machine Interface) ............7 Accessories ............................8 Focusing Devices ..........................12 Photoelectric Sensor ........................12 Area Sensor ..........................13 LCC-75xx Kit with DS2 Light Array ..................14...
Page 4 Single Head AV7000 with RangeFinder ...................50 Single Head AV7000 with LCC-75xx Light Curtain Kit ..............50 Multi-Head AV7000 with Two DK501 Sensors and LCC-75xx Light Curtain ......... 51 Controller/Client Array with DM3610 ....................52 Controller/Client Array with RangeFinder ..................53 Controller/Client Array with LCC-75xx Light Curtain Kit ..............54...
Page 5 AS1 Area Sensor to CBX100/CBX800 Connections .................76 Encoder/Tachometer Wiring to CBX100/CBX800 ................77 Encoder/Tachometer Wiring for NPN Output to CBX100/CBX800 .........77 Wiring from DM3610 CBX100/CBX800 to AV7000 Focus Serial .............79 Serial Communication Wiring to CBX100/CBX800 ................80 RS232 with No Handshaking ....................80 RS422FD HOST (Full Duplex) ....................81...
Page 6 Setting Up the S-60 Photocell ..................241 Setting up the AS1 AreaScan ..................241 Setting Up the DS2 Light Curtain ................... 242 Connecting a DS2 Light Curtain to the AV7000 ................242 Setting Up the STI Light Curtain ..................243 AV7000 LINEAR CAMERA...
Page 7 LED Indicators ......................286 AV7000 LEDs ...........................286 AI7000 Illumination LEDs .......................288 Control Panel Buttons ....................288 Setting up WebSentinel PLUS in the AV7000 ..............289 Using WebSentinel to View AV7000 Images ..............291 Reading Diagrams ...........................294 Reading Linear Barcodes ....................295 CHAPTER 8.
Page 8 E-GENIUS Replacing an AV7000 Camera ..................324 Replacing AV7000 with a Failed Memory Card ............... 326 Connecting a defaulted AV7000 back into a Cluster ............329 CHAPTER 10. TECHNICAL FEATURES ..............332 viii AV7000 LINEAR CAMERA...
Page 9: Preface
This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product can be downloaded free of charge from the Datalogic website listed on the back cover of this manual. MANUAL CONVENTIONS...
Page 10: Support Through The Website
E-GENIUS SUPPORT THROUGH THE WEBSITE Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com. For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for.
Page 11: Compliance
COMPLIANCE COMPLIANCE Electrical Safety This product conforms to the applicable requirements contained in the European Stan- dard for electrical safety EN-60950 at the date of manufacture. LED Safety These camera barcode readers include illumination that use high powered light emitting diodes (LEDs).
Page 12: Warning And Serial Labels
LED light. Avoid starting at the LEDs as one would with any very strong light source, such as the sun. There are no user-serviceable parts inside the reader. Service should only be performed by Datalogic trained and certified techni- cians.
Page 13: Customs Union
FCC Compliance Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
Page 14: Ce Compliance
Datalogic commercial reference contacts. Since April 20th, 2016 the main European directives applicable to Datalogic products require inclusion of an adequate analysis and assess- ment of the risk(s). This evaluation was carried out in relation to the applicable points of the standards listed in the Declaration of Conformity.
Page 15: Chapter 1. Introduction

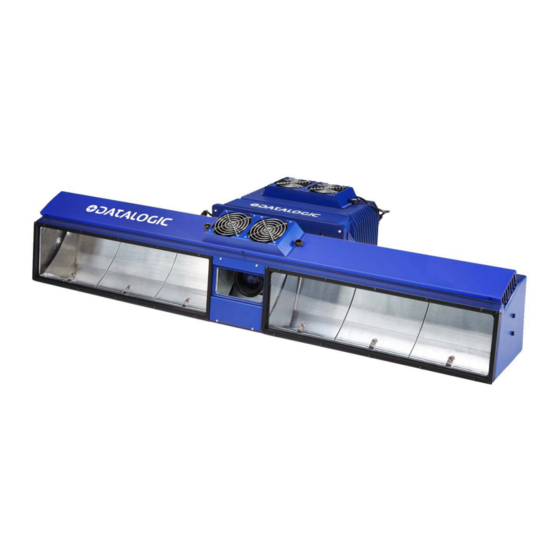

CHAPTER 1 INTRODUCTION PRODUCTION DESCRIPTION The AV7000 Camera is a high performance linear camera with an integrated image pro- cessing system dedicated to automatic code identification on moving parcels. This chapter introduces the basic concepts necessary for camera installation and setup.
Page 16: Field Procedure Quick Cross Reference
• “Other Camera Checks” on page 285 READING STATION OVERVIEW The AV7000 camera reading system consists of two pieces: 1. A barcode reader/camera for acquiring images and locating and reading the codes on a target. 2. A lighting system for illuminating the target codes to be acquired.
Page 17: Image Acquisition
Image Acquisition Each barcode reader contains two distinct groups of devices: • The acquisition device or "camera." This part of the AV7000 has to work in strict real time to acquire the best possible images. • The decoding device or “decoder." This part of the AV7000 interprets the data received through the camera.
Page 18: Pulsed Illumination
Based on the AV7000 mounting position, the unit tries to acquire one (reading angle alpha = 15°) or two faces of the parcel (alpha = +/-45°). The AV7000 can process a maxi- mum package count of 64 between trigger and transmit.
Page 19: Applications
READING STATION OVERVIEW To enable and configure Pulsed Illumination. To adjust image gain when using Pulsed Illumination. Applications The AV7000 cameras are specifically designed for industrial applications requiring high reading performance such as: • Low aspect ratio barcodes • Codes covered by plastic film •...
Page 20: Model Description
INTRODUCTION Model Description AV7000 cameras are available in versions that differ depending on the optical resolution (focus range), while the AI7000 illuminators differ depending on the illuminated reading width: AV7000 Camera Model Description Key AI7000 Illumination Model Description Key AV7000 LINEAR CAMERA...
Page 21: Av7000 And Ai7000 Versions
934001220 External Function Buttons (HMI – Human Machine Interface) The AV7000 camera includes two external buttons that can be used to perform specific tasks without the need of connecting to e-Genius for functional description. Some of these functions may be performed using e-Genius. See Chapter 4.
Page 22: Accessories
INTRODUCTION Accessories The following accessories are available on request for the AV7000 Camera Imaging Sys- tem. Description Part Number AV7000 CAMERA HEADS INDIVIDUAL HEADS AV7000-1000 140MM F/5.6 934001000 AV7000-1100 140MM F/5.6 SHORT RANGE 934001010 AV7000-1200 110MM F/8.0 934001020 AV7000-1300 90MM F/8...
Page 23 READING STATION OVERVIEW Description Part Number LCC-7509 AV7 LIGHT CURTAIN 900MM+CAB 10M 93ACC0172 LCC-7512 AV7 LIGHT CURTAIN 1200MM+CAB 10M 93ACC0173 POSITION SENSOR (S80) DK-501 DISTANCE KIT RS485 CABLE 5M 93ACC0175 DM3610 DIMENSIONER FOCUSING DMS100-100 DIM SOLU 1HD STD NLFT 932702110 FOCUS CONTROL 5MT CABLE (M12-FREE WIRES) 93A201203 PHOTOELECTRIC SENSOR...
Page 24 93A301068 CBX510 CONNECTION BOX MODULAR 93A301087 CBX800 GATEWAY 93A301077 CBX ACCESSORIES For AV7000 applications, the CBX Fieldbus modules listed are only used in the CBX800 Gateway BM300 PROFIBUS MODULE 93ACC1810 BM310 PROFIBUS IP65 MODULE 93ACC1811 BM400 DEVICENET IP65 MODULE 93ACC1814...
Page 25 CABLE,INTERFACE 10FT (MONITOR EXTENSION) 1000014572 CABLE,INTERFACE 25FT (MONITOR EXTENSION) 1000014574 MISCELLANEOUS AV7000 Controller Key 93A201206 FAN GUARD 93ACC0193 AV7000 Double Fan Kit 890000030 For AV7000 applications, the CBX Fieldbus modules listed above are only used with the CBX800 Gateway. PRODUCT REFERENCE GUIDE...
Page 26: Focusing Devices
In irregular package applications, the photoelectric sensor assists in main- taining the package footprint so that the AV7000 camera will only scan and provide data for a specific package.
Page 27: Area Sensor
READING STATION OVERVIEW Area Sensor The photoelectric light grids of the AS1 series are crossed-beam area sensors able to detect all objects, with even 0.2mm thickness, inside a 100mm height, over operating distances reaching 3m between emitter and receiver. The AS1 area sensors represent the ideal solution for the detection of very small objects, even when passing in different positions inside the controlled height and width.
Page 28: Lcc-75Xx Kit With Ds2 Light Array
Light Curtain Focusing FOCUS CONTROL 5MT CABLE (M12-FREE WIRES) 93A201203 LCC-7501 AV7 LIGHT CURTAIN 150MM+CAB 10M 93ACC0170 LCC-7506 AV7 LIGHT CURTAIN 600MM+CAB 10M 93ACC0171 LCC-7509 AV7 LIGHT CURTAIN 900MM+CAB 10M 93ACC0172 LCC-7512 AV7 LIGHT CURTAIN 1200MM+CAB 10M 93ACC0173 AV7000 LINEAR CAMERA...
Page 29: Position Sensor
The DK-510 Distance Kit is part of a vision system used to signal the focus height of packages to be imaged by the AV7000 camera. It includes an S80 Class 2 visible red LASER sensor to measure direct proximity from 4 m to 7 m and from 20m to 100m retro- reflective models.
Page 30: Dm3610 Dimensioner
Up the DM3610 Dimensioner” on page 247 for information on setting up the DM3610. For complete information about the features and capabilities of the DM3610 Dimen- sioner, see the dimensioner page on the Datalogic website: www.datalogic.com. The DM3610 Dimensioner requires the following: •...
Page 31: Encoder (Tachometer)
The speed detector is designed to function as an encoder/tachometer replacement in certified dimensioning and scanning applica- tions. For information on installing and wiring the PGD100, see the PGD100 Non-Contact Speed Detector Installation Manual at www.datalogic.com. PRODUCT REFERENCE GUIDE...
Page 32: Cbx Industrial Connection Box
CAB-DS01-S I/O Cable M12-17-pin to 25-pin D-sub 1m 93A050058 CAB-DS03-S I/O Cable M12-17-pin to 25-pin D-sub 3m 93A050059 CAB-DS05-S I/O Cable M12-17-pin to 25-pin D-sub 5m 93A050060 CAB-SC5000 Cable SC5000 to CBX510 1m 93A050071 CBX800 GATEWAY 93A301077 AV7000 LINEAR CAMERA...
Page 33: Interoperability Options Available
INTEROPERABILITY OPTIONS AVAILABLE INTEROPERABILITY OPTIONS AVAILABLE Some applications may require you to combine an AV7000 system with an SC5000 Con- troller and accompanying scanners (DS8110 and DX8210). Datalogic offers special interoperability features for this type of configuration. Reference the SC5000/DS8110, DX8210 and AV7000 Hybrid System Application Note for more details.
Page 34: Chapter 2. Mechanical Installation
Do not attempt to perform any electrical installation proce- dures unless you are a trained technician. AV7000 cameras contain electronics that may be affected by electrostatic discharge (ESD). To prevent personal injury or damage to the unit, please follow the safety pre- cautions and warnings found in the References section at the beginning of this manual.
Page 35: Tools Required
UNPACKING INSTRUCTIONS Verify that the AV7000 Camera and all the parts supplied with the equipment are pres- ent and intact when opening the packaging; the list of parts includes: The AV7000 Camera and accessory packaging is designed to protect the unit(s) during shipment.
Page 36 MECHANICAL INSTALLATION Be sure to retain shipping boxes and packing material for use if the unit needs to be returned to Datalogic for any reason. AV7000 LINEAR CAMERA...
Page 37: Installation Sequence
15. Align the AV7000 for proper operation 16. Align the height sensor for proper operation 17. Configure the AV7000 (See Chapter “E-Genius” on page 89) 18. Calibrate the AV7000 (See Section“Setup and Calibration” on page 265 ) 19. Check AV7000 operations. PRODUCT REFERENCE GUIDE...
Page 38: Installation
Installation Dimensions and Clearances The AV7000 is a sealed, unventilated unit. Mounting the unit with 300 mm [12 in] of clearance (front, top, and sides) is recommended for cooling and ease of maintenance. This symbol identifies a hazard or procedure that, if incorrectly performed, could cause personal injury or result in equipment damage.
Page 39: General Mounting Guidelines
It is important that you follow these general precautions when installing, setting up, operating, maintaining, troubleshooting, or replacing any Datalogic products, parts or related equipment. As you plan and install your AV7000 camera imaging system application, be sure to keep the following guidelines in mind: •...
Page 40: Scanning Station Frame/Mounting Structure Preparation And Positioning
The vision system components and in particular the mounting brackets have been designed for installation onto standard Bosch and 80/20 frame profiles (extrusions) and accessories. 60x60 mm profile is recommended for Bosch, although 45x45 mm profiles will work; and standard 1.5” x 3” for 80/20. AV7000 LINEAR CAMERA...
Page 41: Mounting Rails
INSTALLATION SEQUENCE Mounting Rails The Camera/Illuminator and Deflection Mirror are mounted to mounting structure rails, as shown below. Typically, the rising brackets are mounted to the rails, but in some cases it may be necessary to mount the camera and deflection mirror between the mounting rails.
Page 42 (Not used for side mounted barcode readers) Be sure to use the M8x8 (short) bolts when mounting the support brackets to the main bracket. Longer bolts will pass through the other side of the main bracket, interfering with the illuminator body. AV7000 LINEAR CAMERA...
Page 43: Av7000/Ai7000 Top/Bottom Mounting Bracket Assembly And Mounting
INSTALLATION SEQUENCE AV7000/AI7000 Top/Bottom Mounting Bracket Assembly and Mounting Both Top and Bottom Camera positions require the same pre-assembly of the Illumina- tor Bracket. PRODUCT REFERENCE GUIDE...
Page 44: Av7000 Top/Bottom Mounting Sequence
(Top, Side, or Bottom), the basic sequence is the same: 1. Mount the cooling fan to the AV7000 camera (See section Mounting the AV7000 Camera to the AI7000 Illuminator).
Page 45: Av7000/Ai7000 Side Mounting Bracket Assembly And Mounting
INSTALLATION SEQUENCE AV7000/AI7000 Side Mounting Bracket Assembly and Mounting The illustrations below show how the brackets are assembled, and how the AI7000 Illu- mination is then mounted to the brackets. Typically, the brackets are pre-assembled and attached to the mounting structure, and then the illumination is mounted to its brack- ets.
Page 46: Av7000 Side Mounting Sequence
MECHANICAL INSTALLATION AV7000 Side Mounting Sequence: 1. Mount the cooling fan to the AV7000 camera. 2. Pre-assemble the Illuminator brackets according to the application. 3. Mount the bracket to the station frame. 4. Place the lower end of the illumination on the bottom bracket, and then tilt the top end of the illumination in line with the top bracket.
Page 47: Av7000 Bottom Mounting Sequence
AV7000 Bottom Mounting Sequence In some applications it is beneficial to mount an AV7000 under the conveyor. When mounting a bottom read AV7000, it must be done so under a break in the conveyor. AV7000 Bracket Angles Standard camera bracket angles are shown below. The YELLOW bolt indicates the lock- ing position between the Main Bracket (blue) and Rising Bracket (red).
Page 48 MECHANICAL INSTALLATION AV7000 LINEAR CAMERA...
Page 49 INSTALLATION SEQUENCE PRODUCT REFERENCE GUIDE...
Page 50: Alternative Camera Mounting Between Rails
MECHANICAL INSTALLATION Alternative Camera Mounting Between Rails In some cases when you need to save space, the AV7000 Camera (and deflection mirror) can be mounted directly between the rails, without the use of the Rising Bracket. AV7000 LINEAR CAMERA...
Page 51: Mounting The Av7000 Camera To The Ai7000 Illuminator
Mounting the fan to the camera housing The AV7000 Camera is shipped without the cooling fan attached to the top of the hous- ing. Before mounting the camera to the illuminator, first mount the fan to the camera housing, as shown below.
Page 52: Mounting The Camera To The Illuminator
The spring-loaded Focus Lock will push against the illuminator creating some resis- tance. As the bolts are tightened, the Focus Lock is pushed in to release the focusing mechanism. 5. Add the remaining bolts, and securely fasten the camera to the illuminator. AV7000 LINEAR CAMERA...
Page 53: Installing The Deflection Mirror
INSTALLING THE DEFLECTION MIRROR INSTALLING THE DEFLECTION MIRROR The external deflection mirror allows the AV7000 Camera to be mounted parallel to the conveyor, which can save space while allowing the light from the illuminator and image view to be angled for precise image capture.
Page 54: Deflection Mirror Bracket Angles
If the mirror still seems to be stressed, loosen and re-tighten the bolts of the opposite bracket. If that doesn’t relieve any stress on the mirror, the mounting structure frame may not be square and will need to be adjusted. AV7000 LINEAR CAMERA...
Page 55 INSTALLING THE DEFLECTION MIRROR PRODUCT REFERENCE GUIDE...
Page 56 MECHANICAL INSTALLATION In some cases, it may be necessary to install side mounted AV7000 Cameras and deflec- tion mirrors on the inside of the mounting structure (closer to the conveyor), as shown below. Notice that to achieve a 15-degree locking angle, the mirror must be mounted on the outside of the main bracket.
Page 57 INSTALLING THE DEFLECTION MIRROR PRODUCT REFERENCE GUIDE...
Page 58 MECHANICAL INSTALLATION Deflection mirrors for bottom mounted AV7000 Cameras should be mounted to create an 8-degree view angle (from vertical). However, the angle must be set up manually because there is no locking hole in the bracket for this angle. Using an electronic angle finder, tilt the mirror 41-degrees off the horizontal, as shown below.
Page 59: Alternative Deflection Mirror Mounting Between Rails
ALIGNING THE AV7000 WITH DEFLECTION MIRRORS Alternative Deflection Mirror Mounting Between Rails Like the AV7000 Camera, the deflection mirror can also be mounted between the mounting structure rails, as illustrated below. ALIGNING THE AV7000 WITH DEFLECTION MIRRORS When using deflection mirrors with the AV7000 reader, which is typical, the mirrors must be mounted parallel to the reader and at the correct distance to allow for proper focus and the highest read rate.
Page 60 MECHANICAL INSTALLATION AV7000 LINEAR CAMERA...
Page 61: Chapter 3. Electrical Installation
This special documentation super- sedes any contradictory content in this manual. To reduce the possibility of damage to the unit, check all cabling between the AV7000 camera and other devices for accuracy. PRODUCT REFERENCE GUIDE...
Page 62: Connecting An Av7000 Camera
9. Wire the Remote Display to the CBX connection box (if used). 10. Connect the AV7000 to its power supply. 11. Connect the power supply to the power source. 12. Setup / check camera operations.
Page 63: Single Head Av7000 With Dm3610
TYPICAL CONNECTION BLOCK DIAGRAMS Single Head AV7000 with DM3610 * See section for AV7000 power supply connections. Easy DM3610 and AV7000 PRODUCT REFERENCE GUIDE...
Page 64: Single Head Av7000 With Rangefinder
ELECTRICAL INSTALLATION Single Head AV7000 with RangeFinder Single Head AV7000 with LCC-75xx Light Curtain Kit AV7000 LINEAR CAMERA...
Page 65: Multi-Head Av7000 With Two Dk501 Sensors And Lcc-75Xx Light Curtain
TYPICAL CONNECTION BLOCK DIAGRAMS Multi-Head AV7000 with Two DK501 Sensors and LCC-75xx Light Curtain PRODUCT REFERENCE GUIDE...
Page 66: Controller/Client Array With Dm3610
ELECTRICAL INSTALLATION Controller/Client Array with DM3610 AV7000 LINEAR CAMERA...
Page 67: Controller/Client Array With Rangefinder
TYPICAL CONNECTION BLOCK DIAGRAMS Controller/Client Array with RangeFinder PRODUCT REFERENCE GUIDE...
Page 68: Controller/Client Array With Lcc-75Xx Light Curtain Kit
ELECTRICAL INSTALLATION Controller/Client Array with LCC-75xx Light Curtain Kit AV7000 LINEAR CAMERA...
Page 69: Av7000 In Hybrid Configuration
TYPICAL CONNECTION BLOCK DIAGRAMS AV7000 in Hybrid Configuration PRODUCT REFERENCE GUIDE...
Page 70: Electrical Installation Guidelines
ELECTRICAL INSTALLATION GUIDELINES It is important that you follow these general precautions when installing, setting up, operating, maintaining, troubleshooting or replacing any Datalogic products, parts or related equipment. As you plan and install your barcode reader(s), be sure to keep the following guidelines in mind: •...
Page 71: Av7000/Ai7000 Connector Panels
AI7000 Illumination 1. POWER IN – Main DC power connection for AV7000/AI7000 assembly 2. POWER OUT – Supplies DC power via cable to POWER connector on AV7000 3. FANS – Supplies DC power to AI7000 illumination fan units AV7000 Camera 4.
Page 72 If a connector is not in use, it should always be covered with its protective cap. Route wiring from the barcode reader’s connector panel through the wiring channels (if available) on the Datalogic mounting structure when interconnecting cables to other devices.
Page 73: Connecting A Pc To The Av7000
During initial setup, a PC (laptop) may be connected to the AV7000 with an RJ45 cable. Connect an Ethernet cable from the HOST NET or IMAGE NET port of the AV7000 to the Ethernet port of your PC. For information on connecting to e-Genius, see Chapter 4.
Page 74: Power Connections
The CBX connection boxes provide flexible connectivity to a range of I/O devices as well as serial hosting. The AV7000 connects to the CBX via its I/O port using a single 19-pin M16 to 25-pin D cable.
Page 75 Amphenol connector and connecting the wires to the PWR-480B according to the table below: CVL-2389 Wire Color or Number (Depend- Function ing on Source) White Green + 24 Vdc + 24 Vdc Black The CBX510 connection box receives power through the from the AV7000 CBL-AV7-10x IO connector. PRODUCT REFERENCE GUIDE...
Page 76: Wiring Into The Cbx Connection Box
WIRING INTO THE CBX CONNECTION BOX DO NOT connect a separate power source to the CBX connection box. The CBX receives its power through its connection to the AV7000. Connecting a separate power source will be detrimental to the system operation As shown below, loose-lead cables must pass through the water-tight seals in the base of the CBX connection box (CBX100 shown).
Page 77: Selecting The Correct Cbx Connection Box For Your Application
CBX800 jumper Although multiple AV7000 cameras can have a CBX box, only one of the CBX boxes in the system can have the Jumper to make it the Master. CBX100/CBX510/CBX800 INITIAL CONFIGURATION Complete installation information on these connection boxes is available in the CBX100,CBX510, and CBX800 Installation Manuals available at www.datalogic.com.
Page 78: Cbx510
CBX 510 Interior Diagram If you are terminating more than one wire in a single terminal, cut off any tinned ends and twist the wires together before inserting them into the terminal. AV7000 LINEAR CAMERA...
Page 79: Photoelectric Sensor Connections To Cbx510
Barcode scanning applications may use a Datalogic photoelectric sensor as a trigger device. The photoelectric sensor is wired directly into the CBX510 terminal block. If your application uses a trigger other than the one specified by Datalogic, follow the appropriate wiring diagram to assure proper wiring.
Page 80: Photoelectric Sensor To Cbx510 (Pnp)
ELECTRICAL INSTALLATION Photoelectric Sensor to CBX510 (PNP) AV7000 LINEAR CAMERA...
Page 81: As1 Area Sensor To Cbx510 Connections
CBX100/CBX510/CBX800 INITIAL CONFIGURATION AS1 Area Sensor to CBX510 Connections The AS1 area sensors can detect and provide trigger for very small or irregularly shaped objects. AS1 Area Sensor (PNP Output) PRODUCT REFERENCE GUIDE...
Page 82: Encoder/Tachometer Wiring To Cbx510
ELECTRICAL INSTALLATION Encoder/Tachometer Wiring to CBX510 Encoder/Tachometer Wiring for NPN Output to CBX510 Some Photocraft tachometers may have a different color coding: (+V) Red or White/Orange (Signal) White or White/Blue (Ground) Black or Orange/White AV7000 LINEAR CAMERA...
Page 83: Encoder/Tachometer Wiring For Pnp Output To Cbx510
CBX100/CBX510/CBX800 INITIAL CONFIGURATION Encoder/Tachometer Wiring for PNP Output to CBX510 Some Photocraft tachometers may have a different color coding: (+V) Red or White/Orange (Signal) White or White/Blue (Ground) Black or Orange/White PRODUCT REFERENCE GUIDE...
Page 84: Wiring From Dm3610 Cbx510 To Av7000 Focus Ser
Wiring from DM3610 CBX510 to AV7000 FOCUS SER When using a DM3610 dimensioner for focusing, the DM3610’s CBX box must be wired to the focus serial (FOCUS SER) port of the master AV7000 using a flying lead to M12 cable (FOCUS CONTROL 5MT CABLE (M12-FREE WIRES) 93A201203.)
Page 85: Digital Output Configuration From Cbx510
CBX100/CBX510/CBX800 INITIAL CONFIGURATION Digital Output Configuration from CBX510 The CBX510 includes an OUTPUTS block for wiring relays as needed for external acces- sories. Schematics for Isolated and Non-Isolated digital outputs are provided below. Outputs 1 - 3 Maximum Voltage 30 Vdc Collector Current (pulse) 130 mA Max.
Page 86: Cbx100
In order for a standalone or Master AV7000 to initialize properly, it must be connected to a CBX100. On power-up the AV7000 looks for the jumper (item number 3 in the image above) and will assume the responsibility of provided the SYNC Network IP addresses.
Page 87: Cbx800
CBX100/CBX510/CBX800 INITIAL CONFIGURATION CBX800 Please verify that the CBX800 connection box is configured for the AV7000 application as follows. 1. Set HOST RS485HD TERM switch to OFF. 2. Set Power Source Selector jumper to FROM SOURCE. 3. Set Shield jumper to FILTERED Earth.
Page 88: Photoelectric Sensor Connections To Cbx100/800
Barcode scanning applications may use a Datalogic photoelectric sensor as a trigger device. The photoelectric sensor is wired directly into the CBX510 terminal block. If your application uses a trigger other than the one specified by Datalogic, follow the appropriate wiring diagram to assure proper wiring.
Page 89: Photoelectric Sensor To Cbx100/Cbx800 (Pnp)
CBX100/CBX510/CBX800 INITIAL CONFIGURATION Photoelectric Sensor to CBX100/CBX800 (PNP) PRODUCT REFERENCE GUIDE...
Page 90: As1 Area Sensor To Cbx100/Cbx800 Connections
ELECTRICAL INSTALLATION AS1 Area Sensor to CBX100/CBX800 Connections The AS1 area sensors can detect and provide trigger for very small or irregularly shaped objects. PNP Output AV7000 LINEAR CAMERA...
Page 91: Encoder/Tachometer Wiring To Cbx100/Cbx800
CBX100/CBX510/CBX800 INITIAL CONFIGURATION Encoder/Tachometer Wiring to CBX100/CBX800 Encoder/Tachometer Wiring for NPN Output to CBX100/CBX800 Some Photocraft tachometers may have a different color coding: (+V) Red or White/Orange (Signal) White or White/Blue (Ground) Black or Orange/White PRODUCT REFERENCE GUIDE...
Page 92 ELECTRICAL INSTALLATION Encoder/Tachometer Wiring for PNP Output to CBX100/CBX800 Some Photocraft tachometers may have a different color coding: (+V) Red or White/Orange (Signal) White or White/Blue (Ground) Black or Orange/White AV7000 LINEAR CAMERA...
Page 93: Wiring From Dm3610 Cbx100/Cbx800 To Av7000 Focus Serial
Wiring from DM3610 CBX100/CBX800 to AV7000 Focus Serial When using a DM3610 dimensioner for focusing, the DM3610’s CBX box must be wired to the focus serial (FOCUS SER) port of the master AV7000 using a flying lead to M12 cable (FOCUS CONTROL 5MT CABLE (M12-FREE WIRES) 93A201203.)
Page 94: Serial Communication Wiring To Cbx100/Cbx800
ELECTRICAL INSTALLATION Serial Communication Wiring to CBX100/CBX800 The AV7000 provides serial RS232/RS422 communications to other devices through the CBX100/CBX800. • RS232 provides point-to-point communications at distances up to 15 M [50 ft]. • RS422 provides point-to-point communications at distances up to 1200 M [3940 The following wiring diagrams illustrate the different types of serial communications available via the CBX100 pin block.
Page 95: Rs422Fd Host (Full Duplex)
CBX100/CBX510/CBX800 INITIAL CONFIGURATION RS422FD HOST (Full Duplex) Use RS422 for a direct connection to a controller, personal computer, or other device. RS422 provides point-to-point communications at distances up to 1200 M [3940 ft]. Full duplex wiring supports a four wire, double twisted pair RxD/TxD. The Signal GND and shield cables are also required as shown.
Page 96: Unpowered Outputs
ELECTRICAL INSTALLATION Unpowered Outputs AV7000 LINEAR CAMERA...
Page 97: Powered Outputs
CBX100/CBX510/CBX800 INITIAL CONFIGURATION Powered Outputs PRODUCT REFERENCE GUIDE...
Page 98: Grounding
4. Normally, steps 1 through 3 will guarantee proper function. In case of problems such as transmission of strange or wrong characters, devices stop working without any reason, or other unexpected behavior, try connecting the CBX or Controller Earth terminal to the PE terminal inside the PWR box. AV7000 LINEAR CAMERA...
Page 99: Installing The Optional Vga / Usb Interface Panel Kit
An optional VGA / USB Interface Panel Kit (93A201204) replacement panel accessory can be used to attach a monitor, keyboard and mouse to an installed AV7000 camera. In this way, system status and statistics can be monitored local to a scan point or tunnel, and the monitor, keyboard and mouse can be used to change parameters without the need of an external computer.
Page 100 4. Connect the VGA cable on the back of the VGA / USB Interface Panel Kit to the VGA connector inside the back of the camera. 5. Connect the USB cable on the back of the VGA / USB Interface Panel Kit to one of the USB connectors inside the back of the camera. AV7000 LINEAR CAMERA...
Page 101 When the camera is powered on, the monitor comes on after several seconds and dis- plays an image of the AV7000 camera system. To access a browser (Firefox), right click with the mouse on the monitor window. A drop-down list appears. Select Firefox to open the browser to the e-Genius Log On window.
Page 102: Check Av7000 Installation
ELECTRICAL INSTALLATION Check AV7000 Installation After completing the installation, confirm that the AV7000 reader(s) and CBX connec- tion box have been properly installed mechanically and electrically. Use the Installation Sequence at the beginning of this chapter and your application specifications to check your installation.
Page 103: Chapter 4. E-Genius
Please clear the PC’s browser cache regularly or set up the browser to disable caching altogether. This is especially important after software upgrades to make sure updates in e-Genius are visible. Prerequisites Before setting up your AV7000 or multi-camera barcode reader system, you will need the following: Computer Laptop...
Page 104: Accessing E-Genius
Accessing e-Genius To access e-Genius : Before starting up or testing the AV7000, it must be connected to a CBX Connection Box depending on the system configuration. 1. Connect your computer to the AV7000 HOST NET or IMAGE NET port using an RJ45 Ethernet cable.
Page 105: To Log Out Of The E-Genius
5. Select Use the following IP address . In the IP address field, type the first 3 octets of the IP address of the unit. 6. For the last octet, type a number that differs from the last octet in the AV7000’s IP address. The actual number used is not important as long as it does not match that of the AV7000.
Page 106: E-Genius Basics
Select the E xtended Characters check box to reveal a new set of control characters. Click Submit to save your text to the origin window text field, or click Cancel to return to origin window without transferring text. AV7000 LINEAR CAMERA...
Page 107: Getting Help
E-GENIUS BASICS Getting Help e-Genius provides complete online help (this document). To access the complete help system: Select Utilities | Help in the e-Genius menu tree. The help Welcome window appears. The Welcome page provides important product information as well as three ways to find specific help information: C ontents and S earch.
Page 108: Modify Settings
If necessary, you can later make modifications to the configuration using the same menu selections, including: “Modify Settings | System Info” on page 95 “Modify Settings | Global Settings” on page 101 “Modify Settings | Device Settings” on page 189Test AV7000 LINEAR CAMERA...
Page 109: Modify Settings | System Info
MODIFY SETTINGS | SYSTEM INFO MODIFY SETTINGS | SYSTEM INFO Use System Info to identify scanning system elements (whether it includes one AV7000 barcode reader or an array), discover the cameras included in the system, and distribute software from the Master to Slave.
Page 110 Displays the internal MAC Address (Media Access Control Address) of each individual AV7000. The MAC address is the unique number that is used in the XML file which allows each AV7000 to retrieve the parameters specific for its mounting position.
Page 111: Device Details
DEVICE DETAILS DEVICE DETAILS From the System info. window, click on a devices’s MAC Address to open a window displaying details about that device. The details include statistics, decoder and software version along with processor information. Camera Statistics Belt Speed Displays the speed of the conveyor belt in millimeters per second.
Page 112 The Internet Protocol address (IP address) of the host port. Image Port IP Address The Internet Protocol address (IP address) of the image port. Configuration Update Count The number of times the configuration file has been updated. AV7000 LINEAR CAMERA...
Page 113 DEVICE DETAILS Diagnostic Messages Real Time Processor Details Online Indicator Green = Online (connected and recognized in the cluster) Gray = Unit not connected (unit not seen by master) Yellow = Online but not in cluster = Offline PRODUCT REFERENCE GUIDE...
Page 114 Software Version Identifies the version number of the software FPGA Version The version of the Datalogic field-programmable gate array (FPGA). My Decoder’s MAC A media access control address (MAC address) of a device is a unique identifier assigned to a network interface controller (NIC) for communications at the data link layer of a network segment.
Page 115: Modify Settings | Global Settings
MODIFY SETTINGS | GLOBAL SETTINGS MODIFY SETTINGS | GLOBAL SETTINGS Use the Global Settings selections to configure your camera system. You can later make modifications to the global system settings using the following menu selections: “Modify Settings | Global Settings | Operating Mode” on page 103 “Modify Settings | Global Settings | Object Detection”...
Page 116 E-GENIUS AV7000 LINEAR CAMERA...
Page 117: Modify Settings | Global Settings | Operating Mode
Use Operating Mode to set up the physical parameters for your system including encoder, trigger, conveyor, and position sensor attributes. In AV7000 systems you may have both a trigger and a position sensor. Operating Mode is where you set this up.
Page 118 See “AV7000 Timing and Distance Diagrams” on page 94 EDUNDANT ONTROLLER ETTINGS This option appears only if your AV7000 is part of a redundant system. Controller Mode: Camera Select one of the following from the drop-down list: •Auto-detect •Primary Controller •...
Page 119 MODIFY SETTINGS | GLOBAL SETTINGS | OPERATING MODE Encoder Resolution Displays the encoder/tachometer resolution in pulses per inch (PPI) based on the Encoder Step calculation. This field cannot be edited. Max Conveyor Speed (m/sec) When Physical Encoder is Disabled, enter the conveyor speed in meters per second in the field provided (see formula below).
Page 120 This option is used when the product needs to have a virtual extension to its trailing edge. Crossbelt Sorter Mode Select Disabled or Enabled from the drop-down. Disabled: Not in Crossbelt Sorter Mode Enabled: In Crossbelt Sorter Mode. AV7000 LINEAR CAMERA...
Page 121 Position Sensor Transmit Delay Enter the distance (the distance it takes for the Position Sensor to prepare the focusing data for the AV7000’s focus). The focus delay value in the DM3610 must match this value. “AV7000 Timing and Distance Diagrams” on page 347...
Page 122 Non-Standard. This option is to assure that the correct focusing data is received for the correct side AV700. If the orientation is incorrect the AV7000 will receive the focusing data meant for the opposing side of the conveyor. The Yaw should either be 0 or 180, 0 being the standard mount where the two indicator laser dots are upstream from the RangeFinder scan line.
Page 123 ETTINGS S80 Configuration Number of S80’s Select None or 1 from the drop-down to specify the number of S80’s in your AV7000 system. S80 #1 Settings Connected to Select Not Assigned or a camera in the system to which the S80 is connected.
Page 124 Enter the distance in the field provided. This is the distance upstream of the transmit point where the camera will stop decoding the image data. This will help eliminate processing errors. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 125: Av7000 Timing And Distance Diagrams
AV7000 TIMING AND DISTANCE DIAGRAMS AV7000 TIMING AND DISTANCE DIAGRAMS This document identifies the distance/timing between the photo sensor, position sen- sor, and AV7000 camera. It includes: • Distance from trigger source to position sensor • Distance from position sensor to AV7000 •...
Page 126: Bottom Upstream Av7000 Configuration
“Focusing with a Dual DM3610 System” on page 119 Bottom Upstream AV7000 Configuration In a bottom mounted AV7000 the camera and mirror must be mounted so that the beam is reflected by the mirror through a space between conveyors. Identifier...
Page 127: Fixed Focus (None)
AV7000 TIMING AND DISTANCE DIAGRAMS Fixed Focus (NONE) Identifier Item 1 Item 2 Distance Time Standard (in.) Metric Trigger Source AV7000 5 or 10 PRODUCT REFERENCE GUIDE...
Page 128: Focusing With A Light Curtain
E-GENIUS Focusing with a Light Curtain Identifier Item 1 Item 2 Distance Time Standard Metric (in.) Trigger Source Light Curtain Light Curtain AV7000 AV7000 LINEAR CAMERA...
Page 129: Focusing With A Light Curtain And S80
AV7000 TIMING AND DISTANCE DIAGRAMS Focusing with a Light Curtain and S80 (Software version 2.16.0.0 or later) Identifier Item 1 Item 2 Distance Speed Standard (in.) Metric Trigger Source S80 #1 S80 #1 S80 #2 5” or 127mm S80 #2...
Page 130: Focusing With An S80
E-GENIUS Focusing with an S80 Identifier Item 1 Item 2 Distance Speed Standard (in.) Metric Trigger Source S80 #1 S80 #1 S80 #2 25.4 S80 #2 AV7000 AV7000 LINEAR CAMERA...
Page 131: Focusing With A Rangefinder
AV7000 TIMING AND DISTANCE DIAGRAMS Focusing with a RangeFinder Identifier Item 1 Item 2 Distance Speed Standard (in.) Metric Trigger Source RangeFinder RangeFinder AV7000 PRODUCT REFERENCE GUIDE...
Page 132: Focusing With A Single Dm3610
Trigger Source DM3610 DM3610 Scanline Focus Xmit Point The “B” distance number is inserted into the Focus Transmit Point in the B note: DM3600 and the Position Sensor Transmit Delay in the AV7000 DM3610 Scanline AV7000 Speed [ft/min] Minimum Distance [in] [mm] 15.4...
Page 133: Focusing With A Dual Dm3610 System
B + 10 B + 254 Point The “C” distance number is inserted into the Focus Transmit Point in the C note: DM3600 and the Position Sensor Transmit Delay in the AV7000 DM3610 Scanline AV7000 Speed [ft/min] Minimum Distance [in] [mm] 20.4...
Page 134 E-GENIUS AV7000 LINEAR CAMERA...
Page 135: Modify Settings | Global Settings | Object Detection
MODIFY SETTINGS | GLOBAL SETTINGS | OBJECT DETECTION MODIFY SETTINGS | GLOBAL SETTINGS | OBJECT DETECTION Use Object Detection to set the minimum and maximum size parameters for objects (packages) in your system. To edit the system Object Detection: 1. In the menu tree under Modify Settings , navigate to Global Settings | Object Detec- tion .
Page 136: Modify Settings | Global Settings |Barcode Settings
“Modify Settings | Global Settings | Barcode Settings | Barcode Settings Table” on page 123 • “Modify Settings | Global Settings | Barcode Settings | Barcode Settings Configu- ration” on page 131 • “Modify Settings | Global Settings | Barcode Settings | Advanced Decode” on page 146 AV7000 LINEAR CAMERA...
Page 137: Modify Settings | Global Settings | Barcode Settings | Barcode Settings Table
MODIFY SETTINGS | GLOBAL SETTINGS | BARCODE SETTINGS | BARCODE SETTINGS TABLE MODIFY SETTINGS | GLOBAL SETTINGS | BARCODE SETTINGS | BARCODE SETTINGS TABLE Use the Barcode Settings Table to select and configure barcodes to be read by your appli- cation.
Page 138 No Read Event will be returned. It is possible to define the matching string by inserting Regular Expressions, including but not limited to the following: . – (dot) Matches any character * - (asterisk) Matches 0 or more of the preceding character. AV7000 LINEAR CAMERA...
Page 139 MODIFY SETTINGS | GLOBAL SETTINGS | BARCODE SETTINGS | BARCODE SETTINGS TABLE + - (plus) Matches 1 or more of the preceding character. \d - Matches any single digit \w - Matches any word character (alphanumeric & underscore). [XYZ] - Matches any single character from the character class. [XYZ]+ - Matches one or more of any of the characters in the set.
Page 140 A check digit is a character that is transmitted at the end of the data. It is the remainder of an equation that uses all data in the bar code. The same algorithm is used at the host and to ensure that the data from the AV7000 is completed. Enable 7DR Check Digit Select the check box to enable 7DR Check Digit.
Page 141 MODIFY SETTINGS | GLOBAL SETTINGS | BARCODE SETTINGS | BARCODE SETTINGS TABLE Transmit Start/Stop Char Select Disabled, Lower Case, or Upper Case from the drop-down list. This parameter is available only for Codabar code symbologies. It allows transmitting the code start character: •Disabled: The character is not selected;...
Page 142 Select the check box to enable 7DR Check Digit. Short Margin Select the check box to enable. Available for Code 128, Code GS1-128, Interleaved 2 of 5, Code 39, Code GS1-128, EAN, UPC, CODABAR, and Code 39. This option deals with an illegal quiet zone. AV7000 LINEAR CAMERA...
Page 143 MODIFY SETTINGS | GLOBAL SETTINGS | BARCODE SETTINGS | BARCODE SETTINGS TABLE Data Matrix Options Data Matrix Fast Improve Select the check box to enable the Data Matrix options available via the table shown below. Select the Data Matrix Fast Improve check box and the check box next to the Data Matrix type codes required from the provided table.
Page 144 Maxicode Maxicode Enable n Select the check box corresponding to the Maxicode(s) to enable. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 145: Modify Settings | Global Settings | Barcode Settings | Barcode Settings Configuration
2. Enter the appropriate information in the form as described below: Minimum 1D Code Height Enter the minimum height of codes. This parameter defines the minimum height of the barcode the AV7000 will read. Code Combination Select Single Label, Standard Multi Label, Logical Combination...
Page 146 Based on your code combination selection, different fields will become available. See the following sections for the details of your code combination. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 147: Barcode Configuration |Single Label
BARCODE CONFIGURATION |SINGLE LABEL BARCODE CONFIGURATION |SINGLE LABEL When Single Label has been selected from the Code Combination drop-down list, the Barcode Configuration window reveals related input fields. 1. Enter the appropriate information in the form as described below: Minimum 1D Code Height Enter the Minimum Code Height in the field provided (mm [in]).
Page 148 2. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 149: Barcode Configuration |Standard Multi-Label
Barcode Configuration |Standard Multi-Label When Standard Multi Label has been selected from the Code Combination drop-down list, the Barcode Configuration window reveals related input fields. In case of Multi Label, the codes will be distinguished EITHER by their symbology, OR by their contents.
Page 150 2. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 151: Barcode Configuration | Logic Combination
Barcode Configuration | Logic Combination When Logical Combination has been selected from the Code Combination drop-down list, the Barcode Configuration window reveals related input fields. The Logical Combination option is only available when more than one code is enabled in the Barcode Settings Table.
Page 152 Select No Read, Good Read, or Partial Read from the drop-down list. A Partial Read is a condition when multiple barcodes are enabled but not all barcodes are read during a trigger cycle. Group No Read Messages Define a no read message for each group. AV7000 LINEAR CAMERA...
Page 153 Group Multiple Read Messages Define a string for each group’s multiple read string. Multi-Filter Settings Strip Filter Select the check box to display the Strip Filter Settings options. This filter, when enable, allows eliminating characters not managed by the host. Strip All Non Printable Chars Select the check box to remove all non- printable ASCII characters from the code (000-020 and 127).
Page 154 6 or 7 = Good Read; no read on code 8 and read both code 6 and 7 = Multiple Read Advanced Filter String Enter the character string (see above). 2. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 155: Barcode Configuration | Logical Combination Rule
Barcode Configuration | Logical Combination Rule The following are examples of rules used with Logical Combination selection in Barcode Configuration. For all the following examples the No Read Message parameter is set to Global No Read Message. Example 1: •Code label setting#1 = Code 128 •Logical Combination Rule = 1&1 Code 128 •Defines 2 groups, each of them expecting a...
Page 156 <Header><Code 39 data><DPS><Code 39 data><DPS><First decoded code/Multiple Read Message string <Terminator> > Example 4 •Code label setting#1 = Interleaved 2/5 •Code label setting#2 = Code 128 •Code label setting#3 = Code 39 •Code label setting#4 = UPC-A AV7000 LINEAR CAMERA...
Page 157 •Logical Combination Rule = 1^2&3^4 •Defines 2 groups, each of them expecting one of the defined code types. The first group may expect an Interleaved 2 of 5 label or a Code 128 label. The second group may expect a Code 39 UPC-A label or a...
Page 158: Barcode Configuration | Code Collection
Text Entry Tool and enter specific characters to be stripped from the code. Click Submit to save your text to the origin window text field, or click Cancel to return to origin window without transferring text. AV7000 LINEAR CAMERA...
Page 159 Strip Filter Collapse Select the check box to remove the stripped characters from the code and, therefore, reduce the code length (collapsed). It can even be null. Replacement Char If strip filter is not enabled, click to activate the Text Entry Tool and enter the substitution character to replace all the stripped ones.
Page 160: Modify Settings | Global Settings | Barcode Settings | Advanced Decode
2. Enter the appropriate information in the form as described below: Enable Low Profile 1D Codes Select the check box to enable reading of low profile 1D barcodes. The AV7000 can read bar codes with 1/4 inch (6.36 mm) bar height.
Page 161 The default value is 60. Do not change this parameter unless directed by Datalogic Support. Lowering this value narrows the area of data that is sent to the decode engine. Setting this number too low may cause the filter to truncate the bar code data, resulting in no reads.
Page 162: Modify Settings | Communications
Use Global Configuration Select the check box to reveal the global configuration options. When Global Configuration is selected any of the AV7000’s in the tunnel will use this transport. When not selected, a drop- down allows you to select a particular AV7000.
Page 163 •Standard •Advanced •Crisplant •Beumer •Custom 1-5 These five custom options are used by Datalogic programming when other options do not meet customer requirements. They will be name to identify customer needs. TANDARD See “Protocol Index Settings” on page 152. DVANCED Advanced Formatter Index Select an index number from the drop-down list.
Page 164 •The Protocol Index message syntax is fixed according to the Crisplant CMC message specifications. Scanner ID Select Datalogic NVS9000/AV7000, Accu-Sort 4800, Accu-Sort 55/70, Accu-Sort Quad-X. Available if Crisplant has been selected. Heartbeat Enable Select the check box to enable heartbeat messages.
Page 165 Distance to Trigger Line Enter the distance from the receiving point of the Protocol Index to the trigger line in the field provided. This parameter specifies the distance from the physical Trigger Line (i.e. Trigger Source) to the expected receiving point of the Protocol Index, measured in mm. It is used together with the Minimum Distance Between Two Consecutive Objects (below) parameter to assign the Protocol Index information to the correct package.
Page 166 Enter a time value in seconds to define the amount of time between two message transmissions. If the input timeout expires and no transmission has occurred, the Heartbeat message will be transmitted. Header and terminator must match the external product or the AV7000 will not recog- nize the message. Header...
Page 167 Select Variable Length, Length in Message, or Fixed Length from the drop-down list. •Variable Length: The length of the Protocol Index string sent by the Host is variable. •Length in Message: The first byte of the barcode reader output message indicates the length of the Protocol Index string sent by the Host.
Page 168 Select TCP Server, TCP Client, UPD, or UDP Multicast from the drop-down list. Device Select Select a listed named device from the drop-down list. Select the AV7000 in the tunnel that will provide the multi-cast message. When using the UDP protocol: The User Socket Client Port is bound to the Server Port.
Page 169 If images become available at different times (typically on multisided AV7000 Systems) more than one message is sent to the Video Coding System. The last one is explicitly flagged. If this Max Distance from the Trigger is reached for a parcel before all the expected images are saved, the last message is sent to force the closure of the parcel transaction.
Page 170 Protocol Index Settings See Protocol Index Settings above. Also see section for Example Protocol Index configuration. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 171: Protocol Index Setup Example
Protocol Index Setup Example The Protocol Index is used to get a message from third party equipment such as a scale or sorter, which is then attached to the barcode message output from the system. In the following example, a message from a third party scale needs to be attached to a barcode relating to a package.
Page 172 11. Select Trailing from the Reference Edge drop-down list. This indicates the back/ trailing edge of the box is the reference point. Trailing is the normal setting for a message from scale. AV7000 LINEAR CAMERA...
Page 173: Setting Scale Data Via Protocol Index
12. In the Distance to Trigger Line , enter the measured distance from the trigger to the expected scale transmission location on the conveyor belt. Measure distance for AV7000 trigger to the transmission point from the scale will have been set up in the scale configuration. This parameter specifies the distance from the Trigger Line (Trigger Source) to the expected receiving point of the Protocol Index.
Page 174 2. Run a small package through the system and view the results on the Conveyor View. 3. In e-Genius, navigate to Diagnostics | System Status . The System Status window opens. In this example No _Scale has been received because no scale data had been received. AV7000 LINEAR CAMERA...
Page 175 4. Again, run the small package through the system. PRODUCT REFERENCE GUIDE...
Page 176 E-GENIUS 5. In this view the scale information has been received and your package weights 23 lbs. AV7000 LINEAR CAMERA...
Page 177: Modify Settings | Global Settings | Output Format
Modify Settings | Global Settings | Output Format Use Output Format to format messages: • “Output Format | Standard Formatter” on page 164 • “Output Format | Advanced Formatter” on page 167 • “Protocol Index Setup Example” on page 157 •...
Page 178: Output Format | Standard Formatter
Only the length defined by the Code Field Length parameter is accepted. Field Length Enter a length value in the filed provided. Only for fixed length format. Fill Direction Left Right Select from the drop-down list. Only for fixed length format. AV7000 LINEAR CAMERA...
Page 179 Fill Character Click to activate the Text Entry Tool and create a fill character. Only for fixed length format. Code Identifier Select Disabled, AIM, or Custom from the drop-down list. This parameter allows enabling/ disabling the transmission of the code ID in the output data format. Disable •...
Page 180 E-GENIUS 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 181: Output Format | Advanced Formatter
Output Format | Advanced Formatter Use the Advanced Formatter to set up a selection of advanced code parameters for out- put messages. The Advanced Formatter allows you to configure up to 6 different message structures. The Advanced Formatter item can be assigned to the transport located in Mod Settings >...
Page 182 This list appears when Custom is selected from the Code Identifier drop-down list. For each code type, click to activate the Text Entry Tool and create Code Identifier characters. When you have finished making changes, click to save or click Update Reset revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 183: Message Builder
Message Builder Use the Message Builder window to configure Standard or Advanced system messages. This option allows for the defining of each field in the host message. When Message Builder is activated, Its settings apply to the Advanced Formatter n Item that was being modified in the Advanced Formatter Definition window.
Page 184 •Day: Indicates day of the month the code was scanned •Month: Indicates month the code was scanned •Year: Indicates year the code was scanned •Protocol Index: Indicates the programmed protocol index string data •Parcel Length: Indicates the approximate length of the package AV7000 LINEAR CAMERA...
Page 185 •Parcel Width: Indicates the approximate width of the package •Parcel Height: Indicates the approximate height of the package •Parcel Volume: Indicates the approximate volume of the package •Parcel Orientation Angle: Indicates the angle of the package •Parcel Isolated: indicates it is not a side-by-side condition as detected by the Dimensioning system •Image Filename: Includes the filename of the image Code Definition Number...
Page 186: Advanced Formatter Message Building Examples
4. Select Advanced from the Data Output Protocol drop-down list. 5. Select an index number from the Advanced Formatter Index . In this example 2 is selected. 6. Select the Socket option button #2 at the top of the Transports window. AV7000 LINEAR CAMERA...
Page 187 7. Select the Enable check box. 8. Select TCP Server from the Socket Type drop-down list. 9. Enter a Server Port i n the field provided (4004 in this example). 10. Enter Max Clients or the number of devices this Transport will be communicating to (1 in this example).
Page 188 Text Entry Tool and select STX (Start of Text), and click Submit. 4. For the Terminator (Trailer), click to activate the Text Entry Tool and select CR and LF , and click Submit. 5. Click Message Builder. The Message Builder window opens. AV7000 LINEAR CAMERA...
Page 189 6. Click Add. 7. Select Global from the Item Type drop-down list. 8. Select Sequence Number from the Global Item drop-down list. 9. Select Right from the Item Alignment drop-down list. 10. Enter 2 in the Item Alignment Length text field. 11.
Page 190 15. Select C ode Related from the Item Type drop-down list. 16. Select Code from the Code Related Item drop-down list. 17. Select 1 from the Code Definition Number drop-down list (in this example repre- senting code128). 18. Click Add . AV7000 LINEAR CAMERA...
Page 191 19. Select String from the Item Type drop-down list. 20. To create a hyphen separator, click to activate the Text Entry Tool, select the hyphen (-), and click Submit. 21. Click Add . 22. Select Code Related from the Item Type drop-down list. 23.
Page 192 Text Entry Tool and select STX (Start of Text), and click Submit. 4. For the Trailer , click to activate the Text Entry Tool and select ETX (End of Text), and click Submit. 5. Click Message Builder . The Message Builder window opens. AV7000 LINEAR CAMERA...
Page 193 6. Click Add. 7. Select String from the Item Type drop-down list. 8. In the Miscellaneous String field, click to activate the Text Entry Tool and enter 6 Xs (xxxxxx). 9. Click Submit. 10. Click Add. 11. Select Code Related from the Item Type drop-down list. 12.
Page 194 2. In e-Genius navigate to Diagnostics | Device Tracking. The Device Tracking window opens. 3. Run the box through the system. Look at the Event Information for transports 1, 2, 3 and verify that the information returned is what you intended. AV7000 LINEAR CAMERA...
Page 195: Modify Settings Global | Global Settings | Image Saving
Modify Settings Global | Global Settings | Image Saving Usage Image Saving options to configure how images are saved: • “Image Saving | Destination Settings” on page 181 • “Image Saving | Image Settings” on page 184 Image Saving | Destination Settings Use Destination Settings to configure how and where system images are saved.
Page 196 File Transfer Timeout Enter a time out value in seconds. This sets the polling cycle in seconds for sending the keep alive signal to the Server so that the connection is maintained even if no data is sent. AV7000 LINEAR CAMERA...
Page 197 Destination Directory \datalogic\images Enter the path of the FTP server directory as follows: , without indicating any volume, because the FTP connection already points to the correct volume (for example: D:\). External Viewer Destination IP Address Enter the IP address of the external PC on which the image viewer is installed, in the field provided.
Page 198: Image Saving | Image Settings
To edit the Image Settings: 1. In the menu tree under Modify Settings, navigate to Global Settings | Image Sav- ing | Image Settings. The Image Settings window opens. 2. Enter the appropriate information in the form as described below: AV7000 LINEAR CAMERA...
Page 199 Image Settings List Select the option button adjacent to the item you wish to create or modify. Image Index n Settings Enable Select the check box reveal the image settings options. Image Saving Options File Type Select JPEG, Bitmap, or TIFF from the drop-down list. Specifies the type of image to save as. Downsample Select None, 2, 4, 8, or 16 from the drop-down list.
Page 200 Enter a number indicating the number of characters to cut from the leading part of the message. Number of Trailing Characters to Cut Enter a number indicating the number of characters to cut from the trailing part of the AV7000 LINEAR CAMERA...
Page 201 message. String uses the character string entered below Item String (Max 16 Chars.) Identified in image name above. Camera Specific String appends the specified string to the image file name. Code Code Group Index Logical combination group number as specified in Barcode Settings | Barcode configuration Cutting Mode Select Disabled or Simple from the drop-down list.
Page 202: Modify Settings | Global Settings | Time Synchronization
All the devices in the system will synchronize to the selected device. All time references (timestamps, logging, etc.) are in UTC time. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 203: Modify Settings | Device Settings
MODIFY SETTINGS | DEVICE SETTINGS MODIFY SETTINGS | DEVICE SETTINGS Use the Device Settings during initial setup to configure device specific settings. If nec- essary, you can later make modifications to the device settings using the same menu selections, including: “Modify Settings | Device Settings | <Camera Name>...
Page 204: Modify Settings | Device Settings | | Device Info
Displays the Image Port MAC Address sent by the device. Host Port MAC Address Displays the Host Port MAC Address sent by the device. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 205: Modify Settings | Device Settings | | Mounting
Modify Settings | Device Settings | <Camera Name> | Mounting Use the Mounting window when installing and calibrating the camera. To view the Mounting window: 1. In the menu tree under Modify Settings, navigate to Device Settings | <Camera Name> | Mounting. The Mounting window opens. 2.
Page 206: Mounting | Mounting Calibration Wizard
This field is automatically filled in during the static calibration of the unit (Calibration Wizard), but may be changed during dynamic calibration. In a tunnel each AV7000 has its own unique start and end trigger. Far Working Distance (Z) Defines the distance from the camera to the furthest scanning point.
Page 207: Modify Settings | Device Settings | | Imaging
Modify Settings | Device Settings | <Camera name> | Imaging Use the Imaging window to configure how images are handled by the selected camera. To view the Imaging window: 1. In the menu tree under Modify Settings, navigate to Device Settings | <Camera name>...
Page 208 (See ). This allows the mounting structure to be reduced in size. If a bright glare spot appears in the AV7000 Live Image Viewer when an image is acquired, this may indicate interference of crossing illuminator lobes. Increase the Pulsed Acq Delay value incrementally until the bright spot disappears.
Page 209 This option is only used for testing. It should be set to Normal for regular operation. Horizontal (Scanline) Digital Zoom Horizontal Digital Zoom Enable Select the check box to enable. This allows the AV7000 to maintain a DPI value throughout the Depth of Field. Vertical (Direction of Travel) Digital Zoom Vertical Digital Zoom Enable Select the check box to enable Vertical Digital Zoom.
Page 210: Modify Settings | Device Settings | | Serial Port
Serial Communication Type Select RS422 Full Duplex or RS232 from the drop-down list. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 211: Serial Port | Host Port
Serial Port | Host Port Use the Host Port window to configure communication between the barcode reader and the Host, or, in a multi-sided layout, between the Master and a Host. To edit the Host Port settings: 1. In the menu tree under Modify Settings, navigate to Modify Settings | Device Set- tings | Camera N | Serial Ports | Host Port.
Page 212: Serial Port | Aux Port
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of stop bits in the data packet of the communication protocol frame. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 213: Modify Settings | Device Settings | | Ethernet
| Camera N | Ethernet | Host Port . The Host Port window opens. 2. Enter the appropriate information in the form as described below: In a multi-headed system each AV7000 will have its own host option. Enable DHCP Select the check box to use addresses assigned by a DHCP server.
Page 214: Ethernet | Image Port
DNS Address Enter the address of the Secondary Domain Name System (DNS) in the field provided. 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 215: Ethernet | Advanced Routing
Ethernet | Advanced Routing Use the Advanced Routing window to make a string command to route to your network. To edit the Image Port settings: 1. In the menu tree under Modify Settings, navigate to Modify Settings | Device Set- tings | Camera N | Ethernet | Advanced Routing .
Page 216: Modify Settings | Device Settings | | Logging
Enabling them may fill the event buffer with unimportant information and therefore overwrite important information. Consult Datalogic Engineering before using this Advanced logging option. Verbose Mode Enable Select the check box to verbose logging. When disabled, the debug log will provide data for Critical, Errors, Warnings, and Info in the log text.
Page 217: Advanced Logging
Enabling Advanced Logging may fill the event buffer with unimportant information and overwrite important information. Consult Datalogic Engineering before using this Advanced logging option. This section identifies the options but does not provide an in depth explanation. To view the Advanced Logging window: 1.
Page 218 •Image Saving Master •Image Saving •RT Manager •Protocol Index •SimRangeFinder •RF Manager •Web Sentinel •DM Manager •Image Processing 3. When you have finished making changes, click Update to save or click Reset to revert to the previously saved values. AV7000 LINEAR CAMERA...
Page 219: Diagnostics
DIAGNOSTICS DIAGNOSTICS Use the Diagnostics Menu Tree selections to monitor system performance and identify maintenance or device degradation issues. You can continually monitor system perfor- mance using the following selections: “Diagnostics | System Status” on page 206 “Diagnostics | System Health” on page 209 “Diagnostics | Input/Output Status”...
Page 220: Diagnostics | System Status
Diagnostics , click System Status . The System Status window opens. 1. From the System Status window, the following information is available: Tunnel/Array Statistics Belt Speed(mm/s) Shown in millimeters per second. Belt Speed(fpm) Shown in feet per minute. AV7000 LINEAR CAMERA...
Page 221 Total Packages Package count since last reset. Good Reads Number of good packages read since last reset. No Reads Number of packages not read since last reset. Multiple Reads Number of times a “Mult” condition has been met since last reset. Read Rate The average number of packages successfully read since last reset.
Page 222 • Displays barcodes and which camera(s) read them Image Saving: • Image links are provided for each named camera in the system Sequence Number: • Identifies the total number of packages with history stored in the camera AV7000 LINEAR CAMERA...
Page 223: Diagnostics | System Health
Diagnostics | System Health Use the System Health window to get specific functional details on each device in the system. To access the System Health window: 1. In the menu tree under Diagnostics , click System Health . The System Health win- dow opens.
Page 224 4. Enter the IP Address of the remote device you want to communicate with and click the ping button to send a message to that device. 5. Click route button to view Network routing table. 6. Select ifconfig button to view configuration information. AV7000 LINEAR CAMERA...
Page 225: Diagnostics | Input/Output Status
Diagnostics | Input/Output Status Use the Input/Output Status window to determine whether the AV7000 is seeing the data coming from the tachometer or trigger sources. It also identifies the status of relay output 1 and 2. The Trigger LED does not toggle unless there is a Tach signal present.
Page 226: Diagnostics | Serial Comm Status
To access the Serial Comm Status window: In the menu tree under Diagnostics , click Serial Comm Status . The Serial Comm Status window opens. Displays serial messages received. Serial Comm Status Example 1 Serial Comm Status Example 2 AV7000 LINEAR CAMERA...
Page 227: Diagnostics | Device Tracking
Diagnostics | Device Tracking Use the Device Tracking window to view encoder/tachometer and trigger event informa- tion. This will provide information such as s tart and end trigger, transmit point data, transmit message, sequence number, and etc) To access the Device Tracking window: 1.
Page 228: Diagnostics | Image Viewer
6. Click Fit to Screen to zoom the image to fill the view window. Controls: • Click an image multiple times to zoom in. • Hold <SHIFT> and click an image multiple times to zoom out. • Roll the mouse wheel to zoom in or out. AV7000 LINEAR CAMERA...
Page 229: Lpi/Dpi Tool
The Image Viewer can also be used to check the Lines per Inch (LPI) and Dots per Inch (DPI) of an image. Prepare a test box with the Dynamic Focus Target that is included with each AV7000 camera. 7. With the Image Viewer open, click Start, and run the box through the system.
Page 230: Diagnostics | Multiple Camera Viewer (Multi Viewer)
The Multiple Camera Viewer allows you to view low resolution images from all system AV7000s at the same time during a trigger cycle. The number of images shown depends on the number of AV7000 cameras in the tunnel/array. To access the Multiple Camera Viewer: 1.
Page 231: Diagnostics | Multiple Symbol Viewer
The number of images shown depends on the number of AV7000 cameras that read barcodes on a particular package. Only cam- eras that read a barcode will return an image. For a barcode to be read, it must be con- figured in Modify Settings | Global Settings | Barcode Settings | Barcode Settings Table (See “Modify Settings | Global Settings | Barcode Settings | Barcode Settings Table”...
Page 232: Diagnostics | Log Viewer (Decoder)
1. In the menu tree under Diagnostics , click Log Viewer (Decoder) . The Log Viewer (Decoder) window opens. 2. Click Connect to view logged data from the decoder. 3. Click Disconnect to pause the data stream. Click Reset to re-enable Verbose Mode logging. AV7000 LINEAR CAMERA...
Page 233: Diagnostics | Log Viewer (Real-Time Process)
Diagnostics | Log Viewer (Real-Time Process) Use the Log Viewer (RT) window to view encoder/tachometer and trigger event infor- mation. To access the Log Viewer (RT) window: 1. In the menu tree under Diagnostics, click Log Viewer (RT). The Log Viewer (RT) win- dow opens.
Page 234: Diagnostics | Scope (Calibration Check)
2. To zoom, click on the right and left sides of the area to be zoomed, and then click Zoom to. 3. Use the sliders at the bottom of the screen to adjust Height (Focus) and Speed (Amplitude). 4. Click Stop Acquiring to freeze the scope. AV7000 LINEAR CAMERA...
Page 235: Diagnostics | Scope (Advanced)
3. Click Enable Calibration to reveal the calibration sliders. Do not change these settings unless instructed by Datalogic Technical Support or Engi- neer. Adjusting this option may cause the AV7000 to experience incorrect no reads. 4. Select the Illumination Correction Enable to modify illumination settings.
Page 236: Diagnostics | Conveyor View
5. Click Start to view a representation of packages moving along the conveyor, or click Stop to freeze the window. Hold the cursor of the package shown on the conveyor animation to view package infor- mation, including Event, Tach Count, and Package Number information. AV7000 LINEAR CAMERA...
Page 237 6. Click Legend to view a color key for the Conveyor View animation. Click Home to return to Modify Settings | System Info . PRODUCT REFERENCE GUIDE...
Page 238: Enabling Diagnostics | Conveyor View
8. Select the checkbox to enable Protocol Index Logging. 9. Click Update to save your changes. 10. Access Global Settings | Communications | Transports and the Transport List win- dow opens. 11. From the Log Type drop-down select Advanced. AV7000 LINEAR CAMERA...
Page 239 12. Click Update to save your changes. PRODUCT REFERENCE GUIDE...
Page 240: Diagnostics | Network Diagnostics
2. Enter the IP Address of the remote device you want to communicate with and click the ping button to send a message to that device. 3. Click route button to view Network routing table. 4. Select ifconfig button to view configuration information. AV7000 LINEAR CAMERA...
Page 241: Diagnostics | View Oncamera Storage
Diagnostics | View OnCamera Storage Use the View OnCamera Storage window to view stored images on a particular camera within your system. To access the View OnCamera Storage window: 1. In the menu tree under Diagnostics , click View OnCamera Storage. The View OnCam- era Storage window opens.
Page 242: Utilities
“Utilities | Backup/Restore Parameters” on page 230 “Utilities | Software Upgrade” on page 232 “Utilities | Download Logs” on page 234 “Utilities | Download Tools” on page 235 “Utilities | Camera Reset” on page 236 “Utilities | Help” on page 237 AV7000 LINEAR CAMERA...
Page 243: Utilities | Advanced Cluster Configuration
1. In the menu tree under Utilities , click Advanced Cluster Configuration. The A dvanced Cluster Configuration window opens. The enabled columns (not grayed out) show the AV7000 cameras currently online in the system. If a camera is not online (grayed out) you can still select it for action.
Page 244: Utilities | Backup/Restore Parameters
You must only restore a system with a restore file originally created from that system. DO NOT use a restore file from a different system. NEVER use on a configured system. 4. Click Load Parameter File to upload the file to the system device(s). AV7000 LINEAR CAMERA...
Page 245 Restore Parameters window. Selecting Factory Reset will default the whole camera tunnel setting ALL cameras to factory defaults. DO NOT select this option unless instructed by a Datalogic Technician. To use Password Management function: 1. Select the User ID from the drop-down.
Page 246: Utilities | Software Upgrade
5. Select Force SW package to all camera’s in the cluster to update all of the cameras with the latest software downloaded. 6. Click Application Installation History to view historical software revision informa- tion about the application. AV7000 LINEAR CAMERA...
Page 247 7. Click O perating System History to view historical software patch information about the operating system. 8. Click RTP Operating System history to view RTP (Real Time Processing) software revision historical information about the Real Time Processing OS. 9. Click Download to save a copy of the installed software to your PC. The retrieved software does not retain the software version name.
Page 248: Utilities | Download Logs
To use the Download Logs function: 1. In the menu tree under Utilities, click Download Logs . The Download Logs window opens. 2. Click “ Click here to download debug logs ” to download the following file to your PC: AllDebugLogs.tar.gz AV7000 LINEAR CAMERA...
Page 249: Utilities | Download Tools
Utilities | Download Tools The Download Tools window provides links to tools stored on the AV7000 that can be used for calibrating and testing the camera system. These include printable calibration targets and other helpful items. The items available may change depending on the cam- era version.
Page 250: Utilities | Camera Reset
1. In the menu tree under Utilities, click Camera Reset . The Camera System Options window opens. 2. Click Camera Reset and the following confirmation message appears. 3. Click OK to continue the camera reboot or Cancel to discontinue this process. AV7000 LINEAR CAMERA...
Page 251: Utilities | Help
Utilities | Help Use the Help selection to access the online help system. In the menu tree under Utilities, click Help . The online help Welcome page opens in a new browser window. Utilities | Logout Click Utilities | Logout to exit e-Genius . PRODUCT REFERENCE GUIDE...
Page 252: Chapter 5. Focusing Setup And Calibration
FOCUSING SETUP AND CALIBRATION FOCUSING DEVICES The AV7000 focusing position is computed by the camera based on the position of the parcel triggered and/or measured by a focusing device. The Datalogic focusing devices may be one or more of the following: •...
Page 253: What You Will Need
There are several Datalogic focusing options available for the AV7000. Each option serves a different purpose in AV7000 systems. They can be used alone or in combination with one another. Below is a list of the available options and an explanation of their pur- pose.
Page 254: As1 Areascan
DL Light Curtain (LCC-75xx AV7 Light Curtain) The DL Light Curtain is used to detect the presence of objects as they enter the scanning area, as well as report the package heights ranging from 150 to 2500mm to the AV7000. STI Light Curtain The STI Light Curtain is a legacy light curtain device that also detects the presence and package heights of objects as they enter the scanning area.
Page 255: Setting Up The S-60 Photocell
Reference the S-60 Installation Guide (included with your S-60 kit) for complete infor- mation on connecting and aligning the Photocell. Make the following selections in the AV7000 e-Genius application Operating Mode. SETTING UP THE AS1 AREASCAN Reference the AS1 Series Instruction Manual (included with your AS1 kit) for complete information on connecting and aligning the ASl.
Page 256: Setting Up The Ds2 Light Curtain
Light Curtain. Make the following selections in the AV7000 e-Genius application Operating Mode. The baud rate of the DS2 light cur- tain is 19200. Make sure the baud rate for the Focus Serial port in the AV7000 is set to match.
Page 257: Setting Up The Sti Light Curtain
There is no required distance between each S80/Light Curtain. 1. Mount the S80(s) and DL light curtain (if required), as previously described. 2. Connect the S80(s) to the focus serial port of the controller AV7000 in the tunnel. PRODUCT REFERENCE GUIDE...
Page 258: S80 Setup And Calibration
To calibrate the S80 Distance Sensors, follow these steps: 1. In e-Genius under Modify Settings, navigate to Global Settings / Operating Mode. The Operating Mode window opens. 2. Select the Photo Sensor as Trigger Source from the drop-down. AV7000 LINEAR CAMERA...
Page 259 SETTING UP THE DK501 (S80) DISTANCE KIT 3. Select the Position Sensor Type from the drop-down. Select S80 or S80 with DL Light Curtain. 4. Enter the Position Sensor Transmit Delay as 127mm. This is required because the tach controller camera (with or without an S80 connected) tracks the connected S80’s and DL light curtain to a point that is 127mm past the S80/LC that’s located the furthest downstream from the PE (and closet to the first camera scanline).
Page 260 17. Place an object of known width on the far edge of the conveyor and adjust the Far Distance Offset (B) until the focus value equals the object width. 18. To adjust the distance, press enter each time you make an adjustment. AV7000 LINEAR CAMERA...
Page 261: Setting Up The Dm3610 Dimensioner
AV7000 (typically Main, consult your applica- tion interconnect diagrams for details). The Serial | Main window opens. 2. Make sure the selected Baud Rate matches that of the AV7000 (AV7000 uses the main port, RS485 (RS422), at 115200).
Page 262: Understanding Dm3610 Focusing And Av7000 System Orientation
4. Select the Model of camera for which you are focusing. 5. Enter the Focus Transmit Point. This is the distance the DM3610 waits until after the AV7000 scan line has read, to transmit the message. This value correlates to a value in the AV7000 settings. Default is 8 inches.
Page 263 SETTING UP THE DM3610 DIMENSIONER 2. From the Tachometer drop-down list, select Constant. 3. Verify that the values displayed for Left Offset, Right Offset, and Height Offset are all set to 0. 4. Referencing the direction of conveyor travel, view the Dimensioner from an upstream position.
Page 264: Adjusting Dm3610 Left Focus Offset
1. Position a test box with a known width in the dimensioner line(s) so the side of the box is at the RIGHT side AV7000 far working distance as specified by the applica- tion’s installation drawing. In this example we will be using a box with a 3” width.
Page 265: Adjusting Right Focus Offset
SETTING UP THE DM3610 DIMENSIONER 3. View the displayed data and determine what the left value is. In the displayed example above, the value is 4.25”. 4. Subtract the width of the test box, in our example it is 3”, from the value displayed for Left.
Page 266 2. View the displayed data and determine what the RIGHT value is. In our example the value is 6.5”. 3. Subtract the width of the test box from the value displayed for RIGHT. 6.5 – 3 = 3.5 AV7000 LINEAR CAMERA...
Page 267: Adjusting Height Offset
6. Click Update to save the changes. 7. Test the system by inducting a series of application objects and bar codes. Use the AV7000 imaging utility to verify that the cameras are focusing properly over the width and height of the conveyor.
Page 268 3. Subtract the test box height from the displayed height. 3.5 – 3 = 0.5 4. Enter the result as a NEGATIVE value in the Height Offset field. In this case you will enter -.5. 5. The Height Offset is now reflected in the Height value. AV7000 LINEAR CAMERA...
Page 269: Setting Up The Rangefinder
“Update” 8. Test the system by induct a series of application objects and barcodes. 9. Use the AV7000 / NVS9000 / AV6010 imaging utility to verify that the cameras are focusing properly over the width and height of the conveyor SETTING UP THE RANGEFINDER This process calibrates the Rangefinder focus data for AV7000 camera systems.
Page 270: Setting The Rangefinder Gain
1. Place white printer paper across the conveyor under the RangeFinder 2. Open the RangerOScope application to view the signal. 3. Select the left pattern generator and compare its signal to the right pattern gener- ator. Both signals should be symmetrical. AV7000 LINEAR CAMERA...
Page 271 SETTING UP THE RANGEFINDER 4. In e-Genius under Modify Settings, navigate to Global Settings / Operating Mode. The Operating Mode window opens. 5. Under RangeFinder Settings, adjust the signal gain value in the Offset to Range- Finder Gain Setting text field until the right and left pattern generator signals are symmetrical in the RangerOScope application and gain pattern matches the sam- ple in the image above.
Page 272 10. Watch the CodeWord Viewer screen for a few moments, and make sure the code word signal remains solid, and none of the code words drop in and out. 11. Select the Right option button under Pattern Generator Display Enable, and make sure the code word signal remains stable. AV7000 LINEAR CAMERA...
Page 273: Possible Rangefinder Signal Degradation Factors
SETTING UP THE RANGEFINDER If the gain is set too high or too low some of the code words along the scan line will drop in and out as shown below. Adjust the gain to eliminate the drop-outs. 12. Next, place the white paper on some tall system boxes in the near of the depth of field (DOF) as shown below.
Page 274: Rangefinder Mounting Calibration Wizard (Static Calibration)
1. In e-Genius under Modify Settings, navigate to Global Settings / Operating Mode. The Operating Mode window opens. 2. Under Position Sensor Settings (Primary Controller), select RangeFinder from the Position Sensor Type drop-down. 3. The RangeFinder Settings options appear. AV7000 LINEAR CAMERA...
Page 275 SETTING UP THE RANGEFINDER 4. Click the Mounting Calibration Wizard button, the first step in the Mounting Cali- bration process appears. 5. Measure the width of the conveyor and enter that value. Click Next Step >>> to proceed to Step 2 in the calibration process. PRODUCT REFERENCE GUIDE...
Page 276 8. Enter the distance from the Left edge of the conveyor to the Rangefinder’s left dot. 9. Enter the distance from the Right edge of the conveyor to the Rangefinder’s right dot. 10. Click Next Step >>> to proceed to Step 5 in the calibration process. AV7000 LINEAR CAMERA...
Page 277 SETTING UP THE RANGEFINDER 11. Verify the values are correct and click Save and Exit. 12. Select the correct Trigger Source from the drop-down 13. You will see the values entered during the Mounting Wizard process, appear under RangeFinder Settings. PRODUCT REFERENCE GUIDE...
Page 278 FOCUSING SETUP AND CALIBRATION AV7000 LINEAR CAMERA...
Page 279: Chapter 6. Setup And Calibration
CHAPTER 6 SETUP AND CALIBRATION The AV7000 Camera can be set up as a single unit or with multiple AV7000s in a scan- ning array (tunnel). The AV7000 camera system is a high-precision imaging system, and requires careful and accurate setup and calibration to function at its full potential.
Page 280: E-Genius Calibration Presets
Your PC’s IP address needs to match the camera system’s IP Address range. System Info: Bring Each Camera into the Network When power is applied to the AV7000 scan tunnel for the first time each camera will need to be brought into the sync network using the e-Genius .
Page 281: Operating Mode
Modify Settings | Global Settings | Image Saving Device Settings In the menu tree under Modify Settings, navigate to D evice Settings. Due to the mount- ing differences among the AV7000 cameras in the system, each camera will be cali- brated separately. PRODUCT REFERENCE GUIDE...
Page 282: Calibrating Av7000: Static Calibration
System Info window, and also in the menu tree under Device Settings. 3. Click Update to save the new name. Repeat this for each camera in the system. CALIBRATING AV7000: STATIC CALIBRATION 1. Navigate to Modify Settings | Device Settings | Camera N | Mounting. The Mount- ing window opens.
Page 283 1.05) the image exposure time. 5. Place the CH-3 Autofocus Test Chart at the FARTHEST distance from the AV7000 (far working distance). 6. Adjust the target position until the center pattern is represented by only a single line.
Page 284 Release the mouse button past the second focused area. This minimizes the amount of data the AV7000 has to process during this calibration step. 8. Click Zoom to and the image is zoomed to the selected area.
Page 285 CALIBRATING AV7000: STATIC CALIBRATION 9. Click Next Step >>>. The Step 2/5 Mounting Calibration Window opens. The AV7000 uses the image and determines the optimal far working distance for the camera. This step takes a while and the “Please Wait” message will blink during this time.
Page 286 13. Place the C H-3 Autofocus Test Chart at the near distance. Position the target so the center X has only one leg (center of X) represented. 14. Zoom into the target area as described in the steps above. AV7000 LINEAR CAMERA...
Page 287 CALIBRATING AV7000: STATIC CALIBRATION 15. Click Next Step >>>. The Step 4/5 Mounting Calibration Window opens. 16. Enter the Target height (top mount AV7000) or distance from farthest side mounted AV7000) ( H) . 17. Enter D istance of view line to reference (D). This is the distance from DM3610, RangeFinder, or Light Curtain to the view line.
Page 288: Calibrating Av7000: Dynamic Calibration
SETUP AND CALIBRATION CALIBRATING AV7000: DYNAMIC CALIBRATION Dynamic calibration is used to set up and calibrate a system in motion. Follow these steps to configure e-Genius for Running Dynamic Calibration 1. The test target used for dynamic calibration uses 20 character Code 128 barcodes, so e-Genius must be configured to accept those codes.
Page 289 CALIBRATING AV7000: DYNAMIC CALIBRATION 2. Turn on the conveyor. 3. In e-Genius, navigate to Diagnostics | System Status and confirm that the belt speed is correct. Calibrating Distance to Trigger Source (X) 1. In e-Genius, navigate to Diagnostics | Image Viewer. The Image Viewer window opens.
Page 290 Transition Point (purple line) to the actual corner of the box. 8. To do this, re-run the SMALL box and adjust the D istance to Trigger Source (X) until the Focusing Data Transition Point aligns with the leading corner of the box. AV7000 LINEAR CAMERA...
Page 291 CALIBRATING AV7000: DYNAMIC CALIBRATION The leading corner of the box should align with the purple Focusing Data Transition Point. Calibrating Camera View Angle After the Distance to Trigger Source (X) is set correctly, set the camera view angle. 1. From the menu tree, navigate to Diagnostic | Image Viewer. The Image Viewer window opens.
Page 292 6. Re-run the tall box and confirm the View Angle setting. Repeat process until both the tall (or near distance for side read) and small (farthest distance for side read) boxes have the same Focusing Data Transition Point at the corner of the box. AV7000 LINEAR CAMERA...
Page 293 CALIBRATING AV7000: DYNAMIC CALIBRATION Image Gain The image gain affects the camera’s ability to decode the barcodes by modifying the image exposure. Increased gain increases the brightness and clarity of an image at a given exposure. 1. From the menu tree, navigate to Diagnostic | Image Viewer. The I mage Viewer window opens.
Page 294 Pulsed Illumination should be adjusted. If pulsed illumination is not enabled, make adjustments to Global Gain with Continuous Illumination. 6. Adjust the gain until the white level shown in the Image Viewer is between 180 and 200. Global Gain Value AV7000 LINEAR CAMERA...
Page 295 CALIBRATING AV7000: DYNAMIC CALIBRATION LPI/DPI Calibration Lines Per Inch (LPI) and Dots Per Inch (DPI) v alues read by the AV7000 must be within 5% of each other. The goal is for the AV7000 to capture square pixels. This is especially important with certain barcodes and in cases where Optical Character Recognition (OCR) is required.
Page 296 2. Run a box with the Picket Fence/Step Ladder Test Chart through the system. The goal is to have the same number of picket fence and ladder barcodes decoded. In AV7000 LINEAR CAMERA...
Page 297 CALIBRATING AV7000: DYNAMIC CALIBRATION the following example, there are more barcodes decoded in one orientation than the other. This indicates that the camera is not focused correctly. 3. In the menu tree, navigate to Modify Settings | Device Setting | Camera n (unit being calibrated) | Mounting.
Page 298: Final Acceptance Test
System tallest box: Used to test the near read distance from the camera Code Placement Obtain system code samples of various density and contrast. Position the barcode on the surface of the box in the following manner (sample) AV7000 LINEAR CAMERA...
Page 299: Other Camera Checks
1. Place bar codes on the surface of the box facing the AV7000 mounting location. 2. Using the smallest box with the barcodes on the top surface, run the box on the left, center, and right portions of the Field of View.
Page 300: Chapter 7. Av7000 Features
CHAPTER 7 AV7000 FEATURES In this chapter we explain some of the operating features unique to the AV7000: • LEDs • Working with WebSentinel PLUS • AV7000 Read Charts LED INDICATORS AV7000 LEDs The AV7000 Camera has several LEDs on its back panels.
Page 301 LED INDICATORS Description Solid Green – Indicates CBX box connected has the ID+ to GND jumper and this camera is the controller for the tunnel. The Tachometer/Encoder must be connected to this unit. Solid Green– Good status STATUS Solid Yellow –...
Page 302: Ai7000 Illumination Leds
With the unit powered up, hold down buttons 1 and 2 at the Reset Camera to Fac- same time. The STATUS LED will blink GREEN and then RED to tory Defaults indicate that the unit has been defaulted. AV7000 LINEAR CAMERA...
Page 303: Setting Up Websentinel Plus In The Av7000
SETTING UP WEBSENTINEL PLUS IN THE AV7000 SETTING UP WEBSENTINEL PLUS IN THE AV7000 Set the parameters in the order they appear in this documentation. Update the settings in e-Genius as shown in the following procedure: 1. In the menu tree under Modify Settings, navigate to Global Settings | Image Sav- ing | Destination Settings.
Page 304 AV7000 FEATURES 6. Click Update to save the changes. 7. In the menu tree under Modify Settings, navigate to Global Settings| Communi- cations | Transports. The Transports window opens. 8. Set up the Transports options as shown below. AV7000 LINEAR CAMERA...
Page 305: Using Websentinel To View Av7000 Images
USING WEBSENTINEL TO VIEW AV7000 IMAGES 9. Click Update to save the changes. USING WEBSENTINEL TO VIEW AV7000 IMAGES 1. Click on the scan point name to view the Dashboard window for that device. PRODUCT REFERENCE GUIDE...
Page 306 AV7000 FEATURES 2. Click on the Package Activity results to show more information. The Image Man- agement window opens. 3. Click on an image to open the Image Viewer with additional information. AV7000 LINEAR CAMERA...
Page 307 USING WEBSENTINEL TO VIEW AV7000 IMAGES 4. Click and hold the left mouse button over the image to zoom in. PRODUCT REFERENCE GUIDE...
Page 308: Reading Diagrams
5. To pan the image, click and hold down the left mouse button while moving the cursor around the viewing window. Reading Diagrams How to identify the camera model: The camera and illumination model numbers are shown on the serial label. AV7000 LINEAR CAMERA...
Page 309: Reading Linear Barcodes
READING LINEAR BARCODES READING LINEAR BARCODES PRODUCT REFERENCE GUIDE...
Page 310 AV7000 FEATURES AV7000 LINEAR CAMERA...
Page 311 PRODUCT REFERENCE GUIDE...
Page 312 AV7000 FEATURES AV7000 LINEAR CAMERA...
Page 313 READING 2D BARCODES PRODUCT REFERENCE GUIDE...
Page 314 AV7000 FEATURES AV7000 LINEAR CAMERA...
Page 315 PRODUCT REFERENCE GUIDE...
Page 316 AV7000 FEATURES AV7000 LINEAR CAMERA...
Page 317: Chapter 8. Maintenance
Soft cotton swabs or  Use to clean illumination exit window Due to the complex and application-specific nature of these installations, AV7000 cam- era systems must be setup and serviced by authorized technicians trained by Datalogic. The maintenance procedures in this chapter may be performed by an end user techni- cian.
Page 318: Maintenance Tasks
This procedure is recommended only if it is noticed that the environment is dirty enough that deposits are appearing on the deflection mirrors. The window cleaning AV7000 LINEAR CAMERA...
Page 319: Cleaning The Deflection Mirror
MAINTENANCE TASKS procedure should be performed without removing the camera from the mounting struc- ture. 1. Switch off the conveyor. 2. Switch off the camera system. 3. Follow the exterior cleaning procedure before cleaning the window. 4. Check the window surface for any dust, dirt, or smudges. If the window needs to be cleaned, proceed to Step 5.
Page 320: Cleaning The Rangefinder Windows
3. Review the exterior cleaning procedure before cleaning the three windows. 4. Check the windows for any dust, dirt, or smudges. If the window needs to be cleaned. 5. Use a dry, soft, lint-free cloth to remove accumulated dust. AV7000 LINEAR CAMERA...
Page 321: Cleaning The Photoelectric Sensor
MAINTENANCE TASKS 6. If the windows are particularly dirty or smudged, make a solution of seven parts denatured alcohol and three parts water. (Many over-the-counter solutions will leave deposits/smudges that can affect performance.) 7. Apply the cleaning solution to a cotton swab or lint-free cloth. 8.
Page 322: Cleaning The Tachometer
5. Verify tachometer operation. Tighten Mounting Hardware 1. Check all AV7000, Deflection Mirrors, CBX connection boxes, and power supply mounting hardware as applicable. Tighten as necessary. Do not over-tighten. Be sure not to disturb the equipment’s alignment as it relates to the product trans- port.
Page 323: Verify Barcode Reader Operation
If after performing maintenance, the imaging system continues to perform below the normal operations experienced with the system under normal daily conditions, contact Datalogic through our website at www.datalogic.com. Verify Photoelectric Sensor Operation 1. Block the Photoelectric Sensor emitter beam to confirm it is aligned properly with the reflector.
Page 324: Chapter 9 Troubleshooting
When contacting Datalogic for help with an AV7000 camera or AI7000 Illumination, please be ready to share the unit serial number with the Datalogic technician. The unit’s serial number tag is located on the bottom of the device, as shown below. Help desk contact information is available at www.datalogic.com.
Page 325: Error Codes And Resolutions
STD soft- the appropriate XML. ware. Image was too big or too Could Not Save JPEG - Com- Contact Datalogic Support if this Error JPEG compression failed. small. Compression was pression Failed error persists. interrupted.
Page 326 The camera was unable to viewer network parameters on the Failed to Write Image to the AV7000. Parameters Error send an image to the external Modify Settings | Global Settings | Offline Viewer required to send images to viewer.
Page 327 A trigger message for a pack- if packages are running IV State Not Sent - Pkg Not age was received but the Contact Datalogic Support if this Warning through the tunnel or if a Found package was never found in error persists.
Page 328 Transmit point distance is too close. HW issue with the PCIe bus or Contact Datalogic Support if this Driver returned an error Info PCIe driver returned an error. the FPGA. error persists.
Page 329: Real-Time Processor Errors
PWM engaged or partially engaged. Error: FSM PWM Over Limit Error the error persists, replace the cam- attempting to get to the There is an internal hardware era and/or contact Datalogic Sup- commanded position. failure. port. PRODUCT REFERENCE GUIDE...
Page 330 Error: FSM PWM Over Time Error the error persists, replace the cam- outs attempting to get to the There is an internal hardware era and/or contact Datalogic Sup- commanded position. failure. port. The camera is unable to Cycle the unit’s power. If the error...
Page 331 Error ager application has persists, replace the camera and/or ager stopped responding responding or crashed. stopped. contact Datalogic Support. RTP is running recovery applications. RTP software Error: Recovery Mode. Soft- RTP software upload failed or Error must be loaded before the Load RTP software via the GUI.
Page 332 Info being used allowed. This could result in belt speed is too high for the erly. Contact Datalogic Support if all noisy and/or dark images. LPI setting required. settings are correct. RTP is in the process of Info: Reading Calibration reading calibration tables.
Page 333: Rangefinder Errors
One of the two sync network Make sure cables are connected Info: SyncNetwork is not con- The AV7000 sync network is Ethernet ports, on one of the Info from the "In" port to the "Out" port nected in a loop not connected in a loop.
Page 334 Internal RangeFinder failure. persists, replace the RangeFinder for laser #2 read the laser temperature. and/or contact Datalogic Support. Verify there are no objects or obstructions in the DOE laser pat- Object stuck on belt. Obstruc- tern. Verify the Beam blockers are...
Page 335: Verifying Functionality Of The Focus Mechanism
VERIFYING FUNCTIONALITY OF THE FOCUS MECHANISM VERIFYING FUNCTIONALITY OF THE FOCUS MECHANISM Use the Scope (Calibration Check) window to view a software oscilloscope of the cam- era/illumination performance. To access the Scope (Calibration Check) window: 1. In the menu tree under Diagnostics, click Scope (Calibration Check). The Scope (Calibration Check) window opens.
Page 336 TROUBLESHOOTING 4. Click Stop Acquiring to freeze the scope. AV7000 LINEAR CAMERA...
Page 337: Bypassing An Av7000 In An Array (Tunnel)
BYPASSING AN AV7000 IN AN ARRAY (TUNNEL) BYPASSING AN AV7000 IN AN ARRAY (TUNNEL) If for any reason, a slave AV7000 needs to be removed from an array (tunnel), it can be bypassed to allow the array to continue functioning in a redundant loop, minimizing down time.
Page 338: Other Camera Checks
REPLACING AN AV7000 CAMERA Use the following procedures to replace an AV7000 Camera, either a stand-alone unit, a Master in a tunnel/array, or a Slave unit in a tunnel/array. You will need an AV7000 Controller Key.
Page 339 REPLACING AN AV7000 CAMERA 4. Place the old camera on a flat surface and remove the back access panel by loos- ening the retaining screws. 5. Locate the memory card inside the access opening on the upper left side. PRODUCT REFERENCE GUIDE...
Page 340: Replacing Av7000 With A Failed Memory Card
Sometimes a failed memory card can cause a Camera Assembly to fail. In this case replacing the camera assembly and transferring its memory card to a replacement unit will not resolve the problem. In these situations, you need to replace an AV7000 Camera with a failed Memory Card.
Page 341 REPLACING AV7000 WITH A FAILED MEMORY CARD 3. Remove the camera from the illumination assembly by unscrewing the four (4) mounting bolts. 4. Attach the replacement camera assembly to the illumination. 5. Lift the camera into place, inserting the lens through the lens hole and the Locator Pin into the Locator Pin Hole.
Page 342 11. Remove the CONTROLLER KEY from the I/O port of the AV7000. 12. Re-attach all of the cables to the camera in their original locations. 13. Apply power to the AV7000 Camera. 14. Connect the browser to any AV7000 in the tunnel EXCEPT the unit being replaced. AV7000 LINEAR CAMERA...
Page 343: Connecting A Defaulted Av7000 Back Into A Cluster
To proceed with these steps, you will need to save a copy of the XML file from the cluster to an accessible location. You will need an AV7000 Controller Key. 1. Connect a Controller Key into the I/O Port of the AV7000 being placed back into the cluster. PRODUCT REFERENCE GUIDE...
Page 344 2. DO NOT reconnect the sync network cables at this time. They will be reconnected in a later step. 3. Apply power to the AV7000. 4. Connect a PC to the Image Ethernet port (10.0.40.20) of the AV7000. System Info. 5. Access the AV7000 e-Genius application, 6.
Page 345 9. Click Choose File to locate the XML you saved previously. 10. Click Load Parameter File to upload the XML file to the replaced camera. 11. Once the parameter file has been uploaded, power down the AV7000. 12. Remove the Controller Key.
Page 346: Chapter 10. Technical Features
CHAPTER 10 TECHNICAL FEATURES This chapter provides detailed specifications for the AV7000 Barcode Reading Systems. It provides specific information on: • Electrical Features • Optical Features • Reading Features • Human Machine Interface • Software Features • Environmental Features •...
Page 347 ELECTRICAL FEATURES Supply Voltage 23-26VDC at illumination connector Main Baud Rate RS232/RS422 up 1200 to 115200 to 115.2 Kbit/s Auxiliary Common RS232 up to Communication 1200 to 115200 115.2 Kbit/s Interfaces 2 x Ethernet TCP/IP 1 Ethernet Gigabit for decoding data to Host (may also Ethernet be used for setup) 1 Ethernet Gigabit for image file transfer to Host...
Page 348 Protection Class IP65 Fan Life L10 @ 50°C : 50000h PHYSICAL FEATURES Mechanical Dimensions: AV7000 with external fans and Short 845x416x237 mm [33.3x16.4x9.3 in] Illumination AV7000 with external fans and 1150x416x237 mm [45.3x16.4x9.3 in] Medium Illumination AV7000 with external fans and long 1480x416x237 mm [58.3x16.4x9.3 in]...
Page 349 ELECTRICAL FEATURES Supply Voltage 23-26VDC at illumination connector OTHER Service Options Installation services and on-site training Warranty 2-year limited, parts and labor PRODUCT REFERENCE GUIDE...
Page 350 TECHNICAL FEATURES AV7000 LINEAR CAMERA...
Page 352 © 2016-2020 Datalogic S.p.A. and /or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be repro- duced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Data- logic S.p.A.

This manual is also suitable for:

Ai7000

Datalogic AV7000 Product Reference Manual

Chapter 1. Introduction

Chapter 2. Mechanical Installation

Chapter 3. Electrical Installation

Chapter 4. E-Genius

Chapter 5. Focusing Setup and Calibration

Chapter 6. Setup and Calibration

Chapter 7. Av7000 Features

Chapter 8. Maintenance

Chapter 9 Troubleshooting

Chapter 10. Technical Features

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datalogic AV7000

Summary of Contents for Datalogic AV7000
