EN
User Manual

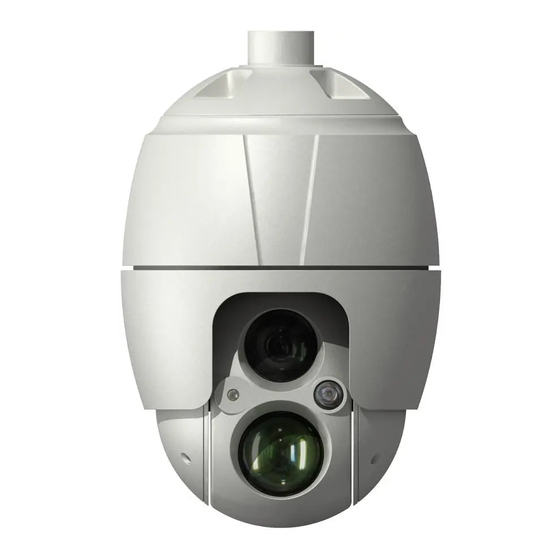

1/2.8" HD-TVI Dome, PTZ,
30x, Day&Night,
4.3-129mm, 1920x1080,
Infrared, WDR, IP66
TPP-82A0030MIA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPP-82A0030MIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo TPP-82A0030MIA

Summary of Contents for Eneo TPP-82A0030MIA

  • Page 1 User Manual 1/2.8” HD-TVI Dome, PTZ, 30x, Day&Night, 4.3-129mm, 1920x1080, Infrared, WDR, IP66 TPP-82A0030MIA...
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
  • Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction ....................6 1.1 Features ..........................6 Chapter 2 — Installation and Configuration ..............7 2.1 Package Contents ....................... 7 2.2 Mounting the Camera ......................8 2.2.1 Wall Mounting ....................... 9 2.2.2 Ceiling Mounting ......................10 2.3 Basic Configuration of Dome Camera System ..............

  • Page 6: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The dome camera and the keyboard controller make up the building blocks for any surveil- lance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.

  • Page 7: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The package contains the following. * Dome Camera * Instruction Manual (This Document) * Accessory Connector 1) 2-Pin Terminal Block 2) 3-Pin Terminal Block 3) 4-Pin Terminal Block 4) 5-Pin Terminal Block * Install Adaptor...

  • Page 8: Mounting The Camera

    2.2 Mounting the Camera You need one optional mount kit of the wall mount and the ceiling mount to install. The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 9: Wall Mounting

    2.2.1 Wall Mounting The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.

  • Page 10: Ceiling Mounting

    2.2.2 Ceiling Mounting The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables...

  • Page 11: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Connector Wire Color Description 24VAC or 24VDC+ 3-pin terminal block WHITE 24VAC or 24VDC- GREEN RS-485+ 2-pin terminal block BLUE RS-485- GRAY ALARM INPUT 1 VIOLET ALARM INPUT 2 5-pin terminal block ORANGE ALARM INPUT 3 SKY BLUE ALARM INPUT 4...

  • Page 12: Setting Dome Camera Address (Id)

    NOTE: Open the DIP switch cover and change the setting of DIP switch. The cover should be closed after setting DIP switch. 2.4 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1.

  • Page 13: Connections

    2.6 Connections • Connecting to the RS-485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals. • Connecting HD-TVI/AHD Output connector Connect the HD-TVI/AHD output (BNC) connector to the monitor or video input. •...

  • Page 14: Getting Started

    2.7 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. STATUS of FUNCTION TITLE AF AE FOCUS and AE INFORMATION EMPTY DATA DISPLAY ALARM:1 ALARM DISPLAY CAMERA TITLE & ID DOMEID:0001 360.0 090.0 PAN &...

  • Page 15: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing No. + CAM keys. Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.

  • Page 16: Auto Scan (Shortcut: Scan)

    3.4 Auto Scan (Shortcut: SCAN) The Auto Scan supports up to 17 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- END ANGLE : ----- -----...
  • Page 17 5. Select “MODE” and “SPEED”. 6. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick. Current panning position will be displayed. Release the CTRL key to complete the selection of the start position. Or press the IRIS Open key then the “CONTROL” displays. Move the desired position and the zoom position.

  • Page 18: Preset (Shortcut: Prst)

    3.5 Preset (Shortcut: PRST) If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Once programmed, placing the number position and pressing the PRST key on your controller calls up that Preset automatically.
  • Page 19 Select “MOTION SETUP” and push the Joystick to the left or right. Then the MOTION setup displays. MOTION SETUP SENSITIVITY: 10 RESOLUTION : 02 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 00 ~ 20 Set RESOLUTION...

  • Page 20: Shortcut Of Preset Program

    3.6 Shortcut of Preset Program After selecting the desired scene, press No. (1 to 240), and press the CTRL and PRST keys subsequently. The current view will be stored to the selected Preset number if the Preset number is empty. If selected Preset number is not empty, “OVER WRITE” message will be displayed on the monitor and select the “OK”...
  • Page 21 4. To add a stored Preset, twist the Joystick then the stored Preset number displays. 5. To place functions other than Preset, press the TOUR, PTRN or SCAN keys for Tour, Pattern or Auto Scan respectively. 6. You can also overwrite the programmed number and remove a stored number from the Tour, press the HOME key on the stored number, a blank position mark (---) will be displayed.

  • Page 22: Pattern (Shortcut: Ptrn)

    3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to 8 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 00.0% 00.0% 00.0% 00.0% 00.0%...

  • Page 23: Privacy Zone

    3.9 Privacy Zone Hide up to 16 unwanted scenes in a camera. There are four pages of Privacy Zone menu. Each page has 4 Privacy Zones. PRIVACY ZONE SETUP (CTRL KEY) METHOD COLOR BLOCK BLACK BLOCK BLACK ----- BLACK ----- BLACK NEXT PAGE SAVE AND EXIT(ESC TO CANCEL)

  • Page 24: Camera Menu

    3.10 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL CAMERA CONTROL IR CONTROL SHARPNESS : 03 DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF RESOLUTION : 1080P/25 SAVE AND EXIT(ESC TO CANCEL) SHARPNESS The higher the value, the more edges in the picture will be enhanced. (0 ~ 10) DIGITAL ZOOM OFF: Zoom range is limited to the optical.
  • Page 25 • WB (White Balance) CONTROL WB SETUP MODE : AUTO R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AUTO, MANUAL, INCANDESCENT, FLUORESCENT, OUTDOOR AUTO Computes the white balance value output using color information from the entire screen automatically. INCANDESCENT Auto white balance mode that is compatible with incandescent lamps.
  • Page 26 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. GLOBAL Controlled by the keyboard (NOTE: GLOBAL function operates F2E protocol only) The operator can enable NIGHT SHOT for all dome cameras at the same time.
  • Page 27 • IR CONTROL When used with IR illuminator, changing the zoom ratio automatically synchronizes the IR illuminator. IR CONROL IR MODE : SENSOR FIXED IR BRIGHT MOVING IR BRIGHT : 4 IR ON LEVEL : 035 IR OFF LEVEL : 055 IR DELAY : 03 FIXED IR LEVEL...

  • Page 28: Dome Communication

    3.11 Dome Communication To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. DOME COMMUNICATION DOME ID : 0001 PROTOCOL : AUTO BAUDRATE : 9600 PARITY : NONE TERMINATION : OFF SAVE AND EXIT(ESC TO CANCEL) DOME ID 1 ~ 3999 PROTOCOL...

  • Page 29: Alarm

    3.12 Alarm ALARM SETUP (CTRL KEY) NO PRI FUN IN LATCH 001 NO OUT1 03 --- OFF --- OFF --- OFF DWELL : 03 SEC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) NO (Number) alarm input number PRI (Priority) the lower number has higher priority (0 ~ 4) FUN (Function) Stored function number to be called by alarm.

  • Page 30: Dome Setup

    3.13 Dome Setup CONFIGURATION MENU HOME FUNCTION SETUP VIEW ANGLE SETUP ORIGIN OFFSET FACTORY DEFAULT DOME RESET OSD DISPLAY SYSTEM SETUP FUNCTION RUN SYSTEM INFORMATION EXIT(ESC TO EXIT) • HOME FUNCTION SETUP HOME FUNCTION SETUP FUNCTION : NONE NUMBER : --- WAITING TIME : 120 SEC ENABLE...
  • Page 31 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : AUTO TILT ANGLE LIMIT : 00° SAVE AND EXIT(ESC TO CANCEL) FLIP OFF, AUTO OFF: The dome camera moves until 90° vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the Joystick instantly and pull it down again to run the auto-flip function.
  • Page 32 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
  • Page 33 • OSD DISPLAY OSD DISPLAY SETUP LANQUAGE : ENGLISH TITLE : DOMEID DOME OSD : ON FOCUS/EXPOSURE : OFF COLOR : YELLOW SAVE AND EXIT(ESC TO CANCEL) LANGUAGE Select the desired language. TITLE up to 6 characters DOME OSD ON, POSITION, ON(ZOOM), ZOOM, OFF All display or title will disappear when DOME OSD DISPLAY is set to OFF.
  • Page 34 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with pushing the Joystick to the left or right. During operation, pressing 153 + ON keys will change the speed to the SLOW mode and pressing 153 + OFF keys will change the speed to the NORMAL mode.
  • Page 35 ORIGIN CHECK If you find the dome in the wrong position during operation, execute this origin check and the dome camera will return to the right position after the origin check operation. ORIGIN CHECK ARE YOU SURE ? CANCEL Pressing 151 + ON keys will execute the origin check. •...
  • Page 36 ALARM OUT SETUP OUT1 : ALARM OUT2 : 1 MIN EXIT(ESC TO EXIT) You press the CTRL or IRIS Open key then that alarm out operates during the setting time only. • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx-Vx.xx H/W VERSION : Vx.xx-xxxx ROM VERSION...

  • Page 37: Appendix A - Specifications

    Appendix A — Specifications 30x Full-HD IR SPEED DOME HD-TVI & AHD CAMERA Model TTP-82A0030MIA IMAGE Lens 4.3mm ~ 129.0mm Angle of View 65.1° (H) ~ 2.23° (H) Type 1/2.8" SONY STARVIS CMOS sensor Image Sensor Pixels 1945 (H) x 1097 (V) Color : 0.35 Lux @ 50IRE Min.
  • Page 38 Operating Humidity 0 ~ 90%RH (Non-condensing) Operating Temperature (with Heater) -30°C ~ 65°C Power Supply 24VDC, 24VAC Power Consumption (with Heater) 2.6A (38.0W) @ 24VDC, 24VAC Dimensions See dimension drawing Net Weight Approx. 4.9kg Ingress Protection IP66 * Specifications are subject to change without notice * Figure –...

  • Page 39: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment...
  • Page 40 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
