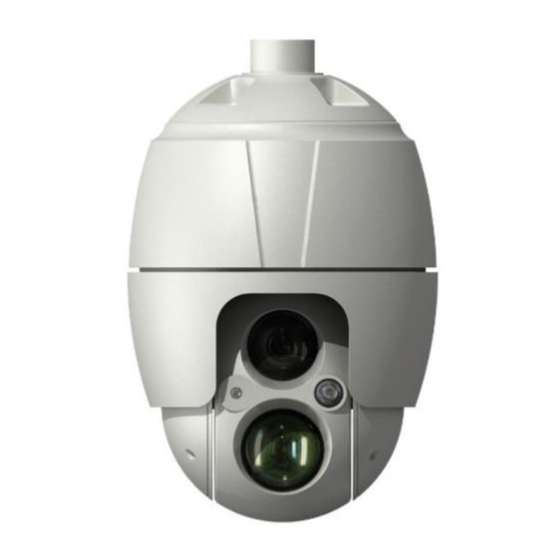

Eneo IPP-82A0030MIA User Manual

1/2.8” network dome, 2mp, 1920x1080, day&night, ptz, 4.3~129mm, infrared, outdoor
Hide thumbs Also See for IPP-82A0030MIA:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
1/2.8" Network Dome, 2MP,
1920x1080, Day&Night, PTZ,
4.3~129mm, Infrared, Outdoor
IPP-82A0030MIA

Advertisement

Table of Contents
loading

Related Manuals for Eneo IPP-82A0030MIA

Summary of Contents for Eneo IPP-82A0030MIA

  • Page 1 User Manual 1/2.8” Network Dome, 2MP, 1920x1080, Day&Night, PTZ, 4.3~129mm, Infrared, Outdoor IPP-82A0030MIA...
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
  • Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Contents 1 Introduction ........................6 1.1 Components ........................6 1.2 Key Features ........................7 2 Installation ........................8 2.1 Installation ........................8 2.1.1 Installation – Wall Mount ..................9 2.1.2 Installation – Ceiling Mount .................. 10 2.2 Basic Configuration of Camera System ............... 11 2.3 Micro-SD Card Insertion ....................

  • Page 6: Introduction

    1 Introduction The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time.

  • Page 7: Key Features

    1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Dual or Triple Streams The network camera can deliver dual or triple video streams simultaneously at full frame rate in all resolutions up to Full-HD (1920 x 1080p) using Motion H.264 and JPEG.

  • Page 8: Installation

    2 Installation 2.1 Installation You need one optional mount kit of the wall mount and the ceiling mount to install. The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 9: Installation - Wall Mount

    2.1.1 Installation – Wall Mount The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.

  • Page 10: Installation - Ceiling Mount

    2.1.2 Installation – Ceiling Mount The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables...

  • Page 11: Basic Configuration Of Camera System

    2.2 Basic Configuration of Camera System Connector Wire Color Description Power jack BLACK CAMERA POWER Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps BLACK AUDIO INPUT GRAY AUDIO OUTPUT YELLOW ALARM INPUT 1 WHITE ALARM INPUT 2 5-pin cable VIOLET ALARM INPUT 3 BROWN ALARM INPUT 4...

  • Page 12: Micro-Sd Card Insertion

    2.3 Micro-SD Card Insertion User can install and change Micro-SD card as shown in the following picture. 1. Open the Micro-SD card cover. 2. Install or change Micro-SD card. 3. Tightly close the Micro-SD card cover to ensure waterproofness.

  • Page 13: Connections

    2.4 Connections • Connecting the Network Connect a standard RJ-45 cable to the network port of the camera. Generally a crossover cable is used for directly connection to PC, while a direct cable is used for connection to a hub. •...

  • Page 14: Network Connection & Ip Assignment

    2.4.1 Network Connection & IP assignment The eneo scanning device tool is used to locate all eneo network cameras in a local network. The tool does not need to be installed with a setup program. The program exe-file can be started directly from the CD with a simple double click to use the program.

  • Page 15: Operation

    3 Operation The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 16: Access From The Internet

    3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 17: Live View Page

    3.4 Live View Page The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960), 1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 18 2) Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or starts playing a video stream. The Pause button pauses the video stream being played.

  • Page 19: Playback

    3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 20 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. 4) Speaker Control Bar Use this scale to control the volume of the speakers.

  • Page 21: Network Camera Setup

    3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System.
  • Page 22 1) Users User access control is enabled by default. The administrator can set up other users, by giving user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...
  • Page 23 2) Network The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually.
  • Page 24 3) Video & Image User can setup and change setting of individual video stream in this page. Please refer to “Video & Image > Basic” for more details about Video & Image setup. 4) Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker.

  • Page 25: Live View

    5) Date & Time User can set time directly or assign time server to get the current time, as well as determine Date & Time format in this page. Please refer to “System > Date & Time” for more details about Date & Time setup. 3.6.2 Live View •...

  • Page 26: Video & Image

    3.6.3 Video & Image 1) Basic • Sensor Setting: – Capture mode: User can select sensor capture mode between 30 fps and 60 fps in full-HD resolution. If 60fps is selected, Stream 3 is disabled and hidden from the window. In other words, the camera provides triple stream at 30 fps and dual stream at 60 fps.
  • Page 27 – Bitrate control: The bit rate can be set as Variable Bit Rate (VBR) or Constrained Variable Bit Rate (CVBR). VBR adjusts the bit rate according to the image complexity, using up bandwidth for increased activity in the image, and less for lower activity in the monitored area.
  • Page 28 2) Auto Focus • Mode: Determines focus operation method. – Auto: Auto Focus is always active. – Manual: User can manually focus the camera when camera is not moving. Auto Focus becomes active when camera moves and about 5 seconds after movement stops. –...
  • Page 29 3) Webcasting The live video of the camera can be streamed to a website. User can copy and paste the HTML code generated on the screen to the website page code, where user wants to display live video. NOTE: To use webcasting service, the Enable Anonymous viewer login option must be checked.
  • Page 30 4) Camera Setup In this page, user can setup Exposure Control, White Balance Control, Image Appearance, and Day & Night control. • Video Preview: User can check the setting via video preview pop-up window...
  • Page 31 • Exposure Control 1. Mode: Determines exposure mode between automatic and manual. For automatic mode, at least one of Shutter and Iris should be set to automatic. For manual mode, both Shutter and Iris become fixed. 2. Max. gain: Sets maximum gain if Mode is automatic. 3.
  • Page 32 • Image Appearance User can setup image related controls. 1. User can either use slide bar or type in number for items in 1. 2. User can select individual function and level. NOTE: Defog function cannot be used in conjunction with WDR. •...
  • Page 33 • IR Control This camera is equipped with fixed and moving IR illuminators. The moving IR illuminator is synchronized with optical zoom. User can setup IR illuminator related controls in this part. – Enable IR: If the box is unchecked, the IR illuminators are off, otherwise the following controls are applied.
  • Page 34 5) OSD This camera provides two OSD’s (on screen display) on each stream, title and date & time. User can drag green “OSD Title” and “Date & Time” to the desired position and check at preview window. • Video Preview: User can check the position of OSD on actual video via preview popup window.

  • Page 35: Audio

    3.6.4 Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as full duplex and simplex. •...

  • Page 36: Event

    3.6.5 Event 1) Event In ▽ On Boot This is used to trigger an event every time the network camera is started. Select “Enable on boot” to activate the On Boot event. Enter the Dwell time the event lasts from the point of detection, 1-180 seconds. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 37 ▽ Alarm In This camera provides 4 Alarm In ports and user can set each ports individually. Each Port can be given as Normally Open or Normally Close state, and their Normal state can be configured. In order to use an alarm port, check the desired “Enable alarm port #” first. •...
  • Page 38 ▽ Manual Trigger This option makes use of the manual trigger button provided on the Live View page, which is used to start or stop the event type manually. Alternatively, the event can be triggered via the product’s API (Application Programming Interface). Select “Enable manual trigger”...
  • Page 39 ▽ Motion This option makes use of the motion detection function with 16 programmable areas, 8 Include and Exclude zones each. Click right mouse button on the preview window shows selection pop-up of New Motion, New Mask, Select, Delete, and Freeze. Select New Motion and click&drag generates an Include box of green color.
  • Page 40 ▽ Network Loss This is used to trigger an event every time the network connection is failed. Select “Enable network loss” to activate the Network Loss event. Select a dwell time for how long the event will last from the point of detection. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 41 ▽ Tampering This is used to trigger an event when camera tampering occurs, for example, obstruct the camera with foreign material or move camera direction using external force. Select “Enable tampering” to activate the Tampering event. • Dwell time: Determine how long the event will last from the point of detection. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 42 ▽ VCA The network cameras provide VCA (Video Content Analysis) functions of “Line Detector” and “Field Detector”. • Video Content Analysis Setting: Check Enable video content analysis box to use a VCA function. In order to setup VCA function, at least one preset position must exist, and otherwise Enable video content analysis may not be activated.
  • Page 43 . Rule Name: User can type in the rule name. . Direction: This detector can detect line crossing events and also count up number of the event; the direction of the event appears as a solid triangle shape at the center of the line.
  • Page 44 ▽ Face Detector This is used to detect a human face in the scene to trigger event with a bounding box for the detected face. Select “Enable face detector” to activate the Face Detector. Set threshold for detection sensitivity. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 45 ▽ AHIM AIHM (Advanced Intelligent Health Monitoring) triggers an event when abnormality of the camera occurs. • AIHM Setting: Select “Enable AIHM” to activate the AIHM function. – Enable record status check: Trigger event if the record status is modified. –...
  • Page 46 ▽ Time Trigger Time Trigger is to set alarms at specific time. User can set up to four time triggers and each time trigger can be set to specific date in the calendar, every day, day of the week, or date of every month.
  • Page 47 2) Event Out ▽ SMTP(E-Mail) The network camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP (E-Mail) Setting: Select “Enable” to activate the SMTP operation. – Sender: Enter an email address to be used as the sender for all messages sent by the network camera.
  • Page 48 • SMTP (E-Mail) Test: User can check the SMTP setting via a sample email. – Receiver: Enter an email address and click the Test button to test that the mail servers are functioning and that the email address is valid. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 49 ▽ FTP & JPEG When the network camera detects an event, it can record and save images to an FTP server. Images can be sent as e-mail attachments. Check the “Enable FTP” box to enable the service. This camera can support multiple FTP servers and user can configure each server settings separately.
  • Page 50 – Event: This function can set required image frequency (1~2fps) when event detected. – Post-event: This function is the counterpart to the pre-trigger buffer described above and contains images from the time immediately after the trigger. Configure as for pre-event. –...
  • Page 51 ▽ Alarm Out When the network camera detects an event, it can control external equipment connected to its alarm output port. • Enable alarm out: If selected, the output becomes activated for as long as the event is active. • Type: Select a type of NO (Normally Open) or NC (Normally Closed). When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 52 ▽ Audio Alert When the network camera detects an event, it can output a predefined audio data to external speaker. Check the “Enable audio alert” box to enable the service. • Audio Alert Setting: To use the audio alert with the network camera, an audio data file made by user must be uploaded from your PC.
  • Page 53 ▽ PTZ Preset When the camera detects an event, you can move the camera to a predefined preset position. Check the box to enable the service and return to the Home position once the event has ended. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 54 ▽ Record When the network camera detects an event, it can record the video stream onto the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the “Enable Record” box to enable the service. •...
  • Page 55 – CIFS: A file format for a NAS device. – NFS: A file format for a NAS device. NOTE 1: Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services. CIFS requires a large number of request/response transactions and its performance degrades significantly over high-latency WAN links such as the Internet.
  • Page 56 ▽ XML Notification When the network camera detects an event, Notification server is used to receive notification messages as a type of XML data format. Check the box to enable the service. • XML Notification Setting: – Notification server URL: The network address to the server and the script that will handle the request.
  • Page 57 ▽ Boost The Boost feature is used in conjunction with event detection. When this feature is turned ON, the Frame rate and Bit rate in the boost condition can be set to a different value than the ones in the normal condition field.
  • Page 58 ▽ Notification Server When the network camera detects an event, the Notification Server is used to receive uploaded image files and/or notification messages. Check the box to enable the service. • Notification Server Setting: – Type: User can select message transmission type among HTTP, HTTPS, TCP, and UTP. –...
  • Page 59 3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the network camera; up to a max. 15 events can be registered. Click the Add button to make a new event map; a popup window displays as below. To change an existing event, select that event and click the Modify button;...
  • Page 60 • General: Enter the name for a new event map. • Event In: Select an event type in the drop-down list. • Event Out: – E-mail: Select the email addresses you want to notify via email that an event has occurred. –...

  • Page 61: Dome Configuration

    3.6.6 Dome Configuration 1) Preset If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom and focus settings. Once programmed, clicking the Preset number or clicking the Go button in the PTZ Control Panel calls up that Preset automatically.
  • Page 62 2) Tour There are 8 programmable Tours. Each Tour consists of up to 100 Presets. • Tour Setting: – Tour Number: The Tour number can be selected in the range 1 - 8. – Title: Up to 12 characters (Alphanumeric characters and space) –...
  • Page 63 • Tour Position Setup: – Tour position: The Tour position can be selected in the range 1 - 100. – Preset number: Show the selected Preset number. – Dwell Time: Select the Dwell Time from 0 to 99 seconds. The default is 10 seconds. –...
  • Page 64 3) Pattern Pattern is a series of pan, tilt, and zoom movements programmed by administrator or operator. Up to 8 patterns may be programmed for the dome camera. Follow steps below to program the Patterns: 1. Click the Set button of desired Pattern number of Pattern Setting list, and move pan, tilt, and zoom using Control box.
  • Page 65 4) Home Function Camera goes to assigned function if there is no PTZ action during “Waiting Time”. User can assign pre-programed Preset or Tour for function. • Function: None / Preset / Tour • Function No.: Select Preset or Tour number for Home Function. •...
  • Page 66 5) Motor Setup Motor Setup menu provides the pan and tilt speed of a camera. • Motor Setting: – Proportional P/T: Select On or Off. – Max. Pan Speed: The maximum pan speed can be adjusted in the range 1 - 38. –...
  • Page 67 6) View Angle • View Angle Setting: – Tilt angle limit: This option is designed to limit the view angle as there is some obstruction in zooming out on specific areas of the tilt angle. – Flip: * Off: The dome camera moves until 90° vertically. * Auto: When the camera reaches the floor directly above the moving object, it will stop.
  • Page 68 7) System Menu • Dome Information: The system information provides essential information about the dome if service is required. The information cannot be modified. • System Menu setting: User can set the camera in auto-calibration mode. • Origin Check: If you find the dome in the wrong position during operation, execute this origin check by clicking Origin Check button and the dome camera will return to the right position after the origin check operation.
  • Page 69 8) Privacy Zone Using privacy zones (masks), you can hide up to 8 unwanted scenes in a camera. The color of privacy zones is gray. • Privacy Zone Setting: Following steps below to configure the privacy zones; 1. After aiming the camera (view direction and lens control) by using the Arrow and Zoom button in PTZ Control Panel, click Set cell of Set column at any inactive row to create privacy zone.

  • Page 70: System

    3.6.7 System 1) Information You can enter the system information. This page is very useful when you require device information after installation. • Device Name Configuration: Enter the device name. • Location Configuration: Enter the location information. You can enter up to four locations. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 71 2) Security ▽ Users User access control is enabled by default when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 72 ▽ HTTPS For greater security, the network camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). Then all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. • HTTPS Connection Policy: Choose the form of connection you wish to use from the drop- down list for the administrator, Operator and Viewer to enable HTTPS connection (set to HTTP by default).
  • Page 73 ▽ IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.
  • Page 74 ▽ OpenVPN OpenVPN is a Virtual Private Network using OpenSSL authentication. User can set the camera in either Server mode or Client mode. • OpenVPN Server Mode 1. Select Enable openVPN activates mode selection buttons. Choose Server mode, then Server Mode Configuration appears where you can configure Server Mode Settings. 2.
  • Page 75 • OpenVPN Client Mode 1. Select Enable openVPN activates mode selection buttons. Choose Client mode, then Client Mode Configuration appears where you can configure Client Mode Settings. 2. In Client Mode Configuration, you can setup Server URL, Protocol type, Port number, LZO usage, and Renegotiation time.
  • Page 76 3) Date & Time • Current Server Time: This displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time: – Time zone: Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, check the box “Automatically adjust for daylight saving time changes”.
  • Page 77 4) Network ▽ Basic • IP Address Configuration: – Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
  • Page 78 – Obtain DNS Server via DHCP: Automatically use the DNS server settings provided by the DHCP server. – Use the following DNS server address to enter the desired DNS server by specifying the following: * Domain name: Enter the domain(s) to search for the host name used by the network camera.
  • Page 79 ▽ DDNS • Internet DDNS (Dynamic Domain Name Service): When using the high-speed Internet with the telephone or cable network, users can operate the network camera on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/.
  • Page 80 ▽ RTP Create a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value (TTL) to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
  • Page 81 ▽ UPnP The network camera includes support for UPnP. UPnP is enabled by default, so the network camera is automatically detected by operating systems and clients that support this protocol. Enter a name in the Friendly name field. NOTE: UPnP must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
  • Page 82 ▽ QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: 1.
  • Page 83 ▽ NAT (Port Mapping) A broadband router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding network traffic from the private network to the outside, that is, the Internet. Security on the private network (LAN) is increased since most broadband routers are pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.
  • Page 84 ▽ Zeroconf Zero configuration networking (zeroconf) is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically.
  • Page 85 ▽ Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Click the check box to enable Bonjour. Enter a name in the Friendly name field. NOTE: Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers.
  • Page 86 5) Language Select a user language. The language choices are English, Korean, French, Russian and Chinese. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 87 6) Maintenance • Maintenance: – Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. – Reset: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address...
  • Page 88 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. • Logs: The network camera supports system and event log information. Click the System Log button to get the system log data or the Event Log button to get information on events. •...
  • Page 89 – Network Check: Click the Network Check button to get the information about the cameras network setting and traffic. You can see the pop-up window below.

  • Page 90: Help

    3.7 Help The Help information window will be provided as a popup window so that users can open and read it without needing to log-in. It will offer a description of the setting and Help page so that users can manipulate the network camera without a reference to the manual.

  • Page 91: Resetting To The Factory Default Settings

    3.8 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User’s Manual) or use the Reset button on the network camera, as described below: •...

  • Page 92: A Appendix

    A Appendix A.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the network camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be...

  • Page 93: Alarm Connection

    A.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. A.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. 1.

  • Page 94: Product Specification

    A.4 Product Specification 30x Full-HD VCA NETWORK IR PTZ CAMERA Model IPP-82A0030MIA Lens 4.3mm ~ 129.0mm Angle of View 65.1° (H) ~ 2.23° (H) Type 1/2.8" SONY STARVIS CMOS sensor Image Sensor Pixels 1945 (H) x 1109 (V) Color: 0.35 Lux @ 50 IRE Min.
  • Page 95 TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP, Protocols UPnP, RTP, RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Web, Client S/W, Mobile S/W Network Max. User Connection Live : 10 Users, Playback : 3 Users API Support Open API, ONVIF Compliance Mobile Support Android, i-OS Video Composite Out...

  • Page 96: System Requirement For Web Browser

    A.5 System Requirement for Web Browser • Operating System: Microsoft Windows OS Series • CPU: Intel Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) A.6 General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.
  • Page 97 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
