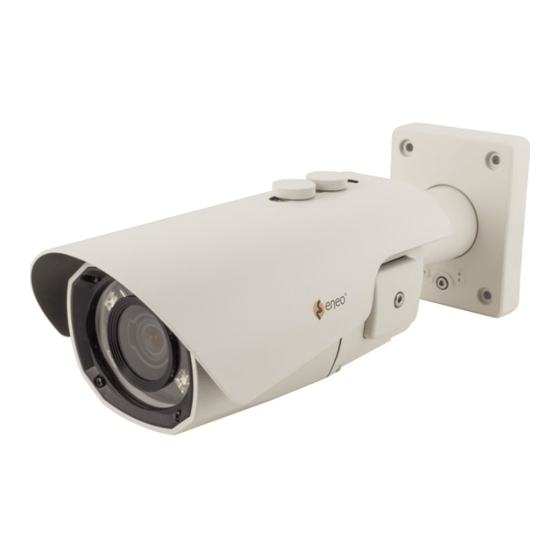

User Manual

1/2.8" HD Camera, Day&Night,

1920x1080, Infrared, WDR,

12/24V, IP67

MPB-72M2812M0A

MPB-72M0550M0A

Table of Contents

Need help?

Do you have a question about the MPB-72M0550M0A and is the answer not in the manual?

Questions and answers

Summary of Contents for Eneo MPB-72M0550M0A

Page 1 User Manual 1/2.8” HD Camera, Day&Night, 1920x1080, Infrared, WDR, 12/24V, IP67 MPB-72M2812M0A MPB-72M0550M0A...
Page 3: Safety Precaution
MPB-72MxxxxM0A Safety Precaution To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
Page 4 MPB-72MxxxxM0A Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
Page 5: Table Of Contents
MPB-72MxxxxM0A Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09~11 Installation Instructions p.12~28 Operating Instructions p.29 Specifications...
Page 6: Features
• TVI mode / AHD mode / CVI mode, Video Transmission Distance over Coax.; 500M • f=2.8~12mm F1.4, 5Mega pixel Motorized zoom lens (MPB-72M2812M0A) • f=5~50mm F1.6, Mega pixel Motorized zoom lens (MPB-72M0550M0A) • Automatically removable IR Cut filter by Dual filter switcher • SNAP Focus by Motorized Zoom lens •...
Page 7: Composition
MPB-72MxxxxM0A Composition Plastic Anchor: 6 x 30mm (4pcs) Mounting Screw: 4 x 30mm (4pcs) Assembly Screw: 4 x 15mm (4pcs) Torque Wrench: Camera 3mm (1pc) Operating Mounting Easy Video Sub-out Instruction Template Bracket Cable (1pc) Dimensions (unit : mm) 87.30...
Page 8: Part Names
MPB-72MxxxxM0A Part Names Sunshield Bold Sunshield Power/Video Cable Easy Bracket Bracket Lock/Unlock Screw OSD Setup Control Cover CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken the cable is NOT to be damaged, kinked or exposed in the hazardous area.
Page 9: Installation Instructions
MPB-72MxxxxM0A Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and fix it through using mounting screws (4x30mm).
Page 10 MPB-72MxxxxM0A Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: 90°...
Page 11 MPB-72MxxxxM0A Installtion Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load.
Page 12: Operating Instructions
MPB-72MxxxxM0A Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joystick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Video Sub-out SUB-OUT Connector...
Page 13 MPB-72MxxxxM0A Operating Instructions OSD menu Table MENU SUB MENU CONFIGURATION LENS MODE (INDOOOR, OUTDOOR, DEBLUR) MANUAL ZOOM / FOCUS AF MODE ZOOMPUSH, MANUAL MODE CHANGE ENABLED, DISABLED SCANNING HALF, FULL ONEPUSHAF SYNC TDN ON, OFF INITIAL 0~20 BRIGHTNESS EXPOSURE SHUTTER AUTO MODE (INDOOR, OUTDOOR, DEBLUR) MANUAL...
Page 14 MPB-72MxxxxM0A Operating Instructions SHARPNESS MAIN IMAGE ANALOG ANALOG CVBS OUTPUT OUT1 OUT1 SDI&CVBS 0~10 SDI OUT HD-SDI, EX-SDI 1.0, OUTPUT EX-SDI 2.0, OFF SDI&CVBS 0~10 GAMMA 0.45, 0.55, 0.65, 0.75 MIRROR OFF, ON FLIP OFF, ON OFF, LOW, MIDDLE, HIGH OFF, ON DEFOG MODE (AUTO, MANUAL)
Page 15 MPB-72MxxxxM0A Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • EXIT : Enters ‘EXIT’ menu with save current setting or without save. • RETURN : Returns to the previous menu. MENU V0.
Page 16 MPB-72MxxxxM0A Operating Instructions 2. ZOOM/FOCUS 2. ZOOM/FOCUS AF MODE AF MODE ZOOMPUSH MANUAL MODE CHANGE MODE CHANGE ENABLED NOT USED SCANNING SCANNING HALF HALF ONEPUSHAF ONEPUSHAF SYNC TDN SYNC TDN INITIAL INITIAL RETURN RETURN AF MODE Changes to MANUAL automatically after 3 hrs when MODE CHANGE is ENABLED.
Page 17 MPB-72MxxxxM0A Operating Instructions 3. EXPOSURE 3. EXPOSURE BRIGHTNESS llllllllllllllllllllll SHUTTER AUTO SENS-UP llllllllllllllllllllll RETURN 3-1. BRIGHTNESS Adjusts the brightness of video (0~20). 3-2. SHUTTER Selects AUTO or set manually. If SHUTTER set to MANUAL modes, SENS-UP mode is inactivated. 3-2-1. AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically.
Page 18 MPB-72MxxxxM0A Operating Instructions 4. BACKLIGHT Compensates the video image to cut out the highlight area with mask or control the contrast of video. It can be set the compendation level or areas. LEVEL llllllllllllllllllllll COLOR RETURN 4-1. HLC (High Light Compensation) Cuts out the highlight area with mask and excludes it from compensation.
Page 19 MPB-72MxxxxM0A Operating Instructions MODE WINDOW ZONE WEIGHT WINDOW USE MIDDLE RETURN H-POS V-POS H-SIZE V-SIZE RETURN 4-3. WDR (Wide Dynamic Range) WDR is extended the gain range of the video that is mostly useful if camera takes a simultaneous picture of both indoor and outdoor nearby window. It improves contrast of the picture in outdoor scenery as well as indoor.
Page 20 MPB-72MxxxxM0A Operating Instructions 5. DAY & NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. MENU V0. XX 1. LENS 5. DAY&NIGHT 2. ZOOM/FOCUS 3.
Page 21 MPB-72MxxxxM0A Operating Instructions 5-2. AUTO Used when DAY or NIGHT is 5. DAY&NIGHT determined by light level through the lens and DAY from/to NIGHT SMART IR is switched automatically by the ANTI-SAT. llllllllllllllllllllll scene brightness. AGC THRES llllllllllllllllllllll It can be controlled the AGC AGC MARGIN llllllllllllllllllllll threshold level, AGC margin...
Page 22 MPB-72MxxxxM0A Operating Instructions 6. COLOR 6. COLOR AUTO COLOR GAIN llllllllllllllllllllll RETURN 6-1. AWB (Auto White Balance) Automatically tracks the changes of color temperature and continuously adjusts the white balance. AUTO, AUTOext, PRESET and MANUAL modes are available. 6-1-1. AUTO : Optimized for Indoor installation and more easily compensates AWB for low color temperature such as incandescent lights.
Page 23 MPB-72MxxxxM0A Operating Instructions 7. 3D-NR (Digital Noise Reduction) DNR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Sets off, low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames.
Page 24 MPB-72MxxxxM0A Operating Instructions 8-1. SHARPNESS Sets the Sharpness level 0~10. Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object in the picture. 8-2.
Page 25 MPB-72MxxxxM0A Operating Instructions PRIVACY ZONE NUM ZONE DISP H-POS V-POS H-SIZE V-SIZE Y-LEVEL llllllllllllllllllllll CB LEVEL llllllllllllllllllllll CR LEVEL llllllllllllllllllllll TRANS RETURN 8-7-4. H-SIZE, V-SIZE : Adjusts the mask size using H, V direction which you selected zone. 8-7-5. Y LEVEL : Adjusts the mask color by Y LEVEL. (0: black ~ 20: white) 8-7-6.
Page 26 MPB-72MxxxxM0A Operating Instructions 9. MOTION DET WINDOW DET WINDOW WINDOW ZONE DET TONE WINDOW USE MDRECT FILL DET H-POS SENSITIVITY llllllllllllllllllllll DET V-POS MOTION OSD DET H-SIZE TEXT ALARM DET V-SIZE RETURN RETURN 9-2. DET TONE Sets the detection zone 0 to 4 display types which window use setting ON. 0 : Set the 100% opacity level of video background except detection window zone.
Page 27 MPB-72MxxxxM0A Operating Instructions A. SYSTEM Sets the system related functions. A. SYSTEM OUTPUT RESOLUTION 1080 25P TV SYSTEM EU(PAL) LANGUAGE CAM TITLE RESET RETURN HD-ANALOG OUTPUT MAIN OUTPUT ANALOG OUT0 ANALOG OUT0 TVI MODE HD-SDI SDI OUTPUT Y GAIN llllllllllllllllllllll TVI MODE ANALOG OUT0 CB GAIN...
Page 28 MPB-72MxxxxM0A Operating Instructions If CVBS video is enabled through ANALOG OUT0 or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs. It should be considered when installer adjusts the video with installation monitor via CVBS video signal. A-2.
Page 29: Specifications
MPB-72MxxxxM0A Speciﬁcations ITEM MPB-72M2812M0A MPB-72M0550M0A Imaging Sensor 1/2.8" Sony 2Mega pixel STARVIS CMOS Sensor Effective Pixels 1920(H) x 1080(V) x 25p Scan Frequency 25Hz(V), 18.75Khz(H) / Progressive Video Format HD] 16:9, 1080p@25fps / CVBS] 16:9 (PAL) Synchronization Internal Video Output EX-SDI1.0, 2.0 /HD-SDI / TVI mode/ AHD mode/ CVI mode/ CVBS...
Page 32 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
