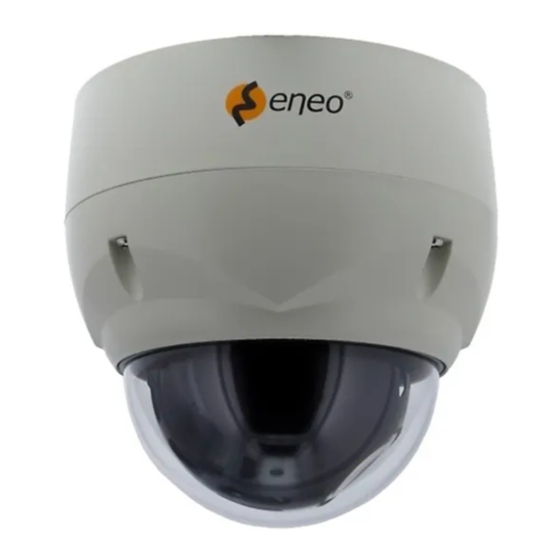

- Page 1 User Manual 1/2.8" HD analogue Dome, PTZ, Day&Night, 20x, 4,7-94mm, 1920x1080, WDR, IP66 MPP-62A0020M0A...
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
- Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 — Introduction ....................6 1.1 Features ..........................6 Chapter 2 — Installation and Configuration ..............7 2.1 Package Contents ....................... 7 2.2 Mounting the Camera ......................8 2.2.1 Locking the Camera ...................... 8 2.2.2 Heater Kit Installation (Optional) ................10 2.3 Basic Configuration of Dome Camera System .............. -
Page 6: Chapter 1 - Introduction
Chapter 1 — Introduction 1.1 Features The dome camera and the keyboard controller make up the building blocks for any surveil- lance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs. -
Page 7: Chapter 2 - Installation And Configuration
Chapter 2 — Installation and Configuration 2.1 Package Contents The dome camera is designed with compact, small size, hard dome camera housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted on a wall or a ceiling. The housing meets the Protection Classification IP66 standards for dust and moisture resistance. -
Page 8: Mounting The Camera
2.2 Mount ing the Camera The dome camera is for use in surface or pendent mounting applications, and the mounting member must be capable of supporting loads of up to 10 lb (4.5 kg). (Pendent mounting must use pendent mount accessory.) The dome camera’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera. - Page 9 CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting screws "A" on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome's base and fit the tab of the mounting bracket into the locking slot.
-
Page 10: Heater Kit Installation (Optional)
2.2.2 Heater Kit Installation (Optional) 1. Assemble the Heater board to two bossed with screws. Take a reference "B" in the bottom case as below. 2. Place the Heater in the slot "A". Heater cable should be placed away from the Main Board. 3. -
Page 11: Basic Configuration Of Dome Camera System
2.3 Basic Configuration of Dome Camera System Connector Wire Color Description 24VAC or 12VDC+ 3-pin terminal block WHITE 24VAC or 12VDC- GREEN RS-485+ 2-pin terminal block BLUE RS-485- GRAY ALARM INPUT 1 VIOLET ALARM INPUT 2 5-pin terminal block ORANGE ALARM INPUT 3 SKY BLUE ALARM INPUT 4... -
Page 12: Setting Dome Camera Address (Id)
NOTE: Open the DIP switch cover and change the setting of DIP switch. The cover should be closed after setting DIP switch. 2.4 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. -
Page 13: Connections
2.6 Connections • Connecting to the RS-485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals. • Connecting HD-TVI/AHD Output connector Connect the HD-TVI/AHD output (BNC) connector to the monitor or video input. •... -
Page 14: Getting Started
2.7 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. STATUS of FUNCTION TITLE AF AE FOCUS and AE INFORMATION EMPTY DATA DISPLAY ALARM:1 ALARM DISPLAY CAMERA TITLE & ID DOMEID:0001 360.0 090.0 PAN &... -
Page 15: Chapter 3 - Program And Operation
Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing No. + CAM keys. Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. -
Page 16: Auto Scan (Shortcut: Scan)
3.4 Auto Scan (Shortcut: SCAN) The Auto Scan supports up to 17 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- END ANGLE : ----- -----... - Page 17 5. Select “MODE” and “SPEED”. 6. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick. Current panning position will be displayed. Release the CTRL key to complete the selection of the start position. Or press the IRIS Open key then the “CONTROL” displays. Move the desired position and the zoom position.
-
Page 18: Preset (Shortcut: Prst)
3.5 Preset (Shortcut: PRST) If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Once programmed, placing the number position and pressing the PRST key on your controller calls up that Preset automatically. - Page 19 Select “MOTION SETUP” and push the Joystick to the left or right. Then the MOTION setup displays. MOTION SETUP SENSITIVITY: 10 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 00 ~ 20 Set POSITION ALL, CENTER...
-
Page 20: Shortcut Of Preset Program
3.6 Shortcut of Preset Program After selecting the desired scene, press No. (1 to 240), and press the CTRL and PRST keys subsequently. The current view will be stored to the selected Preset number if the Preset number is empty. If selected Preset number is not empty, “OVER WRITE” message will be displayed on the monitor and select the “OK”... - Page 21 4. To add a stored Preset, twist the Joystick then the stored Preset number displays. 5. To place functions other than Preset, press the TOUR, PTRN or SCAN keys for Tour, Pattern or Auto Scan respectively. 6. You can also overwrite the programmed number and remove a stored number from the Tour, press the HOME key on the stored number, a blank position mark (---) will be displayed.
-
Page 22: Pattern (Shortcut: Ptrn)
3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to 8 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 00.0% 00.0% 00.0% 00.0% 00.0%... -
Page 23: Privacy Zone
3.9 Privacy Zone Privacy Zone is deactivated, if the Flip Mode (p. 30) is set to 90°, 100°, 110°, 120°. Privacy Zone is supported when Flip Mode is set to AUTO or OFF. Hide up to 16 unwanted scenes in a camera. There are four pages of Privacy Zone menu. -
Page 24: Camera Menu
3.10 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL CAMERA CONTROL SHARPNESS : 03 DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF RESOLUTION : 1080P/25 SAVE AND EXIT(ESC TO CANCEL) SHARPNESS The higher the value, the more edges in the picture will be enhanced. (0 ~ 10) DIGITAL ZOOM OFF: Zoom range is limited to the optical. - Page 25 • WB (White Balance) CONTROL WB SETUP MODE : AUTO R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AUTO, MANUAL, INCANDESCENT, FLUORESCENT, OUTDOOR AUTO Computes the white balance value output using color information from the entire screen automatically. INCANDESCENT Auto white balance mode that is compatible with incandescent lamps.
- Page 26 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. GLOBAL Controlled by the keyboard (NOTE: GLOBAL function operates F2E protocol only) The operator can enable NIGHT SHOT for all dome cameras at the same time.
-
Page 27: Dome Communication
3.11 Dome Communication To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. DOME COMMUNICATION DOME ID : 0001 PROTOCOL : AUTO BAUDRATE : 9600 PARITY : NONE TERMINATION : OFF SAVE AND EXIT(ESC TO CANCEL) DOME ID 1 ~ 3999 PROTOCOL... -
Page 28: Alarm
3.12 Alarm ALARM SETUP (CTRL KEY) NO PRI FUN IN LATCH 001 NO OUT1 03 --- OFF --- OFF --- OFF DWELL : 03 SEC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) NO (Number) alarm input number PRI (Priority) the lower number has higher priority (0 ~ 4) FUN (Function) Stored function number to be called by alarm. -
Page 29: Dome Setup
3.13 Dome Setup CONFIGURATION MENU HOME FUNCTION SETUP VIEW ANGLE SETUP ORIGIN OFFSET FACTORY DEFAULT DOME RESET OSD DISPLAY SYSTEM SETUP FUNCTION RUN SYSTEM INFORMATION EXIT(ESC TO EXIT) • HOME FUNCTION SETUP HOME FUNCTION SETUP FUNCTION : NONE NUMBER : --- WAITING TIME : 120 SEC ENABLE... - Page 30 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90 TILT ANGLE LIMIT : 07 SAVE AND EXIT(ESC TO CANCEL) FLIP OFF, AUTO, 90°, 100°, 110°, 120° Privacy Zone (p. 23) is deactivated, if the Flip Mode is set to 90°, 100°, 110°, 120°. Privacy Zone is supported when Flip Mode is set to AUTO or OFF.
- Page 31 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
- Page 32 • OSD DISPLAY OSD DISPLAY SETUP LANQUAGE : ENGLISH TITLE : DOMEID DOME OSD : ON FOCUS/EXPOSURE : OFF COLOR : YELLOW SAVE AND EXIT(ESC TO CANCEL) LANGUAGE Select the desired language. TITLE up to 6 characters DOME OSD ON, POSITION, ON(ZOOM), ZOOM, OFF All display or title will disappear when DOME OSD DISPLAY is set to OFF.
- Page 33 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with pushing the Joystick to the left or right. During operation, pressing 153 + ON keys will change the speed to the SLOW mode and pressing 153 + OFF keys will change the speed to the NORMAL mode.
- Page 34 ORIGIN CHECK If you find the dome in the wrong position during operation, execute this origin check and the dome camera will return to the right position after the origin check operation. ORIGIN CHECK ARE YOU SURE ? CANCEL Pressing 151 + ON keys will execute the origin check. •...
- Page 35 ALARM OUT SETUP OUT1 : ALARM OUT2 : 1 MIN EXIT(ESC TO EXIT) You press the CTRL or IRIS Open key then that alarm out operates during the setting time only. • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx-Vx.xx H/W VERSION : Vx.xx-xxxx ROM VERSION...
-
Page 36: Appendix A - Specifications
Appendix A — Specifications 20x Full-HD Mini-PTZ HD-TVI & AHD CAMERA Model IMAGE Lens 4.7mm ~ 94.0mm Angle of View 55.5° (H) ~ 3.0° (H) Type 1/2.8" SONY STARVIS CMOS sensor Image Sensor Pixels 1945 (H) x 1097 (V) Color : 0.35 Lux @ 50IRE Min. - Page 37 Operating Humidity 0 ~ 90%RH (Non-condensing) Operating Temperature -10C ~ 50C Operating Temperature (with Heater) -30C ~ 50C Power Supply 12VDC, 24VAC Power Supply (with Heater) 24VAC Power Consumption 1.0A (12.0W) @ 12VDC, 24VAC Power Consumption (with Heater) 1.5A (22.0W) @ 24VAC Dimensions See dimension drawing Net Weight...
-
Page 38: Appendix B - Troubleshooting
Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment... - Page 40 VIDEOR E. Hartig GmbH Exclusive distribution through special- ised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
