Page 1: User Manual

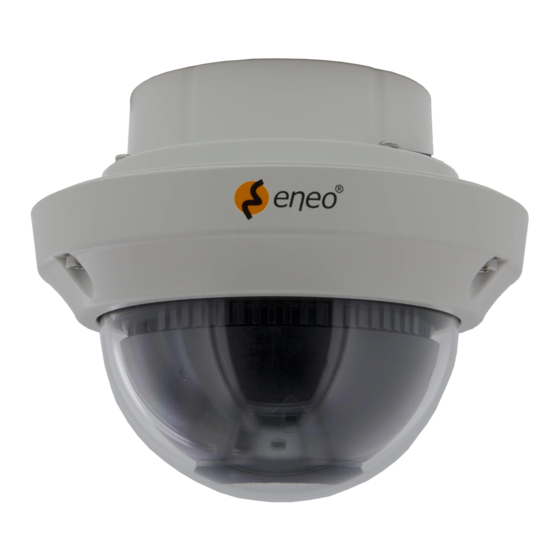

User Manual 1/2.8” HD Dome, Fixed, Day&Night, 1920x1080, WDR, Infrared, 2.8-12mm, IP67 MPD-72M2812M0A... -
Page 3: Safety Precaution
MPD-72M2812M0A Safety Precaution To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 MPD-72M2812M0A Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
MPD-72M2812M0A Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09~12 Installation Instructions p.13~29 Operating Instructions p.30 Specifications... -
Page 6: Features
MPD-72M2812M0A Features Key Features • Full-HD 2Mega pixel CAMERA, 1920x1080(30p/25p) • The best low light performance with SONY’s STARVIS sensor • Video output EX-SDI1.0,2.0 / HD-SDI / TVI mode / AHD mode / CVI mode or CVBS Selectable • TVI mode / AHD mode / CVI mode, Video Transmission Distance over Coax.;... -
Page 7: Composition
MPD-72M2812M0A Composition Operating Dome Camera Instruction Mounting Template Plastic Anchor: Torque Wrench: 6 x 30mm (3pcs) 3mm (1pc) Mounting Screw: Video Sub-out 4 x 30mm (3pcs) Cable (1pc) Dimensions (unit : mm) Ø140 PCD Ø120... -
Page 8: Part Names
MPD-72M2812M0A Part Names POWER CABLE FLUSH MOUNT 3-AXIS GIMBAL LENS SAFTY WIRE OSD Menu Control board DOME COVER BUBBLE DOME [ BOTTOM VIEW ] POWER CABLE POWER VIDEO OUTPUT CABLE POWER SUPPLY CONNECTOR... -
Page 9: Installation Instructions
MPD-72M2812M0A Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench supplied. - Place the dome base unit on pre-drilled position and fix it through using mounting screws (4x30mm). - Page 10 MPD-72M2812M0A Installation Instructions Option 1. ■ Installation with Flush mount / Tilted Junction mount ① Cable is unfixed on the Dome base. ② Connect the power cable to their repective connections. Option 2. ■ Installation with Surface mount / Tilted mount ①...
- Page 11 MPD-72M2812M0A Installation Instructions Limit of pan & tilt 1) Pan limit: Pan is limited to +/- 173°. Do NOT force to turn the gimbal over the limit to prevent from the internal damage. 2) Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the rotation of camera module is 0°, that is, the image is aligned horizontally.
-
Page 12: Installation And Commissioning Instructions
MPD-72M2812M0A Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load. -
Page 13: Operating Instructions
MPD-72M2812M0A Operating Instructions Using OSD Control Controller Setup menu can be accessed and controlled by OSD control joy stick inside of the camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. - Page 14 MPD-72M2812M0A Operating Instructions OSD menu Table MENU SUB MENU CONFIGURATION LENS MODE (INDOOOR, OUTDOOR, DEBLUR) MANUAL ZOOM / FOCUS AF MODE ZOOMPUSH, MANUAL MODE CHANGE ENABLED, DISABLED SCANNING HALF, FULL ONEPUSHAF SYNC TDN ON, OFF INITIAL 0~20 EXPOSURE BRIGHTNESS SHUTTER...
- Page 15 MPD-72M2812M0A Operating Instructions SHARPNESS MAIN ANALOG ANALOG CVBS IMAGE OUTPUT OUT1 OUT1 SDI&CVBS 0~10 SDI OUT HD-SDI, EX-SDI 1.0, OUTPUT EX-SDI 2.0, OFF SDI&CVBS 0~10 GAMMA 0.45, 0.55, 0.65, 0.75 MIRROR OFF, ON FLIP OFF, ON OFF, LOW, MIDDLE, HIGH...
- Page 16 MPD-72M2812M0A Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • EXIT : Enters ‘EXIT’ menu with save current setting or without save. • RETURN : Returns to the previous menu.
- Page 17 MPD-72M2812M0A Operating Instructions 2. ZOOM/FOCUS 2. ZOOM/FOCUS AF MODE AF MODE ZOOMPUSH MANUAL MODE CHANGE MODE CHANGE DISABLED NOT USED SCANNING SCANNING HALF HALF ONEPUSHAF ONEPUSHAF SYNC TDN SYNC TDN INITIAL INITIAL RETURN RETURN AF MODE Changes to MANUAL automatically after 3 hrs when MODE CHANGE is ENABLED.
- Page 18 MPD-72M2812M0A Operating Instructions 3. EXPOSURE 3. EXPOSURE BRIGHTNESS llllllllllllllllllllll SHUTTER AUTO SENS-UP llllllllllllllllllllll RETURN 3-1. BRIGHTNESS Adjusts the brightness of video (0~20). 3-2. SHUTTER Selects AUTO or set manually. If SHUTTER set to MANUAL modes, SENS-UP mode is inactivated. 3-2-1. AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically.
- Page 19 MPD-72M2812M0A Operating Instructions 4. BACKLIGHT Compensates the video image to cut out the highlight area with mask or control the contrast of video. It can be set the compendation level or areas. LEVEL llllllllllllllllllllll COLOR RETURN 4-1. HLC (High Light Compensation) Cuts out the highlight area with mask and excludes it from compensation.
- Page 20 MPD-72M2812M0A Operating Instructions MODE WINDOW ZONE WEIGHT WINDOW USE MIDDLE RETURN H-POS V-POS H-SIZE V-SIZE RETURN 4-3. WDR (Wide Dynamic Range) WDR is extended the gain range of the video that is mostly useful if camera takes a simultaneous picture of both indoor and outdoor nearby window.
- Page 21 MPD-72M2812M0A Operating Instructions 5. DAY & NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. MENU V0. XX 1. LENS 5. DAY&NIGHT 2. ZOOM/FOCUS 3.
- Page 22 MPD-72M2812M0A Operating Instructions 5-2. AUTO Used when DAY or NIGHT is 5. DAY&NIGHT determined by light level through the lens and DAY from/to NIGHT SMART IR is switched automatically by the ANTI-SAT. llllllllllllllllllllll scene brightness. AGC THRES llllllllllllllllllllll It can be controlled the AGC...
- Page 23 MPD-72M2812M0A Operating Instructions 6. COLOR 6. COLOR AUTO COLOR GAIN llllllllllllllllllllll RETURN 6-1. AWB (Auto White Balance) Automatically tracks the changes of color temperature and continuously adjusts the white balance. AUTO, AUTOext, PRESET and MANUAL modes are available. 6-1-1. AUTO : Optimized for Indoor installation and more easily compensates AWB for low color temperature such as incandescent lights.
- Page 24 MPD-72M2812M0A Operating Instructions 7. 3D-NR (Digital Noise Reduction) DNR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Sets off, low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames.
- Page 25 MPD-72M2812M0A Operating Instructions 8-1. SHARPNESS Sets the Sharpness level 0~10. Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object in the picture.
- Page 26 MPD-72M2812M0A Operating Instructions PRIVACY ZONE NUM ZONE DISP H-POS V-POS H-SIZE V-SIZE Y-LEVEL llllllllllllllllllllll CB LEVEL llllllllllllllllllllll CR LEVEL llllllllllllllllllllll TRANS RETURN 8-7-4. H-SIZE, V-SIZE : Adjusts the mask size using H, V direction which you selected zone. 8-7-5. Y LEVEL : Adjusts the mask color by Y LEVEL. (0: black ~ 20: white) 8-7-6.
- Page 27 MPD-72M2812M0A Operating Instructions 9. MOTION DET WINDOW DET WINDOW WINDOW ZONE DET TONE WINDOW USE MDRECT FILL DET H-POS SENSITIVITY llllllllllllllllllllll DET V-POS MOTION OSD DET H-SIZE TEXT ALARM DET V-SIZE RETURN RETURN 9-2. DET TONE Sets the detection zone 0 to 4 display types which window use setting ON.
- Page 28 MPD-72M2812M0A Operating Instructions A. SYSTEM Sets the system related functions. A. SYSTEM OUTPUT RESOLUTION 1080 25P TV SYSTEM EU(PAL) LANGUAGE CAM TITLE RESET RETURN HD-ANALOG OUTPUT MAIN OUTPUT ANALOG OUT0 TVI MODE ANALOG OUT0 HD-SDI SDI OUTPUT Y GAIN llllllllllllllllllllll...
- Page 29 MPD-72M2812M0A Operating Instructions If CVBS video is enabled through ANALOG OUT0 or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs. It should be considered when installer adjusts the video with installation monitor via CVBS video signal.
-
Page 30: Specifications
MPD-72M2812M0A Specifications ITEM MPD-72M2812M0A Imaging Sensor 1/2.8" Sony 2Mega pixel CMOS STARVIS Sensor Effective Pixels 1920(H) x 1080(V) x 25p Scan Frequency 25Hz(V), 18.75Khz(H) / Progressive Video Format HD] 16:9, 1080p@25fps CVBS] 16:9 (PAL) Synchronization Internal Video Output EX-SDI1.0, 2.0 /HD-SDI / TVI mode/ AHD mode/ CVI mode/ CVBS Video Resolution 1920x1080 (30p/25p) Min.Illumination... - Page 32 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
