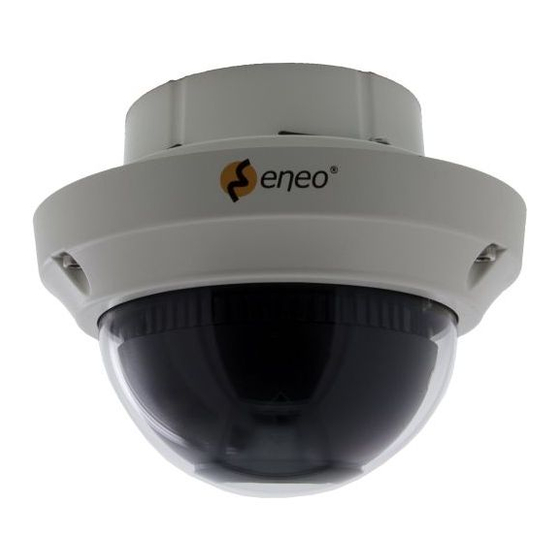

Eneo MPD-78M2713M0A User Manual

1/2.8" hd dome fix, day&night, 3840x2160, infrared, wdr, 2.7-13.5mm, 12vdc, ip67
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
1/2.8" HD Dome Fix, Day&Night,
3840x2160, Infrared, WDR,
2.7-13.5mm, 12VDC, IP67
MPD-78M2713M0A

Advertisement

Table of Contents
loading

Related Manuals for Eneo MPD-78M2713M0A

Summary of Contents for Eneo MPD-78M2713M0A

  • Page 1 User Manual 1/2.8" HD Dome Fix, Day&Night, 3840x2160, Infrared, WDR, 2.7-13.5mm, 12VDC, IP67 MPD-78M2713M0A...

  • Page 3: Safety Precaution

    ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 4 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Table Of Contents

    ULTRA CLEAR RESOLUTION CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09~12 Installation Instructions p.13~32 Operating Instructions p.33 Specifications...

  • Page 6: Features

    ULTRA CLEAR RESOLUTION CAMERA Features Key Features • 8Mega Pixel CAMERA, 3840x2160(15/12.5fps) • The best low light performance with SONY’s STARVIS sensor • Video output EX-SDI / HD-SDI / THD / CHD / AHD / CVBS(960H) Selectable • THD mode / AHD mode / CHD mode, Video Transmission Distance over Coax.;...

  • Page 7: Composition

    ULTRA CLEAR RESOLUTION CAMERA Composition Operating Dome Camera Instruction Mounting Template Torque Wrench: Plastic Anchor: 3mm (1pc) 6 x 30mm (3pcs) Video Sub-out Mounting Screw: 4 x 30mm (3pcs) Cable (1pc) Dimensions (unit : mm) Ø140 Ø100 PCD Ø120 3-Ø4.2...

  • Page 8: Part Names

    ULTRA CLEAR RESOLUTION CAMERA Part Names POWER CABLE FLUSH MOUNT 3-AXIS GIMBAL EX-SDI HD-SDI LENS SAFTY WIRE OSD Menu Control board DOME COVER BUBBLE DOME [ BOTTOM VIEW ] POWER VIDEO OUTPUT CABLE POWER SUPPLY CONNECTOR...

  • Page 9: Installation Instructions

    ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench supplied. - Place the dome base unit on pre-drilled position and fix it through using mounting screws (4x30mm).
  • Page 10 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Option 1. ■ Installation with Flush mount / Tilted Junction mount ① Cable is unfixed on the Dome base. ② Connect the power cable to their repective connections. Option 2. ■ Installation with Surface mount / Tilted mount ①...
  • Page 11 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Limit of pan & tilt 1) Pan limit: Pan is limited to +/- 173°. Do NOT force to turn the gimbal over the limit to prevent from the internal damage. 2) Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the rotation of camera module is 0°, that is, the image is aligned horizontally.
  • Page 12 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load.

  • Page 13: Operating Instructions

    ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using OSD Controller Setup menu can be accessed and controlled by OSD control joy stick on the side of the gimbal. Five commands are available with the joy stick. The design of OSD could be different according to the Model. EX-SDI↔HD-SDI Video format DIP Switch...
  • Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Table MENU SUB MENU CONFIGURATION LENS MODE (INDOOOR, OUTDOOR, DEBLUR) MANUAL ZOOM / FOCUS AF MODE ZOOMPUSH, MANUAL MODE CHANGE ENABLE, DISABLE D&N FILTER SYNC ON, OFF INITIAL ON, OFF EXPOSURE BRIGHTNESS DAY 0~20 0~20 BRIGHTNESS NIT SHUTTER...

  • Page 15: Zone Num

    ULTRA CLEAR RESOLUTION CAMERA Operating Instructions AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN) PICT. ADJUST 0~20 COLOR GAIN DAY 0~20 COLOR GAIN NIT SHARPNESS 0~10 GAMMA 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75 D-WDR OFF, LOW, MIDDLE, HIGH DEFOG MODE, LEVEL OFF, ON SHADING OFF, ON...
  • Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Supported resolution according to Video format. DIP Switch (EX-SDI set) ANALOG OUT THD / CVBS-SUB AHD / CVBS-SUB CHD / CVBS-SUB CVBS EX-SDI FRAME RATE(NT/PAL) [ THD MODE ] [ AHD MODE ] [ CHD MODE ] 2160P 15 /12.5 15P(O) / 12.5P(N/A) 1440P 30/25(CROP)
  • Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • EXIT : Enters ‘EXIT’ menu with save current setting or without save. • RETURN : Returns to the previous menu. MENU V0.
  • Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 2. ZOOM/FOCUS 2-1. AF MODE • ZOOMPUSH: Focusing works steadily for sharp focusing on the object. In the case of a Motor driven lens, focusing resumes in about 7~8 seconds to save the lens lifetime when the focus gets lost. •...
  • Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 3. EXPOSURE 3. EXPOSURE BRIGHTNESS DAY llllllllllllllllllllll BRIGHTNESS NIT llllllllllllllllllllll SHUTTER AUTO SENS-UP llllllllllllllllllllll 3D-NR MIDDLE RETURN 3-1. BRIGHTNESS DAY Adjusts the brightness of video in DAY mode (0~20). 3-2. BRIGHTNESS NIGHT Adjusts the brightness of video in NIGHT mode (0~20). 3-3.

  • Page 20: H-Pos

    ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 3-6. 3D-NR DNR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Sets off, low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames.
  • Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 4-2. BLC (Backlight Compensation) This function is used to brighten an image in the foreground with a highly light area behind it such as sunlight, limiting the affect of silhouette. BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE.

  • Page 22: Pos0-X

    ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • BOX : Set area to select zones by square. WINDOW ZONE : Set the detection zone number from 0 to 3. WINDOW USE : Sets ON/OFF motion detection area which you selected. If set to ON, It can be adjusted position and size. H/V-POS : Adjusts the ROI area H, V position which you selected zone.
  • Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5. DAY & NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types. MENU V0. XX 1. LENS 5. DAY&NIGHT 2.
  • Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5-2. AUTO Used when DAY or NIGHT is 5. DAY&NIGHT determined by light level through the lens and DAY from/to NIGHT SMART IR FULL is switched automatically by the ANTI-SAT. llllllllllllllllllllll scene brightness. D>N THRES llllllllllllllllllllll N>D THRES llllllllllllllllllllll...
  • Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5-4. COLOR D/N Forcibly Color mode, optimized for night condition. It is available to recognize colors of car, people and moving objects even at night. Parameters can be controllable & programmable according to circumstance. Application for bright circumstance at night such as downtown, civic area, street, mall and etc.
  • Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6. PICT. ADJUST PICT. ADJUST AUTO COLOR GAIN DAY llllllllllllllllllllll COLOR GAIN NIT llllllllllllllllllllll SHARPNESS llllllllllllllllllllll GAMMA D-WDR MIDDLE DEFOG SHADING RETURN 6-1. AWB Automatically tracks the changes of color temperature and continuously adjusts the white balance. AUTO, AUTOext, PRESET and MANUAL modes are available.
  • Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-5. GAMMA Adjust gamma level of video. 6-6. D-WDR Improves the visibility for the high bright area and the dark area by compen- sating the video gain. Care should be taken to select low, middle or high level, because video may lose its quality in some environments by the over compensation.
  • Page 28 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7. DIS (Digital Image Stabilization) 7-1. RANGE Sets the image compensation range. 10%, 20%, 30%. Higher values attempt to stabilize the image against big displacement but the field of view is narrowed. 7-2. FILTER : LOW, MIDDLE, HIGH Sets the sensitivity to initiate DIS function.
  • Page 29 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-4. PRIVACY Set the Privacy zones which can be enabled individually by BOX or POLYGON are available to mask the video. 8-4-1. BOX : Set area to select privacy zones by square. • ZONE NUM : Set a number to select a privacy zone from 1~10. •...
  • Page 30 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-5. MOTION 4 motion detection areas are available and each area is programmable in size and location. The motion can be detected the changes in the motion areas and displays the results in blocks and/or a text message. 8-5-1.
  • Page 31 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-5-5. MOTION OSD Sets ON or OFF to display the motion results. 8-5-6. TEXT ALARM Setting ON enables to display a text message ‘ WINDOWS MOVING!!’ or icon when the motion is detected. 9. SYSTEM Sets the system related functions.
  • Page 32 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 9-1-3. TV SYSTEM Selects HDTV standards for US(60HZ) or EU(50HZ). By this selection, 2nd analog video output switches to NTSC or PAL accordingly. 9-1-4. SDI OUTPUT HD-SDI or EX-SDI is selectalbe by video format switch on OSD board only. 9-1-5.

  • Page 33: Specifications

    ULTRA CLEAR RESOLUTION CAMERA Specifications NTSC ITEM Imaging Sensor Sony 1/2.8” 8.46 Mega pixel STARVIS CMOS Sensor Effective Pixels 3864 (H) × 2192 (V) approx. 8.46M Mega pixels Scan Frequency 30Hz(V), 22.5Khz(H) Progressive 25Hz(V), 18.75Khz(H) Progressive Video Format 3840x2160p @15/12.5fps, 2560x1440p @30/25fps, 1920x1080p @30/25fps NTSC/PAL (16:9) Video Output EX-SDI, HD-SDI, THD mode, CHD mode, AHD mode, CVBS(960H)
  • Page 36 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
