Cornwell Tools CAT3250AHMV Operating Instructions

Cornwell Tools CAT3250AHMV Operating Instructions

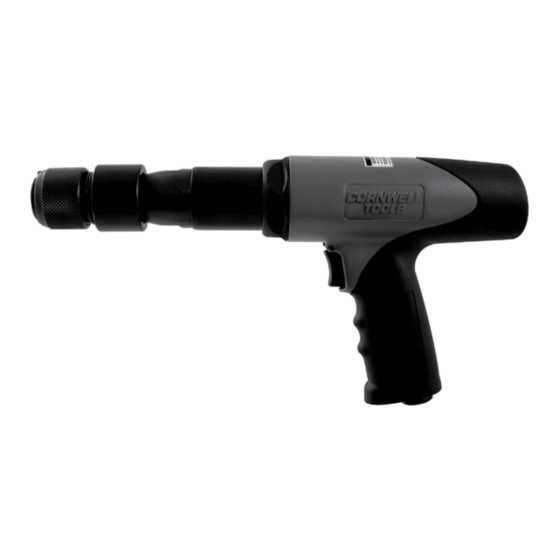

Super duty, air hammer w/ vibration reduction

Advertisement

Quick Links

• Operating Instructions • Warning Information
Blows per minute . . . . . . . . . . . . . . . . . . 2,000
Shank Opening . . . . . . . . . . . . . . . . . . 0 .401"
Bore Diameter . . . . . . . . . . . . . . . . . . . . . . 3/4"
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1/2"
Minimum Hose Size . . . . . . . . . . . . . . 3/8" I .D .
Air Inlet . . . . . . . . . . . . . . . . . . . . . 1/4"- 18NPT
Air Pressure . . . . . . . . . . . . . . . . . . . . . . . 90 PSI
Average Air Consumption . . . . . . . . 2 .77 CFM
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .4 .3Lbs
Length . . . . . . . . . . . . . . . . . . . . . . . . . .10-1/2"
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT3250AHMV
• Parts Breakdown
SPECIFICATIONS
CAT3250AHMV
Air Hammer w/
Vibration Reduction
Copyright © Professional Tool Products, 2009
1
Super Duty,
AlwAYS reAd
inSTrucTionS
before uSing
power ToolS
AlwAYS weAr
SAfeTY goggleS
weAr heAring
proTecTion
Avoid
prolonged
expoSure To
vibrATion
All rights reserved.
03/23/09
