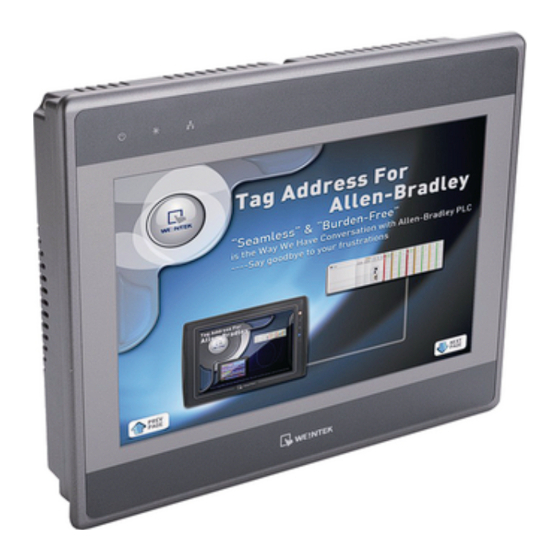

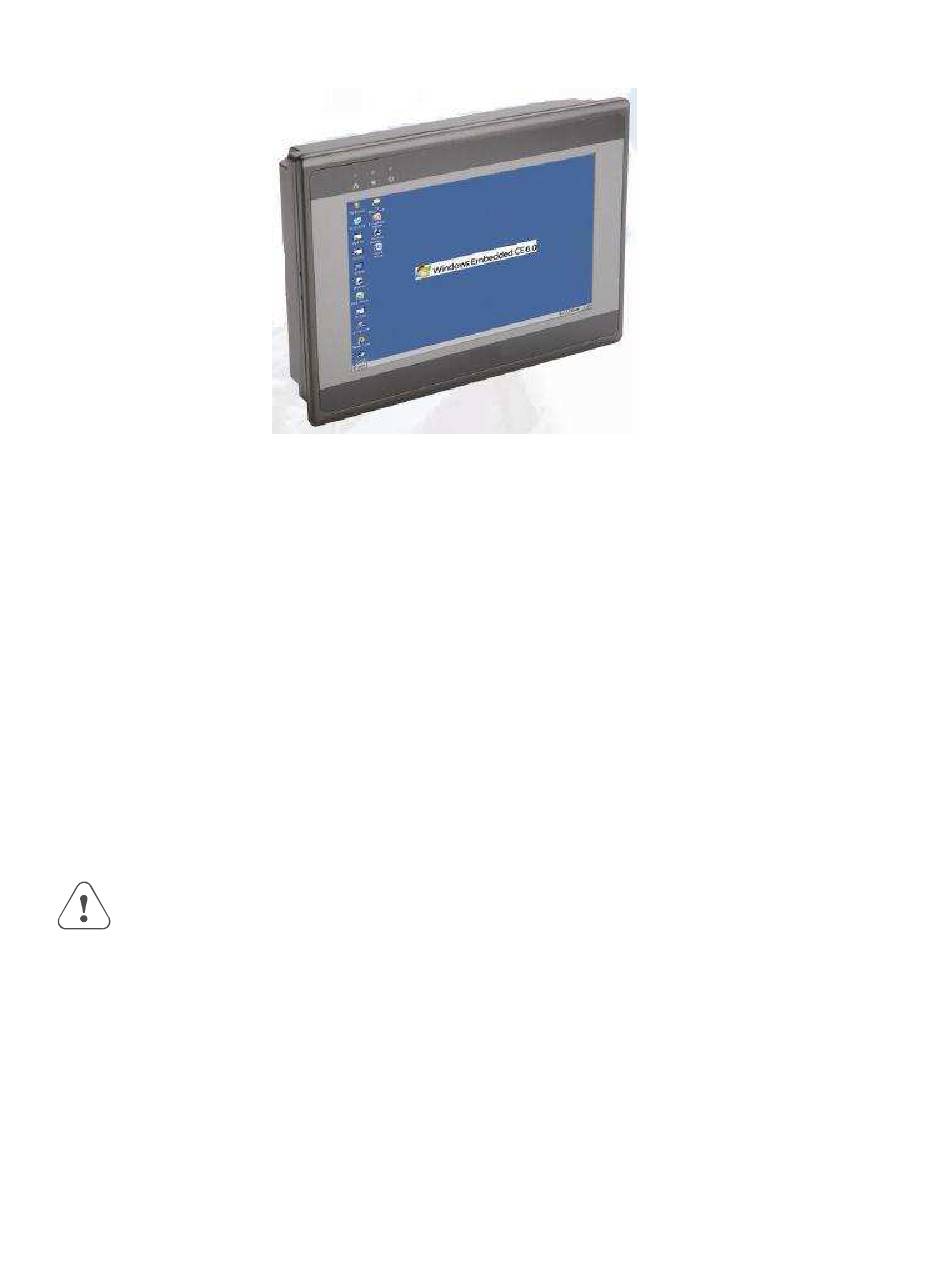

1.0 Installation and Startup Guide
Install Environment
Where
The NP-610p Series is designed for industrial. The temperature range of operating is
Used
from 14 to 113 °F (-10 to 45 °C), as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for
advised usage in outdoor applications.
NEMA
The NP-610p Series front bezel is NEMA 4 rated. When installed properly in a NEMA
Rating
4 panel, the NEMA 4 rating of the panel will not be compromised. This means that
fluids will not enter the panel during wash downs.
Electrical
The NP-610p Series has been tested to conform to European CE requirements. This
Environment
means that the circuitry is designed to resist the effects of electrical noise. This does
not guarantee noise immunity in severe cases. Proper wire routing and grounding
will insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
NP-610p series
1
Advertisement
Related Manuals for weintek NP-610p Series
Summary of Contents for weintek NP-610p Series
- Page 1 Please consult the factory for advised usage in outdoor applications. NEMA The NP-610p Series front bezel is NEMA 4 rated. When installed properly in a NEMA Rating 4 panel, the NEMA 4 rating of the panel will not be compromised. This means that fluids will not enter the panel during wash downs.
-
Page 2: Power Connections
Particular note should be taken to the position of variable speed drives and switching power supplies. Their input and load cables should be screened to a central star earth point. 2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening*. - Page 3 Caution A Hard-wired EMERGENCY STOP should be fitted in any system using an Emergency NP-610p to comply with ICS Safety Recommendations. Stop Caution Do not power the NP-610p and inductive DC loads, or input circuitry to Supply Voltage the controller, with the same power supply. Note: The 24 VDC output from Condition some controllers may not have enough current to power the NP-610p.
-
Page 4: Communications Connections
If you, or your company, use any programmable control systems that require an operator or attendant, you should be aware that this potential safety hazard exists and take appropriate precautions. Although the specific design steps depend on your particular application, the following precautions generally apply to installation of solid-state programmable control devices. - Page 5 Ready to send output Transmitted Data Clear to send input Received Data Not used 2.3.2 Connector COM1[RS485] , COM3[RS485] and COM3[RS232] The 9 Pin, Female, SUB-D, COM1 [RS-485] , COM3 [RS-485] and COM3 [CAN Bus] Port on the back of the unit is the RS-232 and RS485/422 communications port for connecting to a controller. Connection Pin Designations Pin assignment of the 9 Pin, Female, SUB-D COM1 [RS-485], COM3...
- Page 6 NP-610p series, the screen will display a “+” sign at the center of the screen. Use a stylus or finger to push the center of the “+” until it moves. The “+” moves to upper-left, upper-right, lower -left, lower-right and center.
-
Page 7: Specifications
3.0 Specifications Hardware Specification 10.4" TFT LCD Display Brightness 500 cd/m2 65,536 colors Color Contrast Ratio 700:1 1024 x 768 Resolution (WxH dots) Back light Backlight life time (avg.) 30,000 hr. min. 4 wires resistive type Touch panel I/O port COM1 (RS-232/RS-485 2W/4W), COM2(RS232), COM3(RS-232/RS-485 2W) 1 Ethernet port (10/100 Base-T) Ethernet port... - Page 8 Weintek products include the isolated power supply are covered by a limited liability warranty from defects in material and workmanship. This warranty does not apply: (a) if, in the judgment of Weintek, the product fails due to damage from shipment, handling, storage, accident (natural and man-mad) ;...
- Page 9 4.0 Dimensions of NP-610p Cutout dimensions:...
