Page 1: Cabinet Parts Breakdown

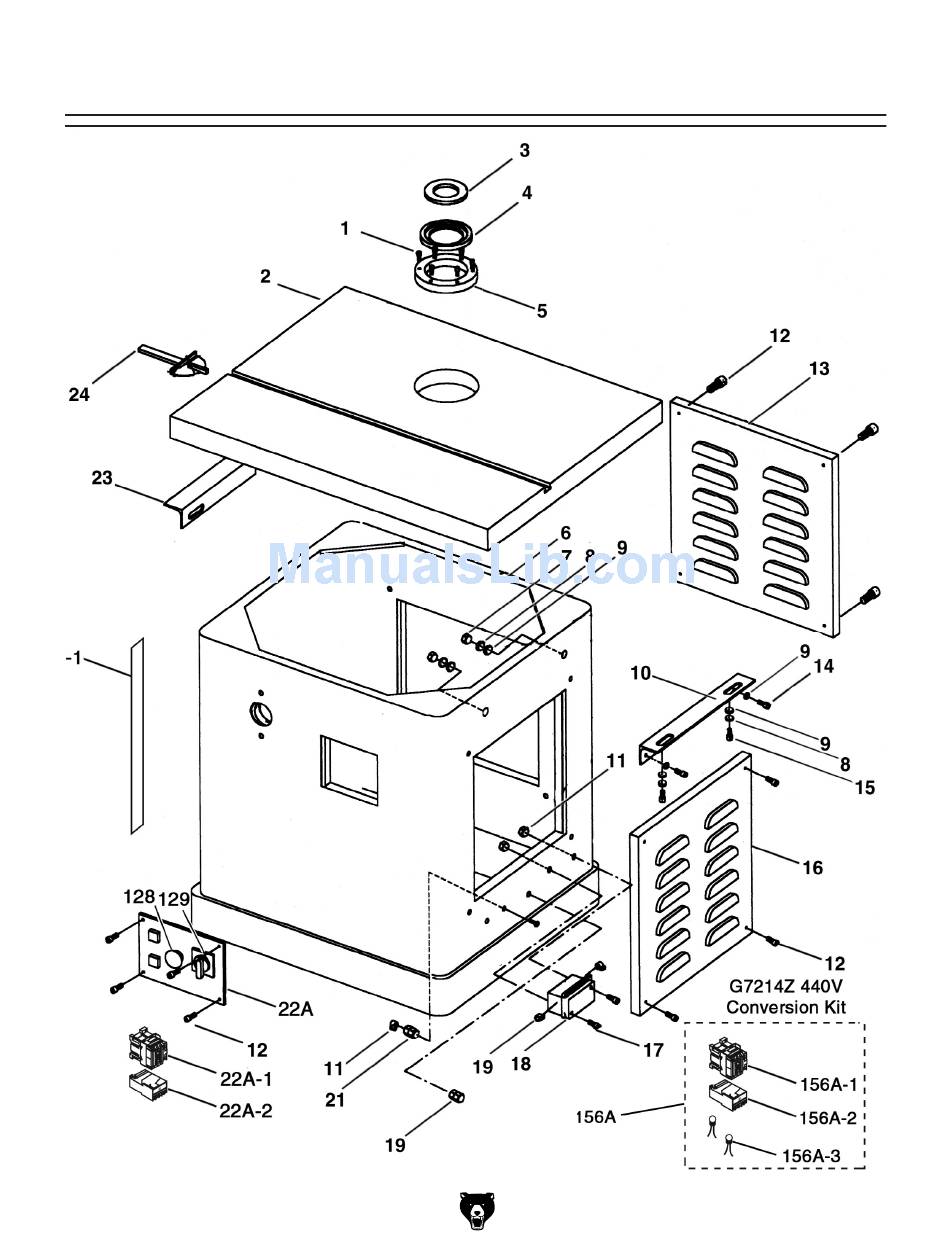

Cabinet Parts Breakdown G5912Z/G7214Z Heavy-Duty Shaper -33-... -
Page 2: Cabinet Parts List
DESCRIPTION P5912Z018 TERMINAL BOX ASSY P5912Z018A TERMINAL BOX W/O BUSBAR P5912Z019 STRAIN RELIEF P5912Z021 STRAIN RELIEF P5912Z022A ELECTRICAL BOX ASSY (G5912Z) P7214Z022A ELECTRICAL BOX ASSY (G7214Z) 22A-1 P5912Z022A-1 CONTACTOR (G5912Z) 22A-1 P7214Z022A-1 CONTRACTOR (G7214Z) 22A-2 P5912Z022A-2 OVERLOAD RELAY (G5912Z) 22A-2... -
Page 3: Spindle Parts Breakdown
Spindle Parts Breakdown G5912Z/G7214Z Heavy-Duty Shaper -35-... -
Page 4: Spindle Parts List
P5912Z046A COLLAR 1" X 1" (2PC) P5912Z046B COLLAR 3/4" X 1" (2PC) PR43M EXT RETAINING RING 50MM PSB17M CAP SCREW M4-.7 X 10 P5912Z163 OUTER DUST COVER P5912Z164 INNER DUST COVER P5912Z165 ALTERNATING RING P5912Z166 WAVY RING G5912Z/G7214Z Heavy-Duty Shaper... -
Page 5: Motor Parts Breakdown
Motor Parts Breakdown G5912Z/G7214Z Heavy-Duty Shaper -37-... -
Page 6: Motor Parts List
POINTER PHLP HD SCR 10-24 X 3/8 HEX BOLT 5/16-18 X 3/4 SHAFT GUIDE PLATE MOTOR PLATE SHAFT GEAR BASE GEAR SHAFT HANDWHEEL HANDLE HEX BOLT 1/4-20 X 1 HEX NUT 1/4-20 SET SCREW 10-32 X 3/16 G5912Z/G7214Z Heavy-Duty Shaper... -
Page 7: Fence Guard Breakdown
Fence Guard Breakdown G5912Z/G7214Z Heavy-Duty Shaper -39-... - Page 8 RETAINER (L) 5/8" 122A P5912Z122A KNOB BOLT N/S 10/02 3/8-16 X 1 P5912Z123 NUT 3/8 P5912Z124 RETAINER (S) 1/2" P5912Z125 KNOB P5912Z126 BRACKET ASSY FENCE LH PB26 HEX BOLT 1/4-20 X 1-1/2 P5912Z167 KNOB BOLT 3/8-16 X 1 G5912Z/G7214Z Heavy-Duty Shaper...
-
Page 9: Safety Label Parts Breakdown
MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. G5912Z/G7214Z Heavy-Duty Shaper ���...
