For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
The following change was made since the owner's manual was printed:
•
Switch assembly changed.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.

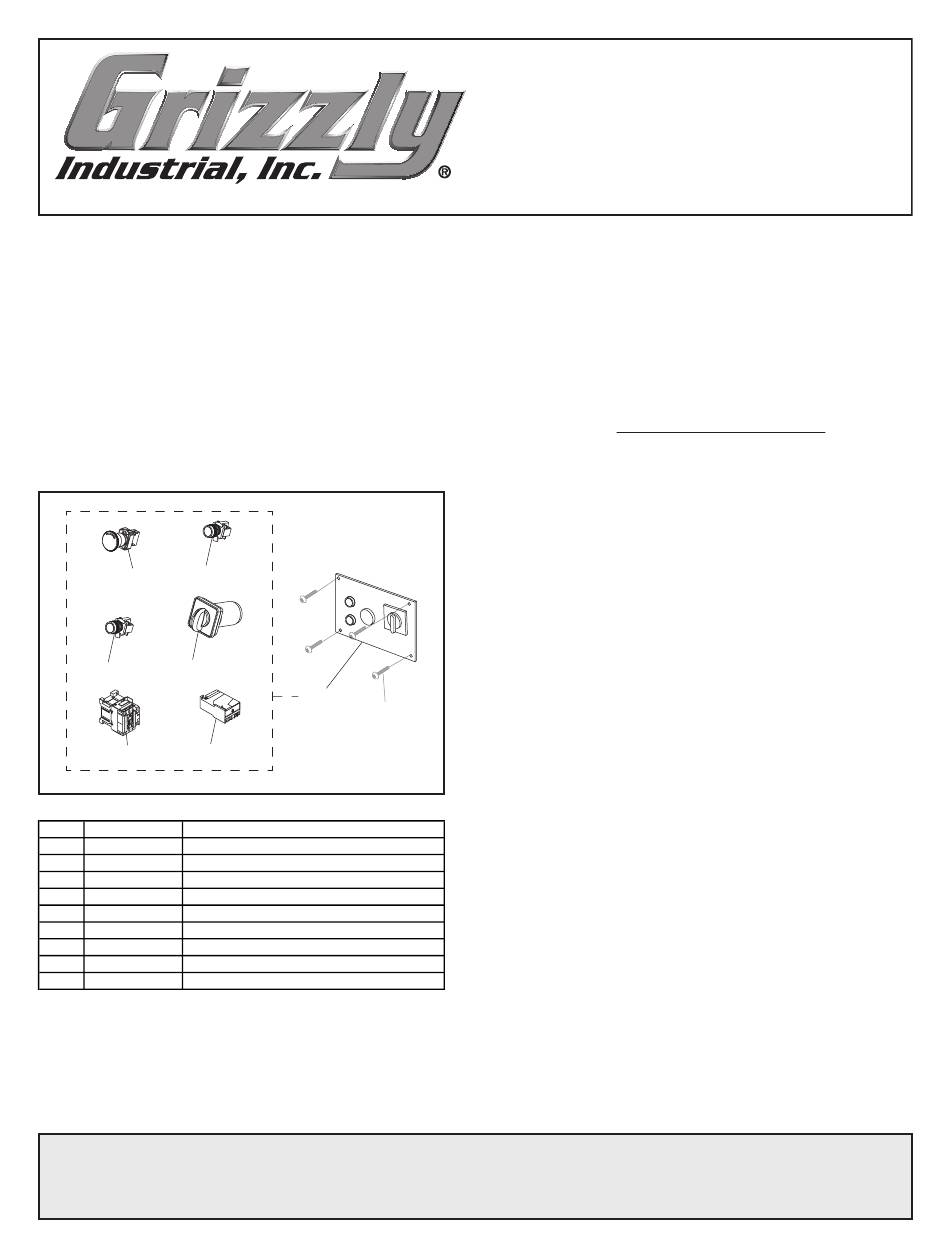

Revised Parts Breakdown
6V2-2
6V2-1
6V2-4
6V2-3
6V2-5
6V2-6
REF
PART #
DESCRIPTION
6V2
P5913Z006V2
SWITCH ASSY 5 HP V2.03.06
6V2-1
P5913Z006V2-1
E-STOP BUTTON
6V2-2
P5913Z006V2-2
ROUND GREEN ON SWITCH
6V2-3
P5913Z006V2-3
ROUND RED OFF SWITCH
6V2-4
P5913Z006V2-4
F/O/R SWITCH KEDU ZH-HC-31-BY (G5913Z)
F/O/R SWITCH KEDU ZH-HC-433-BY (G7215Z)
6V2-4
P7215Z006V2-4
6V2-5
P5913Z006V2-5
CONTACTOR (G5913Z)
6V2-5
P7215Z006V2-5
CONTACTOR (G7215Z)
6V2-6
P5913Z006V2-6
OVERLOAD RELAY (G5913Z)
6V2-6
P7215Z006V2-6
OVERLOAD RELAY (G7215Z)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
READ THIS FIRST
6V2
5
COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.
#CS21113 PRINTED IN TAIWAN
Model G5913Z/G7215Z
***IMPORTANT UPDATE***
For Machines Mfd. Since 03/06
and Owner's Manual Revised 03/07

Advertisement

loading

Related Manuals for Grizzly G5913Z

Summary of Contents for Grizzly G5913Z

  • Page 1 ***IMPORTANT UPDATE*** For Machines Mfd. Since 03/06 and Owner's Manual Revised 03/07 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com The following change was made since the owner's manual was printed: • Switch assembly changed.

  • Page 2: Wiring Safety Instructions

    EXPERIENCING DIFFICULTIES. If you are expe- the requirements at the beginning of this manual riencing difficulties understanding the information when connecting your machine to a power source. included in this section, contact our Technical Support at (570) 546-9663. Model G5913Z/G7215Z (Mfd. Since 03/06)
  • Page 3 (Replaces Page 34) G5913Z Wiring Diagram READ ELECTRICAL SAFETY Model G5913Z/G7215Z (Mfd. Since 03/06) ON PAGE 2 OF UPDATE...
  • Page 4 (Replaces Page 35) G7215Z Wiring Diagram READ ELECTRICAL SAFETY Model G5913Z/G7215Z (Mfd. Since 03/06) ON PAGE 2 OF UPDATE...

  • Page 5: Read This First

    For Machines Mfd. Since 1/17 and Owner's Manual Printed 2001 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com The following changes were recently made to this machine since the owner's manual was printed: •...
  • Page 6 To minimize the risk of injury, the spindle enclo- guard (for G5913Z/G7215Z, see Pages 18–19; sure guard must be adjusted so it encloses as for G8622, see Pages 14–15).
  • Page 24 These the bolts. Parts Spindle The Model G5913Z/G7215Z comes with three interchangeable spindles like those in Figure 6. The spindles must be inserted correctly and Figure 7. Installing spindle into the cartridge. remain stable in order to produce quality work.

  • Page 47: Motor Parts List

    HEX BOLT 3/8-16 X 3/4 P5913Z032A TRUNNION BRACKET PB12 HEX BOLT 5/16-18 X 1-1/4 PSB19 CAP SCREW 3/8-16 X 1-1/4 P5913Z075 MOTOR 5 HP (G5913Z) P5913Z035 TRUNNION SUPPORT (R) P7215Z075 MOTOR 7-1/2 HP (G7215Z) P5913Z036 HEX SHAFT 5/8-11 P5913Z076 MOTOR PULLEY...
