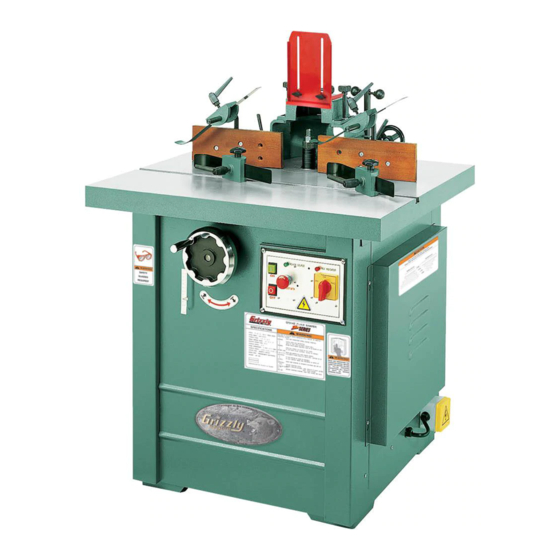

Grizzly G5912Z Owner's Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
The following changes were recently made to this machine since the owner's manual was printed:
• Added an additional spindle enclosure guard.
• Changed spindle cartridge support fasteners.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.
New Parts
103
7
104
8
168
92
REF PART # DESCRIPTION
7 P5912Z007 HEX NUT 3/8-16
8 P5912Z008 LOCK WASHER 3/8
52 P5912Z052 FLAT WASHER 1/4
103 P5912Z103 SET SCREW 3/8-16 X 1
104 P5912Z104 SET SCREW 3/8-16 X 1/2
168 P5912Z168 KNOB BOLT 1/4-20 X 1/2
169 P5912Z169 FRONT GUARD EXTENSION PLATE
170 P5912Z170 FRONT SPINDLE ENCLOSURE GUARD
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
READ THIS FIRST
168
52
52
169
170
COPYRIGHT © MARCH, 2017 BY GRIZZLY INDUSTRIAL, INC.
#BL18759 PRINTED IN TAIWAN
Model G5912Z/G7214Z/G8621
***IMPORTANT UPDATE***
For Machines Mfd. Since 1/17
and Owner's Manual Printed 2001
New Inventory
Inventory
A. Front Spindle Enclosure Guard .................. 1
B. Front Guard Extension Plate ...................... 1
C. V-Belt A28 (G8621) .................................... 1
D. Knob Bolts
⁄ "-20 x
1
4
E. Flat Washers
1
F.
Knob Bolts ⁄ "-16 x 1" (G5912Z, G7214Z) . 2
3
8
F.
Knob Bolts ⁄ "-16 x 1" (G8621) .................. 4
3
8
A
D
⁄ " ............................... 4
1
2
⁄ " ......................................... 4
4
C
B
F
E
Qty
