model g5348/h0597/h0598
17 piece air ratchet Kits
oWner's manual

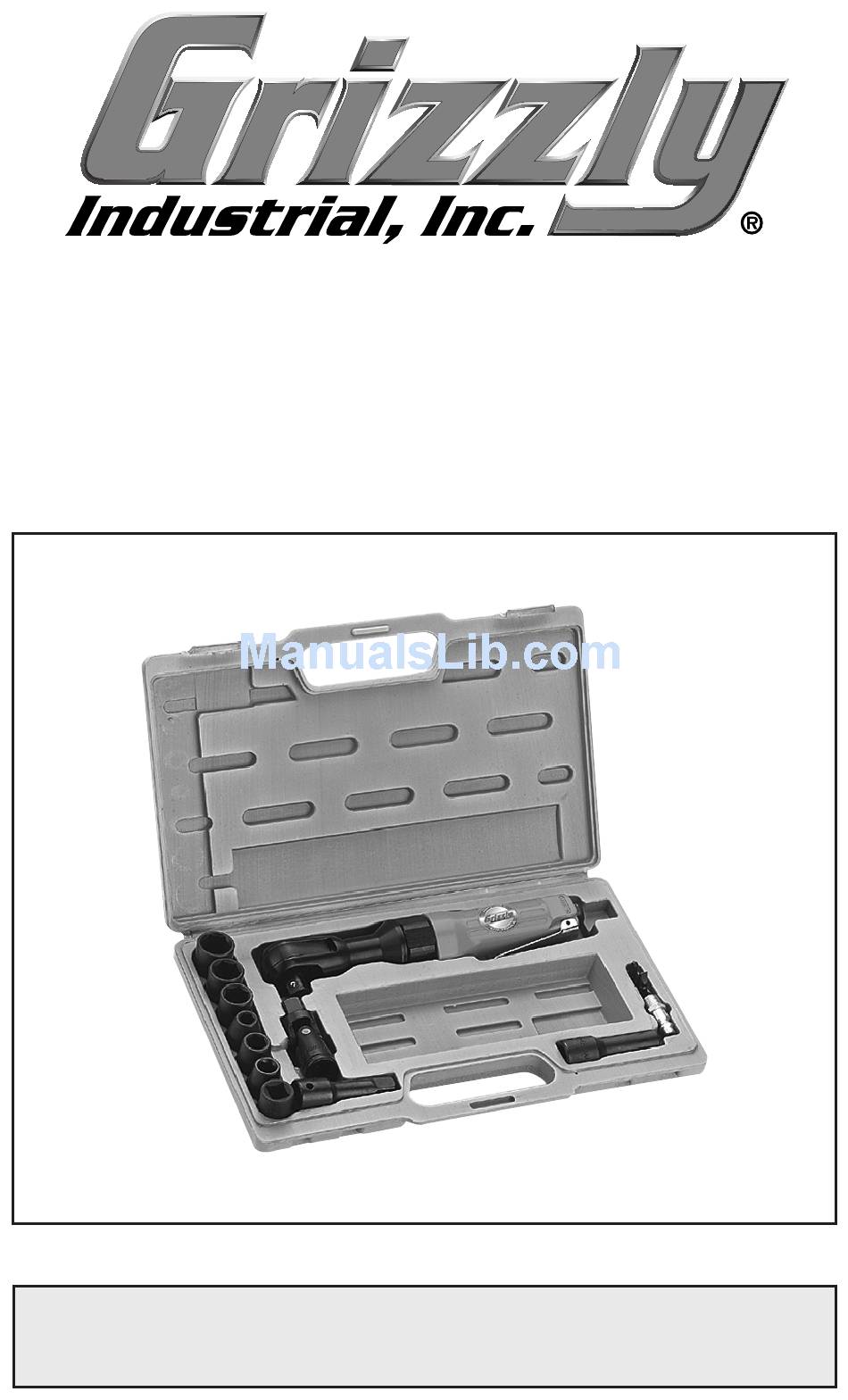

H0598 Shown
Copyright © August, 2008 By grizzly industriAl, inC.
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
#tr11112 printed in tAiwAn
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grizzly G5348
Summary of Contents for Grizzly G5348
- Page 1 17 piece air ratchet Kits oWner's manual H0598 Shown Copyright © August, 2008 By grizzly industriAl, inC. Warning: no portion of this manual may be reproduced in any shape or form Without the Written approval of grizzly industrial, inc. #tr11112 printed in tAiwAn...
-
Page 2: Safety Instructions For Pneumatic Tools
Always wear a respi- rator niosh approved for the type of material being processed. Model g5348/h0597/h0598 17 piece Air ratchet Kit safety indicates an imminently hazardous situation which, if not avoided, Will result in death or serious injury. - Page 3 23. be aWare of hose location. hoses can easily become a tripping hazard when laid across the floor in a disorganized fashion. 24. do influence alcohol, or When tired. Model g5348/h0597/h0598 17 piece Air ratchet Kit recommended untrained under drugs...
- Page 4 Case g5348 ⁄ " drive 10mm h0597 ⁄ " drive h0598 ⁄ " drive Model g5348/h0597/h0598 17 piece Air ratchet Kit inventory impact wrench screw Bits swivel extension 11mm 12mm 13mm ⁄ " ⁄ " ⁄ " ⁄ " ⁄...
- Page 5 Maximum torque ... 50 ft/lb Air inlet size ... Air Consumption ... 4 CFM operating pressure ... 90 psi Maximum operating pressure ... 120 psi weight ...7 lbs psi. Model g5348/h0597/h0598 17 piece Air ratchet Kit ⁄ " ⁄ " npt ⁄ "...
-
Page 6: Air Supply
3, before and after each use and every 2 hours of continued use. figure 3. Manual oiling. Model g5348/h0597/h0598 17 piece Air ratchet Kit Regulator Compressor Filter daily maintenance... - Page 7 P5348039 P5348040 P5348041 P5348042 P5348043 P5348044 PH0597044 3/8" SOCKET SET 7PC SAE P5348045 P5348046 P5348047 P5348048 Model g5348/h0597/h0598 17 piece Air ratchet Kit DESCRIPTION CLAMP NUT BUSHING BEARING CRANK SHAFT DRIVE BUSHING RATCHET YOKE RATCHET ANVIL 3/8" SPRING STEEL BALL...
- Page 8 PH0598022 RATCHET HOUSING PH0598023 IDLER GEAR PH0598024 IDLER GEAR PIN * Breakdown shown for service purposes only. not all parts are available for purchase. Model g5348/h0597/h0598 17 piece Air ratchet Kit REF PART # DESCRIPTION PH0598025 IDLER GEAR PLATE PH0598026 CLAMP NUT...
