LDS2 Mode

Currently the 485 Configuration Application does not have LDS2 Mode parameter support so if
LDS2 Mode is selected, there will be an empty screen.

RFID

RFID (Radio Frequency Identification) is a module offered in specific models of the 485 Printer.
The configuration application includes RFID settings regardless if the printer connected is RFID
equipped. By default, printers without RFID capability will have RFID disabled and all RFID
related settings will have no effect on the printer.
RFID Parameters:

Retry Count – Number of retries to attempt if an RFID operation fails.

Timeout – Milliseconds the printer will wait for the RFID reader to respond to a single
command sent to it.

RFID Keys – Used to authenticate MIFARE 1K tags ONLY.

RFID Step Offset – Adjust the distance the media is retracted from the registration mark.
Distance = Retract Distance - Offset. Mainly used to adjust RFID wristbands

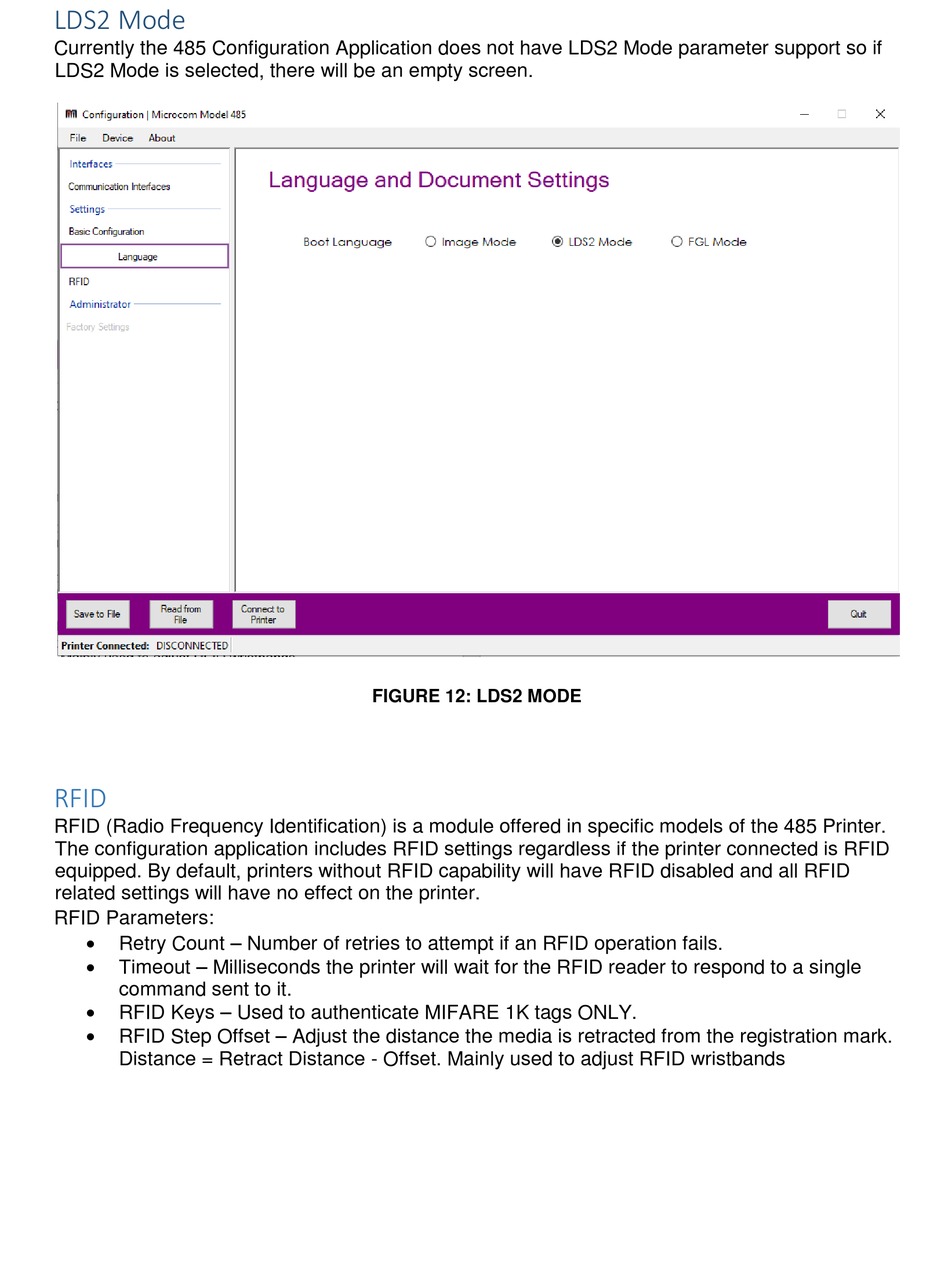

FIGURE 12: LDS2 MODE
