Bluetooth; Basic Configuration - Microcom 485 User Manual

Bluetooth

Bluetooth settings are available regardless if the printer connected is equipped with the
Bluetooth dongle. By default, printers without Bluetooth capability will have the Bluetooth
interface parameter disabled and any values saved to the printer in this category will not have
any effect on the device. For a full description on Bluetooth, please refer to the 485 User Guide.

Basic Configuration

The basic configuration page provides miscellaneous printer parameters to adjust or edit. If a
printer is connected, the model and firmware version will appear at the top of the page.
Configurable parameters include:

Cutter Type

Cutter Speed (Forward & Reverse)

Stock Eject Distance

Network Timeout

UDP Discover

Enable Line Printer Daemon (LPD)

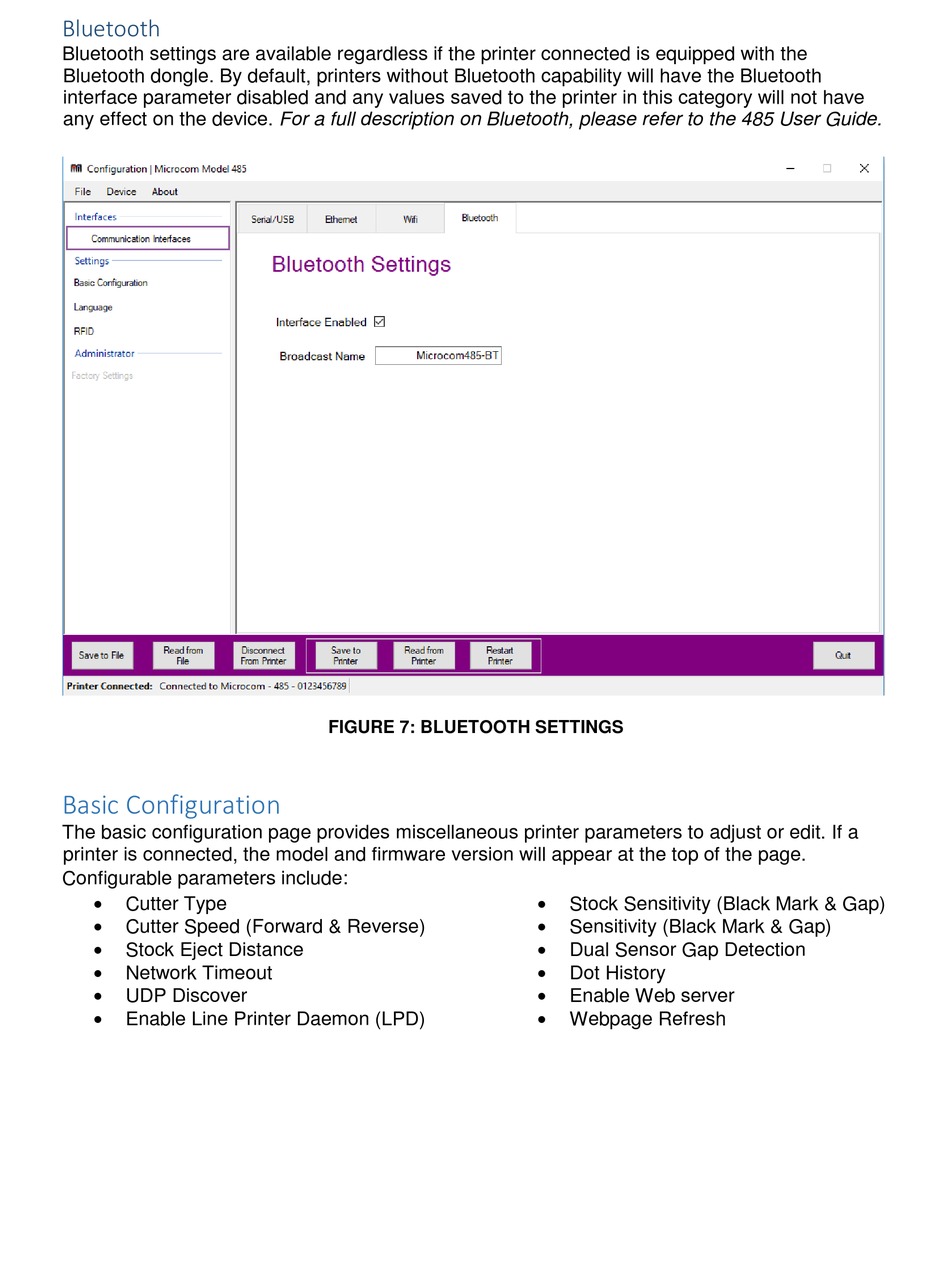

FIGURE 7: BLUETOOTH SETTINGS

Stock Sensitivity (Black Mark & Gap)

Sensitivity (Black Mark & Gap)

Dual Sensor Gap Detection

Dot History

Enable Web server

Webpage Refresh
